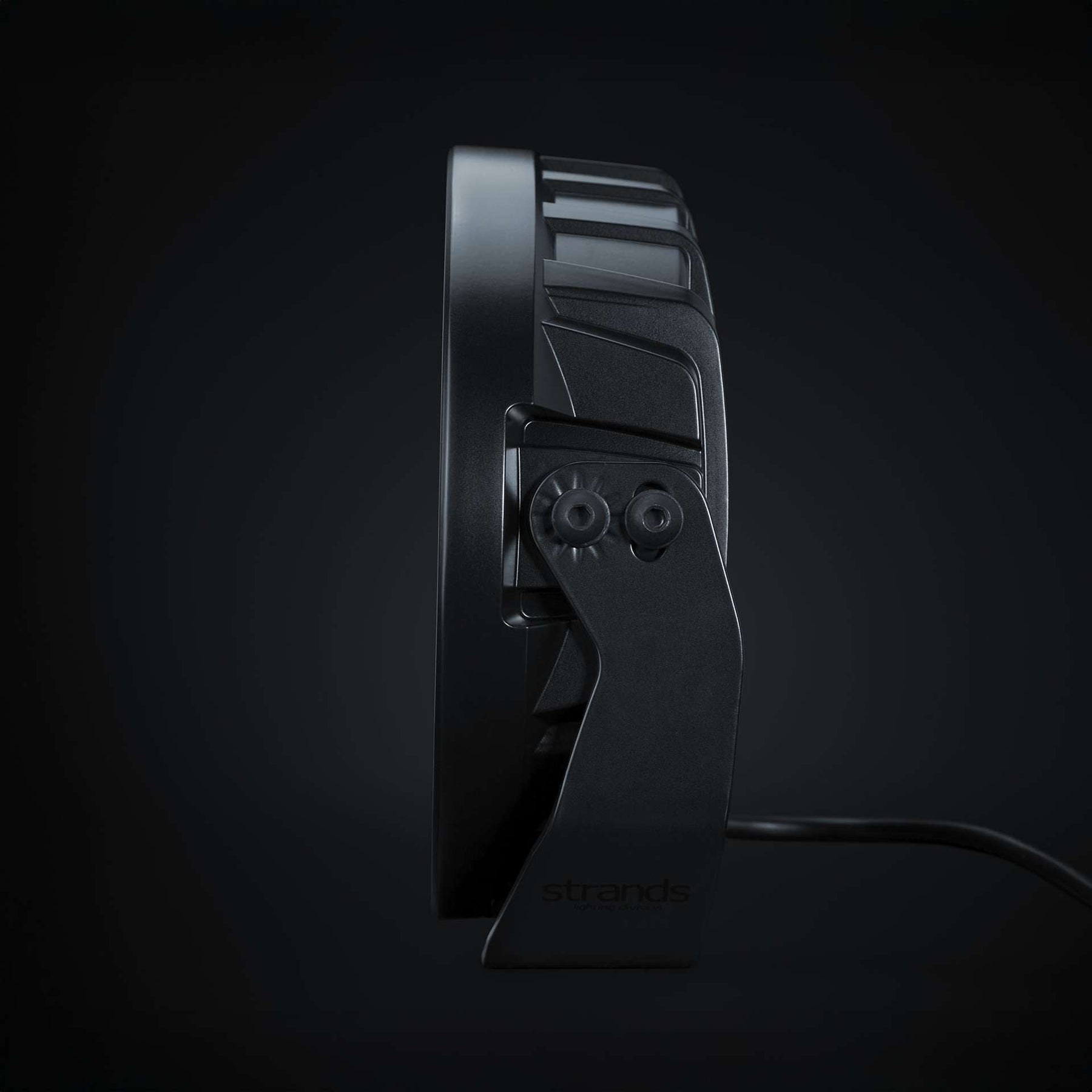

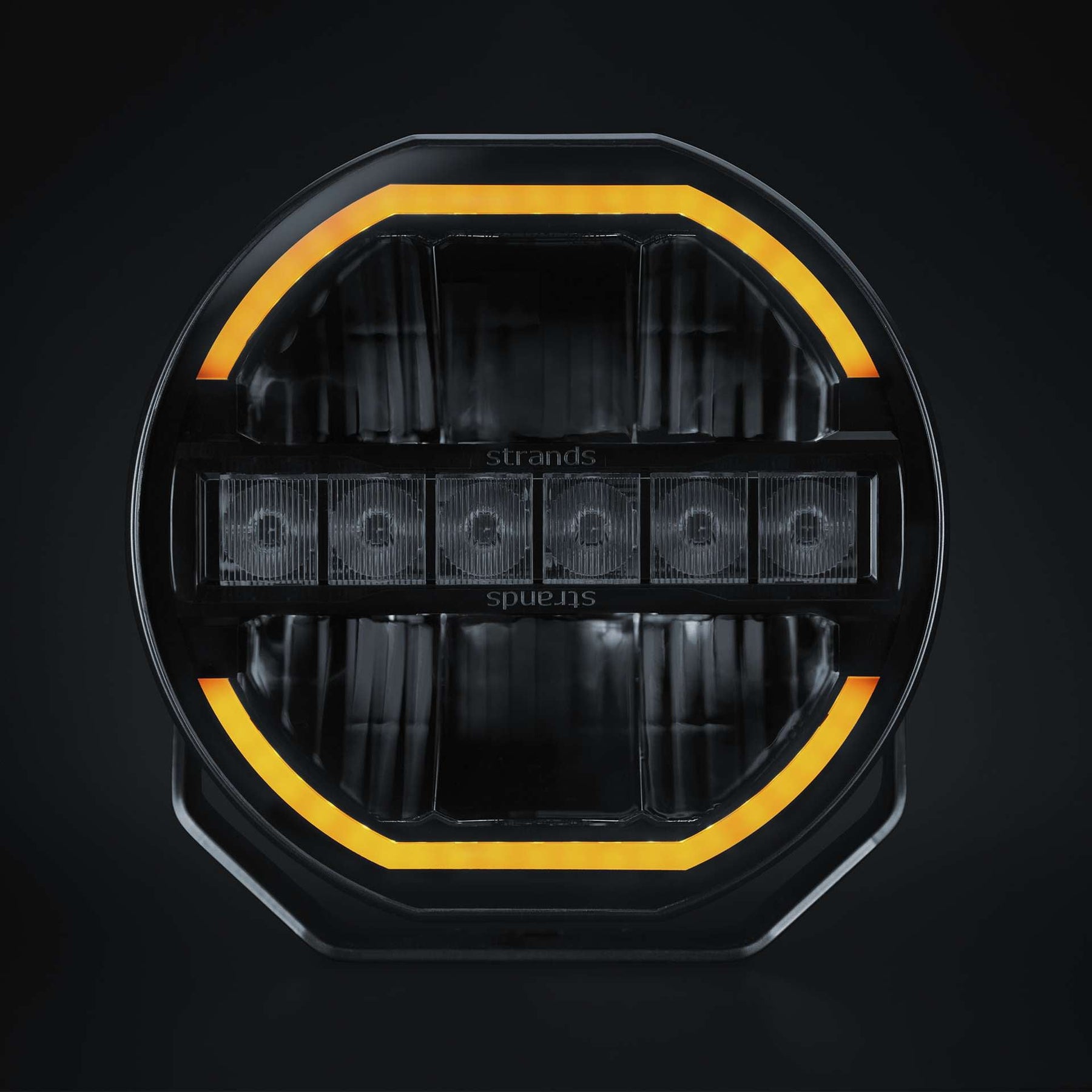

Name: Skylord EXP Driving Light (9")
Brand: Strands
SKU: 270948S1
Price: 1099.0 CAD
Availability: InStock

SKU: 270948S1

$1,099.00

Shipping calculated at checkout.

In stock, ready to ship
Backordered, shipping soon

Description
Specifications
Manual

Description

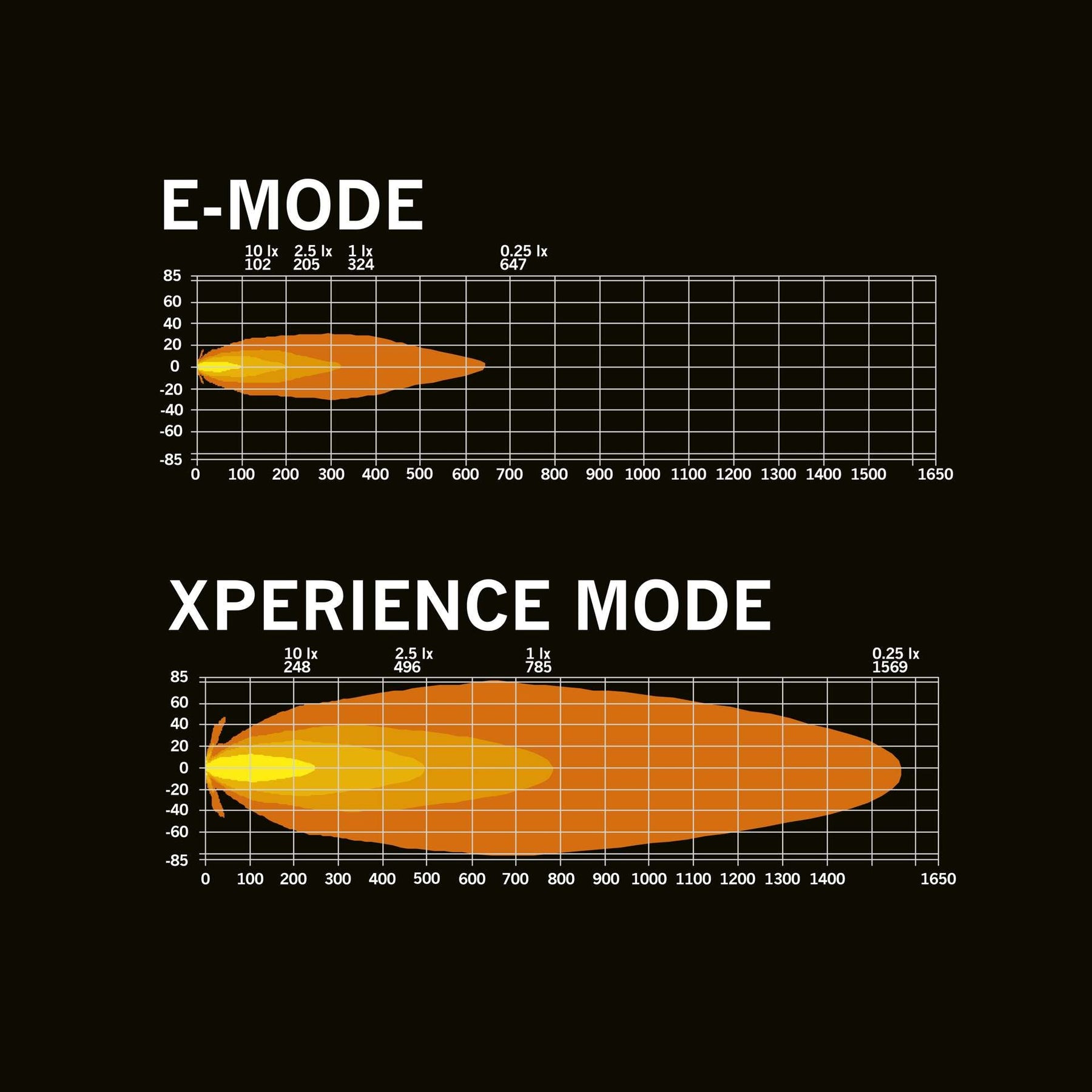

Skylord EXP driving light 9" is developed for drivers who want powerful, long-range visibility combined with a smarter installation. Delivering up to 13,300 lumens and a reach of 785 meters in Xperience mode, it provides exceptional performance for demanding driving conditions. The long-distance beam pattern, 5700 K color temperature, and E-approved E-mode, as per R148/R149 with reference number 25, ensure both maximum visibility and road-legal use. Power consumption is 25 W in E-mode and 156 W in Xperience mode.

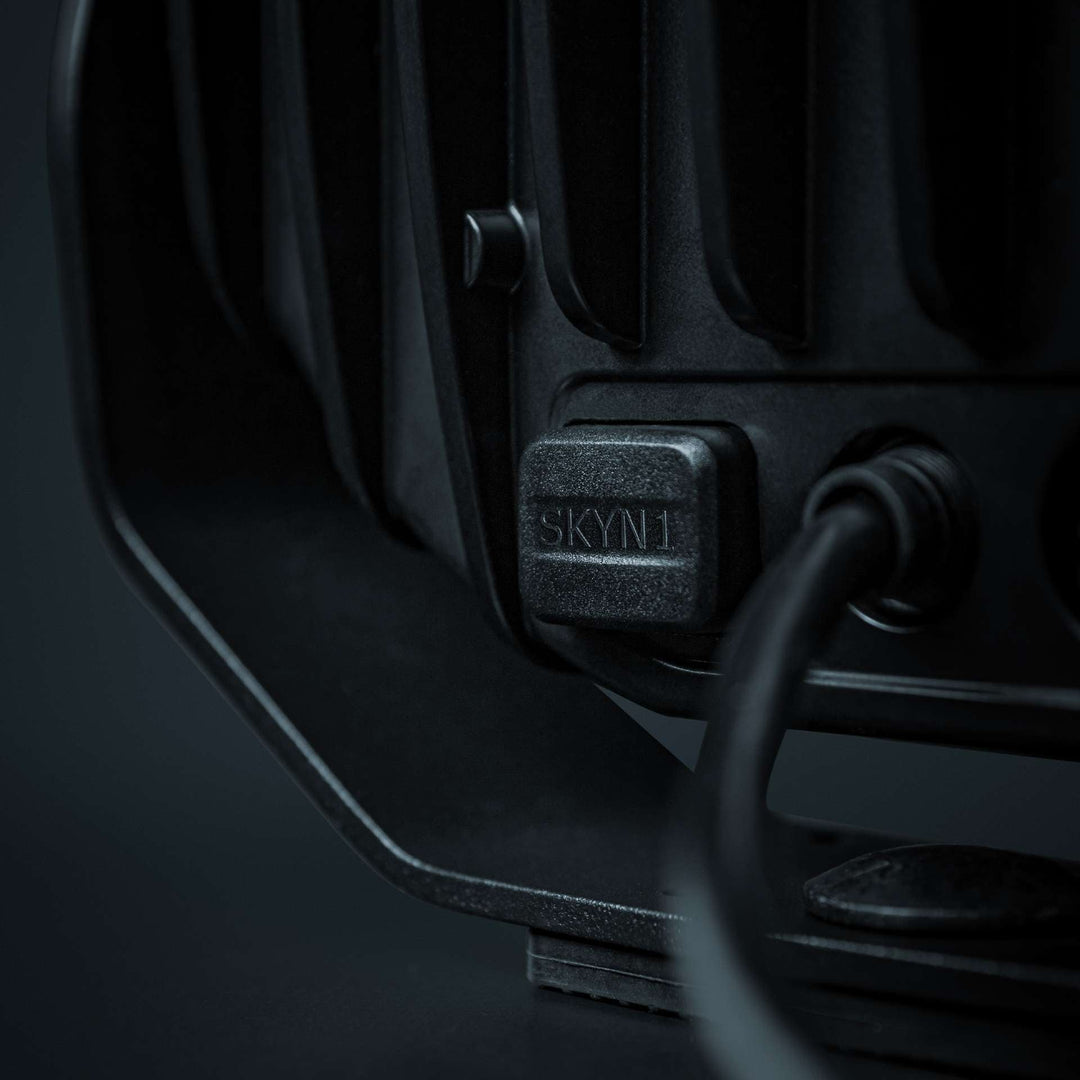

Designed exclusively for the SKYN1 EXP system, the driving light connects wirelessly via Bluetooth® technology to the EXP control box (Part No. 907851S1) and requires the control box to operate. Functions are automatically detected and assigned, reducing wiring and simplifying installation. Built with an aluminum housing, a polycarbonate lens, and IP68/IP69K protection, Skylord EXP is ready for demanding environments and backed by Strands’ 3-year warranty. This light also features a built-in relay.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Strands Lighting Division is under license. Other trademarks and trade names are those of their respective owners.

Specifications

Unit: PCS
Voltage (DC): 10–40V DC
Theoretical effect: 165W
Consumption: 156W

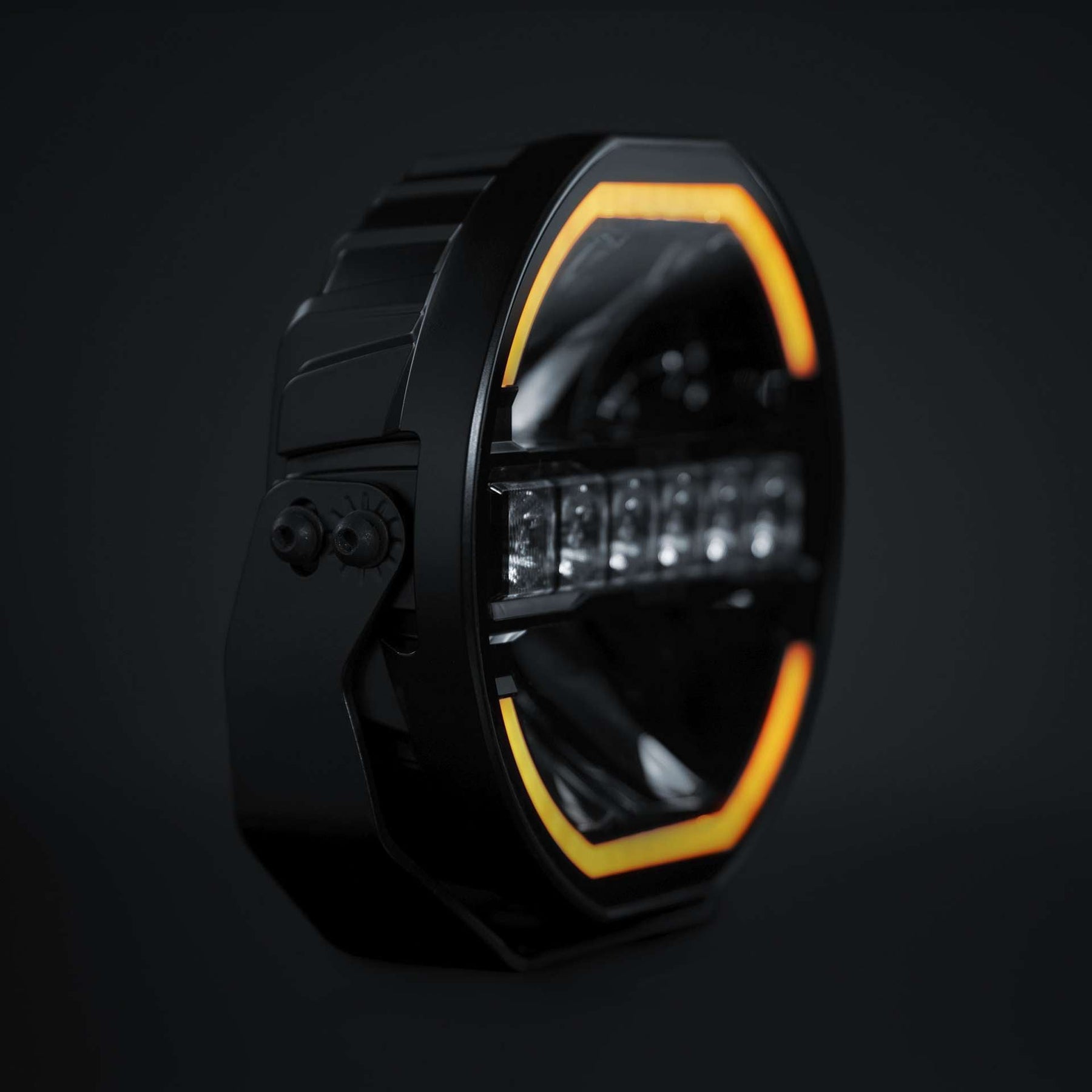

Functions: Amber Pos. / White Pos. / Xperience mode / E-approved mode
Consumption specific function: White Pos. 6W / Amber Pos. 6W / E-mode 25W / X-mode 156W
Theoretical lumen: 15000lm
Actual lumen: 13300lm
1 lux @: 785m
Color temperature: 5700K
Beam pattern: Long-distance beam
Beam angle: 16.6°
Connection: Cable
Cable length: 2000mm
Color housing: Black
Color lens: Clear
Color LED's: White / Amber
Material bracket: Stainless Steel

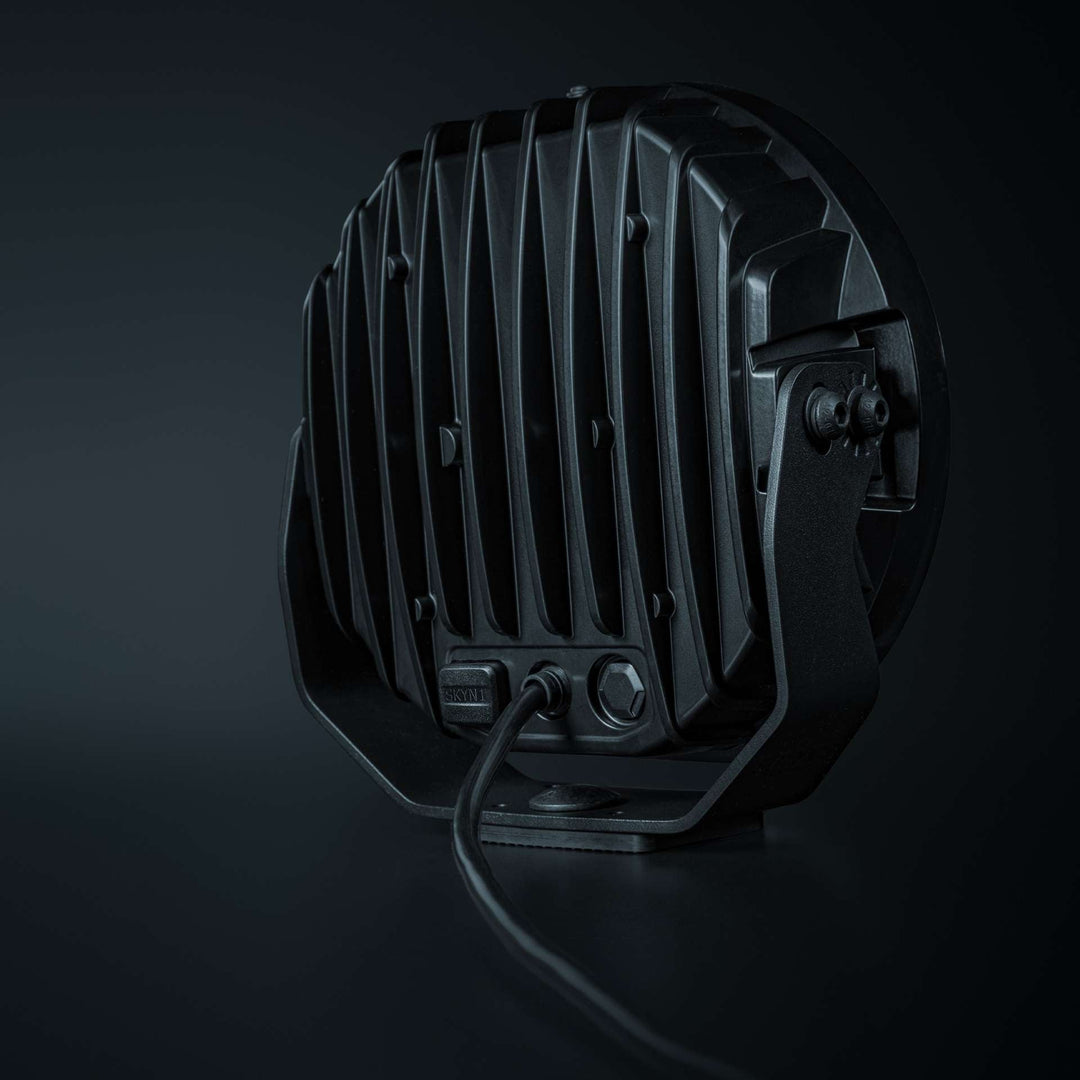

Material housing/chassi: Aluminium
Material lens: Polycarbonate

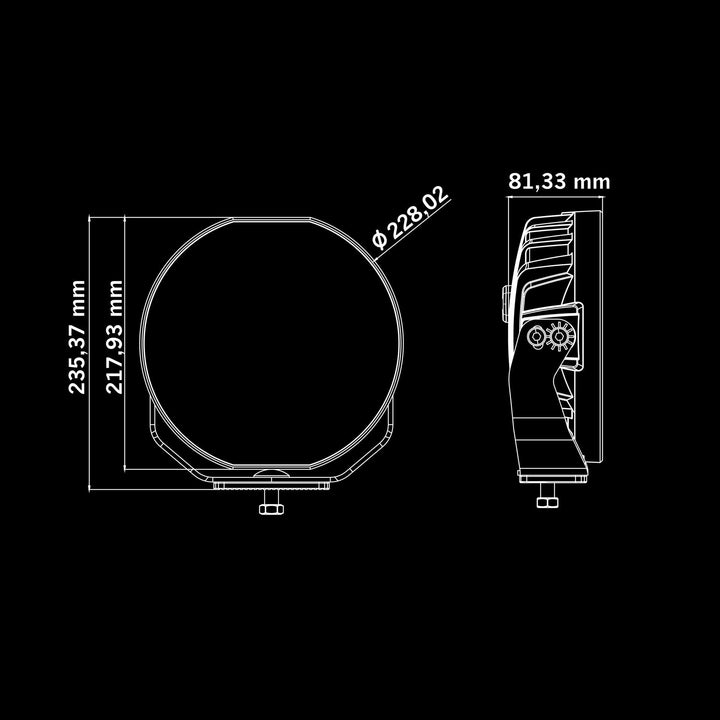

Length: 228mm
Depth: 80.7mm
Height: 217.9mm
Height including bracket: 232.9mm
Weight: 3.4kg
Diameter: 228mm
IP-class: IP68/69K
Operating temperature: -30° – +65°C
E-approved: Yes
ECE approval: R10.06 / R148 / R149 / CE-RED
Reference number: 25
Other approval: CISPR25 Class 3 / SIG Bluetooth
Additional information: Works with SKYN1 EXP CONTROLLR 907851S1

Manual

Download Manual
