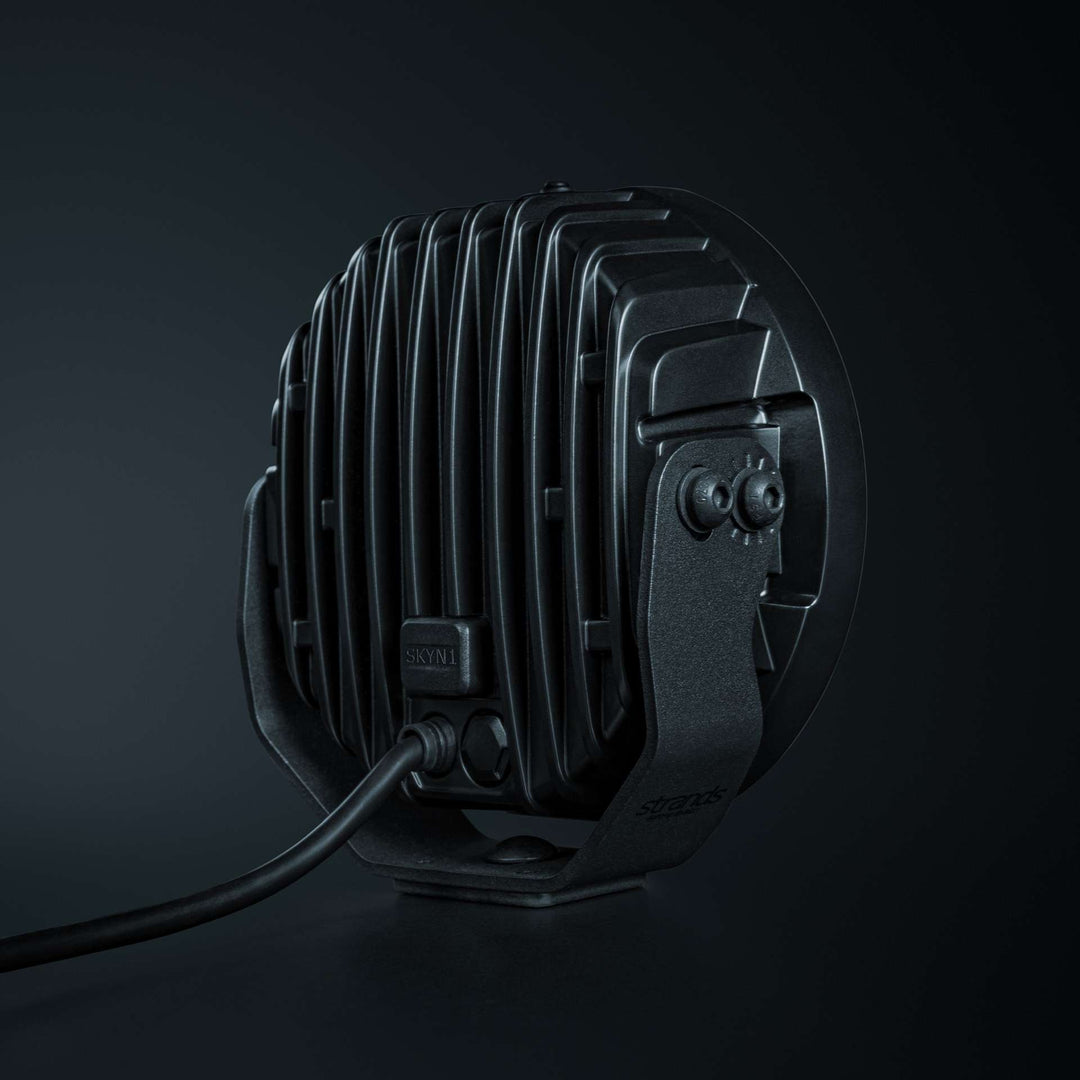

Name: Skylord EXP Driving Light (7")
Brand: Strands
SKU: 270947S1
Price: 849.0 CAD
Availability: InStock

SKU: 270947S1

$849.00

Shipping calculated at checkout.

In stock, ready to ship
Backordered, shipping soon

Description
Specifications
Manual

Description

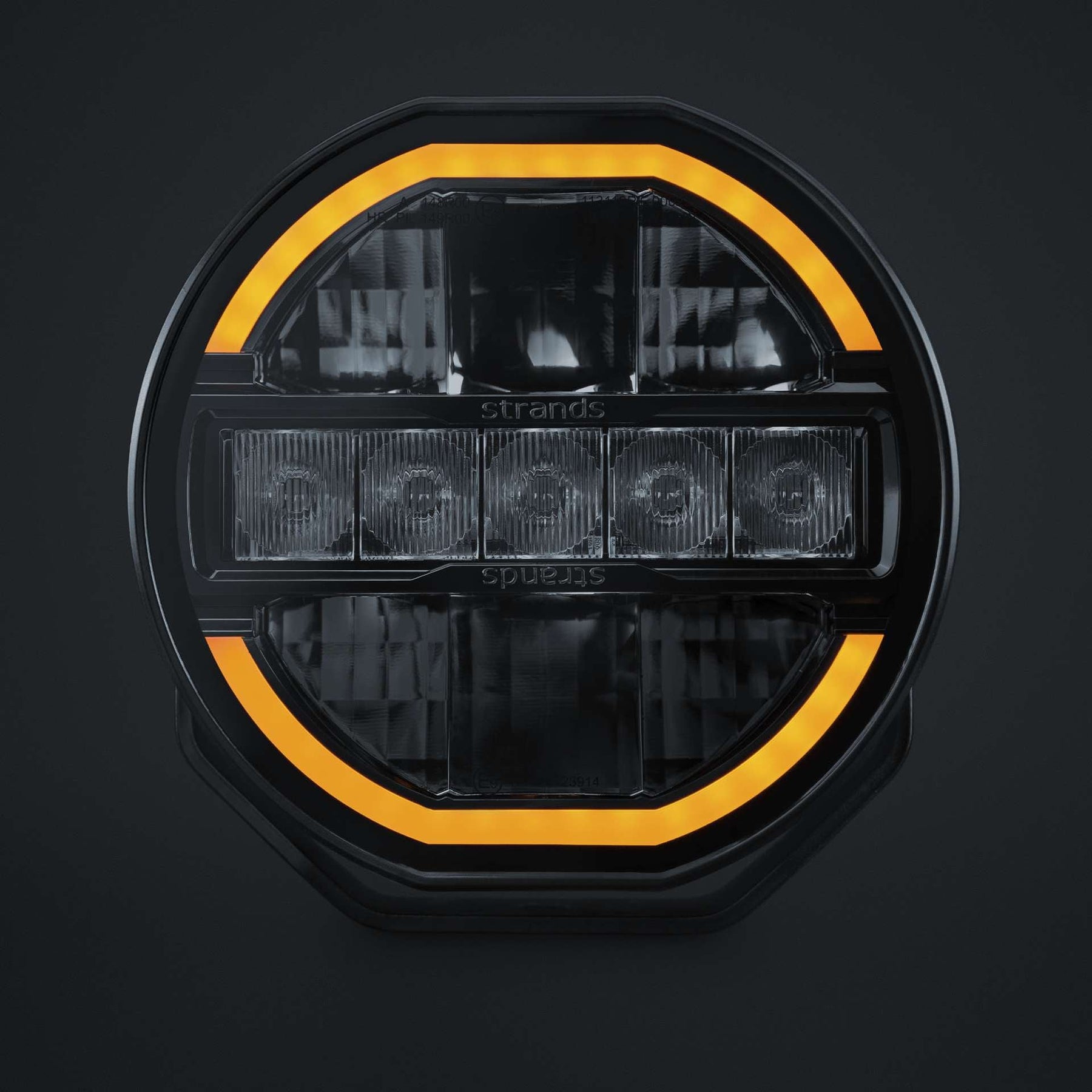

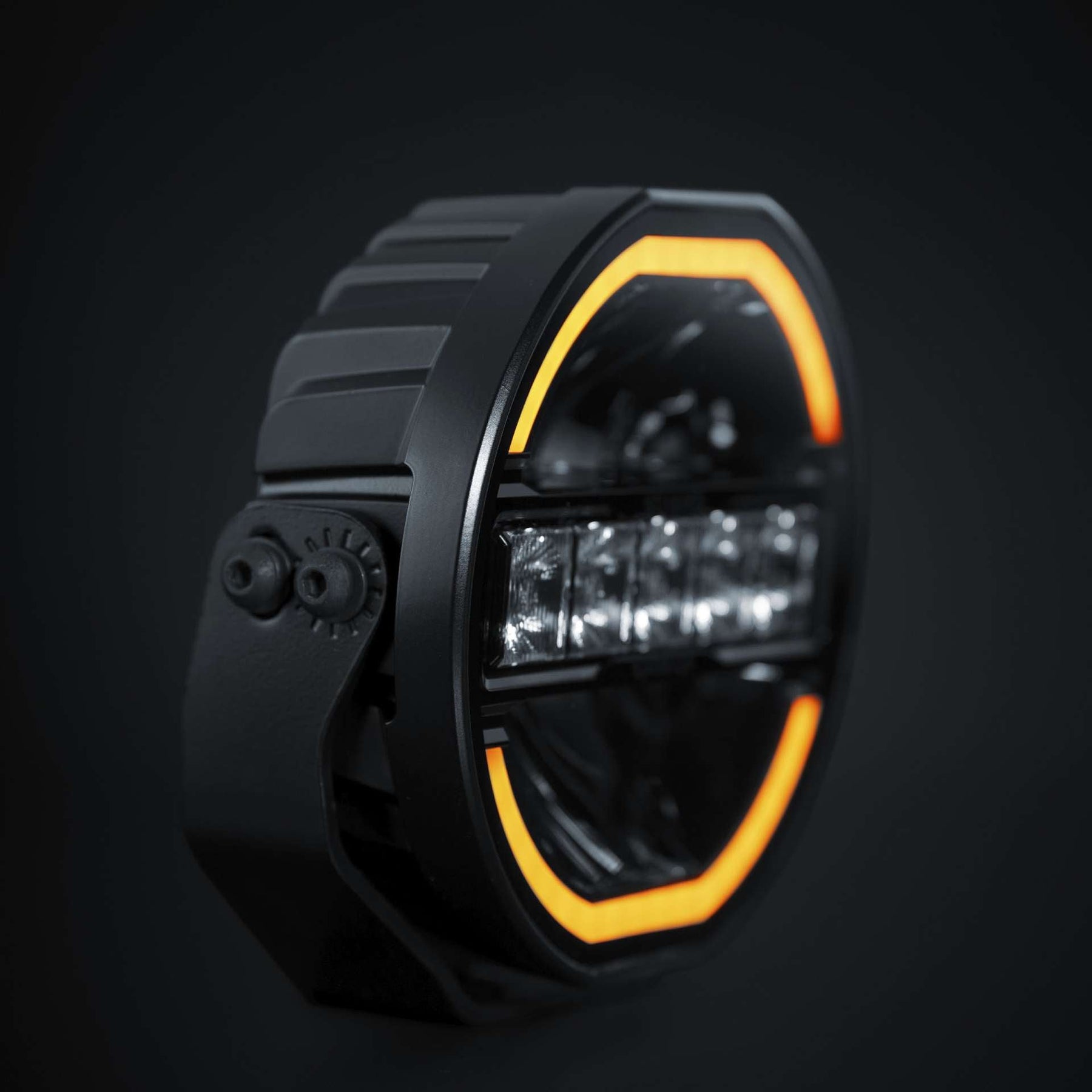

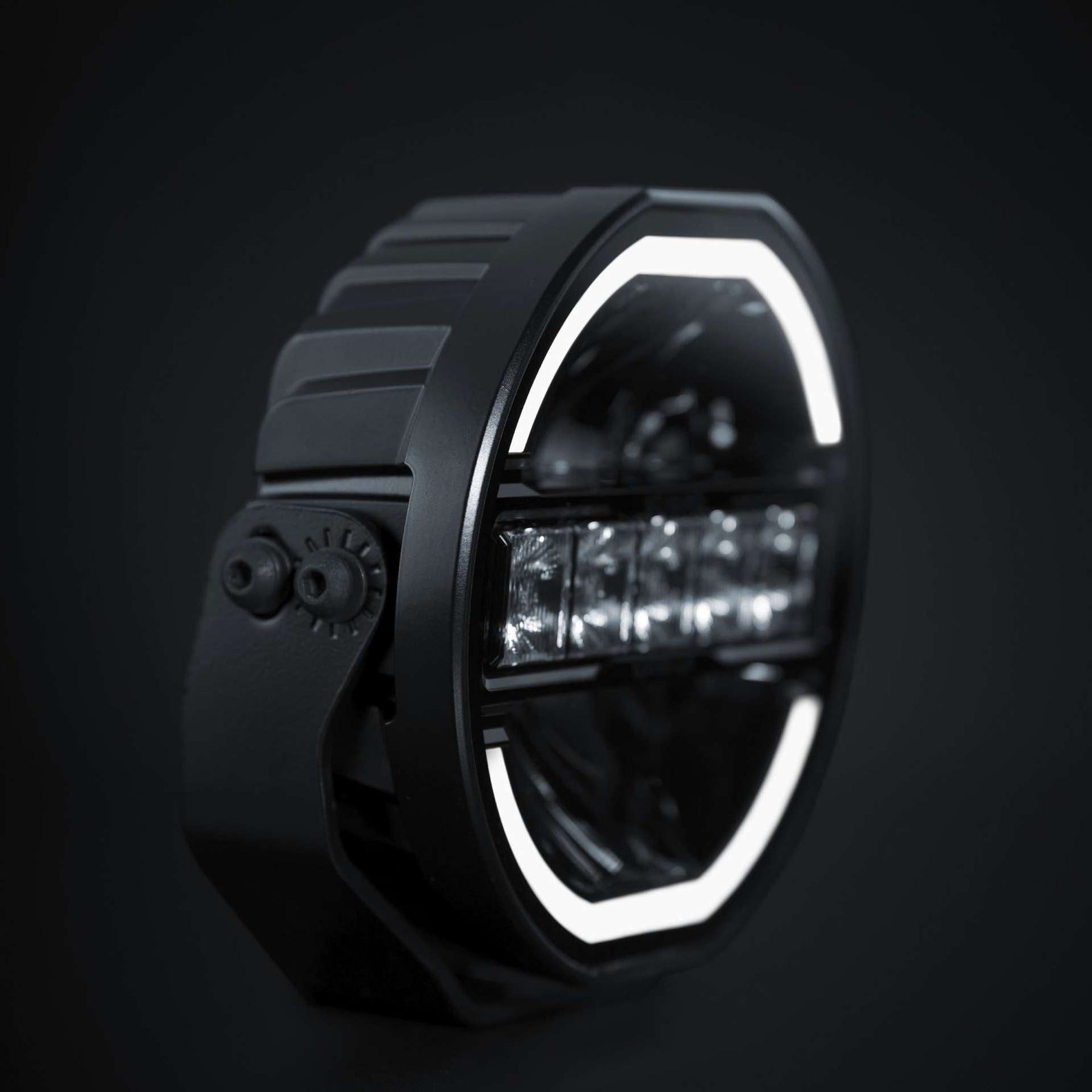

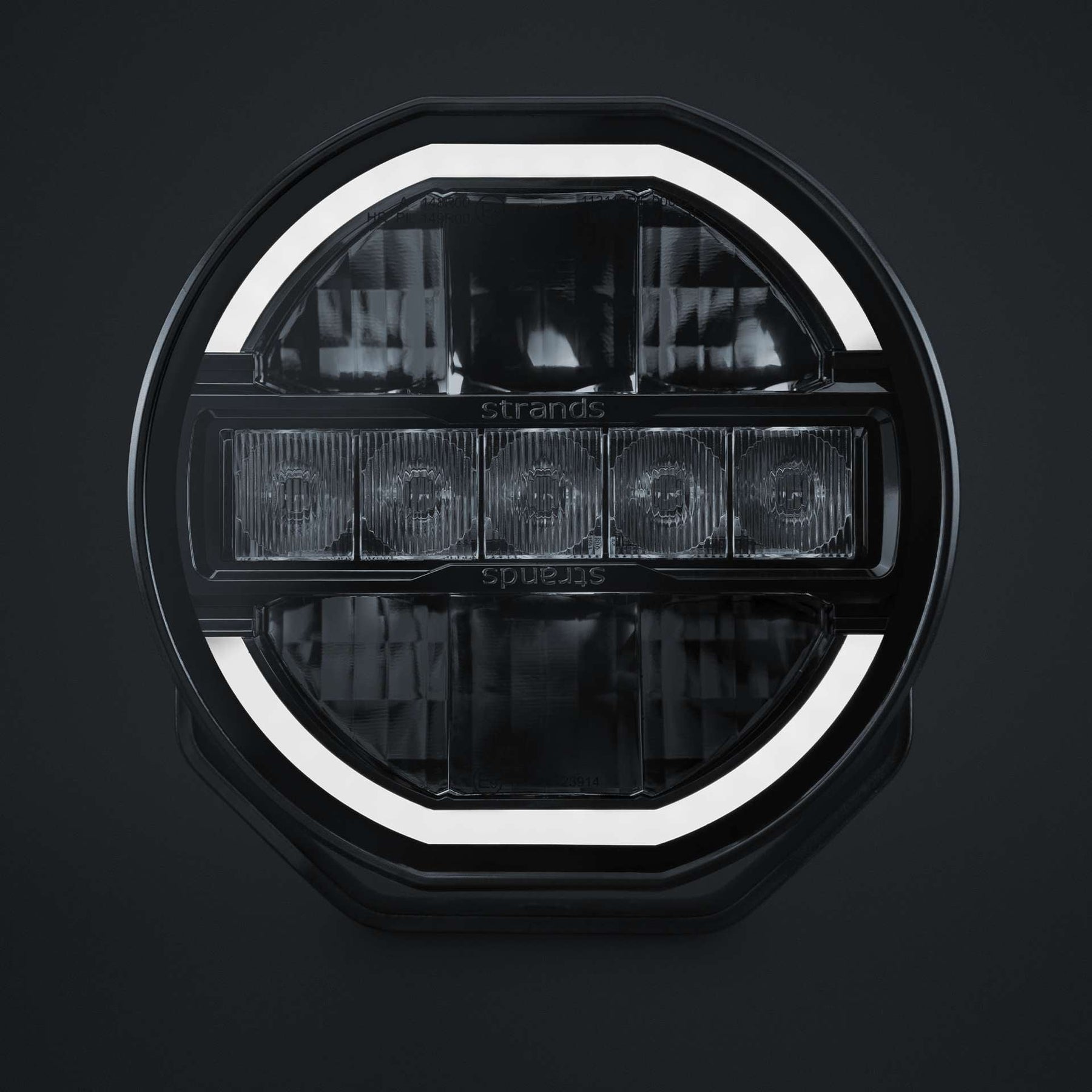

Skylord EXP driving light 7" is developed for drivers who want powerful visibility combined with a smarter installation. Delivering up to 8,400 lumens and a reach of 639 meters in Xperience mode, it provides outstanding performance for dark roads and demanding driving conditions. The extended beam pattern, 5700 K color temperature, and E-approved E-mode according to R148/R149 with reference number 20 ensure excellent visibility while remaining road-legal. Dual operating modes allow the light output to be adapted to different driving situations. This light also features a built-in relay.

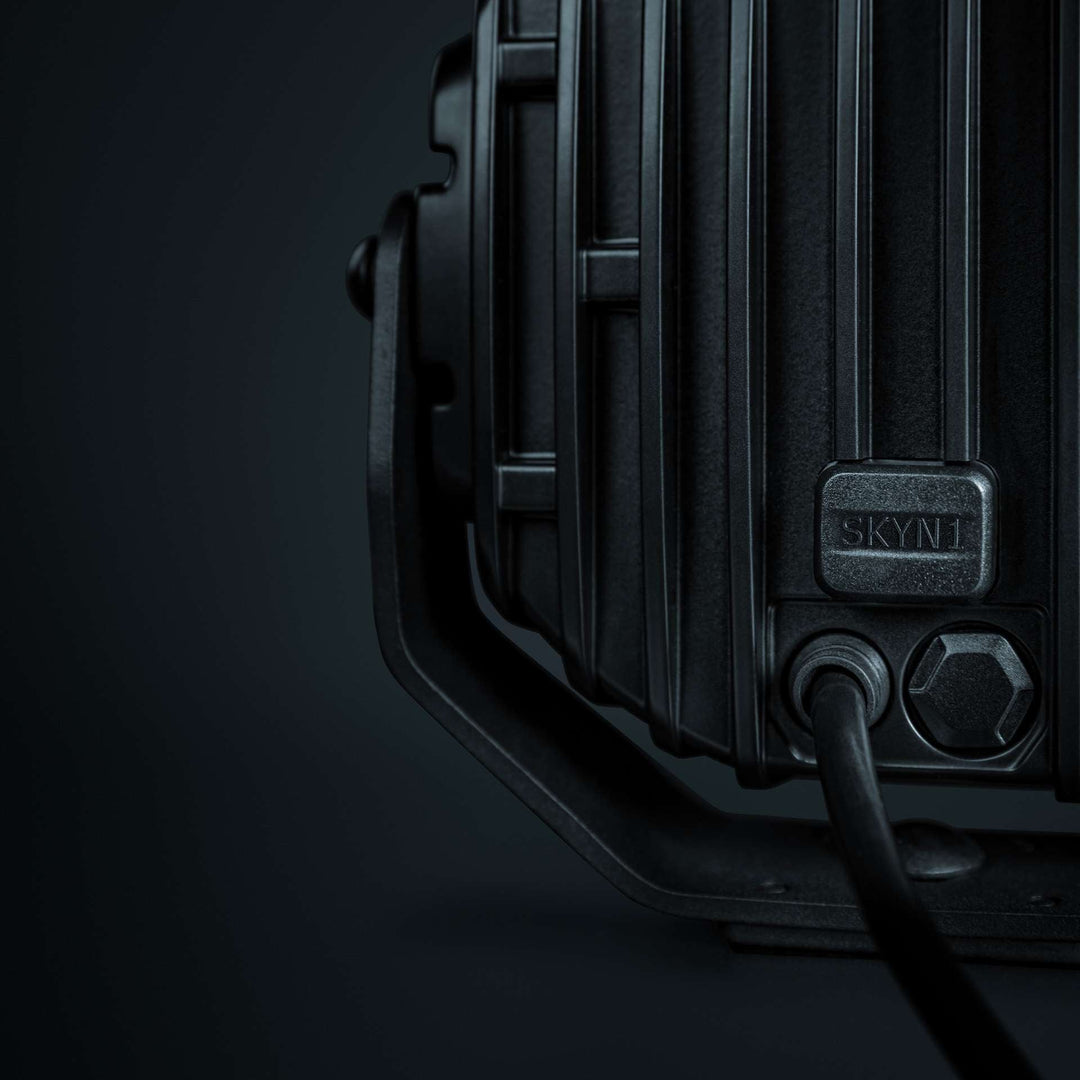

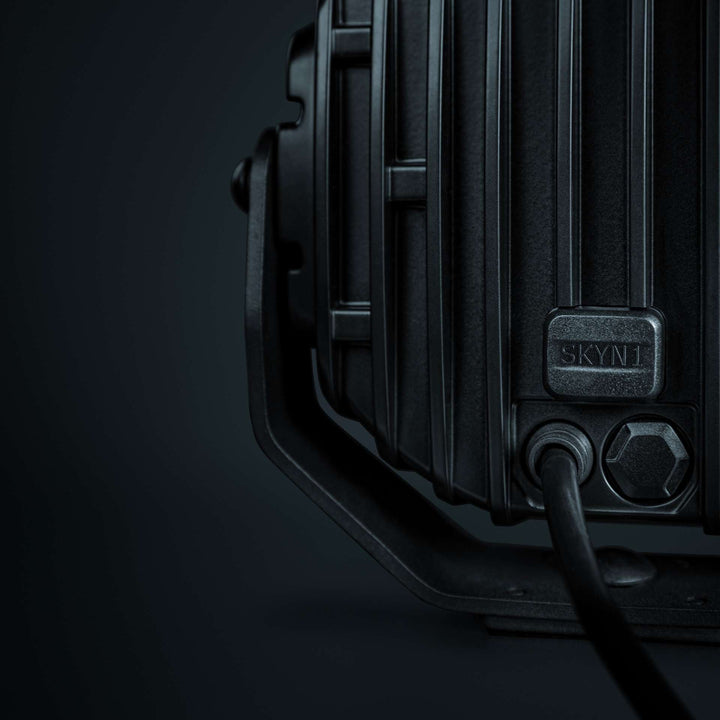

Designed exclusively for the SKYN1 EXP system, the driving light connects wirelessly via Bluetooth® technology to the EXP control box (Part No. 907851S1) and requires the EXP system to operate. Functions are automatically identified and assigned, reducing wiring and simplifying installation. Built with an aluminum housing, polycarbonate lens, and IP-rated IP68/IP69K protection, Skylord EXP is ready for demanding environments and is backed by Strands’ 3-year warranty.

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Strands Lighting Division is under license. Other trademarks and trade names are those of their respective owners.

Specifications

Unit: PCS
Voltage (DC): 10–40V DC
Theoretical effect: 120W
Consumption: 109W
Functions: Amber Pos. / White Pos. / Xperience mode / E-approved mode
Consumption specific function: White Pos. 5W / Amber Pos. 5W / E-mode 22W / X-mode 109W
Theoretical lumen: 10000lm
Actual lumen: 8400lm

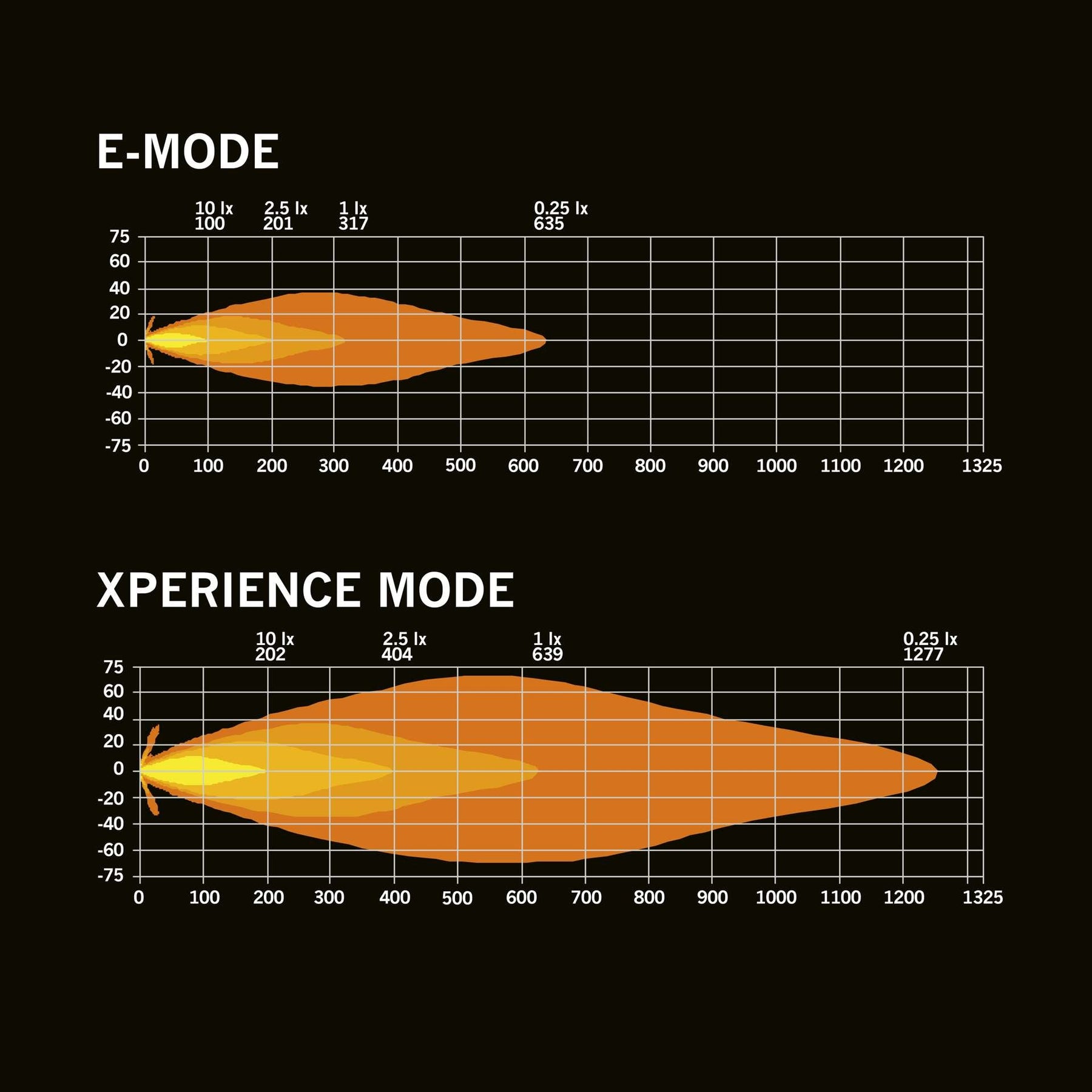

1 lux @: 639m
Color temperature: 5700K
Beam pattern: Extended Beam
Beam angle: 18.4°
Connection: Cable
Cable length: 2000mm
Color housing: Black
Color lens: Clear
Color LED's: White / Amber

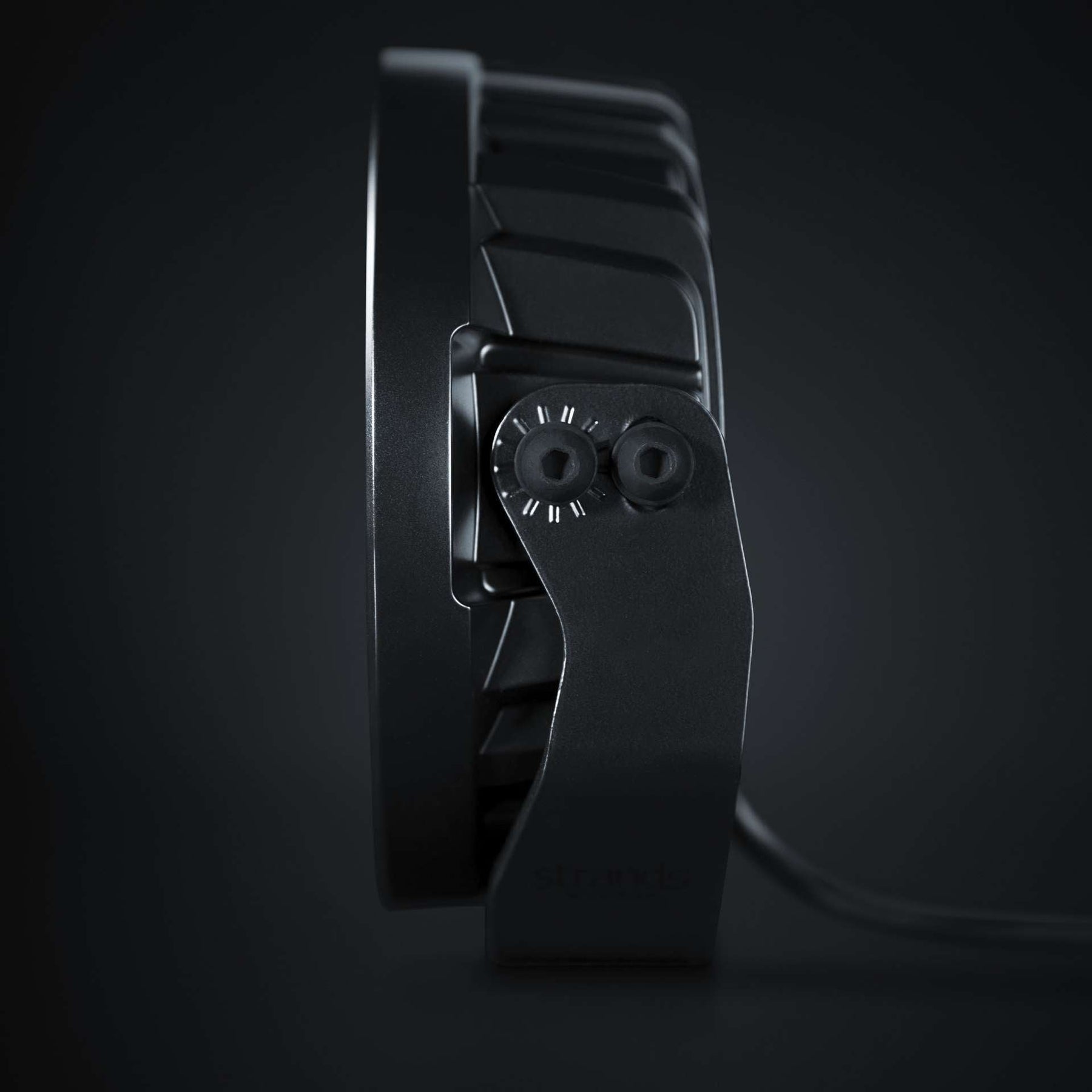

Material bracket: Stainless Steel
Material housing/chassi: Aluminium
Material lens: Polycarbonate

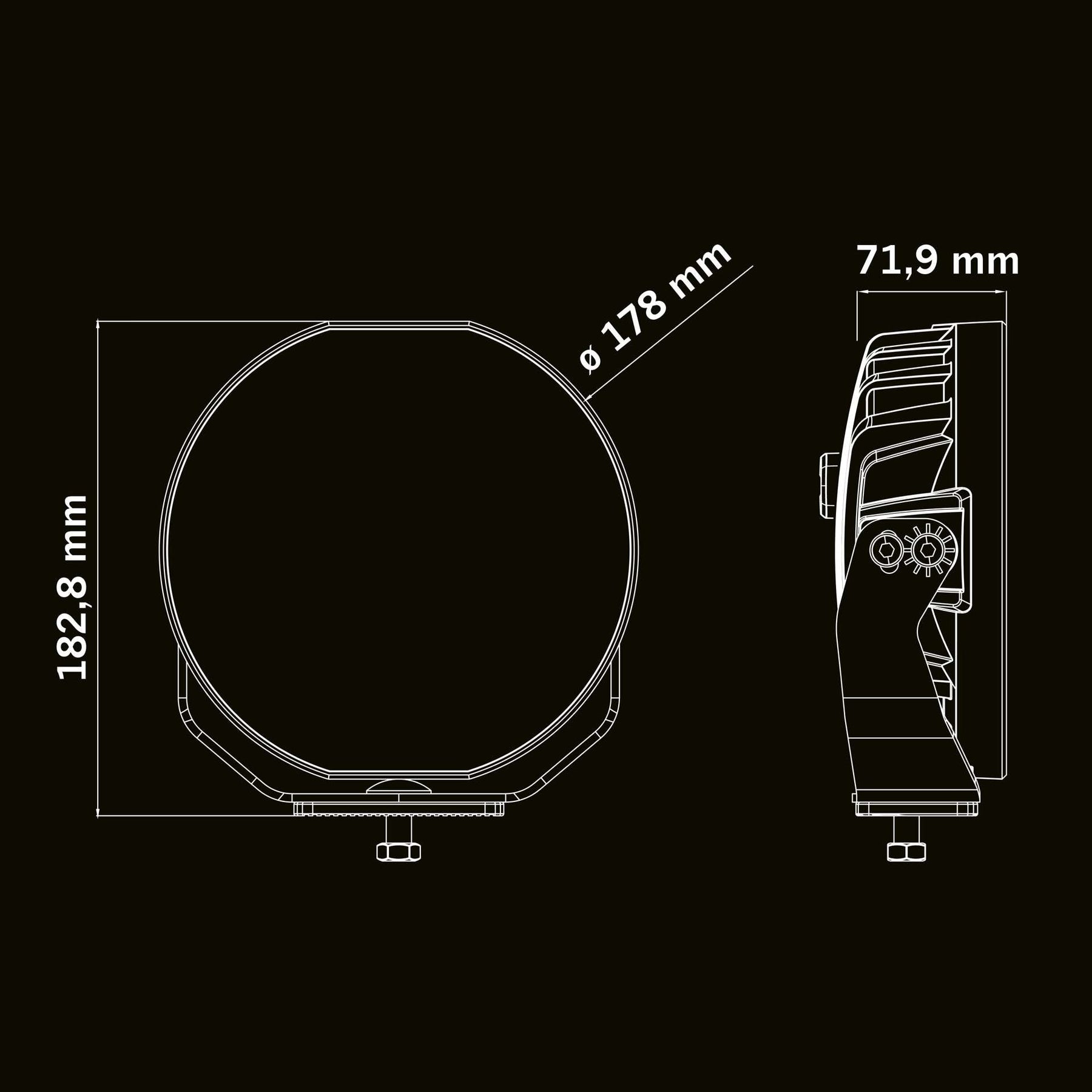

Length: 178mm
Depth: 71.9mm
Height: 170.3mm
Height including bracket: 182.8mm
Weight: 2.2kg
Diameter: 178mm
IP-class: IP68/69K
Operating temperature: -30° – +65°C
E-approved: Yes
ECE approval: R10.06 / R148 / R149 / CE-RED
Reference number: 25
Other approval: CISPR25 Class 3 / SIG Bluetooth
Additional information: —

Manual

Download Manual
