FOR9T SPANISH LIGHT 3 FUNCTION

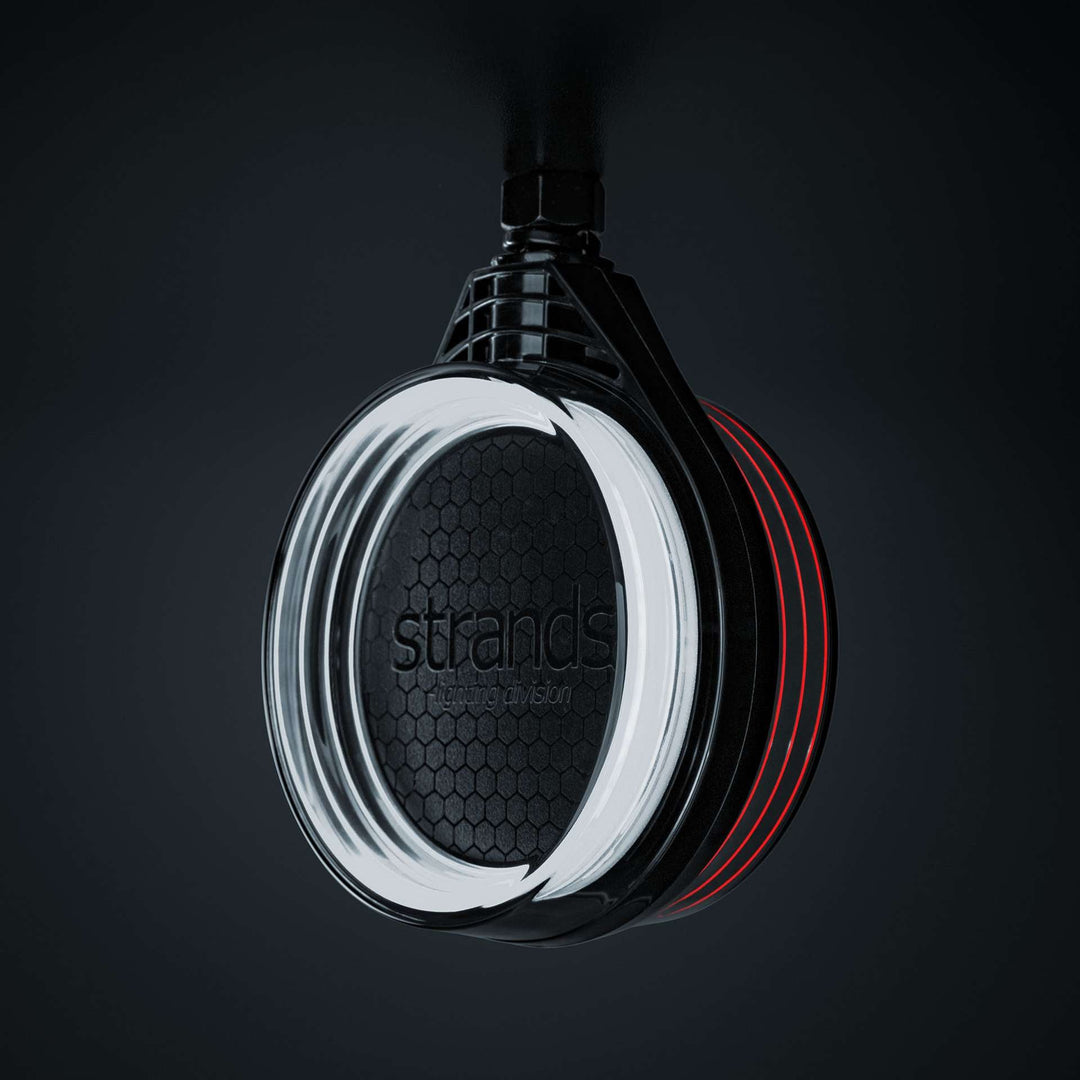

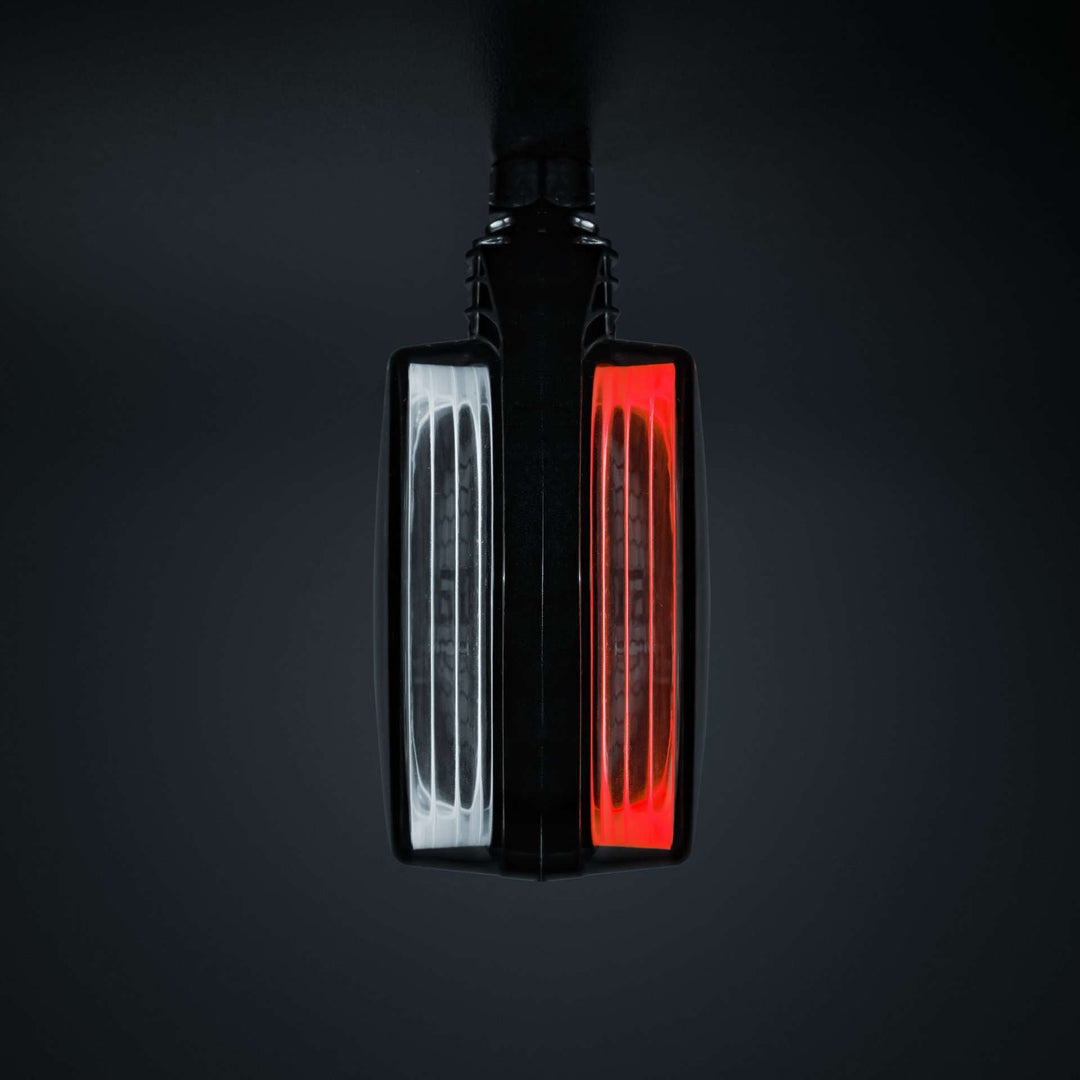

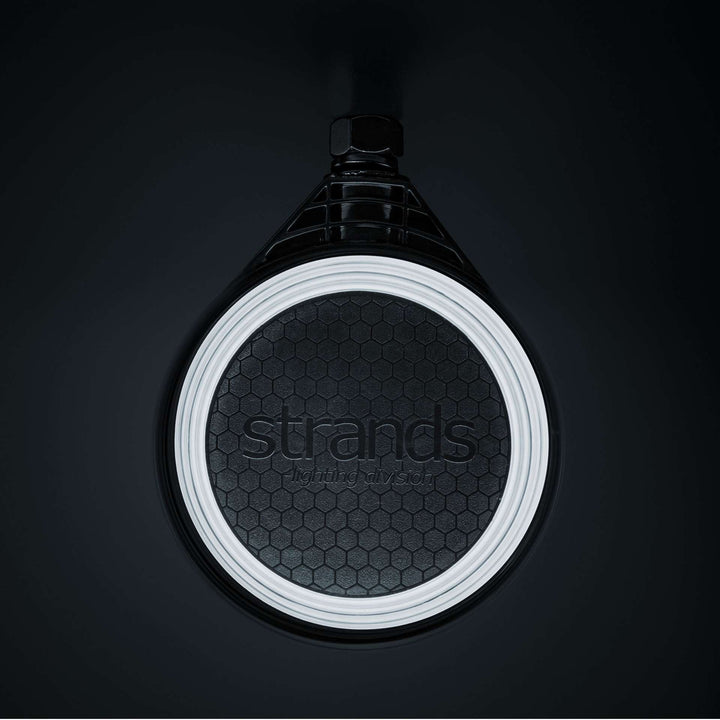

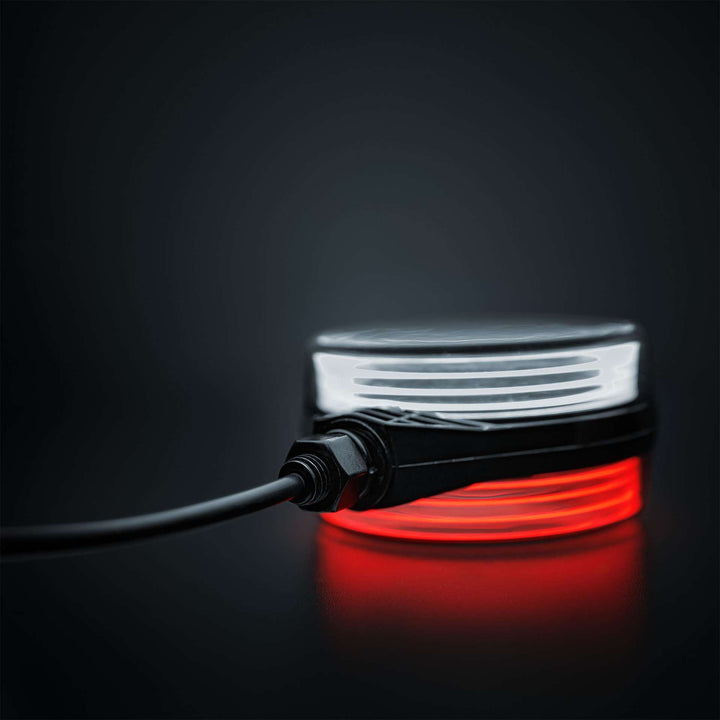

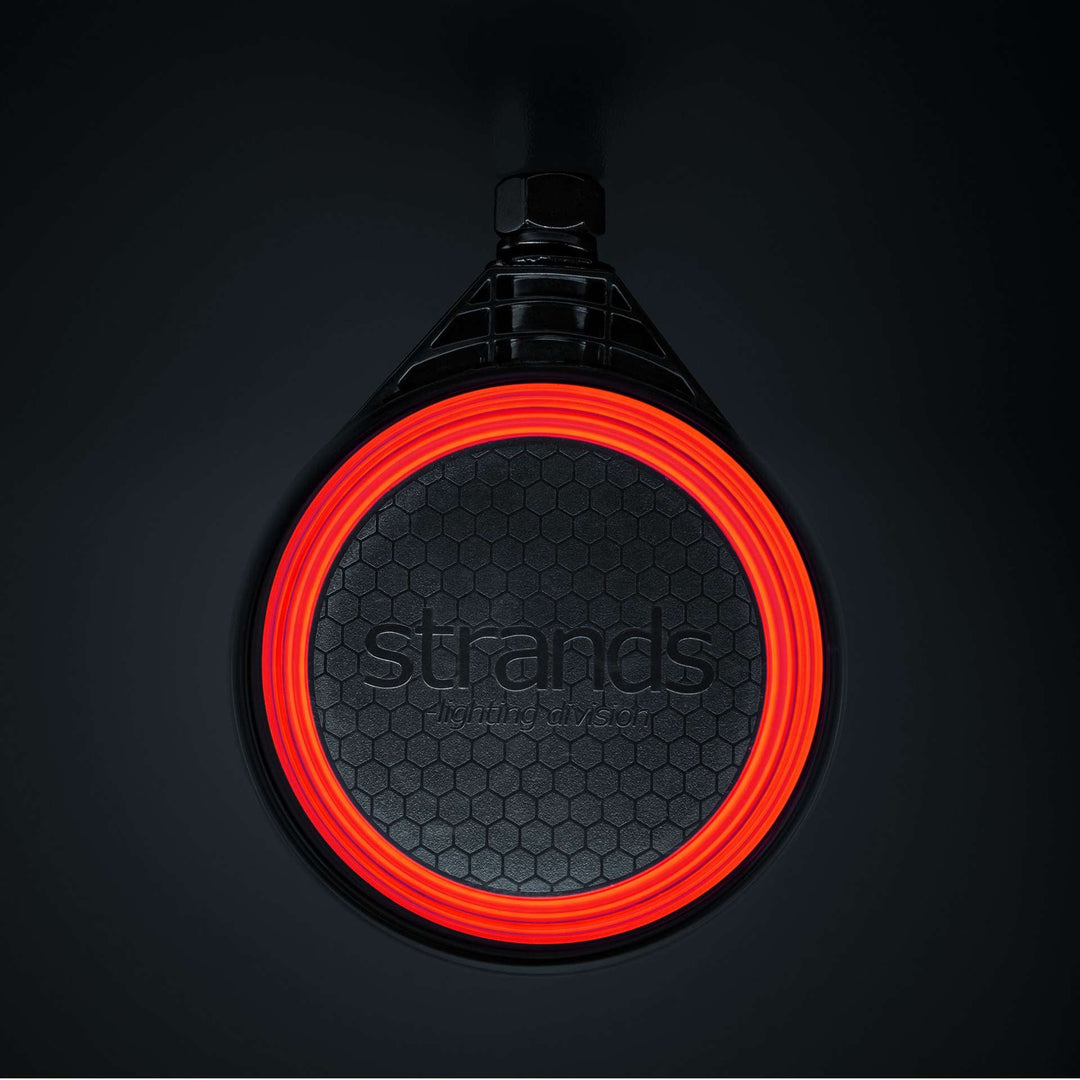

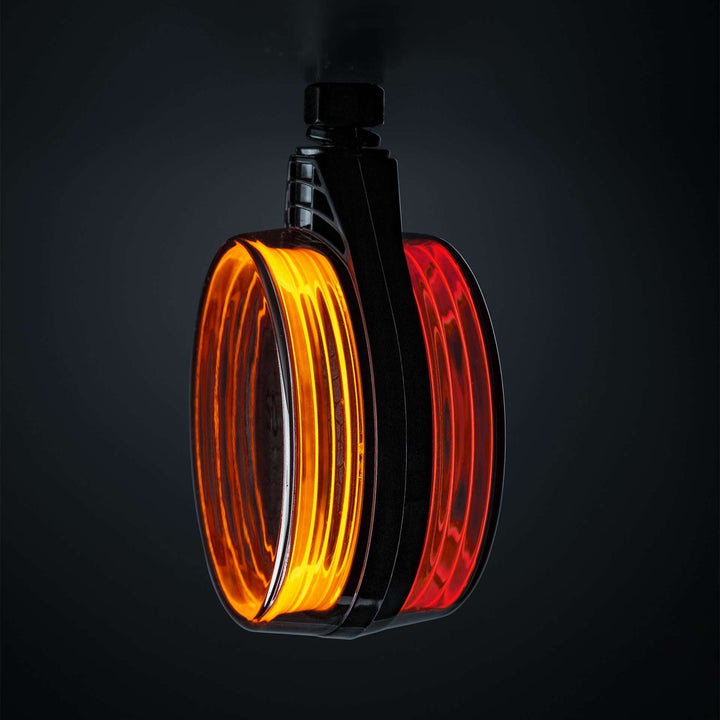

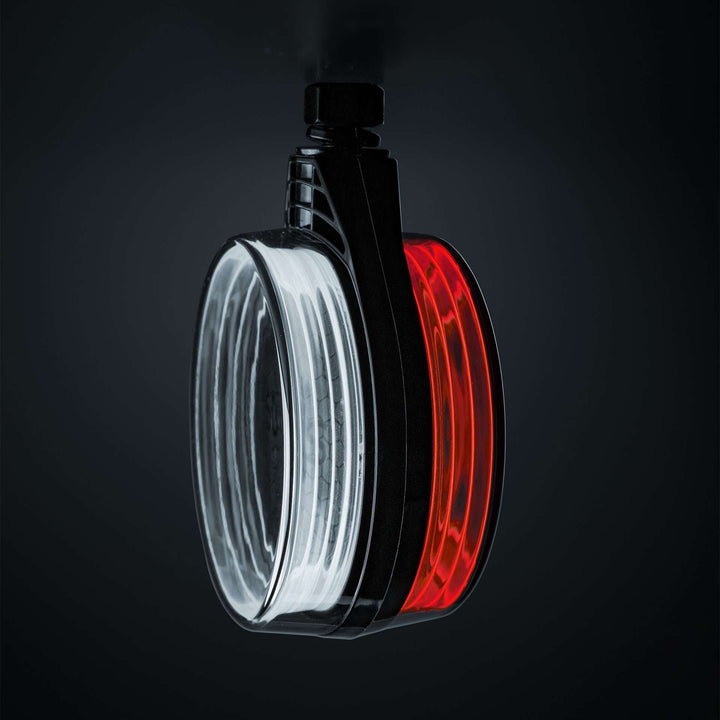

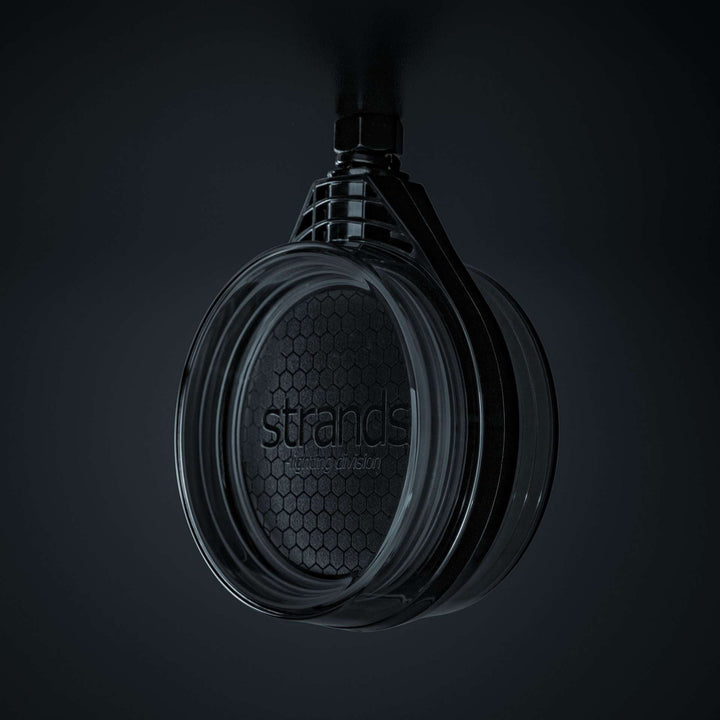

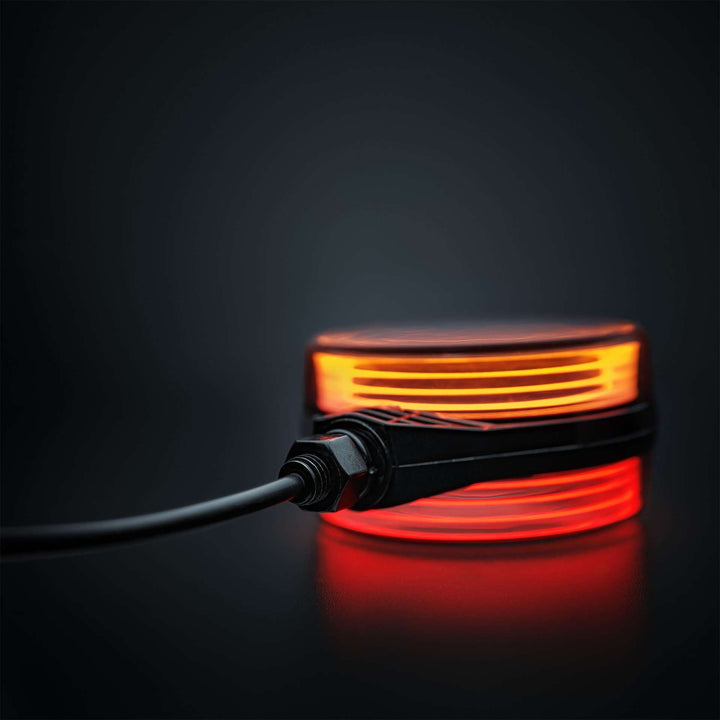

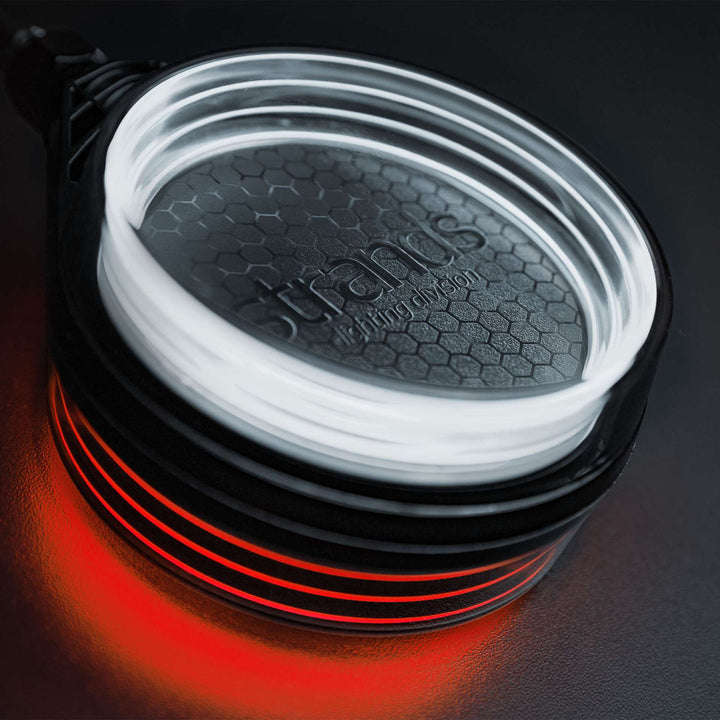

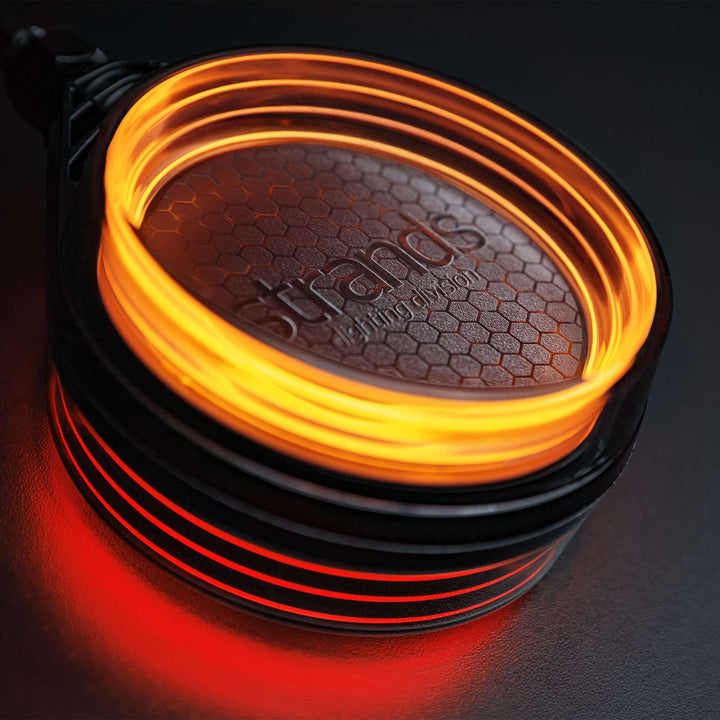

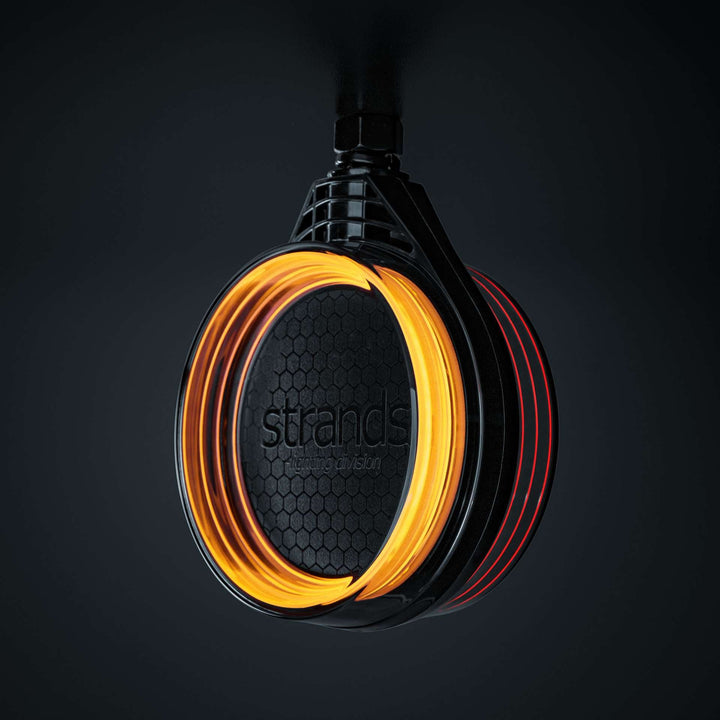

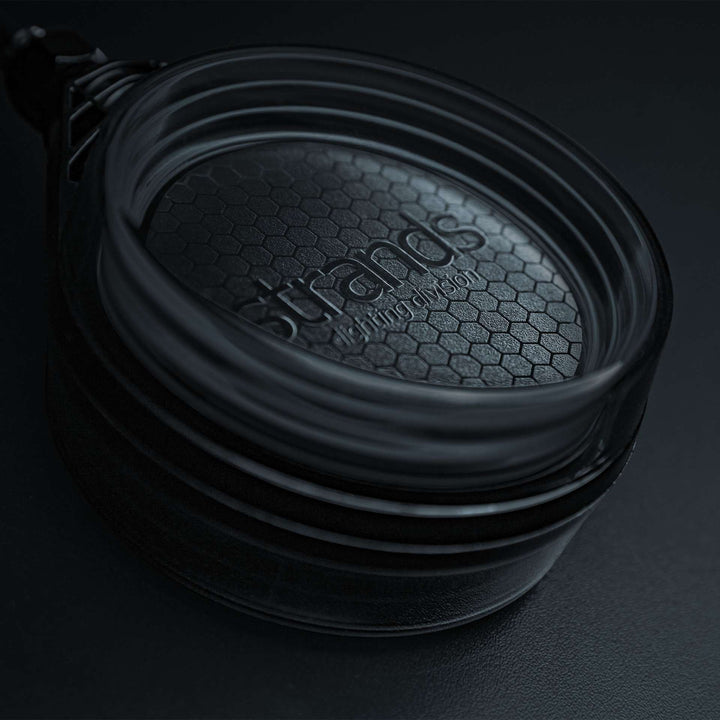

This is a classic, double-sided Spanish light reimagined with the unmistakable FOR9T character. Signature position light lines, a dark lens, and carefully matched details make it a true eye-catcher with a striking dark design. It features white and amber front position lights, as well as a red rear position light. Built for daily use, it features a polycarbonate lens and is IP-rated IP67 for reliable protection against dust and water. It’s used with 10-40 V systems and consumes only 8 W. The light measures 109 mm in diameter, comes with a 500 mm cable, and includes all required mounting hardware: M12 nut, M12 flat washer, and M12 spring washer for a secure and straightforward installation.

Product family: FOR9T
Unit: PCS
Voltage (DC): 10–40V DC
Theoretical effect: 15W
Consumption: 8W
Functions: Side marker / Front marker / Rear marker
Consumption specific function: Front marker 2W / Side marker 2W / Rear marker 4W
Connection: Cable
Cable length: 500mm
Color housing: Black
Color lens: Dark
Color LED's: White / Amber / Red
Material bracket: Stainless Steel
Material housing/chassi: Polycarbonate
Material lens: Polycarbonate

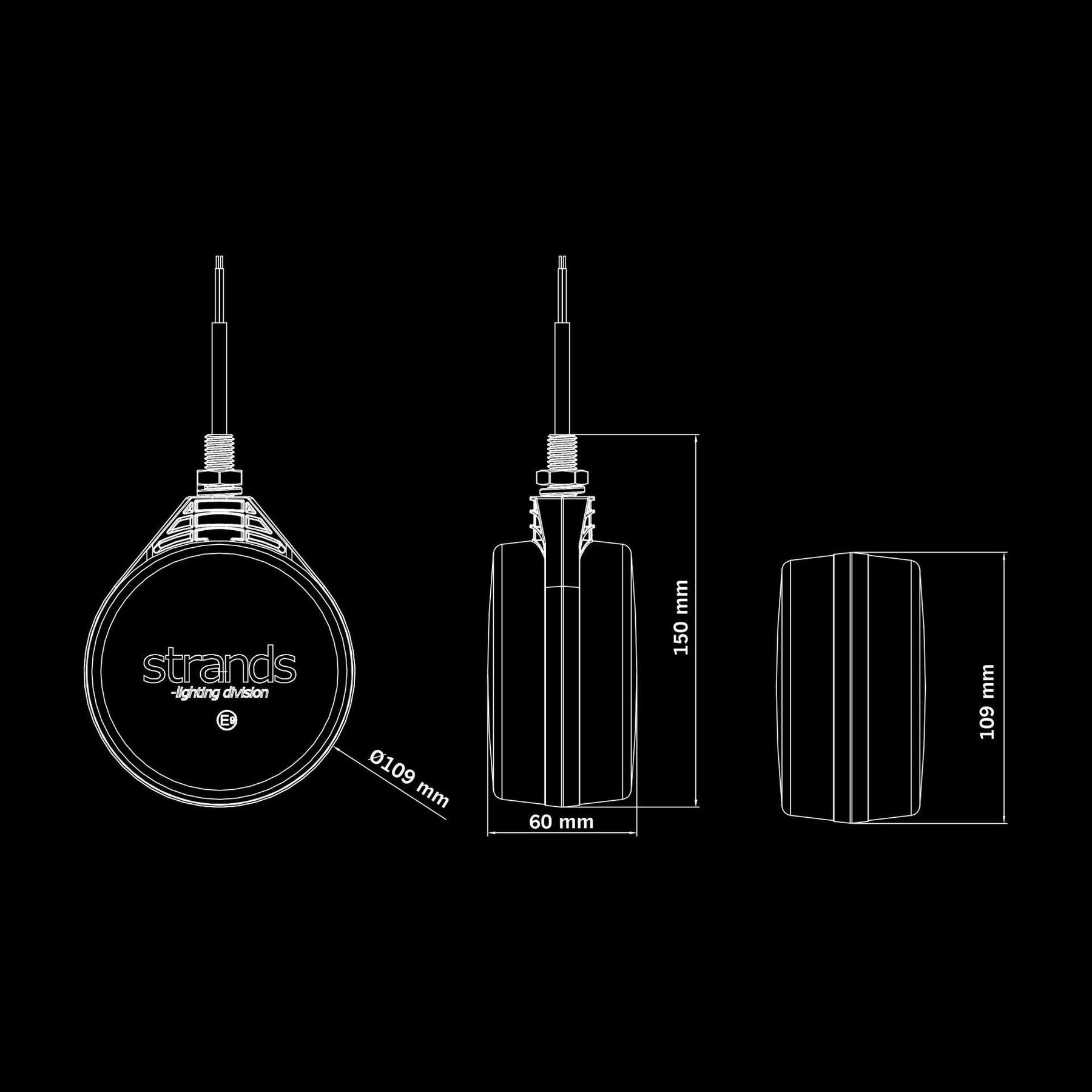

Depth: 60mm
Height: 150mm
Height including bracket: 150mm
Weight: 0.26kg
Diameter: 109mm
IP-class: IP67
Operating temperature: -25° – +60°C
E-approved: No
ECE approval: R10.06
