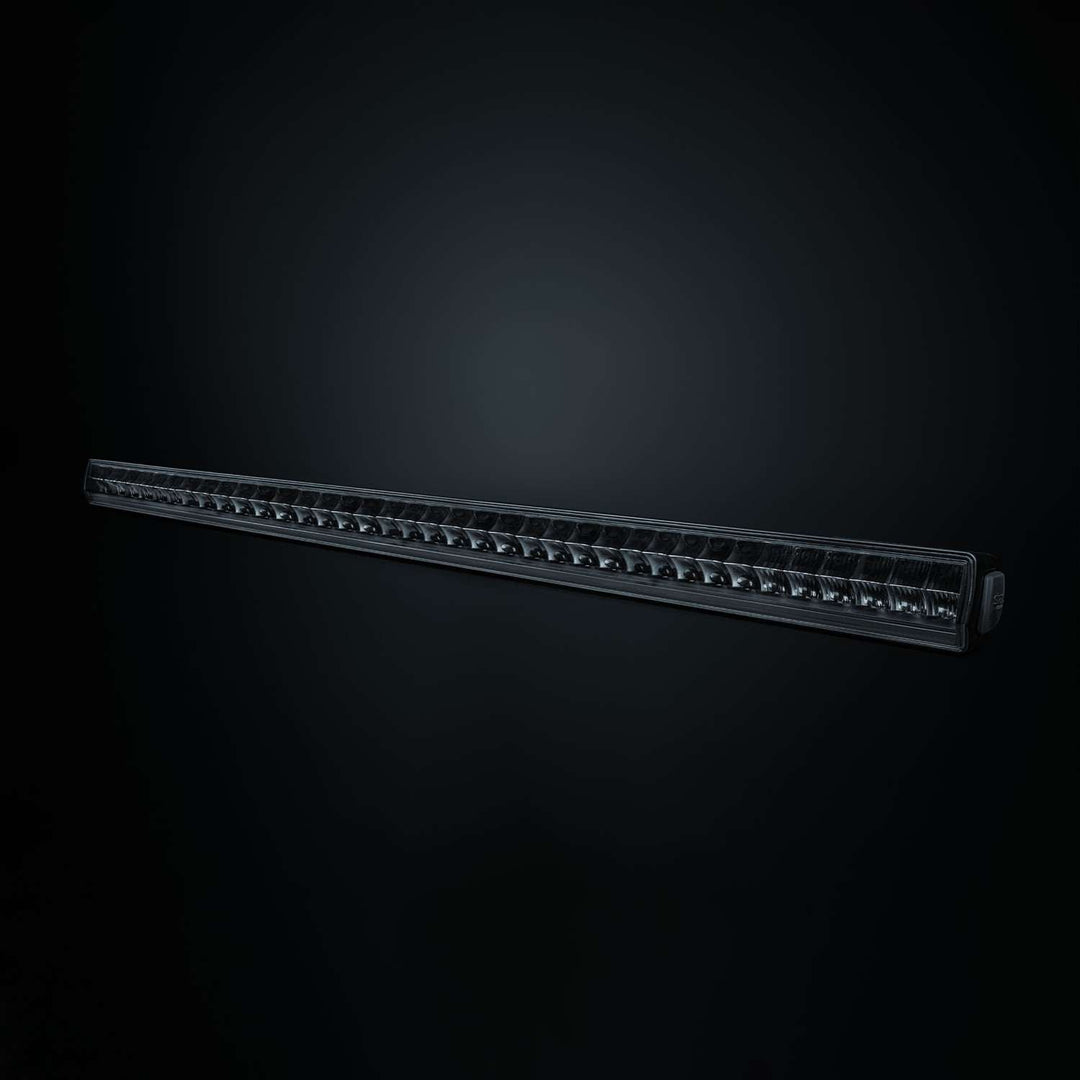

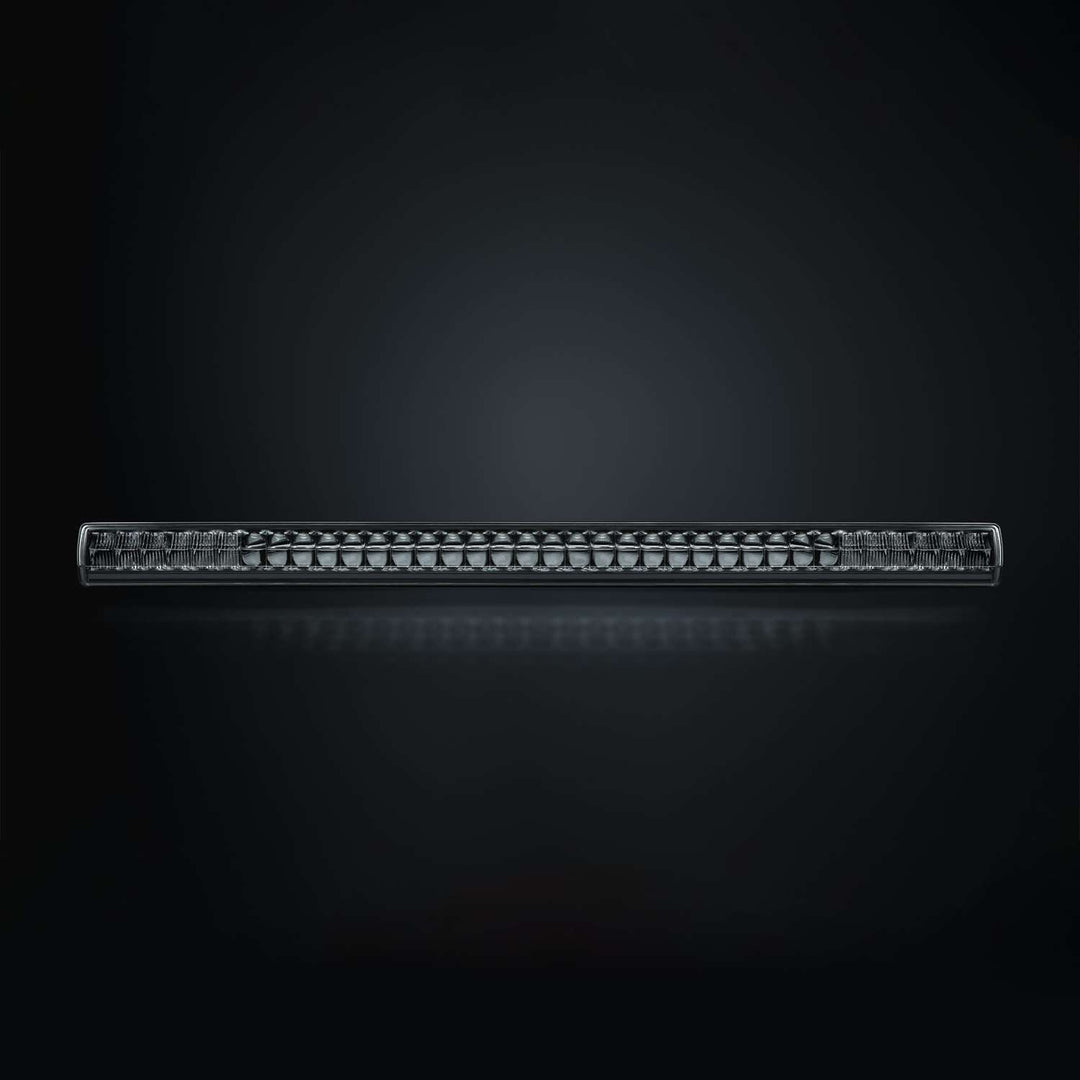

40" Skylord LED BAR

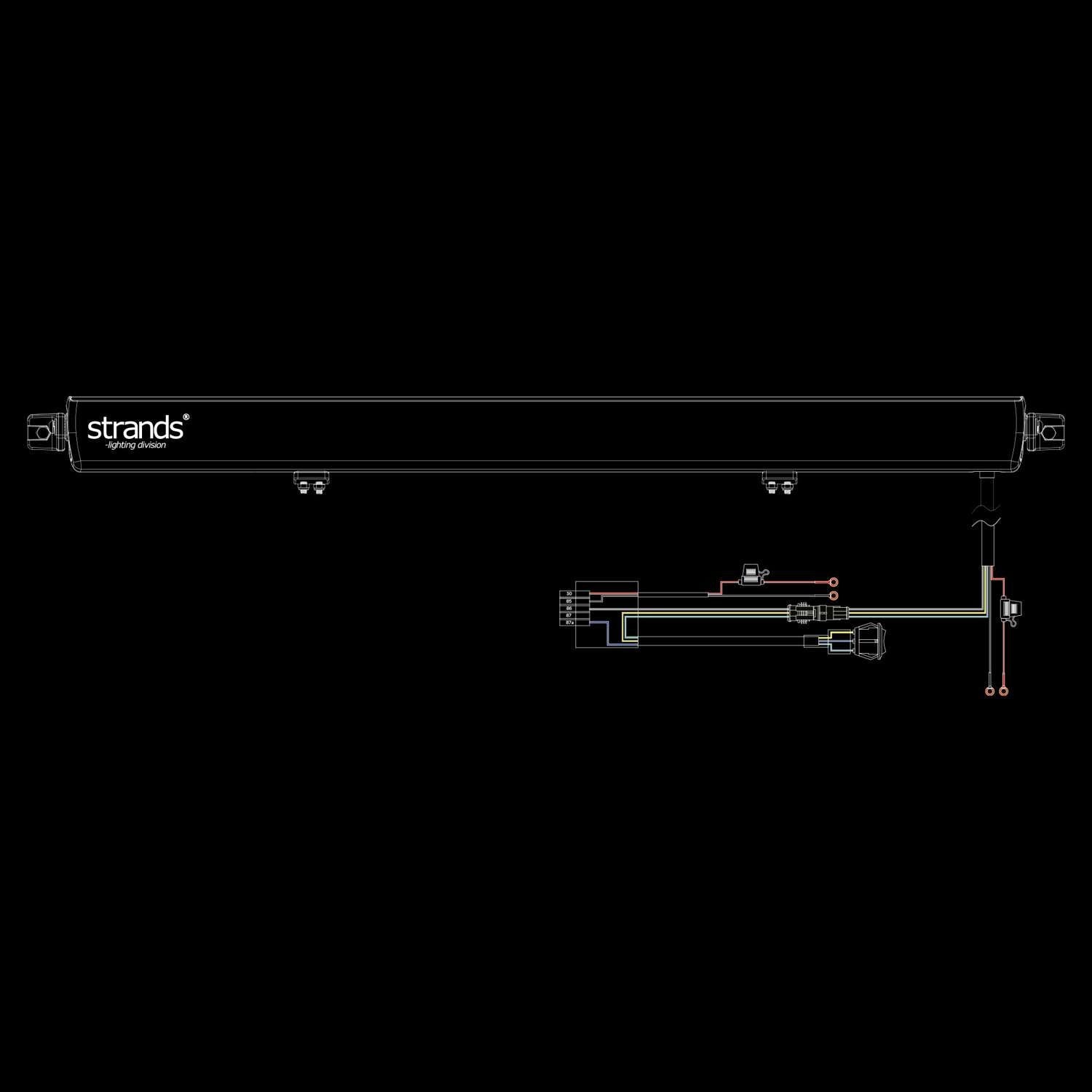

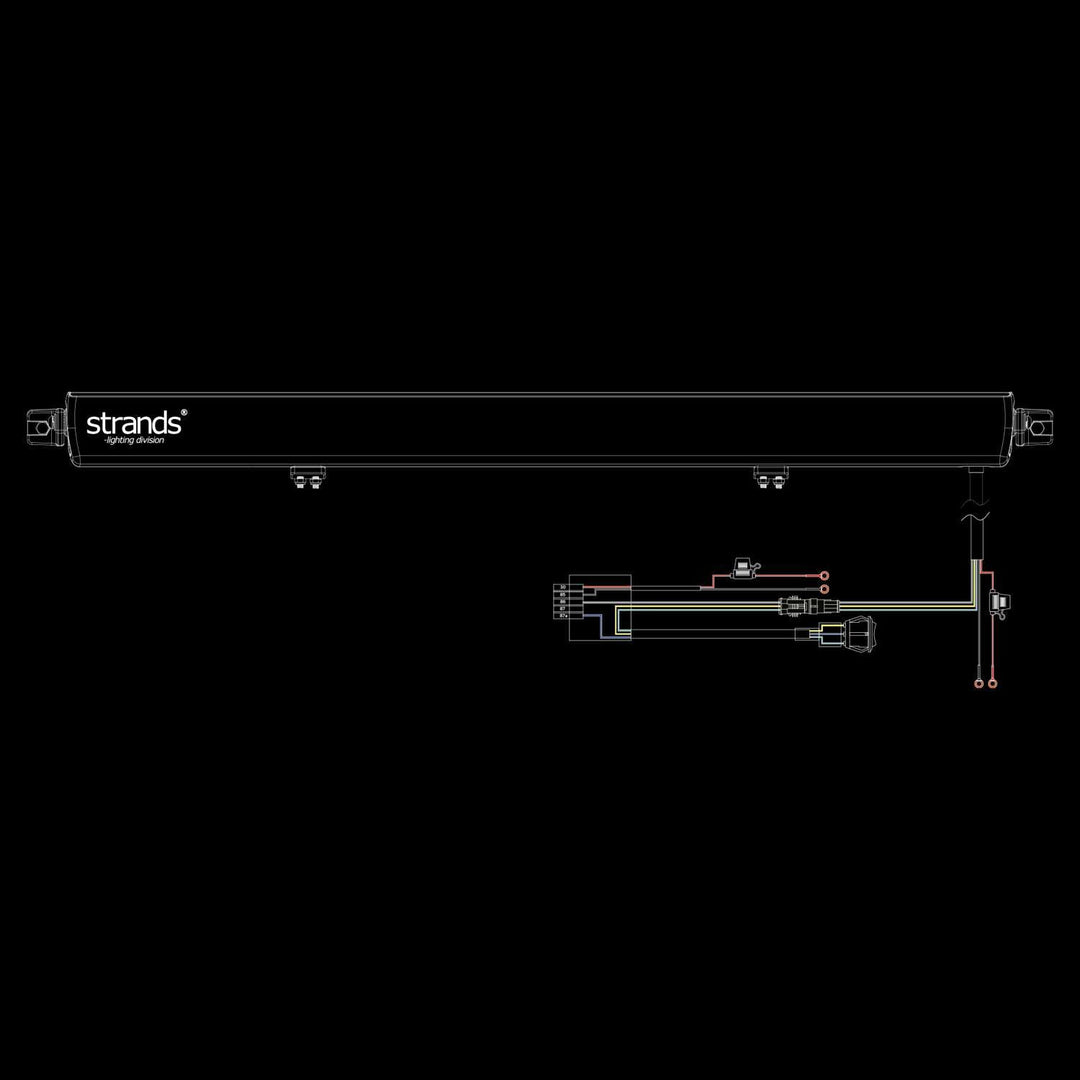

Delivering over 30,000 actual lumens and a 1,000-meter reach in Xperience mode, the 40” Skylord sets a new standard for LED bars. The E-mode is E-approved R148/R149 with a reference number of 2x20. Thanks to advanced engineering, we’ve incorporated two light sources into one LED bar.The new beam pattern is designed for maximum visibility far ahead, close to the car, and to the sides. The housing is cast in one piece, and the LED bar is IP69K-rated. It is also covered by Strands’ 5-year warranty. The Skylord includes a built-in relay and comes with a 2.5-meter cable. All necessary installation accessories are provided: side and hanging brackets, washers, bolts, rubber pads, Strands logo–branded rubber covers, and an XBB cable harness with Super Seal connector and position light switch. A CAN bus interface, like XBB, might be required to complete the installation.

Unit: PCS
Voltage (DC): 10–32V DC
Theoretical effect: 350W
Consumption: 338W

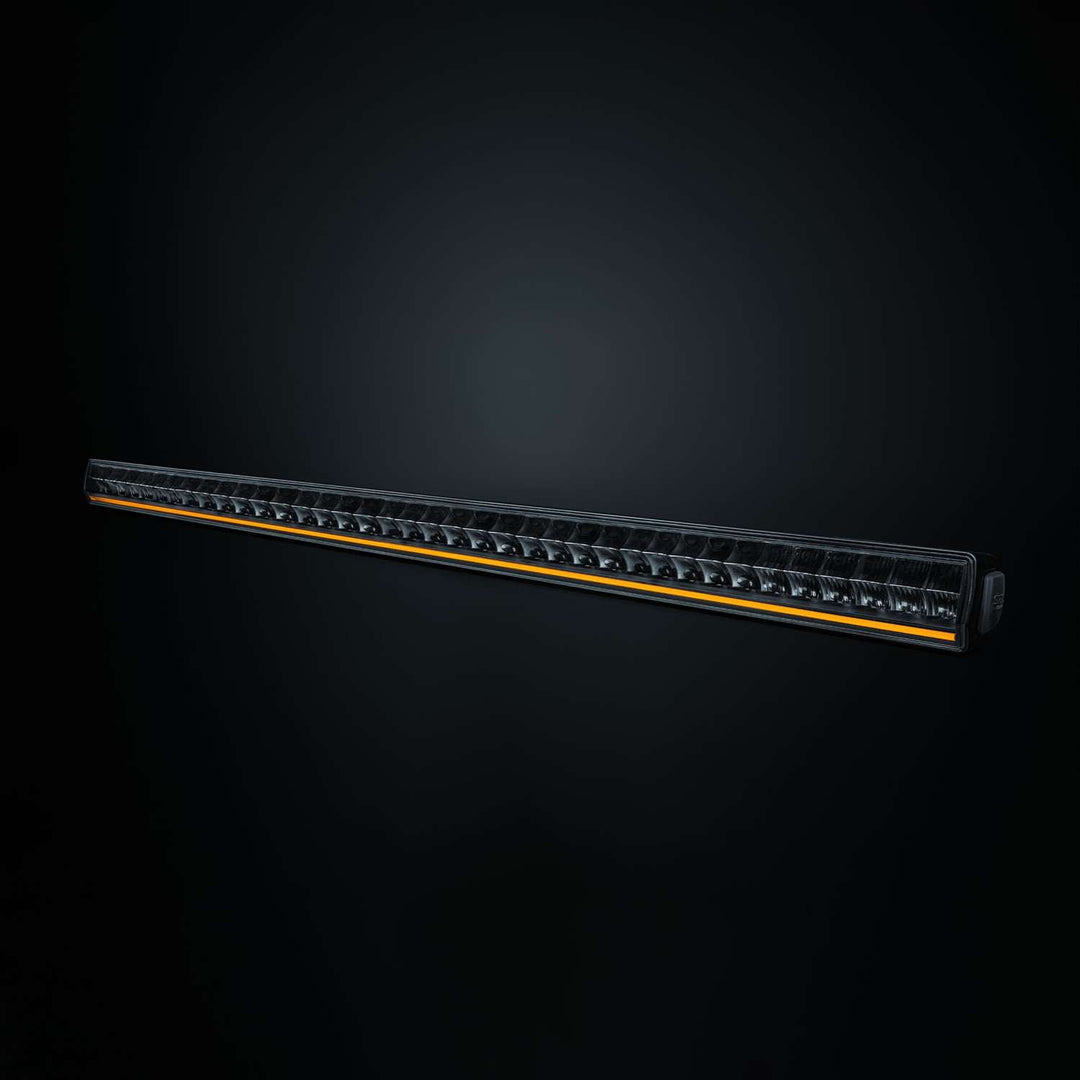

Functions: Amber Pos. / White Pos. / Xperience mode / E-approved mode / Hello function
Consumption specific function: Amber Pos. 13W / X-mode 338W / E-mode 76W / White Pos. 13W
Theoretical lumen: 39000lm
Actual lumen: 30100lm

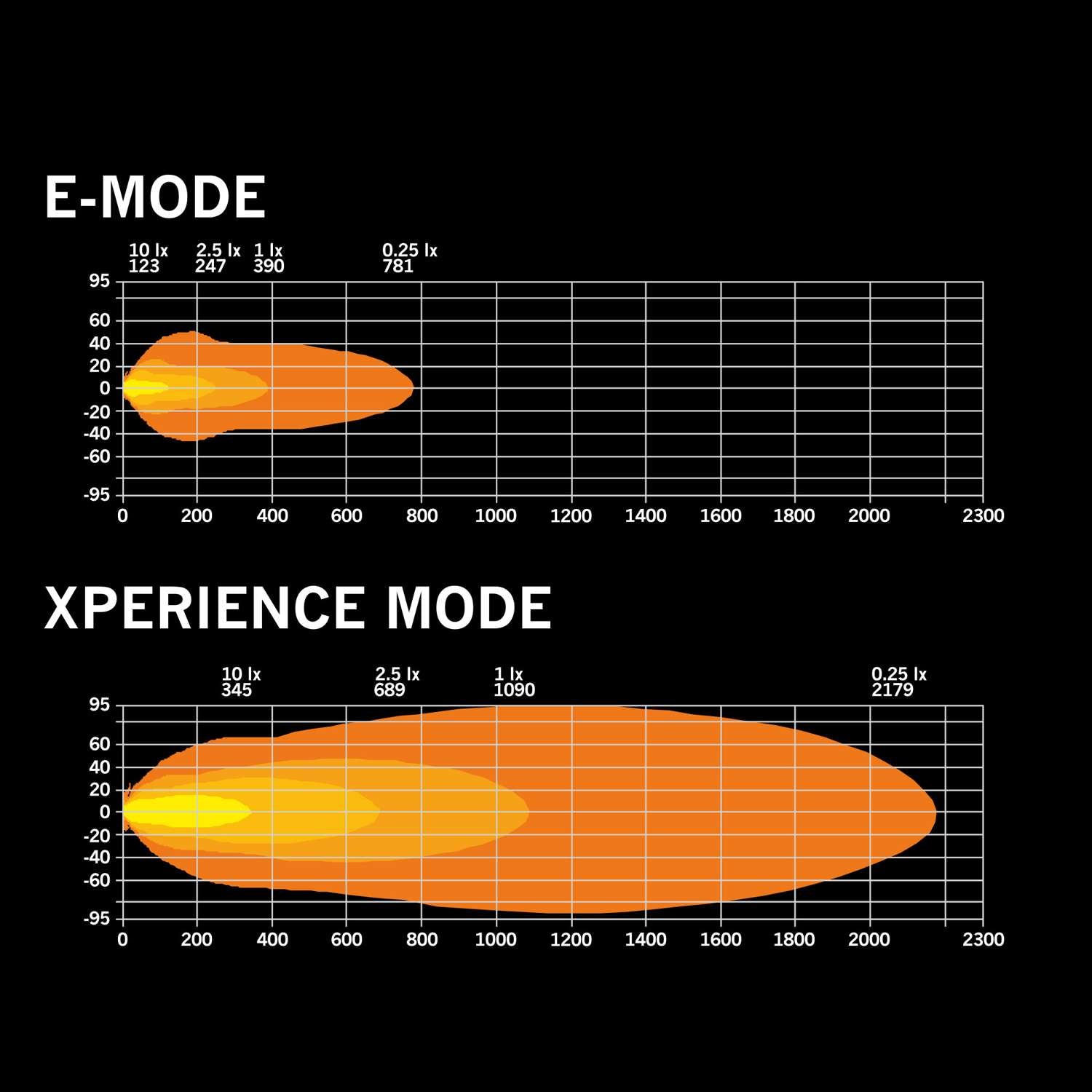

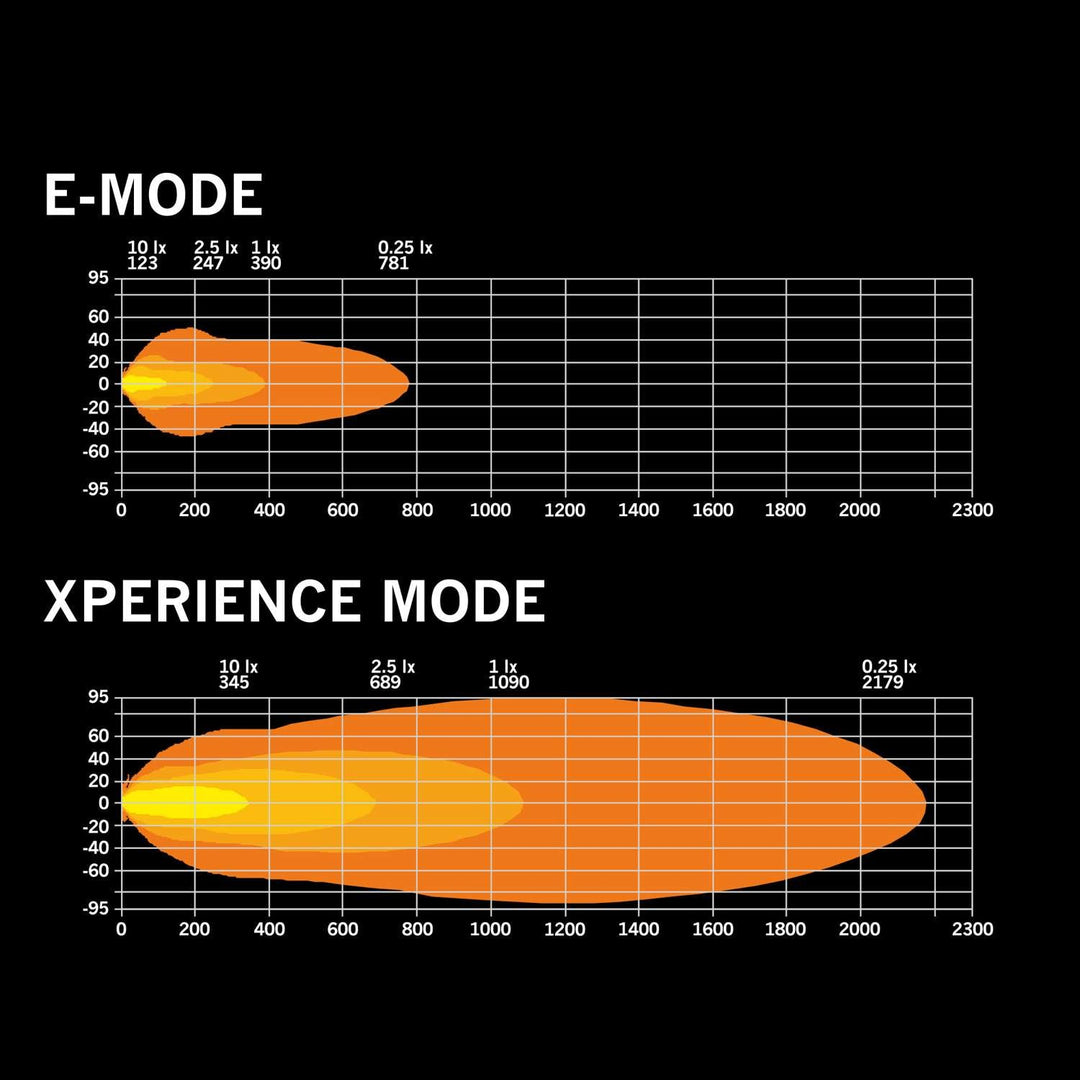

1 lux @: 1090m
Color temperature: 5700K
Beam pattern: Long-distance beam
Beam angle: 13.2°
Connection: Cable
Cable length: 2500mm
Color housing: Black
Color lens: Clear
Color LED's: White / Amber
Material bracket: Aluminium alloy
Material housing/chassi: Aluminium
Material lens: Polycarbonate

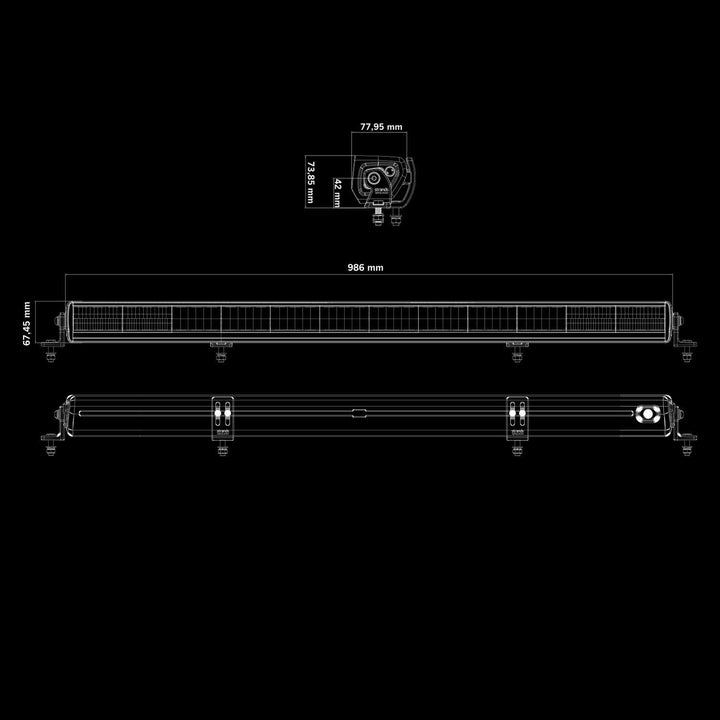

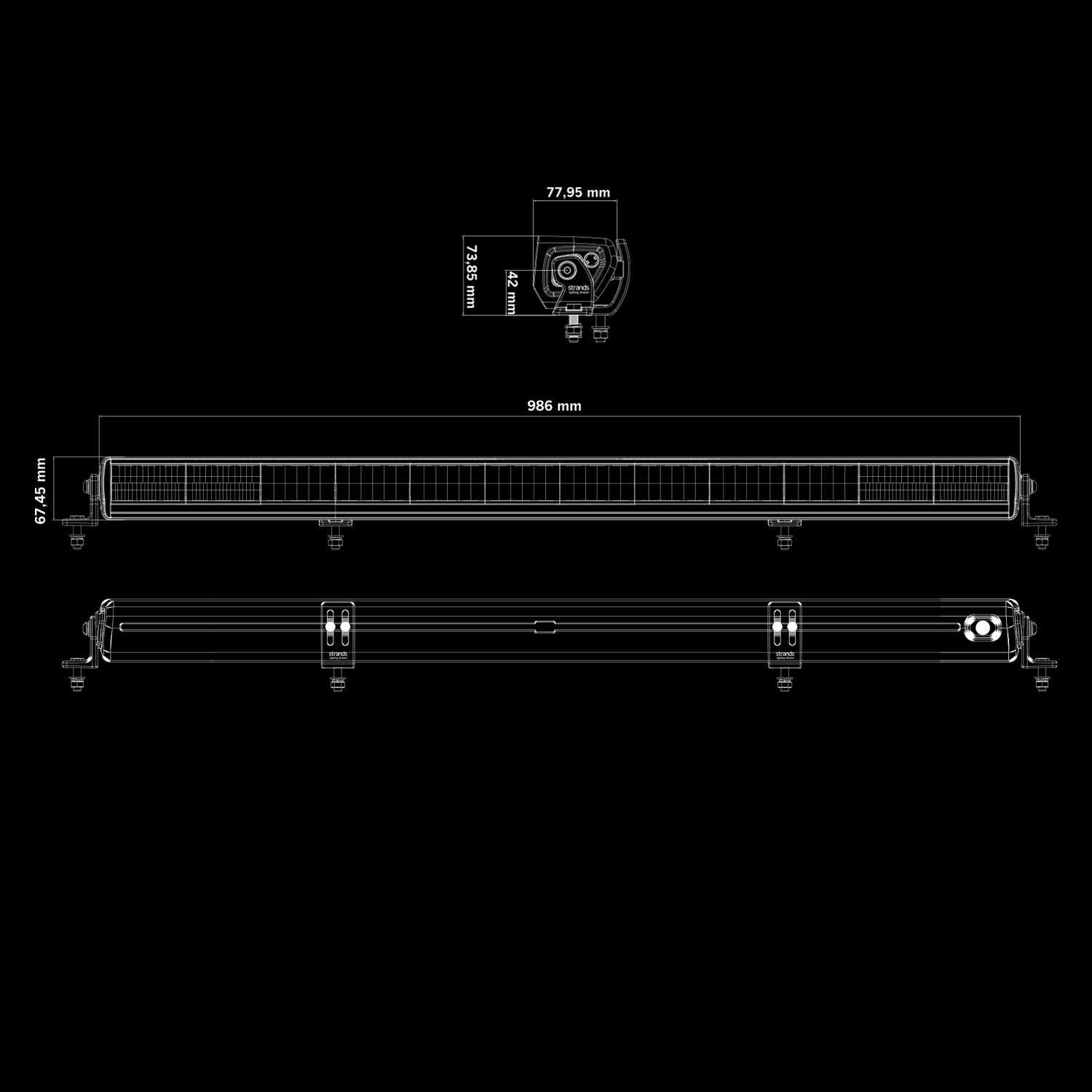

Length: 986mm
Depth: 78mm
Height: 67.5mm
Height including bracket: 73.9mm
Weight: 4.92kg
IP-class: IP68/69K
Operating temperature: -35° – +60°C
E-approved: Yes
ECE approval: R10.06 / R148 / R149
Reference number: 20 × 2
