4" Side Shooter with Amber Warning Flasher

Features:

• World's First SAE Certified/DOT Compliant Side Shooter with Flasher
• Ideal for Nationwide Fleet Use
• Spot Beam w/Side Shooter
• Amber Double Flash Strobe
• Bezeless Lens Design
• 3 Year Limited Warranty

This light is sold individually and does not include a harness

We do not have a plug and play harness for this light (Whip included)

Voltage: DC 10-30V

Wattage:

70W (theoretical) - Main Beam 16.5W (actual)/Warning 20.5W (actual)

Amperage 12V/24V:

Main Beam 1.38/0.69 Warning 1.71/0.85

Theoretical Lumens: 2210lm

Actual Lumens: 1177lm

Double Flash Amber

Warning Lights: Double Flash Amber

LUX: 1 LUX @ 327m

IP Rating: IP67/69K

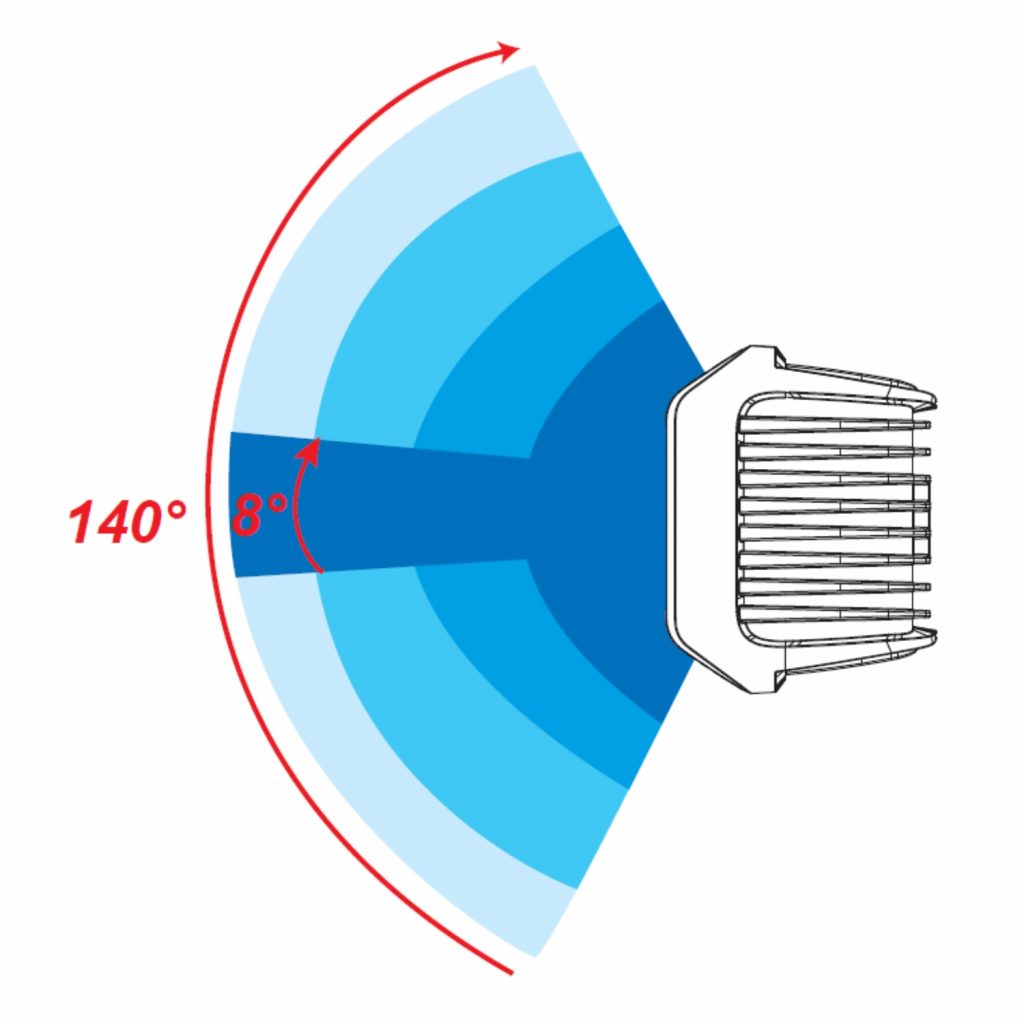

Beam Pattern: 140° White Spot Light with Side Shooter

Safety Light: Amber Double Flash

Connection: DT-3 with Whip

Reverse Polarity Protection: Yes

Over/Under Volt. Protection: Yes

Harness: DT-3 Whip

Colour Temperature: 5700K (Main Beam)

Housing Material: Aluminum Alloy

Lens Material: Polycarbonate

Mounting Bracket: Powder Coated Steel Bracket and 304 Stainless Steel Hardware

Operating Temperature: -25°C – + 40°C

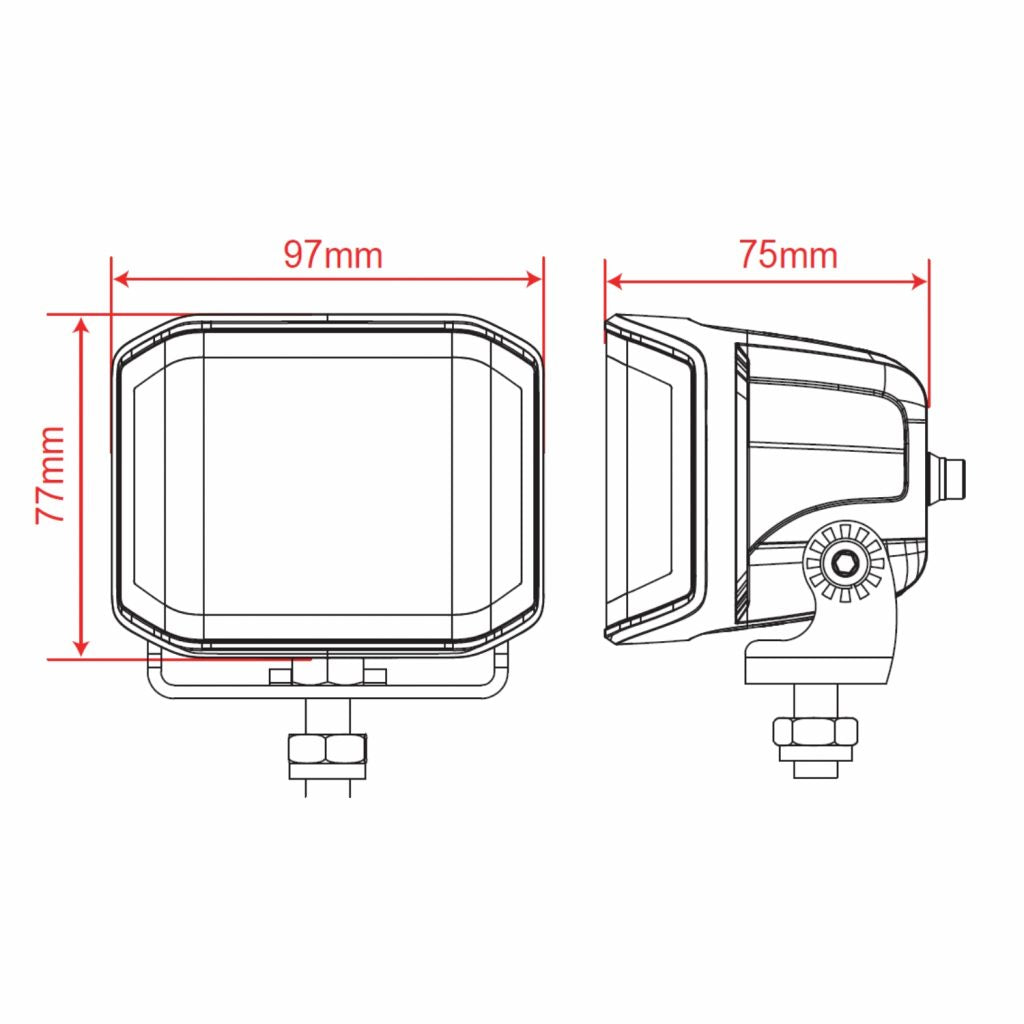

Dimensions: 97 x 75 x 77 mm (3.8 x 2.9 x 3″)

Certification: SAEJ591/SAEJ595/RoHS/ECE10R(EMC)

Warranty: 3 Year Limited
