2.75" Cube Light Kit

This new BrightSource RFB Cube Light has a fantastic design combination – unique Titanium Series styling and a power punch in light output. With a bezeless housing, this cube looks smaller than our older models – and it is - making for more individualistic install options. However, the actual size of the lens/reflector is the same size as our earlier cube’s lens/reflector unit – it is just a more efficient use of space. The dark cosmetics of these cubes are reminiscent of our Titanium Series light bar selection. Like those light bars, the cubes have a focused, long range light output. The 20W side-emitting high power LED chips extend the visibility range to 252m! Ideal for all pick up trucks, Powersports vehicles, back up light functions, work light options - but please note, this is an Off-Road Auxiliary Light, not for highway use.

Features:

Side Reflecting Driving pattern

Modern Bezeless Lens Design

Low current draw is excellent for Powersports applications

Plug and Play Harness Included

5 Year Limited Warranty

What's included: This kit includes two lamps and a harness

LEDs: 4 x 5W

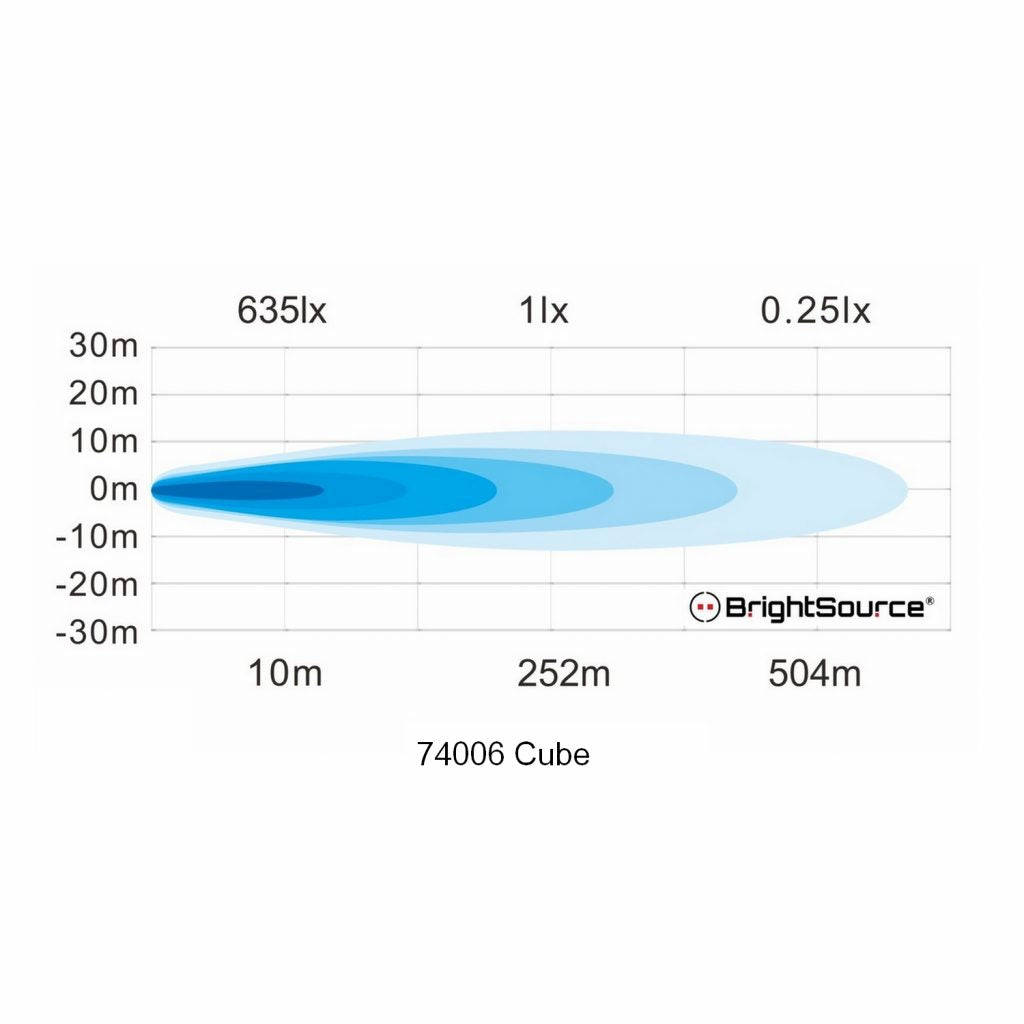

Beam Pattern: Driving

Colour Temperature: 5700K

Luminous Flux: 1920 lm (Raw) 1751lm (Effective)

Lux: 1 Lux @ 254m

IP Rating: IP67/69K with Waterproof Deutsch Connectors

Voltage: DC 10-30V

Wattage: 20W

Amperage 12V/24V: 1.5A/0.75A

Reverse Polarity Protection: Yes

Over/Under Voltage Protection: Yes

Harness: Integrated Relay/Switch/Deutsch Connectors, Plug and Play - Included

Temperature Range: -40 - + 60°C

Housing Material: Die-cast Aluminum with Powdercoat

Lens Material: Epoxy Encapsulated Polycarbonate

Mounting Bracket: Powder coated Steel bracket and 304 stainless steel hardware

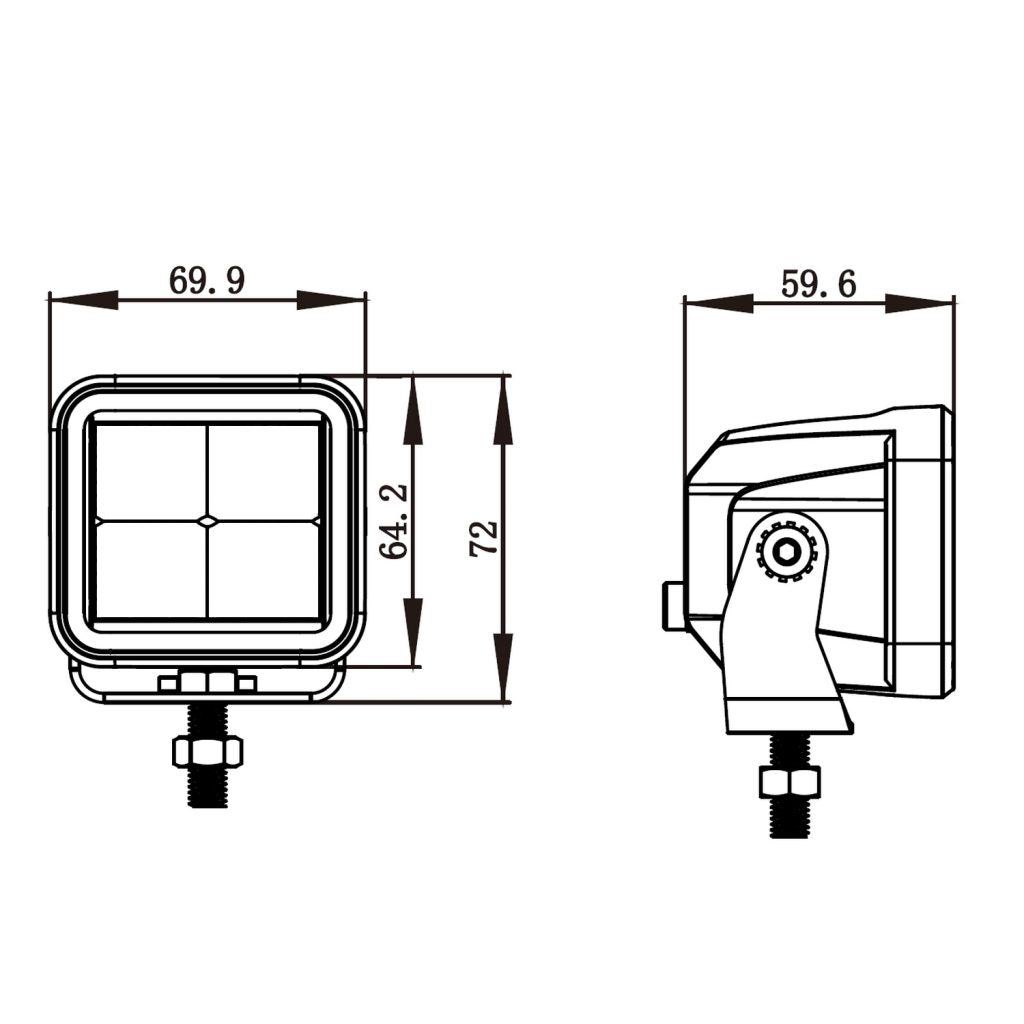

Size: 69.5 x 72 x 60 mm (2.7 x 2.8 x 2.4″)

LED Lifespan: 30,000+ hrs

Warranty: 5 Year Limited
