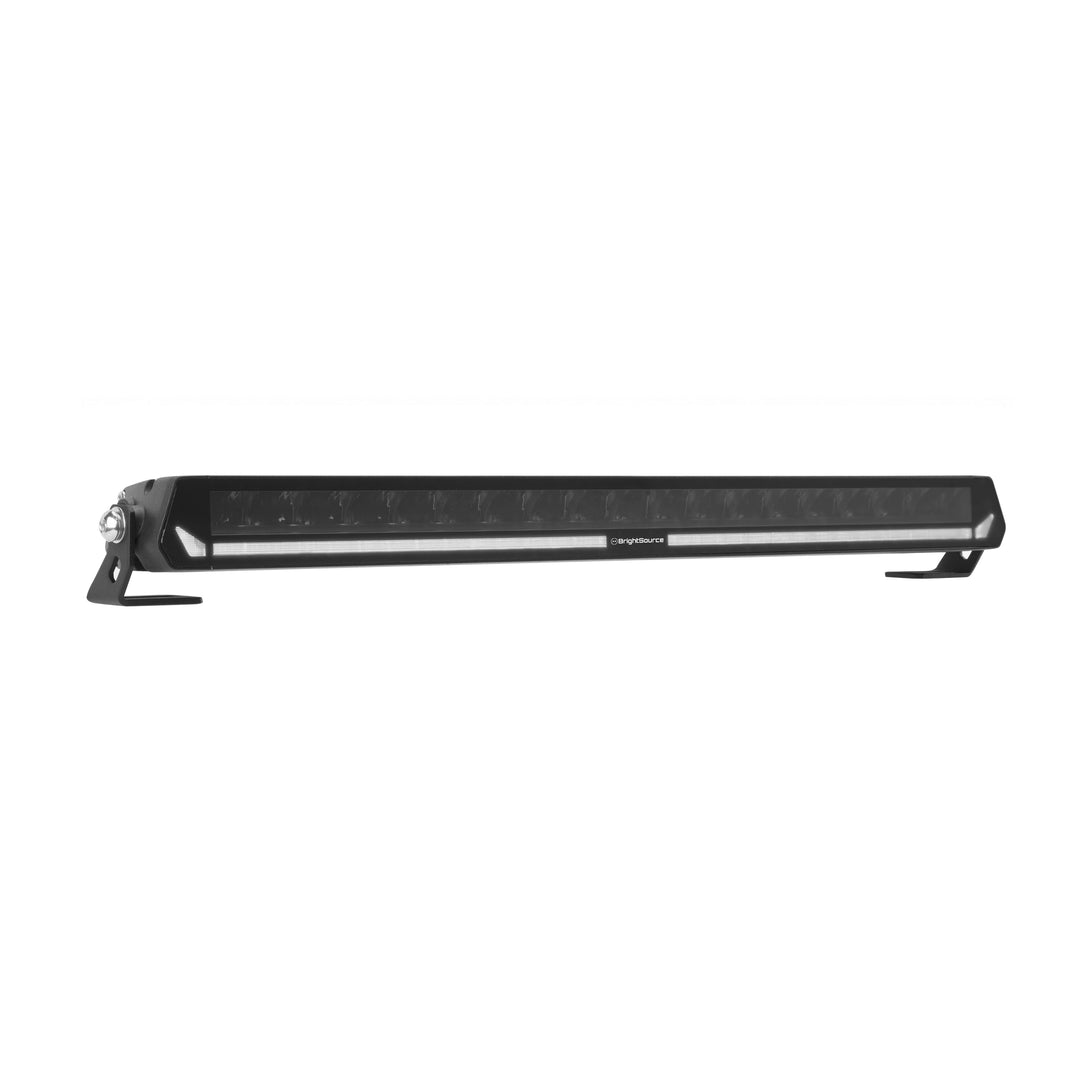

20" Titanium T2 Single Row Light Bar

The T2 Series combines advanced lighting performance with a sleek, vehicle-enhancing design. Its proven side-reflecting optic system delivers powerful, efficient illumination, while Off-Road Boost Mode increases lighting range by up to 60% on the 20-inch model. For on-road use, the E-Mark–compliant driving light function helps ensure street legality in most provinces and jurisdictions when installed correctly.*

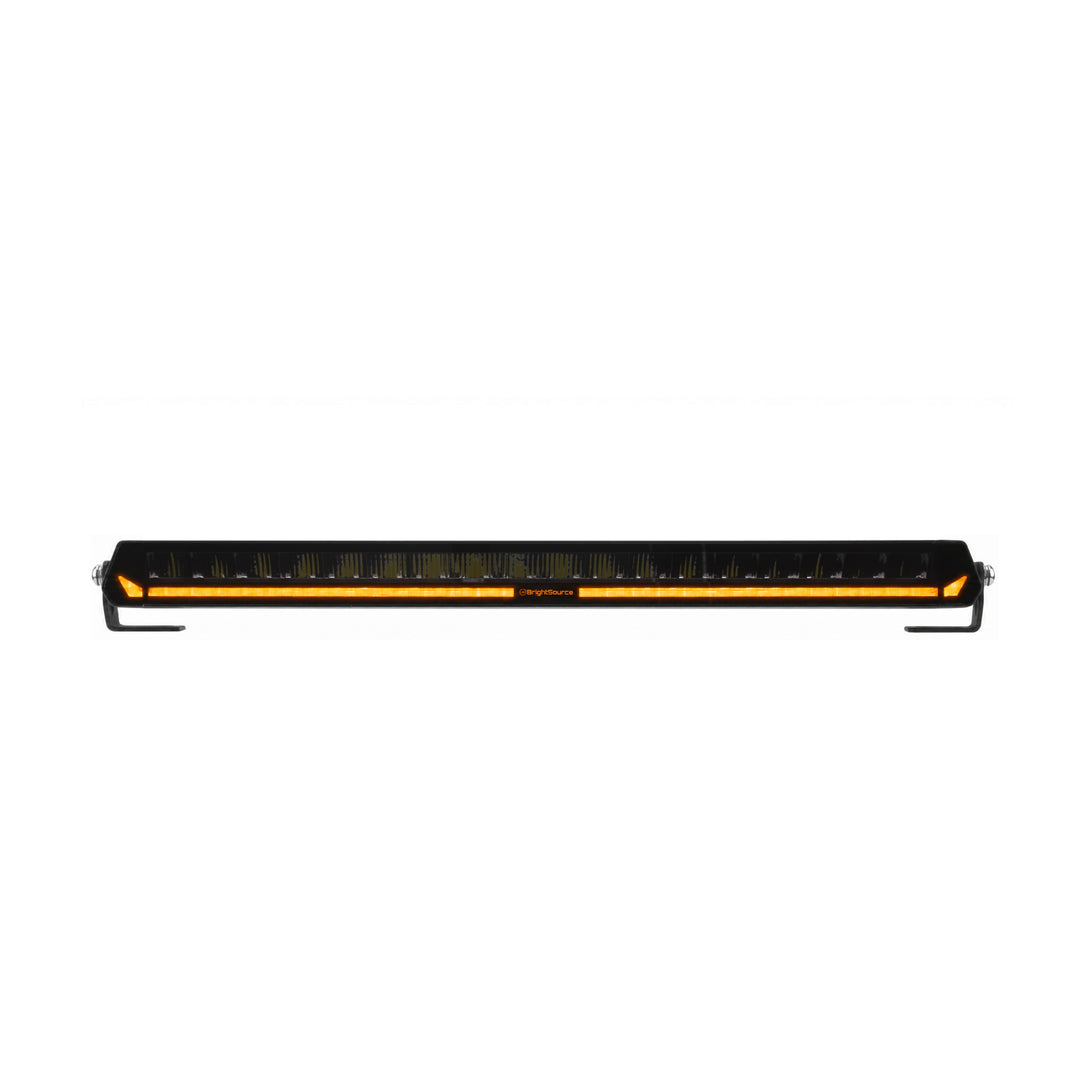

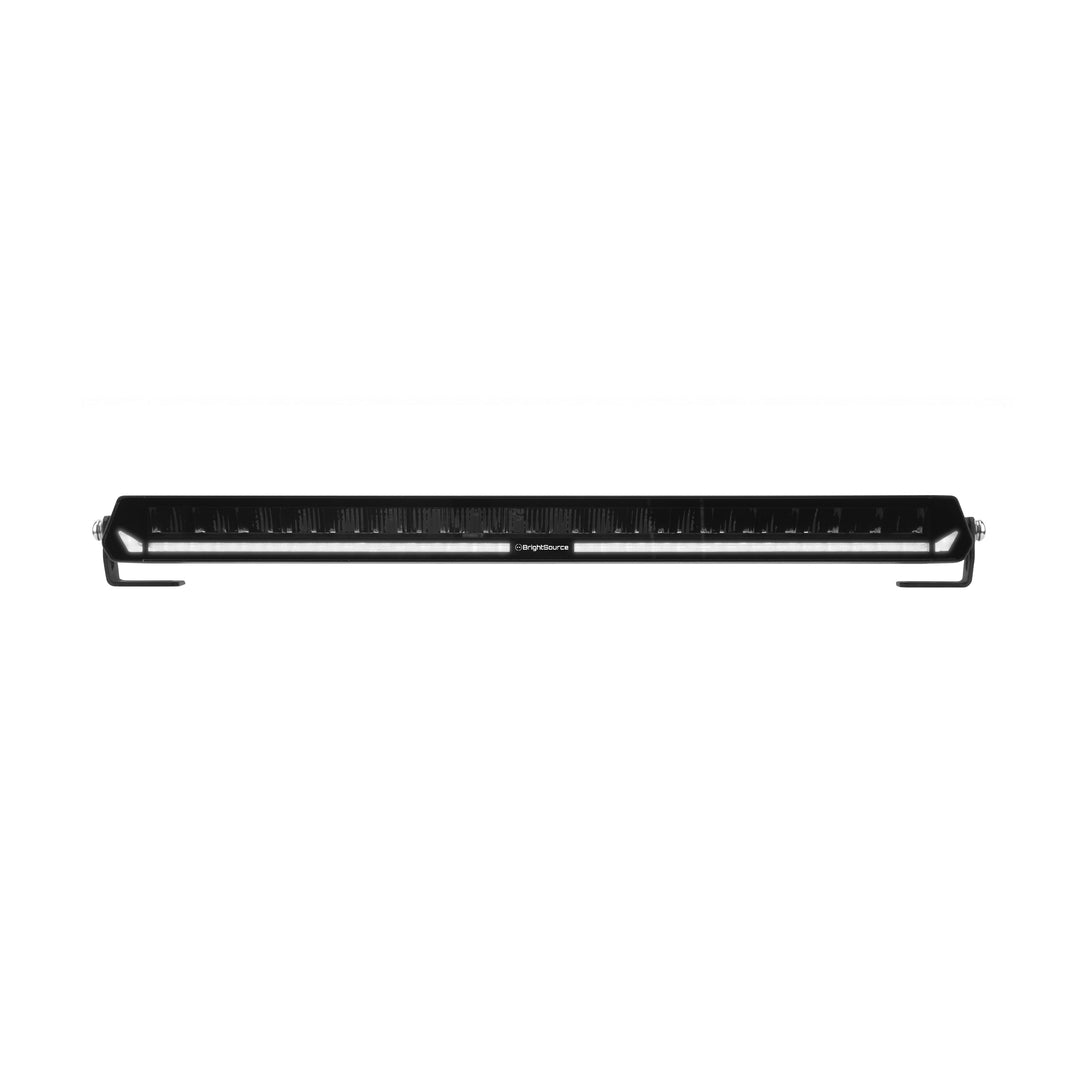

An integrated marker light can be operated independently, with a choice of rich amber or brilliant white to customize your vehicle’s appearance and visibility.

This light is sold individually and does not include a harness.

Wiring Harness Options:

Harness for one light – 72999-1

Part No. 871202
Voltage (DC): 9–36V DC
Theoretical effect: 108W (18 × 6W)
Consumption: 4.5A @ 12V / 2.3A @ 24V (Off Road); 2A @ 12V / 1A @ 24V (E-Mark)
Color temperature: 5000K
Theoretical lumen: 9600lm
Actual lumen: 7500lm
1 lux @: Off Road 528m / E-Mark 328m
Peak beam intensity: Off Road 277000cd / E-Mark 108000cd

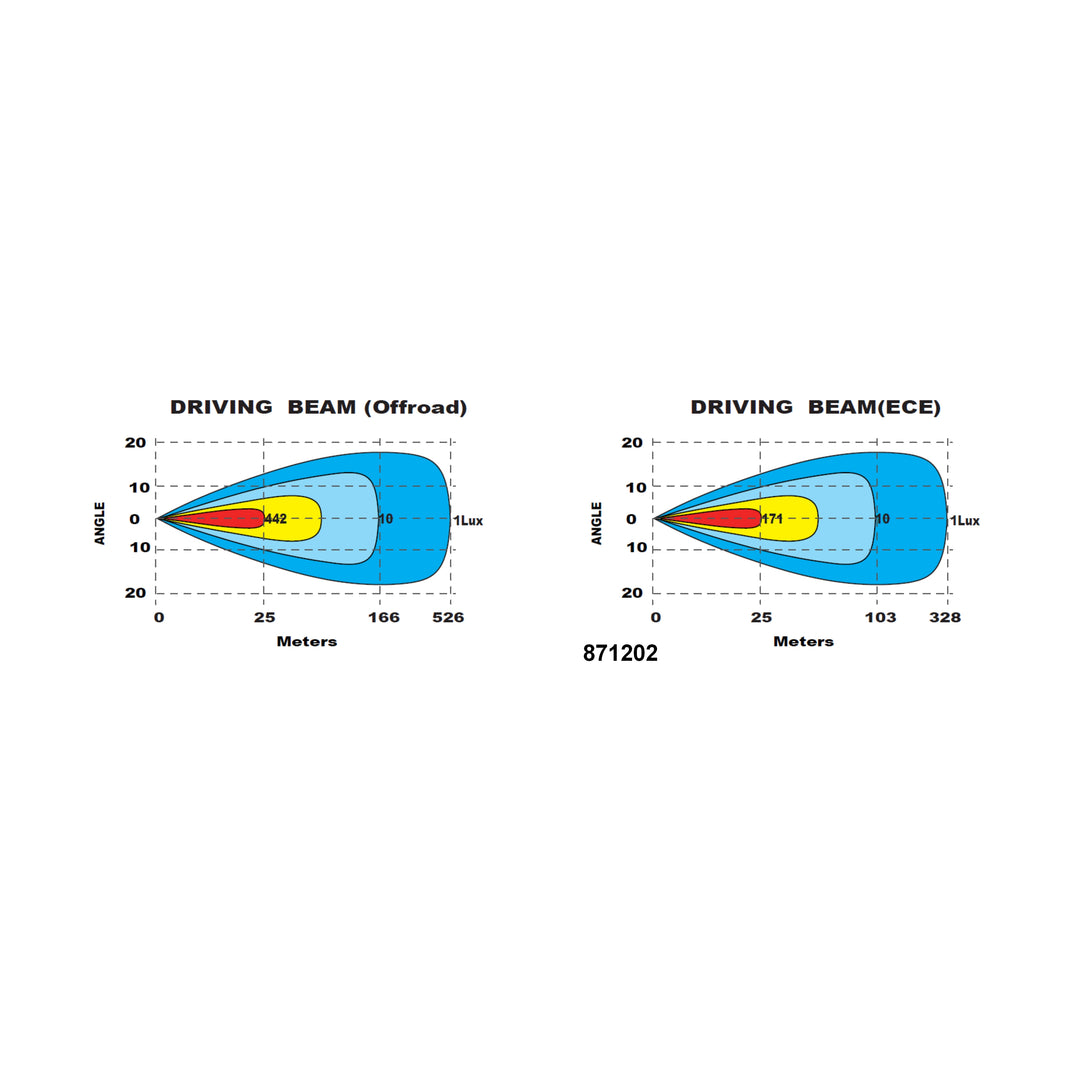

Beam pattern: Combo Beam 35°
Functions: Driving light / Amber position light / White position light
Color housing: Black (Anodized polyester powder coat)
Material housing/chassis: 6063 Extruded Aluminum
Material lens: Lexan / Polycarbonate

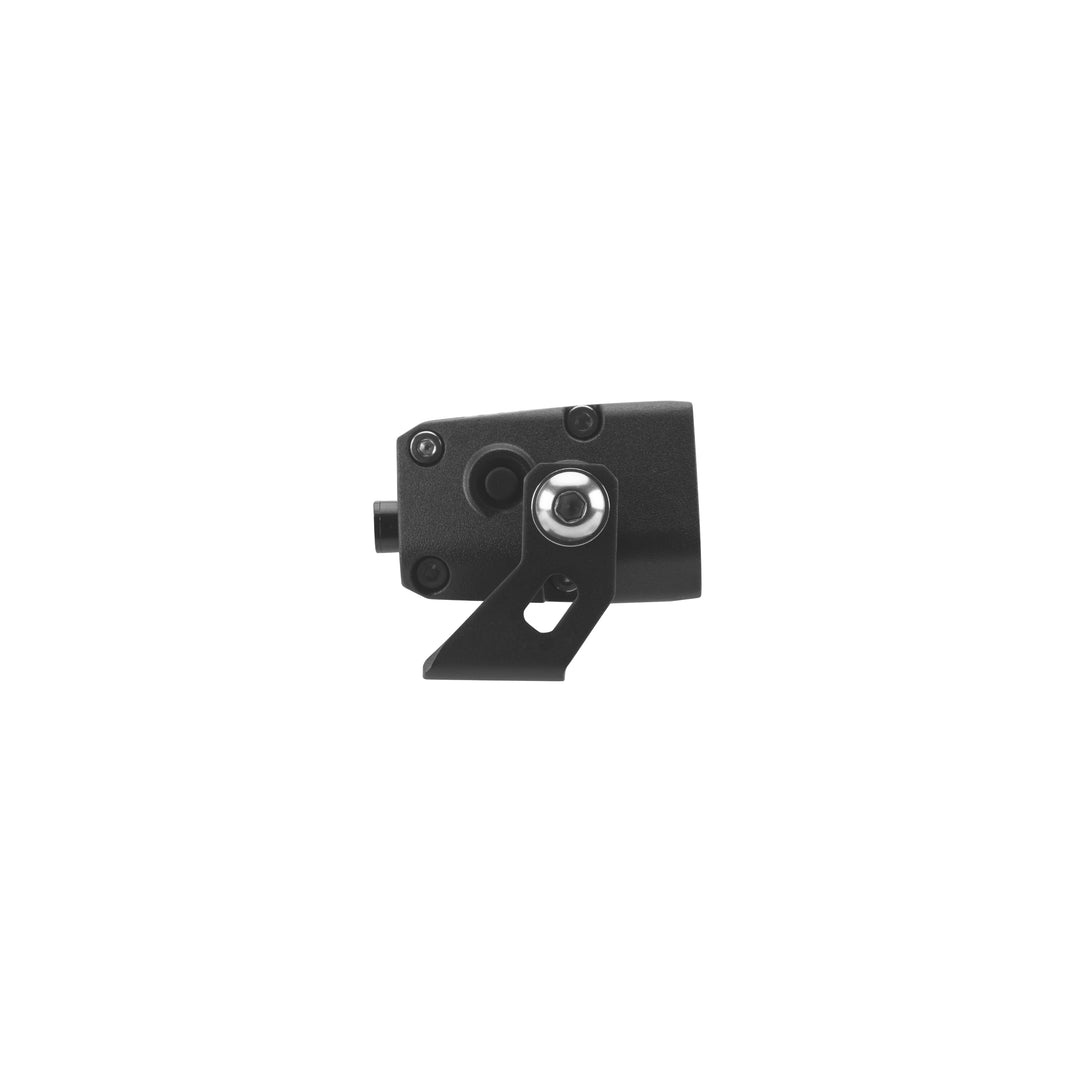

Mounting brackets: Side & Rear brackets included

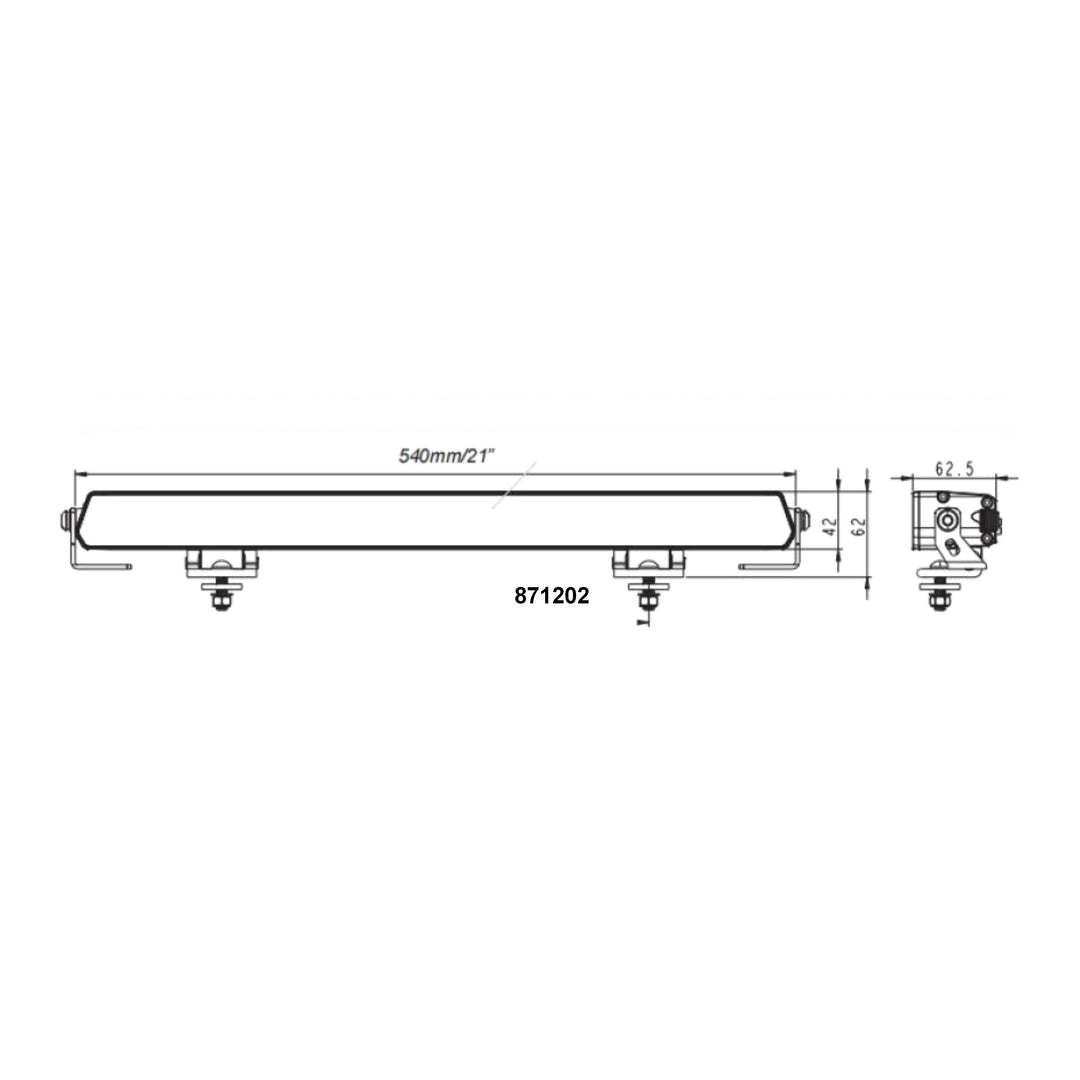

Length: 540mm
Depth: 42mm
Height: 62.5mm

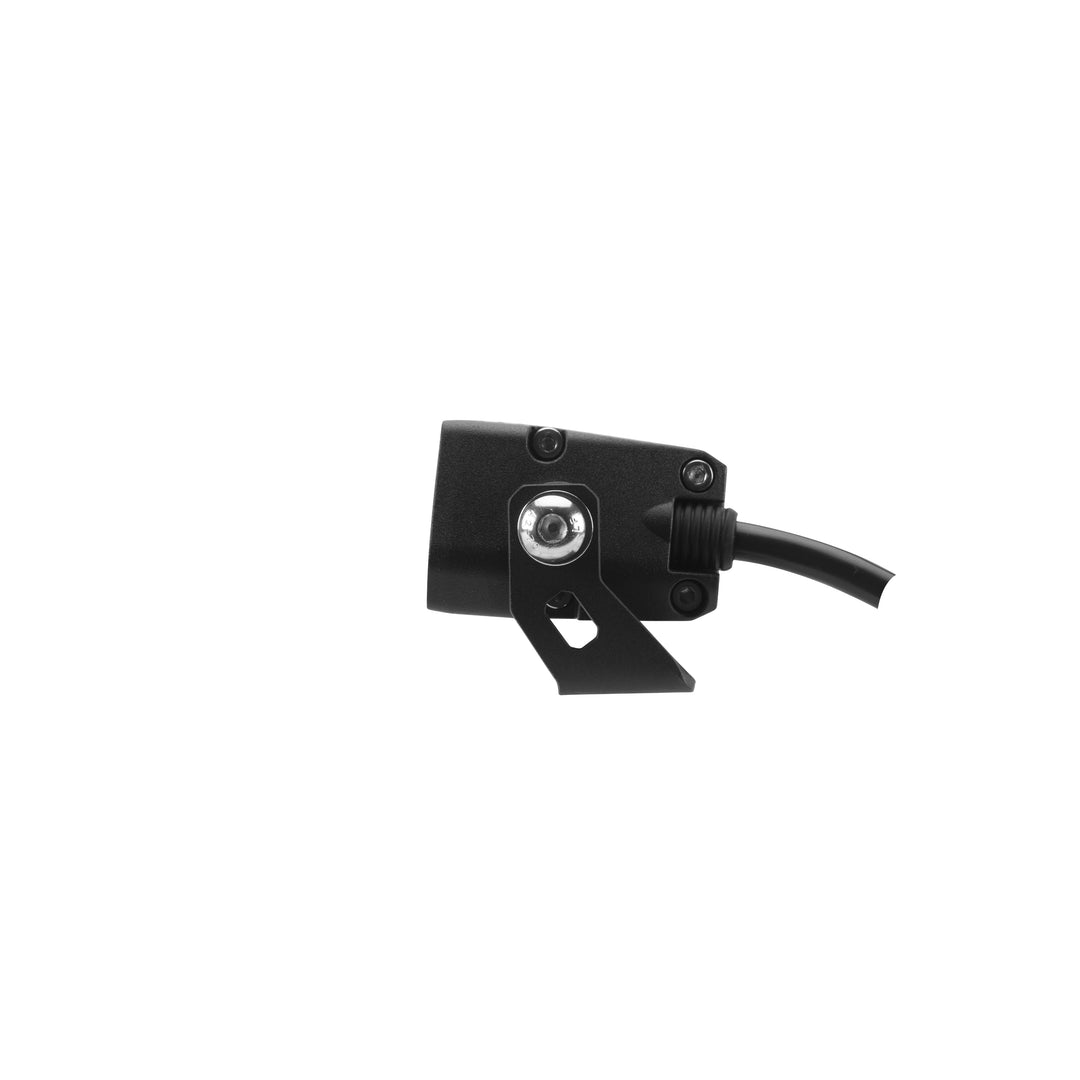

Connection: 4 Pin DT Connector
IP-class: IP68/69K
Operating temperature: -40° – +60°C
Certification: CE / ECE R10 / R7 / R112 (Ref. 25)
Warranty: 3 Year Limited
