12" Siberia E-Marked Double Row

Welcome to the Siberia Series double row LED light bars. These combination LED bars are truly innovative, combining 2 separate lighting functions with cutting edge design.

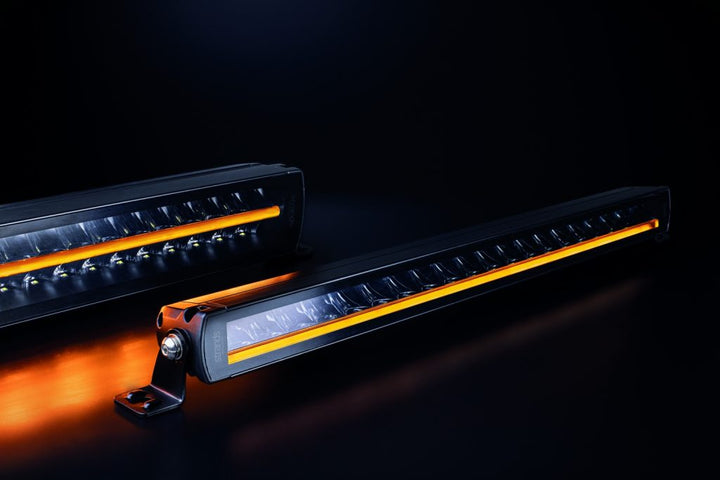

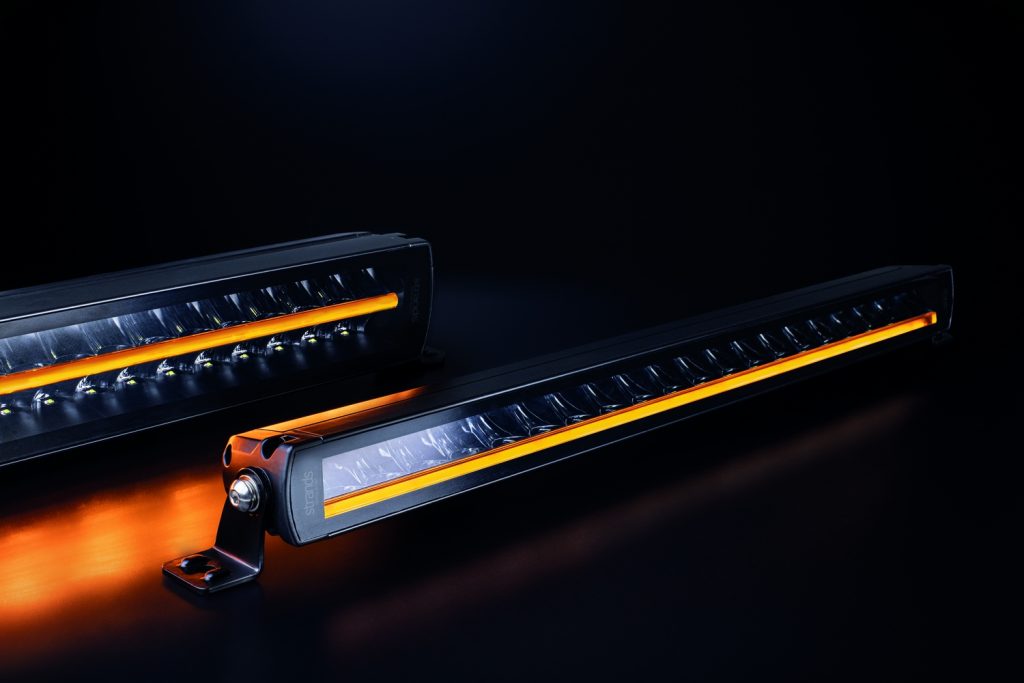

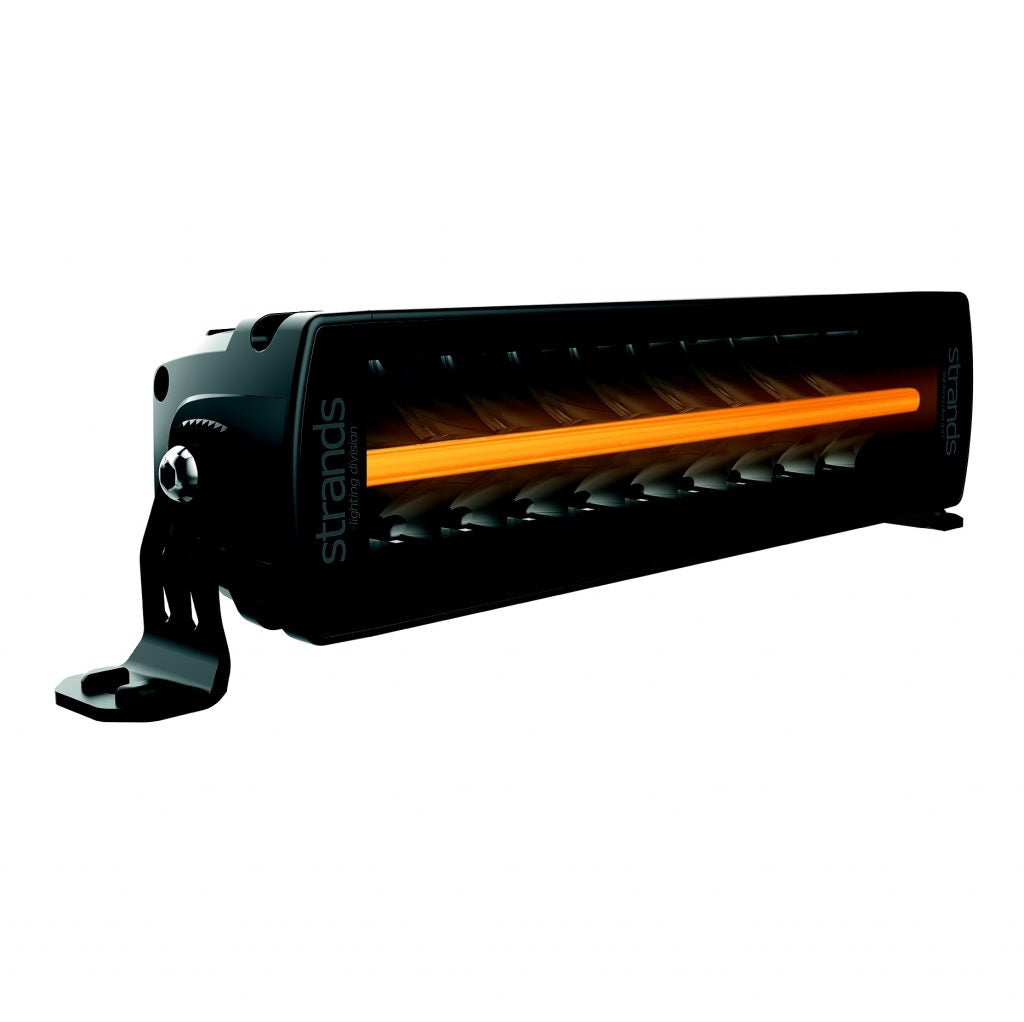

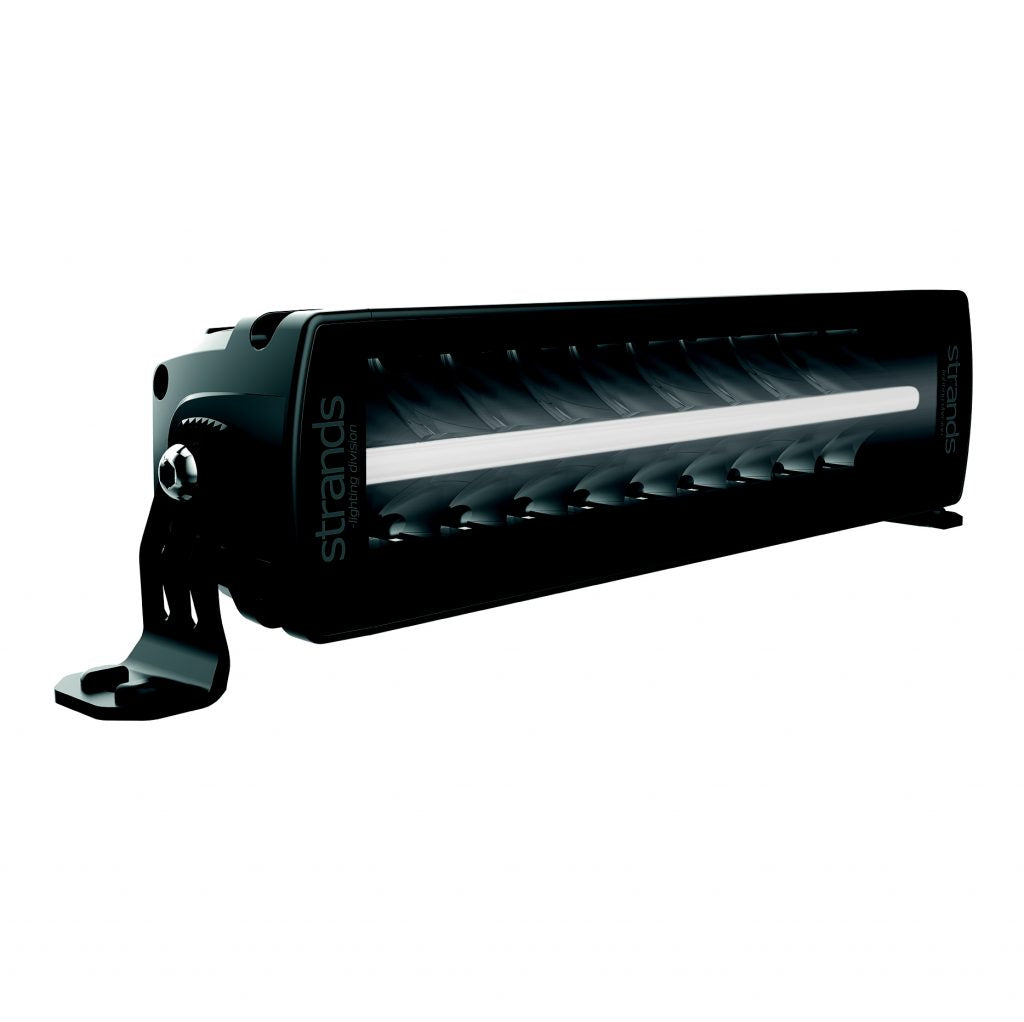

The E-approved, combo driving light pattern provides exceptional range, regardless of bar length. The combination pattern delivers both long range and side-of-the-road illumination, allowing you to see objects sooner, improving road/trail safety. The second feature is a dual colour position light, which illuminates with your choice of output – a cool white or rich amber colour. This feature gives you the option of linking to daytime running lights, flashers or other functions and customizes the appearance of your vehicle.

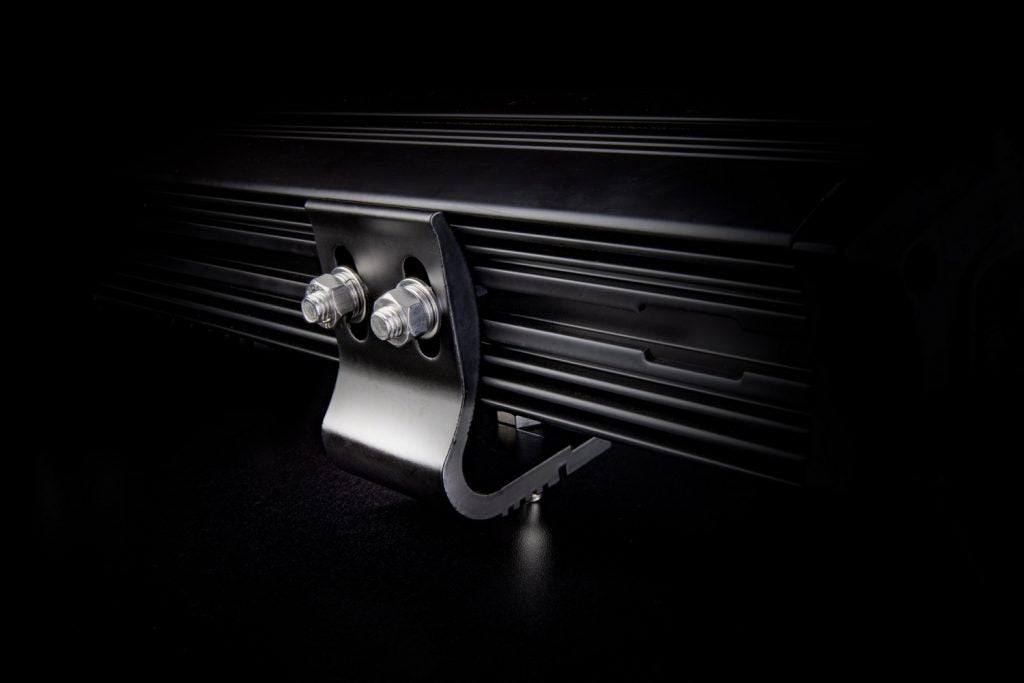

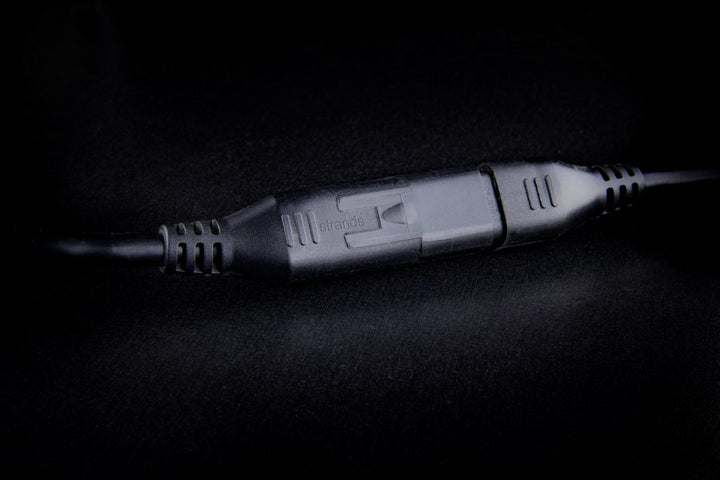

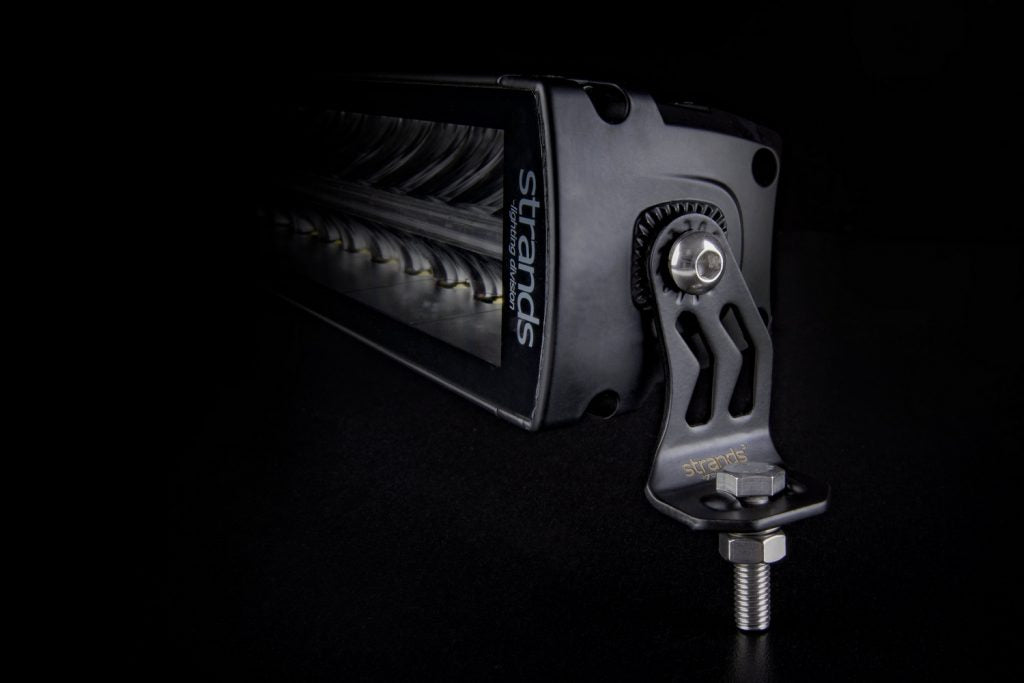

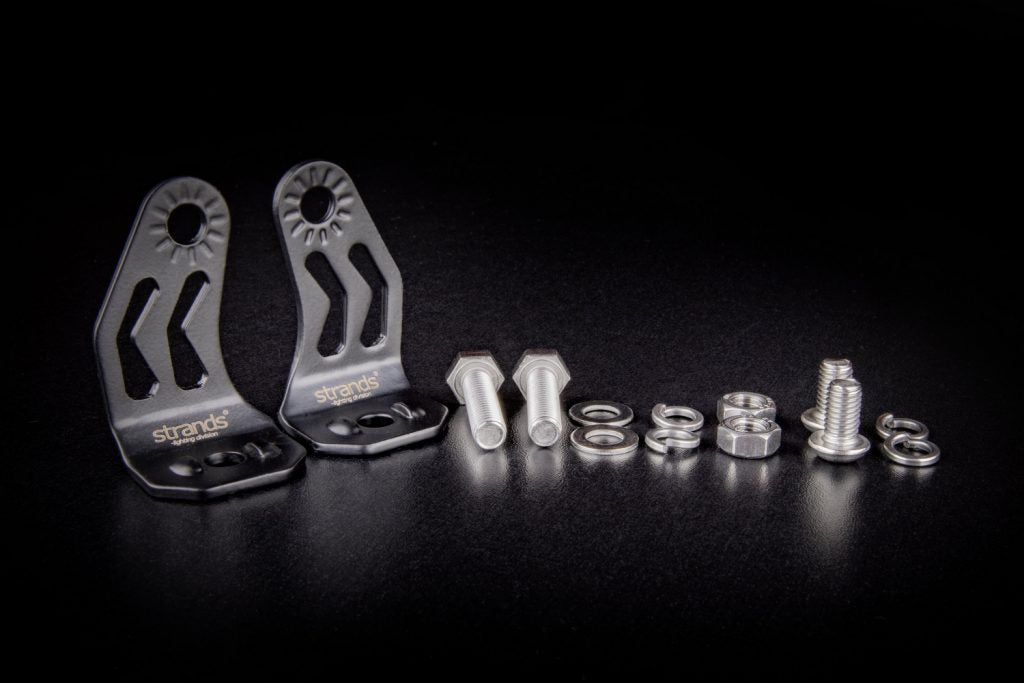

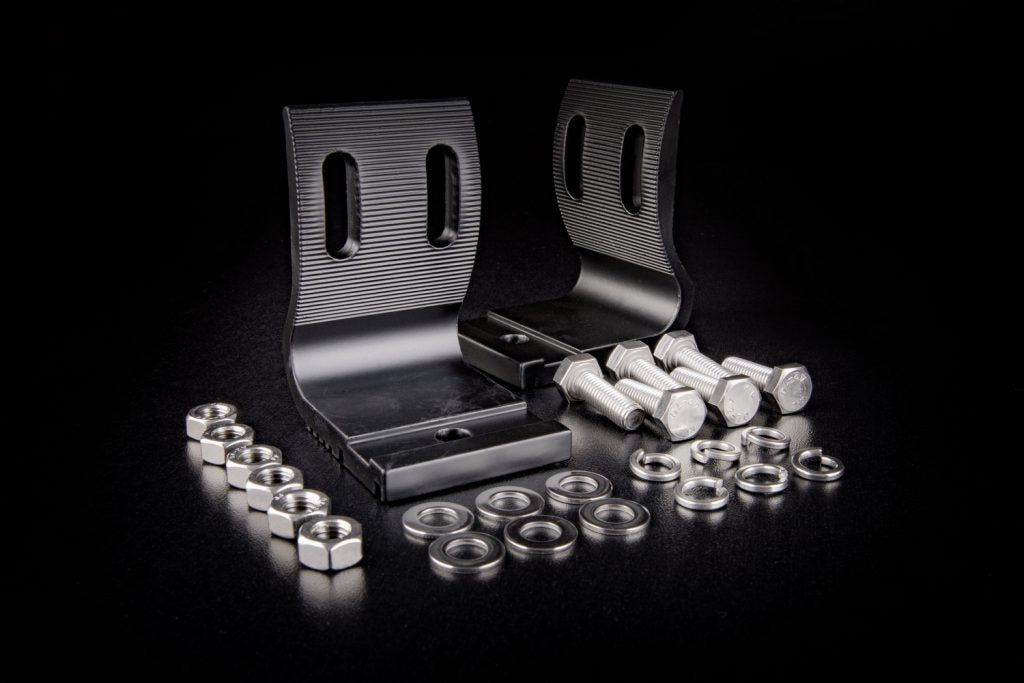

Included in the package are side mount and base mount brackets for ease of installation. This LED light bar has a DT 4 connector. Consider adding a harness adapter (PN 270438) to connect with a BrightSource wiring harness (PN 72999) – both sold separately. The BrightSource harness is a plug and play solution with a 15A relay and switch to light up a single light through a 2 pin DT connector, which plugs into the female end of the harness adapter. The harness adapter has a white and yellow wire to power the white and amber position function, wherever you choose to source that power.

Siberia is also available in a single-row model – perfect for cars and other smaller vehicles.

This light is sold individually and does not include a harness.

Wiring Harness Options:

Harness for one light – 72999-1
Harness for two lights – 73240-2

• Type of lamp LED
• Type of LED Osram
• PCS LED´s 20
• Voltage (V DC) 10-40V DC
• Consumption (w) 12V 45
• Consumption (w) 24V 45
• Consumption specific function (w) 12V White position light: 3, Amber position light: 7.5
• Consumption specific function (w) 24V White position light: 3, Amber position light: 7.5
• Theoretical lumen 8000
• Actual lumen 3294

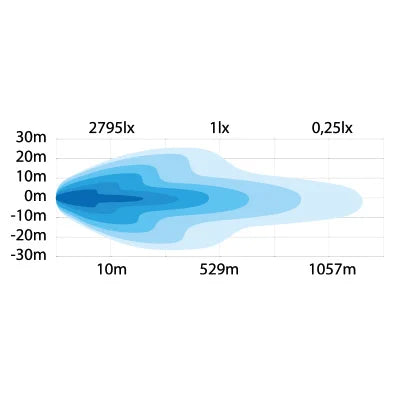

• 1 LUX @ m 437
• Kelvin 6000
• IP-class 67/69K
• Colour housing Black
• Colour lens Clear
• Colour LED´s White
• Beam pattern Combo
• Position light Yes. white and amber
• Connection DT-4
• Cable length (mm) 500
• Material bracket Stainless steel
• Material housing/chassi Aluminium
• Material lens Polycarbonate
• Length (mm) 307
• Depth (mm) 71.6
• Height (mm) 76
• Height including bracket (mm) 89
• Operating temperature -20°C – +45°C
• ADR-approved No
• E-approved  Yes
• According to regulation ECE R112
• Reference number 45
• EMC ECE R10
• 3 Year Function Warranty
