SKU: 809510

$117.00
/
Shipping calculated at checkout.
Description

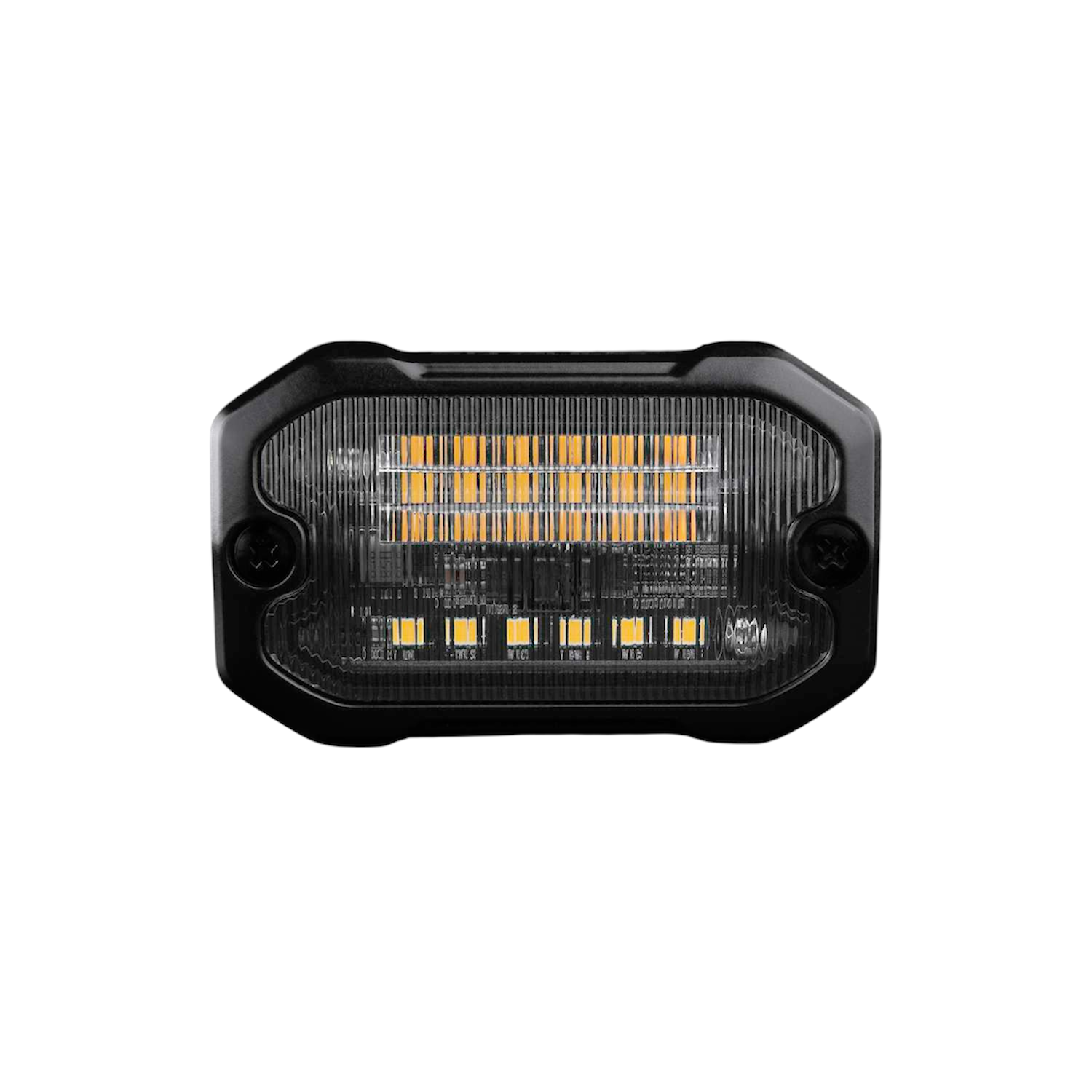

Time to update your reversing lights? With the powerful Unity scene light, you’ll get a clear view of where you’re going thanks to a more than 14-meter range. Measuring only 78x22x48 and 65 mm CC, the Unity scene light will fit anywhere needed and is suitable for all vehicles. It has a warning light function for when extra visibility is required and is E-approved as a reversing light (ECE R23) and a warning light (ECE R65). The wide output is many times stronger than the built-in reversing light, making reversing safer and easier. The sturdy build, durable materials, and IP-rating IP69K guarantee a long-lived product. It’s made to withstand harsh weather and exposed positions so you can focus on the task at hand. A low power consumption of 4,5 W and 10-32 V DC usage lets you install as many lights as you need on many types of vehicles.

ONE LIGHT, TWO FUNCTIONS

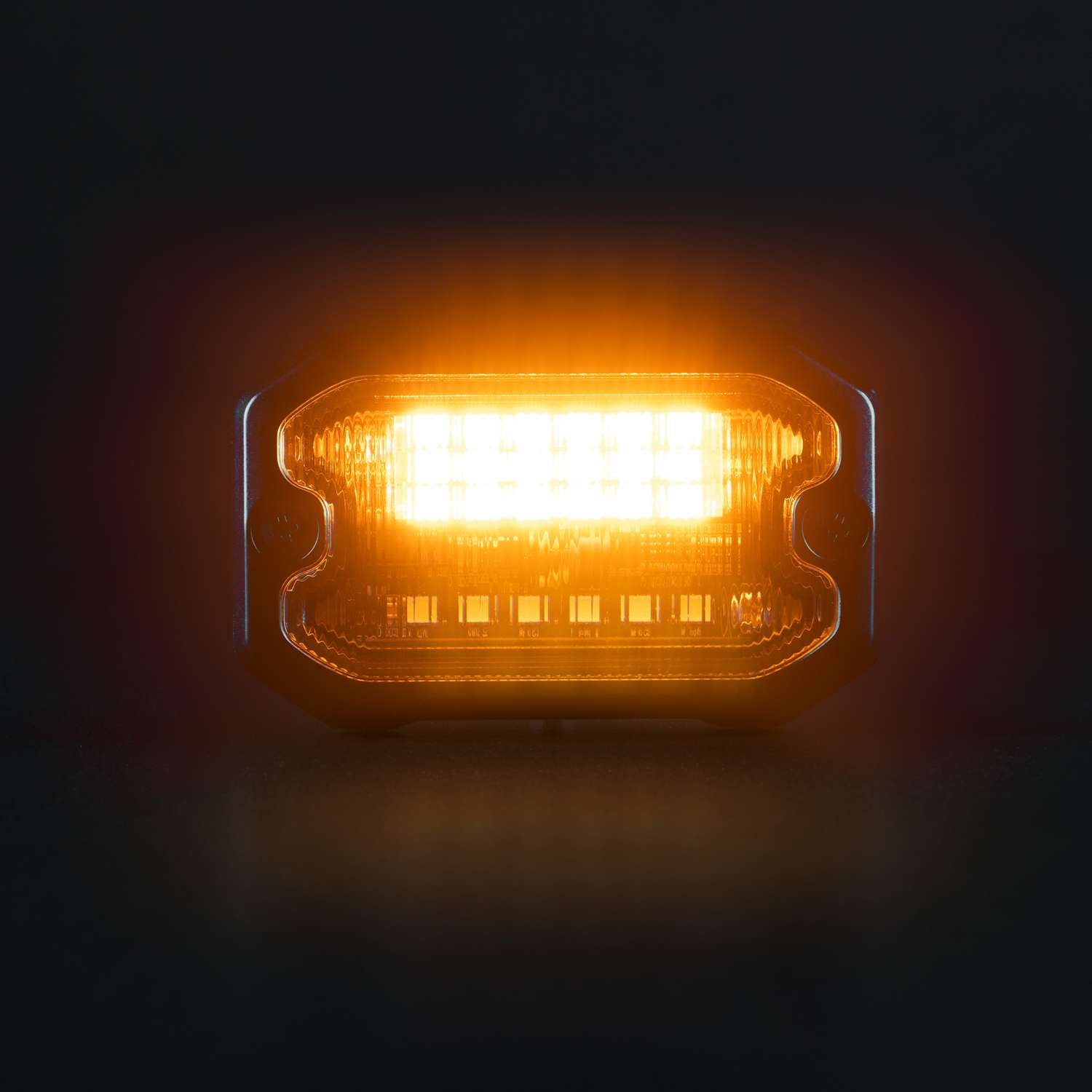

Most reversing lights have low-intensity lights and are merely a signal to your fellow drivers. In the Unity scene light, you’ll find a powerful reversing light with a range of 14 meters. This makes reversing safer and easier for you and those around you, letting you see a larger area behind the vehicle. Even better, it has a warning light function for when you need even more visibility. The Unity scene light is E-approved as a reversing light (ECE R23) and a warning light (ECE R65).

SMALL AND POWERFUL

Thanks to its compact size, 78x22x48 mm and 65 mm CC, the Unity scene light will fit anywhere you need. The wide beam is powerful and precise, and better yet, it has a low power consumption of only 4,5 W. A color temperature of 5700 K guarantees a bright and clear output for maximum visibility. The 75° scene light angle directs the wide output where you need it, covering a large area behind the vehicle.

FOR ALL PROFESSIONAL VEHICLES

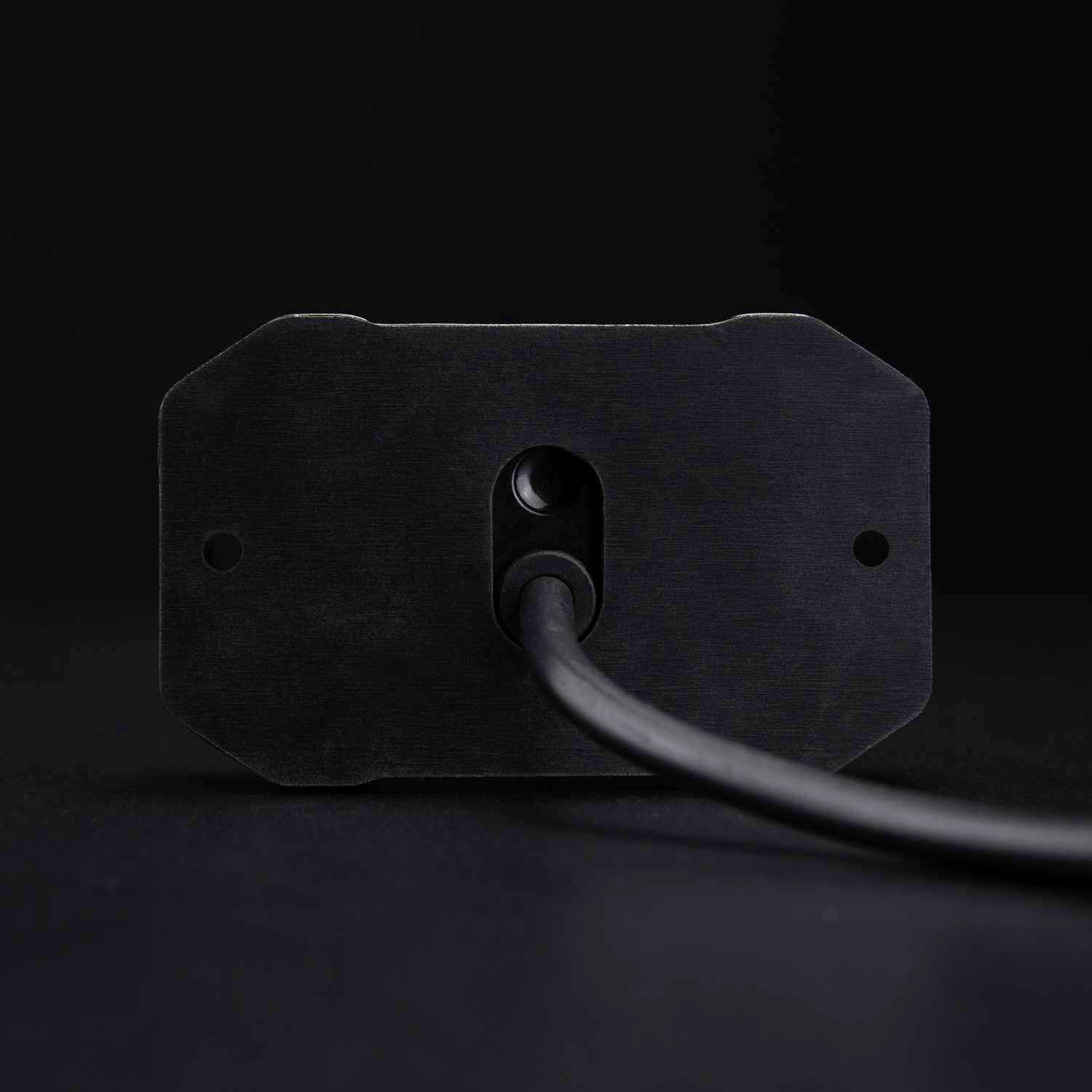

The compact size and sturdy build of the Unity scene light are designed with the needs of the professional driver in mind. It’s constructed with durable aluminum housing and a polycarbonate lens, and is IP-rated IP69K. This ensures a long-lived product that can be installed in exposed areas of the vehicle and withstand salt, water, and dirt. An EVA pad is included in the package and placed under the lamp. This prevents damage to the lamp or the surface of your vehicle. It can be used with 10-32 V DC.



Specifications
    • Unit: pcs
    • Voltage: 10-32V DC
    • Theoretical effect: 10W
    • Consumption: 8,3W
    • Functions: Scene light, reverse light , warning light
    • Consumption specific function; Scene light: 4,5W, Warning light: 3,8W
    • Patterns: 1
    • Theoretical lumen: 880lm
    • Actual lumen: 470lm

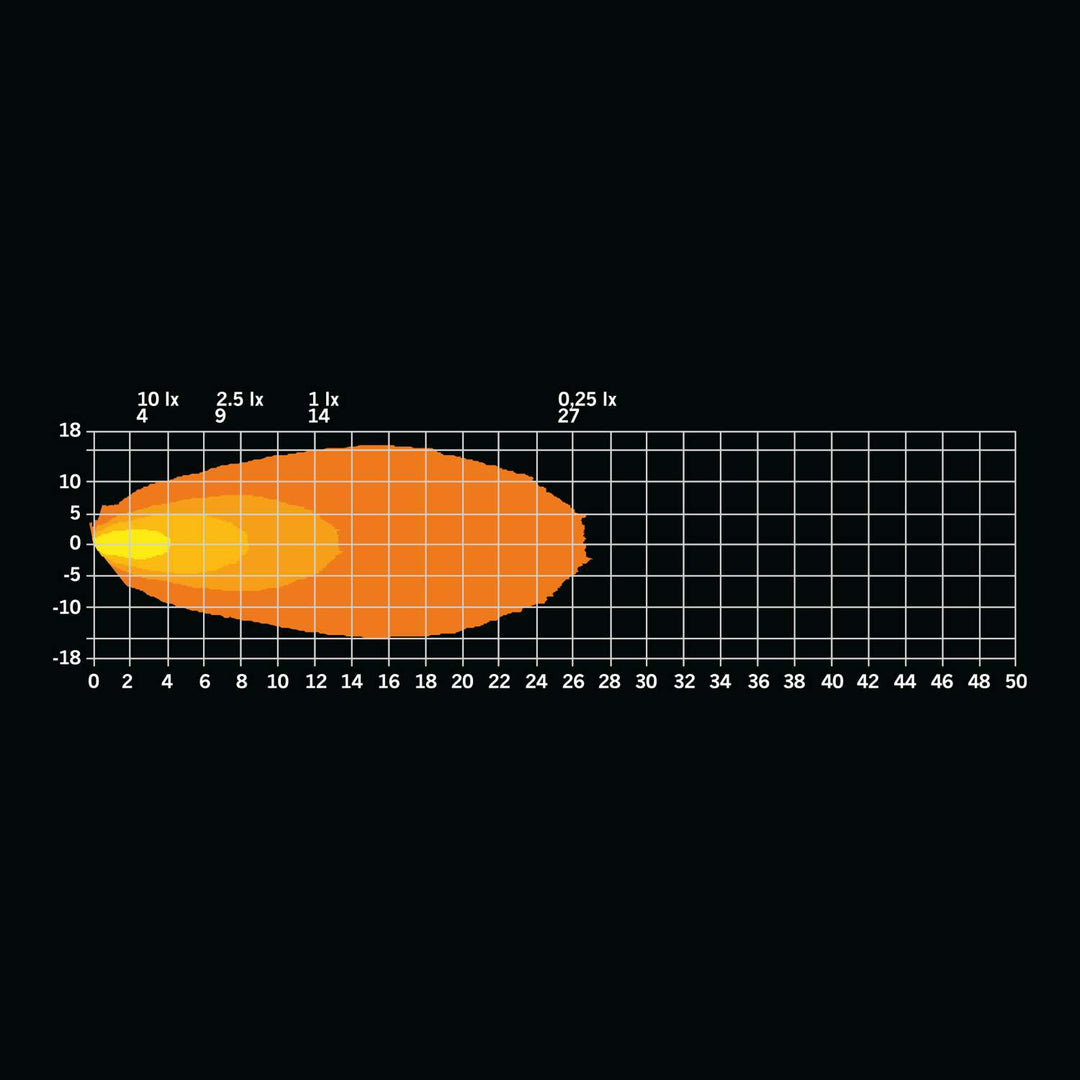

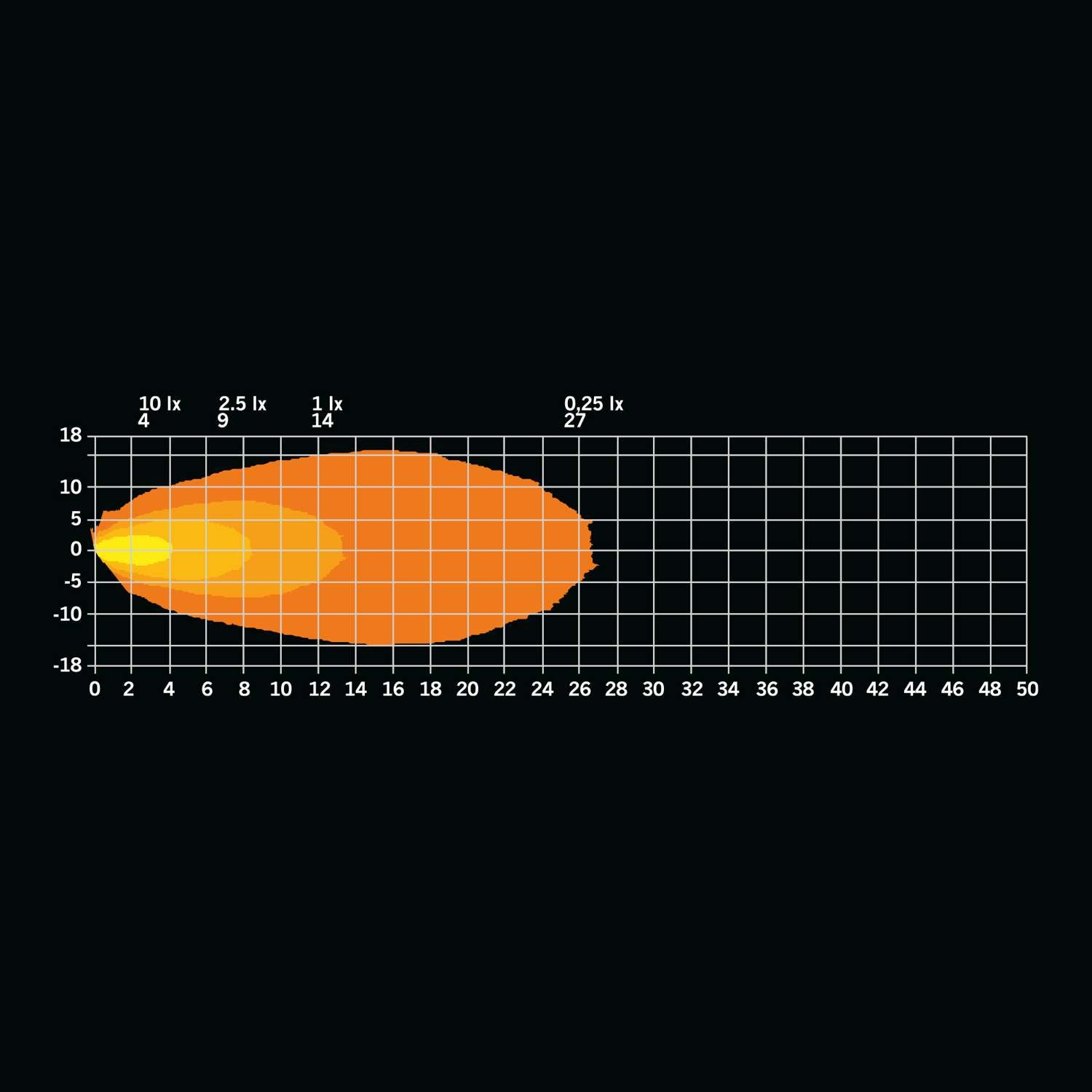

    • 1 lux @: 14m
    • Color temperature: 5700K
    • Beam pattern: Flood beam
    • Beam angle: 143,7
    • Scene light beam angle: 75
    • Connection: Cable
    • Cable length: 500mm
    • Color housing: Black
    • Color lens: Clear
    • Color LED´s: White/Amber
    • Material housing: Aluminium
    • Material lens: Polycarbonate

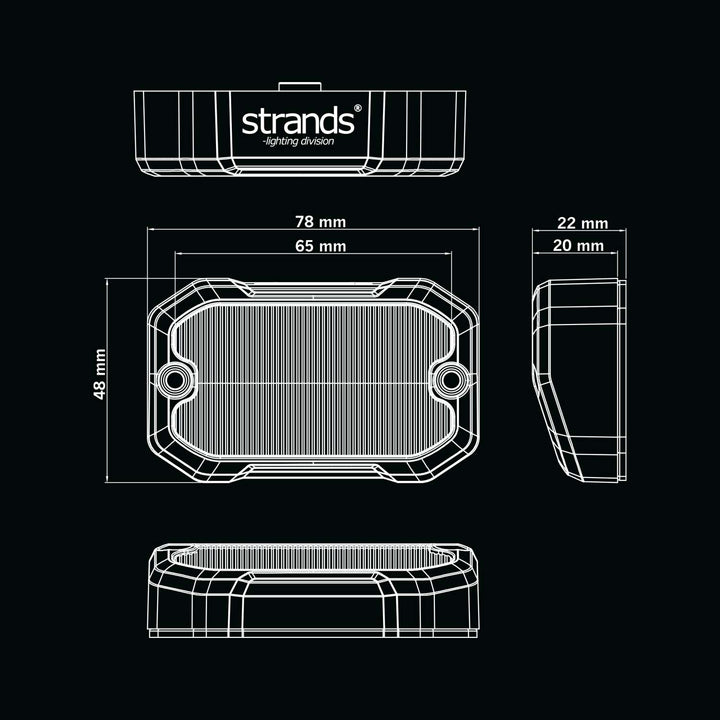

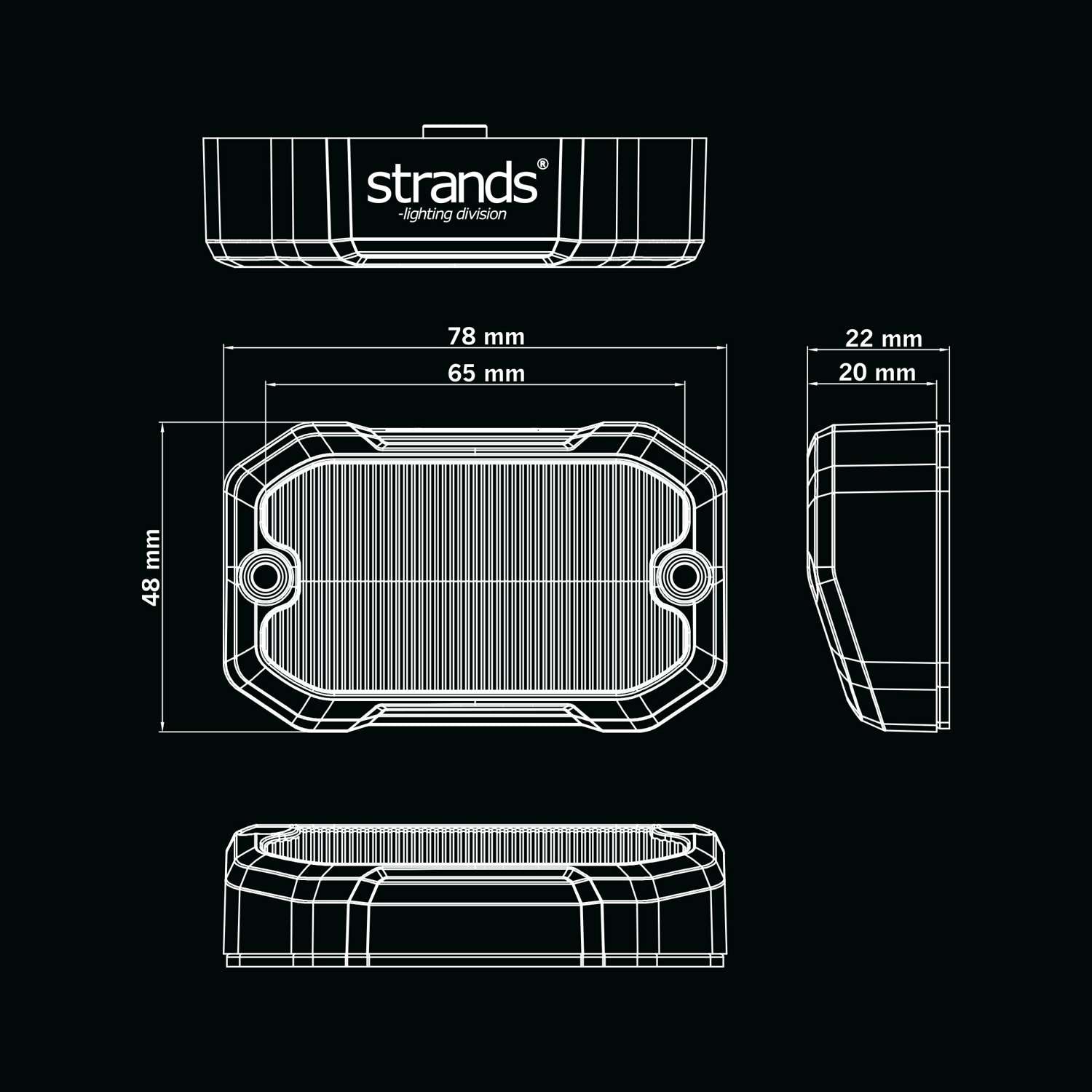

    • Length: 78mm
    • Depth: 22mm
    • Height: 48mm
    • CC: 65mm
    • Weight: 0,16kg
    • IP-class: IP69K
    • Operating temperature: -30 - +65°C
    • E-approved: Yes
    • According to regulation: ECE R23, R65
    • EMC: ECE R10
Manual

Download Manual
