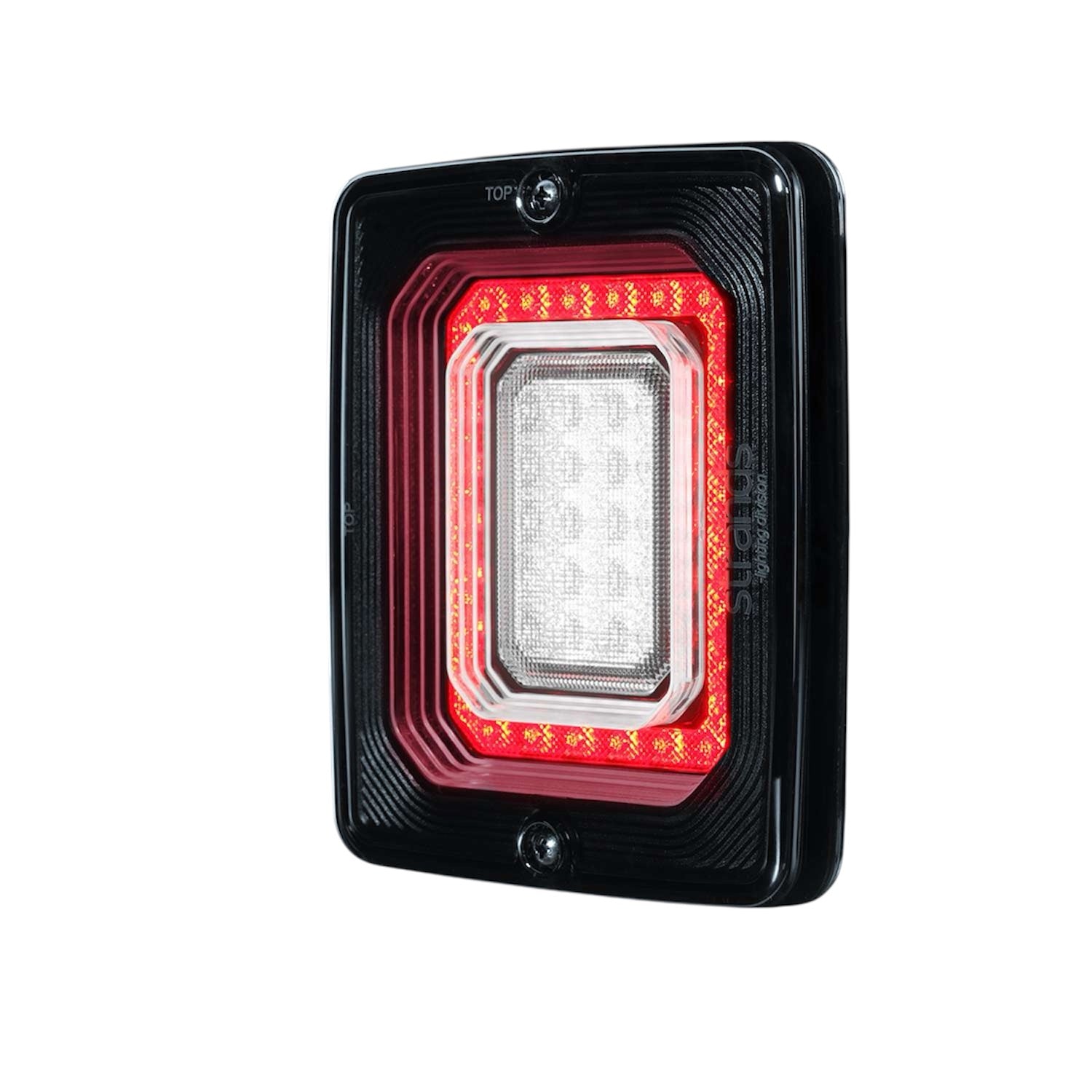

FOR9T ILLUSION REVERSE/FOG LIGHT
SKU: 800658
- Description
- Specifications
- Manual
The FOR9T Illusion tail light perfectly combines the unique and eye-catching style of the FOR9T position lights with maximum functionality. It features a reverse light and a fog light. These signature lights provide a hypnotic appearance for all trucks, enhanced by the dark lens. Thanks to the 115 mm CC and square shape, it fits all IZE LED frames (Part No. 800635-40) and rubber housings (Part No. 800112-13). This ensures easy installation and effortless upgrades to your old lights. It’s constructed from durable materials, guaranteeing a long-lasting and resilient product. As an added assurance of its durability, it’s backed by Strands’ 3-year warranty. The Illusion features a dark lens and is E-approved R148 for both vertical and horizontal installation. It’s available in four configurations: tail/brake/indicator, reverse/fog, tail/brake, and indicator. Screws, nuts, and nylon washers are included in the package.
| Unit | pcs |
| Voltage | 10-40V DC |
| Theoretical effect | 15W |
| Consumption | 11W |
| Functions | Reverse, Fog |
| Consumption specific function | REVERSE: 5W, FOG: 6W |
| Connection | Cable |
| Cable length | 2500mm |
| Color housing | Black |
| Color lens | Dark |
| Color LED´s | Red/white |
| Material housing/chassi | Polycarbonate |
| Material lens | Polycarbonate |
| Length | 133mm |
| Depth | 46mm |
| Height | 110mm |
| CC | 115mm |
| Weight | 0.37kg |
| IP-class | IP67 |
| Operating temperature | -30 - +65°C |
| E-approved | Yes |
| According to regulation | ECE R148 |
| EMC | ECE R10 |
