FOR9T ILLUSION 3 FUNCTION TAIL LIGHT
SKU: 800655
- Description
- Specifications
- Manual

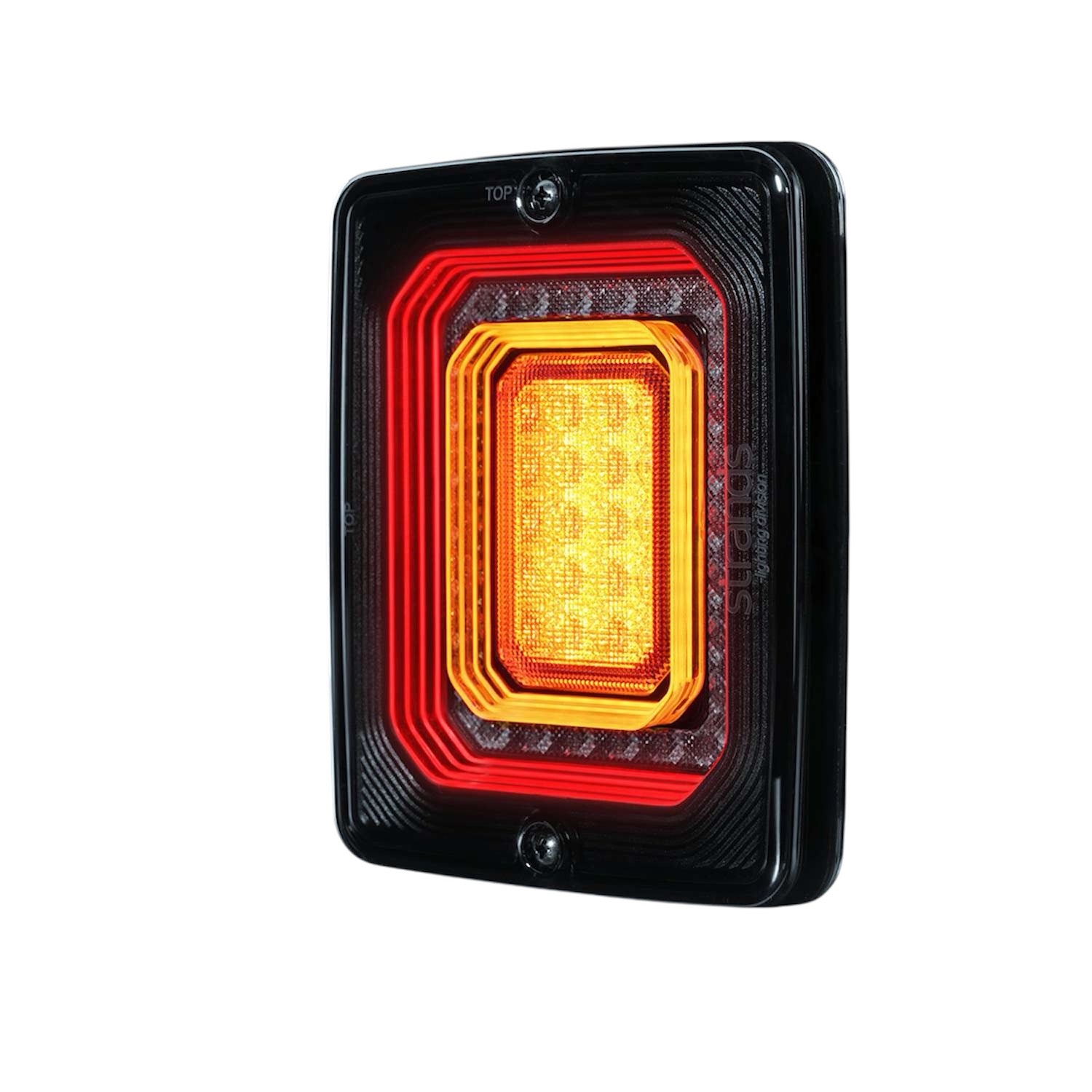

The FOR9T Illusion 3 function tail light perfectly combines the style of the unique and eye-catching FOR9T position lights with maximum functionality. These signature lights provide an undeniable and hypnotic look, contrasted against the dark lens. It features a tail light, brake light, and dynamic indicator light. Different areas of the light illuminate with different functions, creating a unique and striking effect in the FOR9T style. Thanks to the 115 mm CC and square shape, it fits all IZE LED frames (Part No. 800635-40) and rubber housings (Part No. 800112-13). This makes installation and retrofit straightforward, and upgrading your old lights simple. It’s built from durable materials, ensuring a long-lasting and resilient product. As an additional assurance of its durability, it’s backed by Strands’ 3-year warranty. The Illusion is E-approved R148 for both vertical and horizontal installation. Screws, nuts, and nylon washers are included in the package.
| Unit | pcs |
| Voltage | 10-40V DC |
| Theoretical effect | 20W |
| Consumption11,0W | 15.5W |
| FunctionsReverse, Fog | Tail, Brake, indicator |
| Consumption specific function | Tail: 4.5W, Brake: 5W, indicator: 6W |
| Connection | Cable |
| Cable length | 2500mm |
| Color housing | Black |
| Color lens | Dark |
| Color LED´s | Red/amber |
| Material housing/chassi | Polycarbonate |
| Material lens | Polycarbonate |

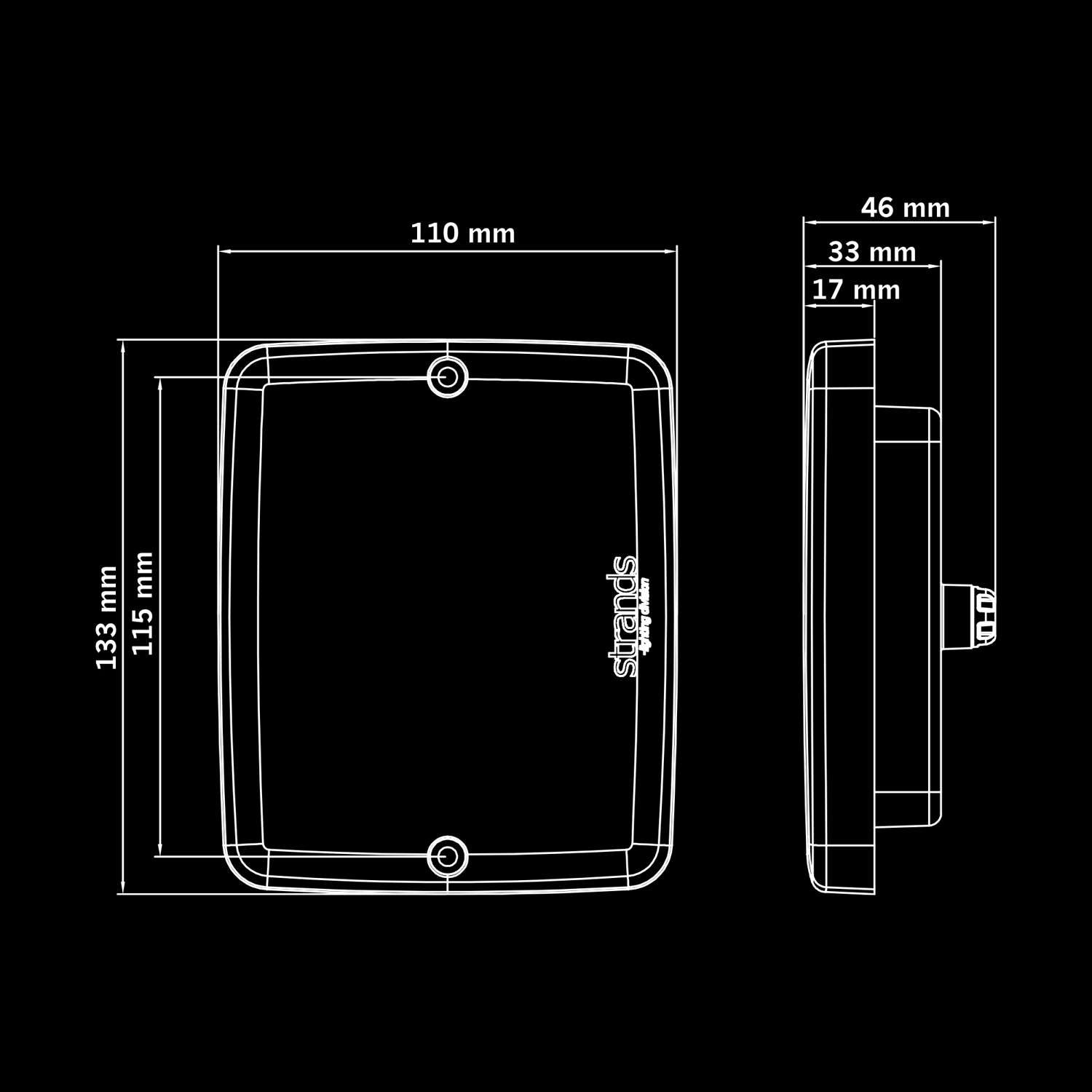

| Length | 133mm |
| Depth | 46mm |
| Height | 110mm |
| CC115mm | 115mm |
| Weight | 0.37kg |
| IP-class | IP67 |
| Operating temperature | -30 - +65°C |
| E-approved | Yes |
| According to regulation | ECE R148 |
| EMC | ECE R10 |
