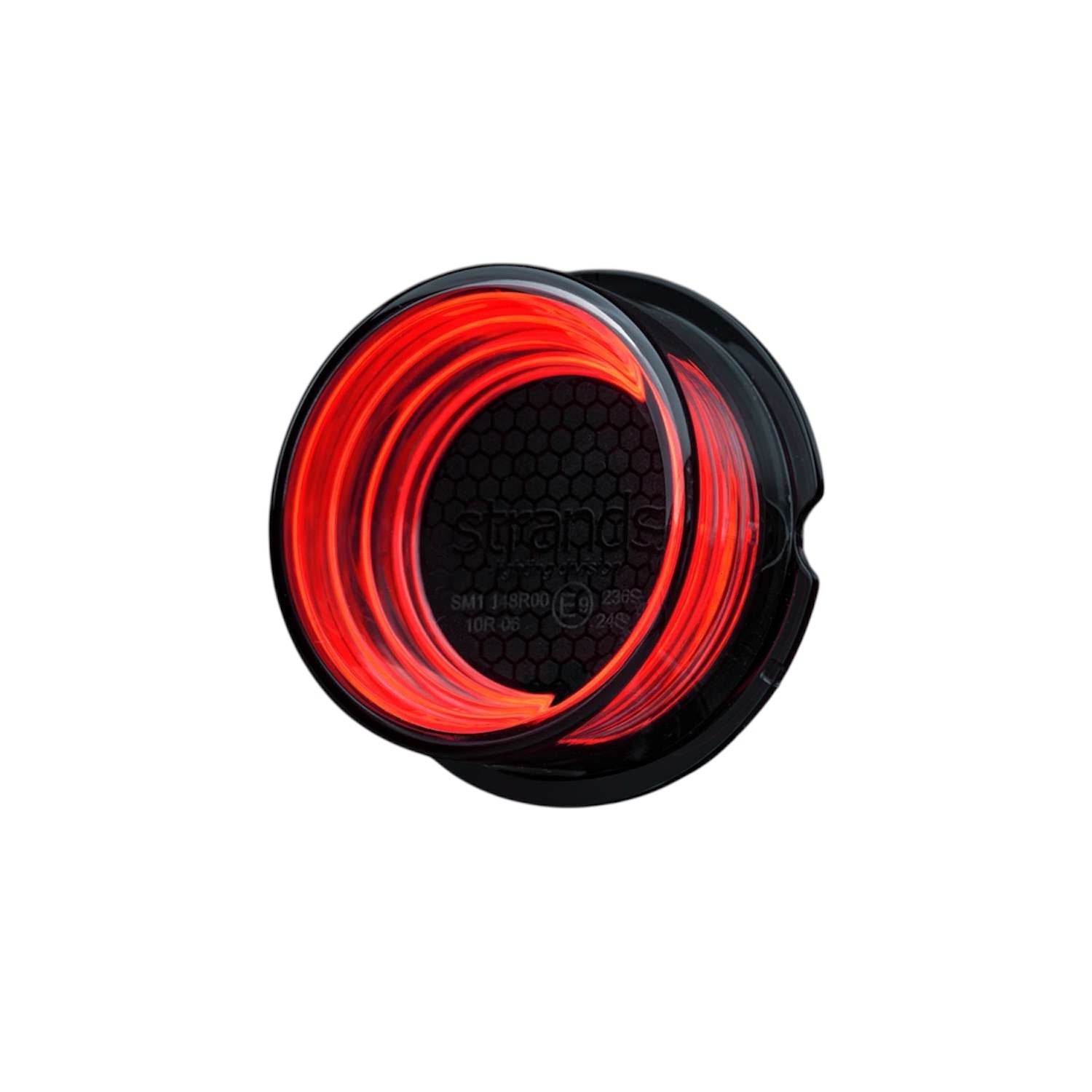

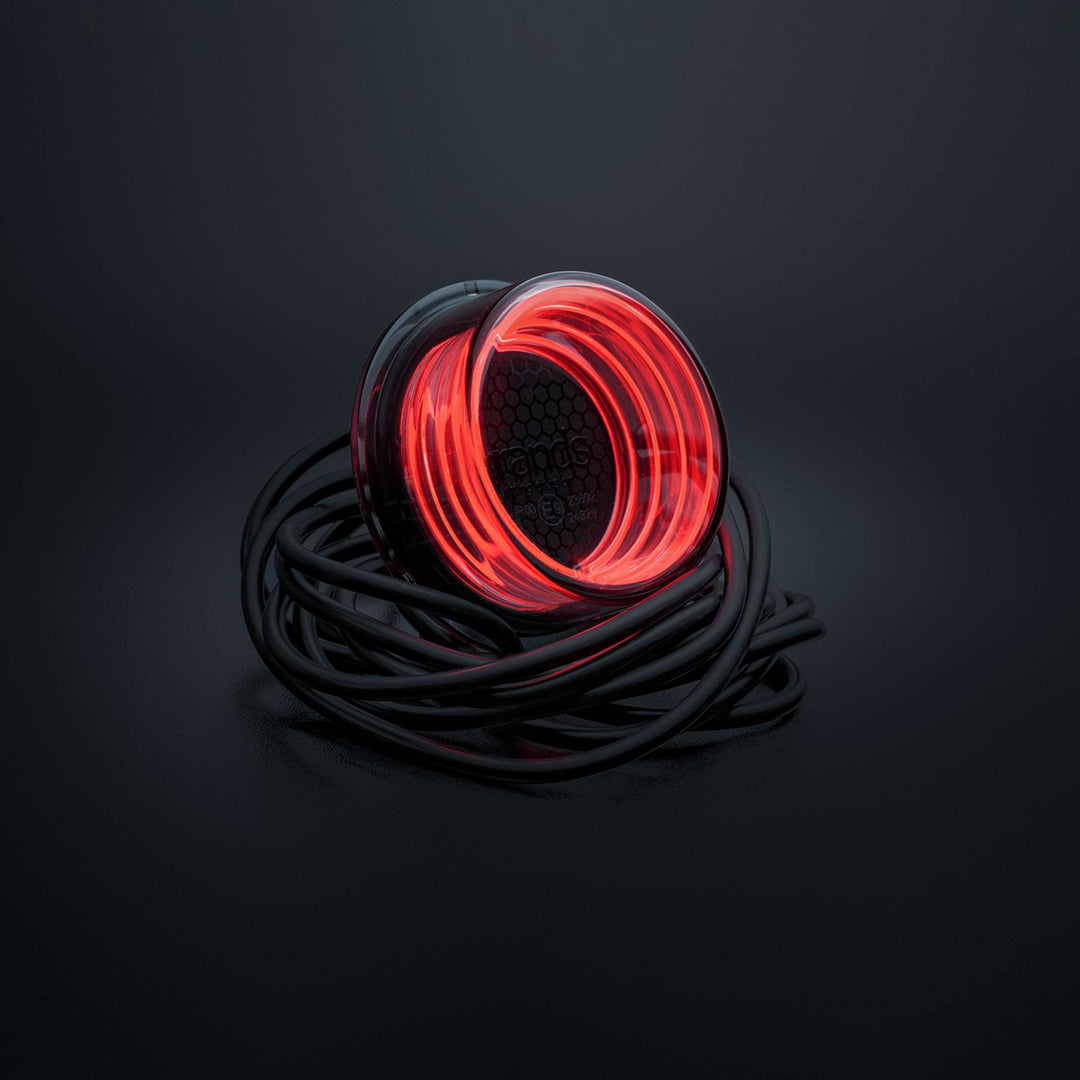

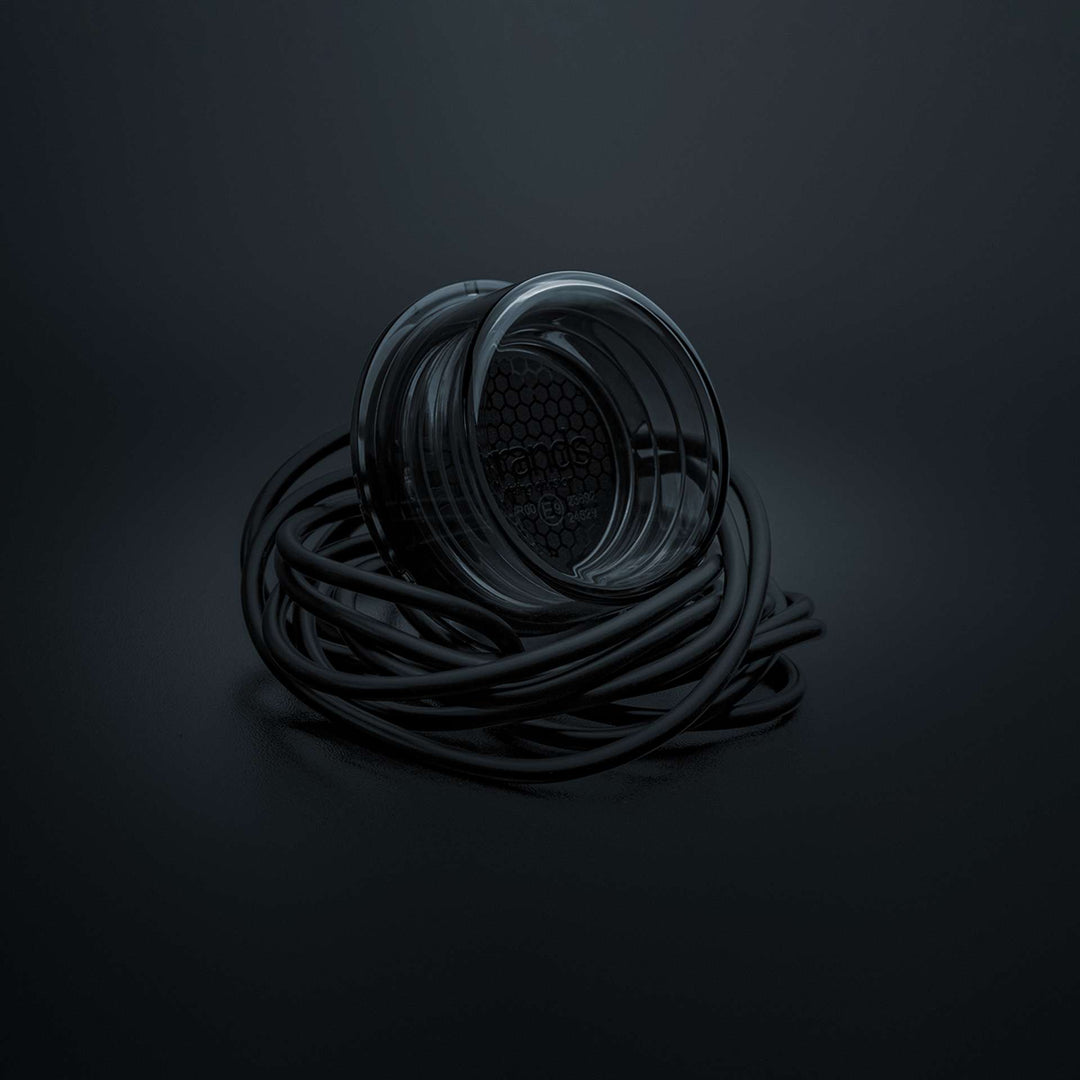

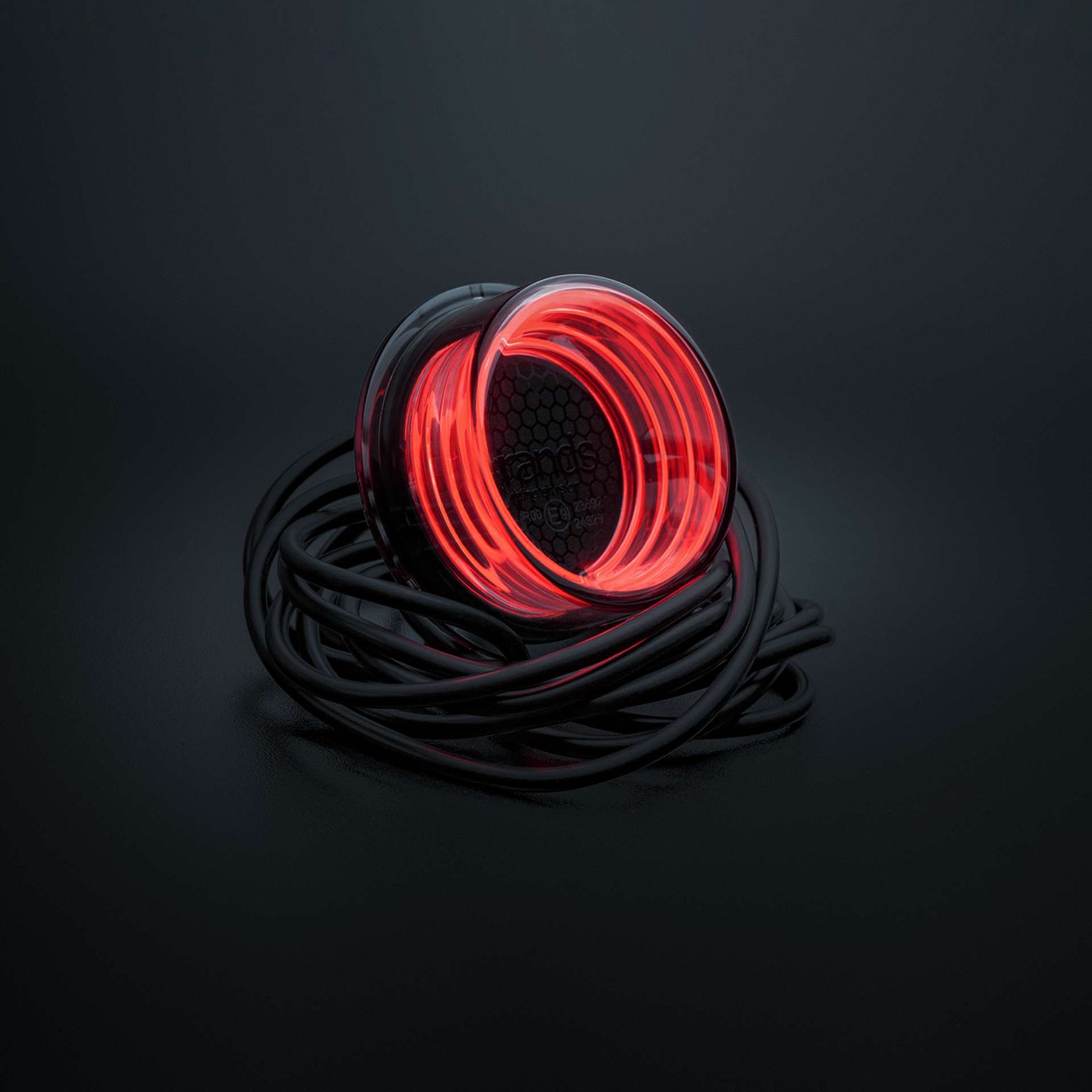

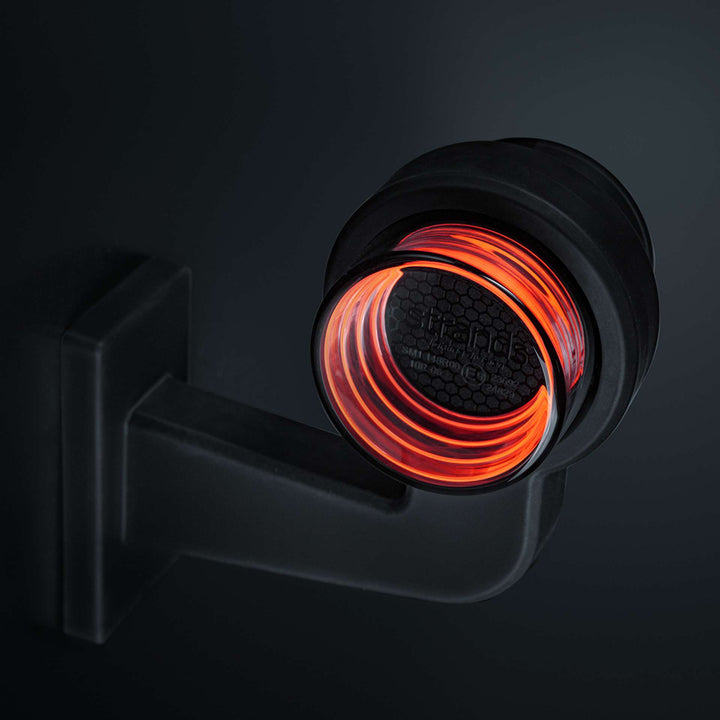

FOR9T GEO RED POSITION LIGHT
SKU: 850466
- Description
- Specifications
- Manual

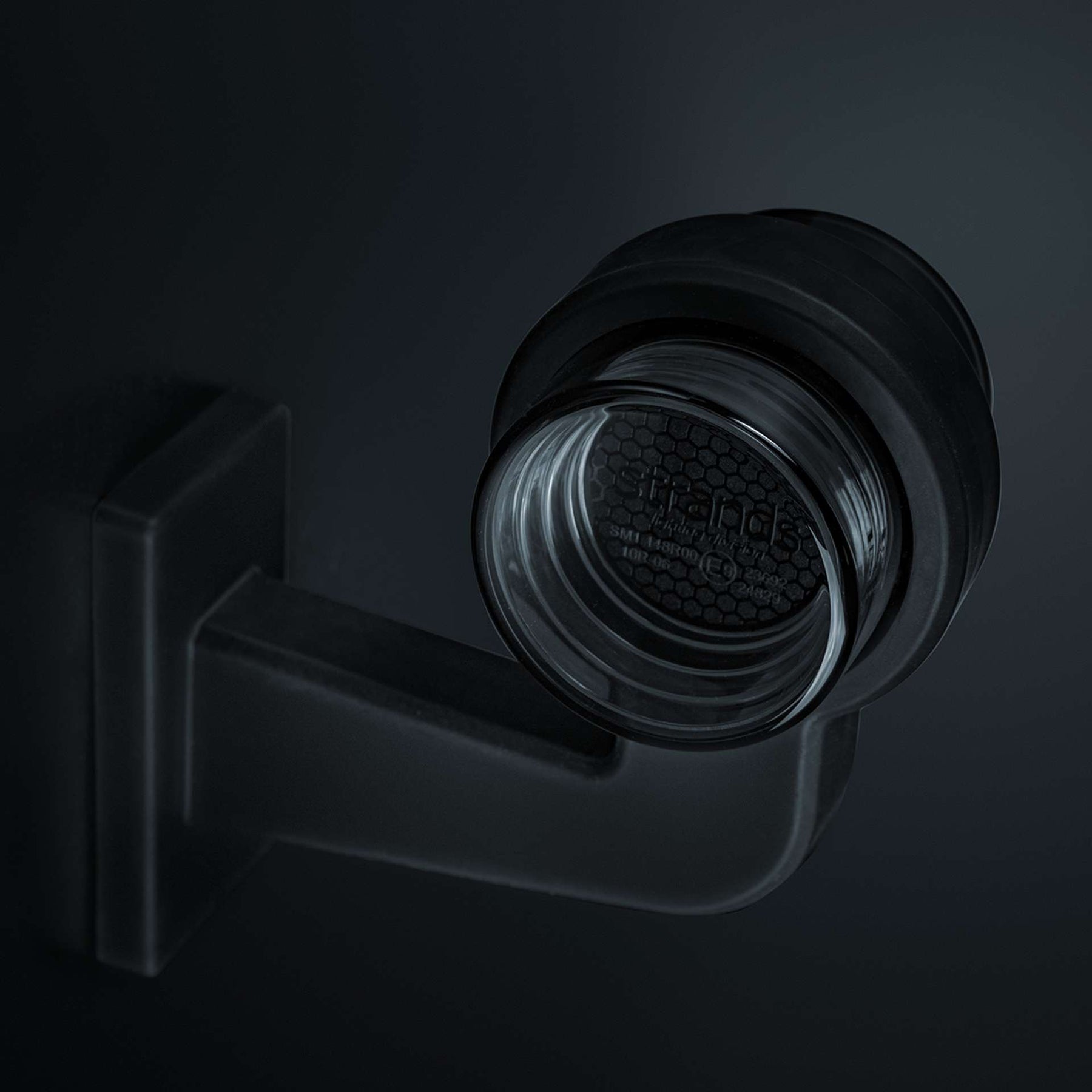

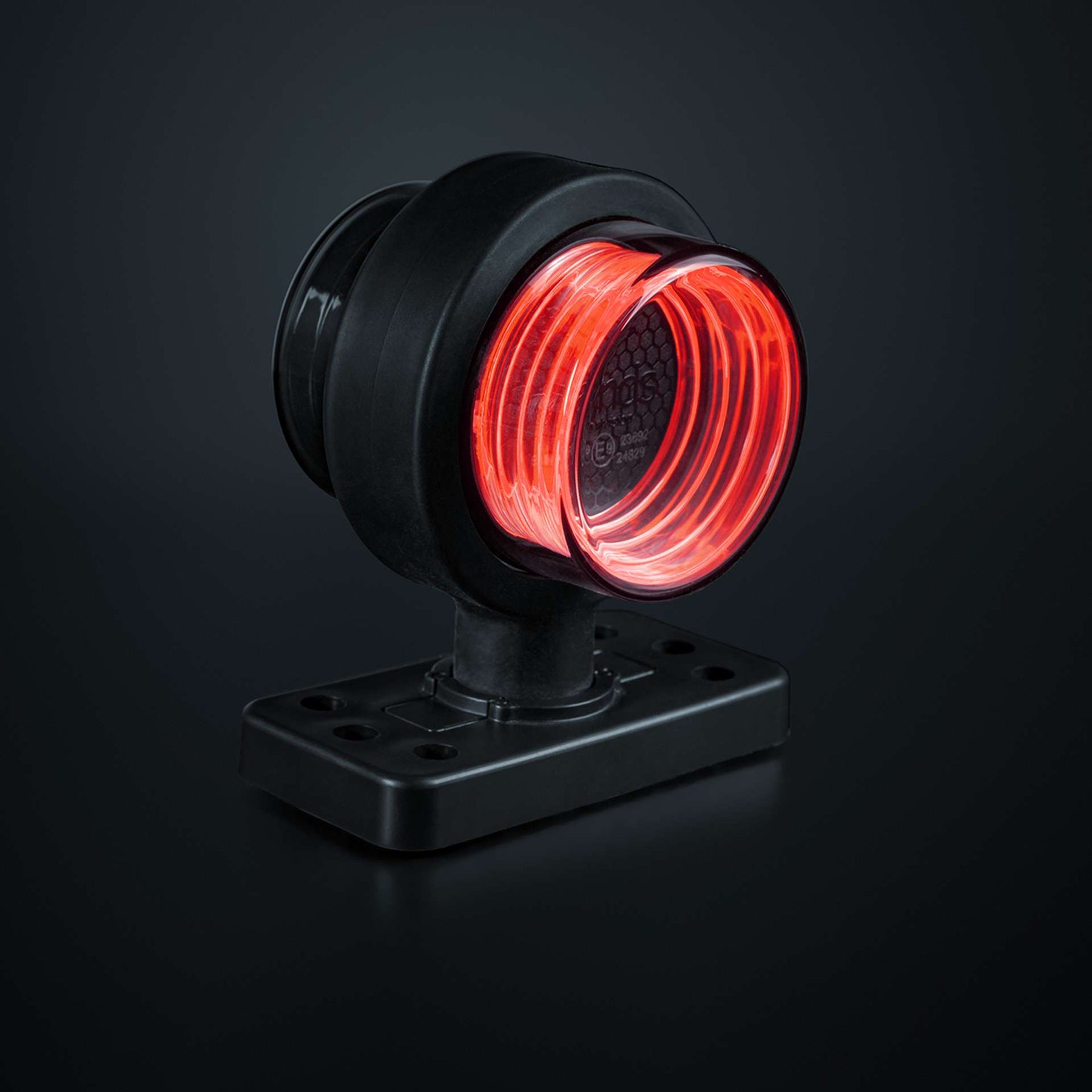

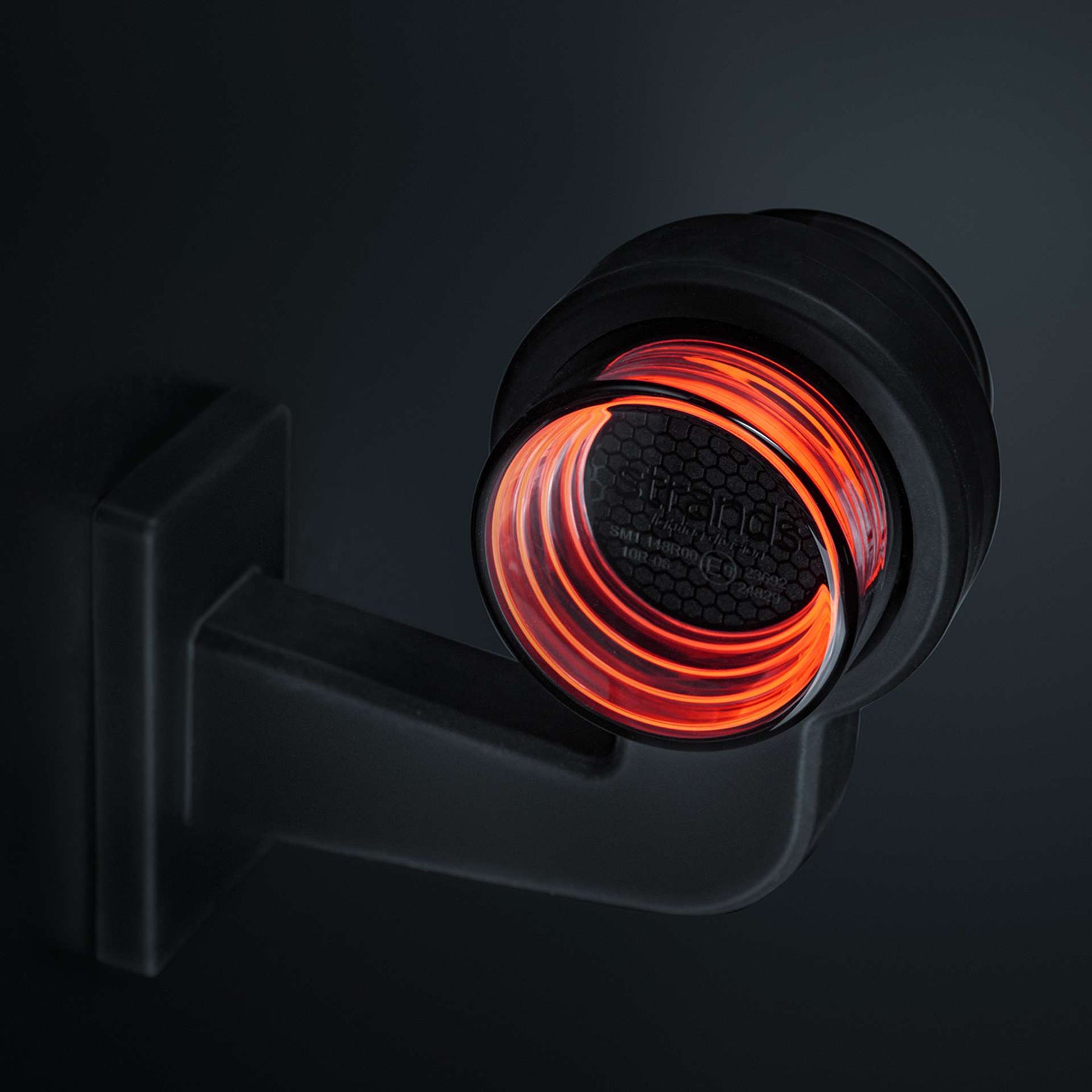

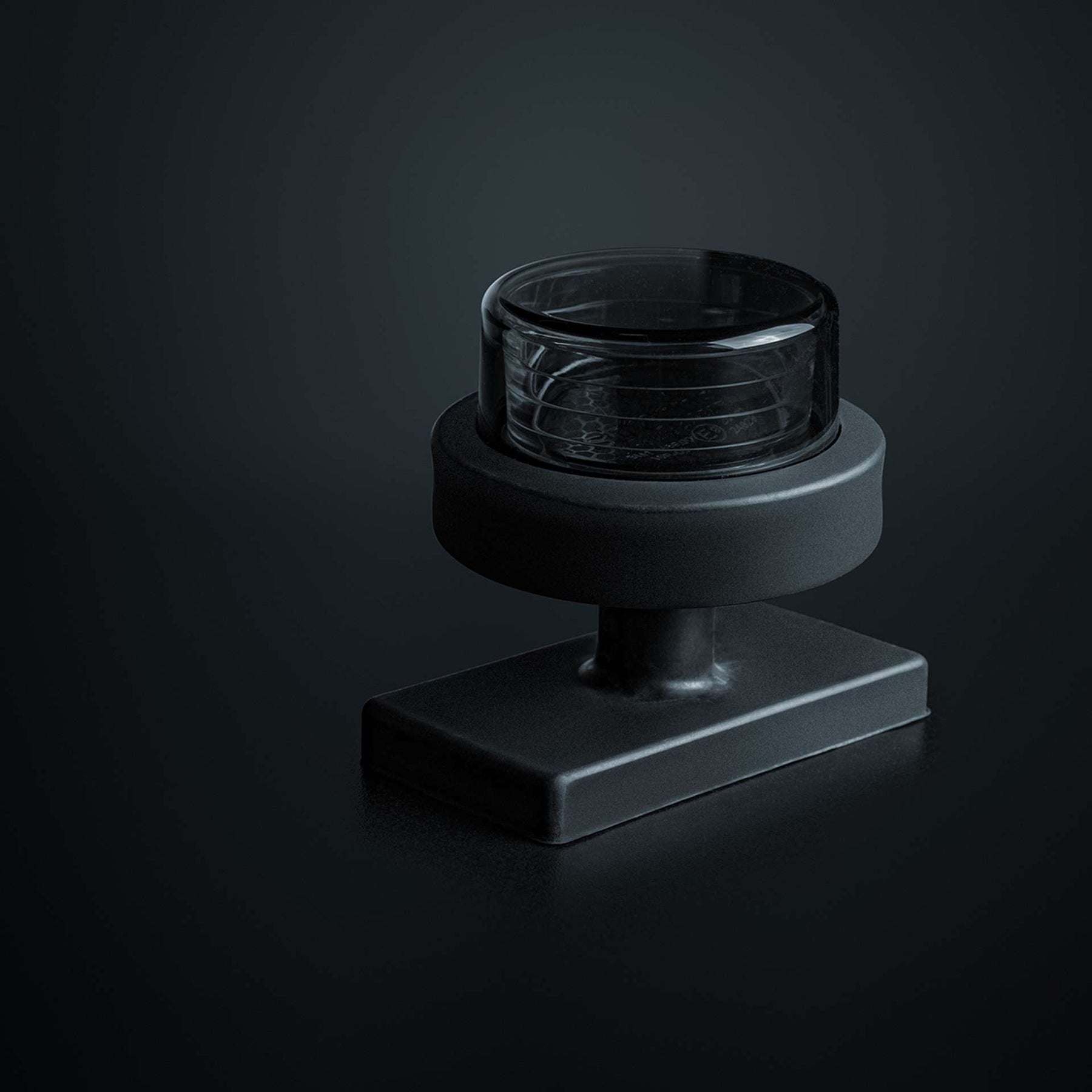

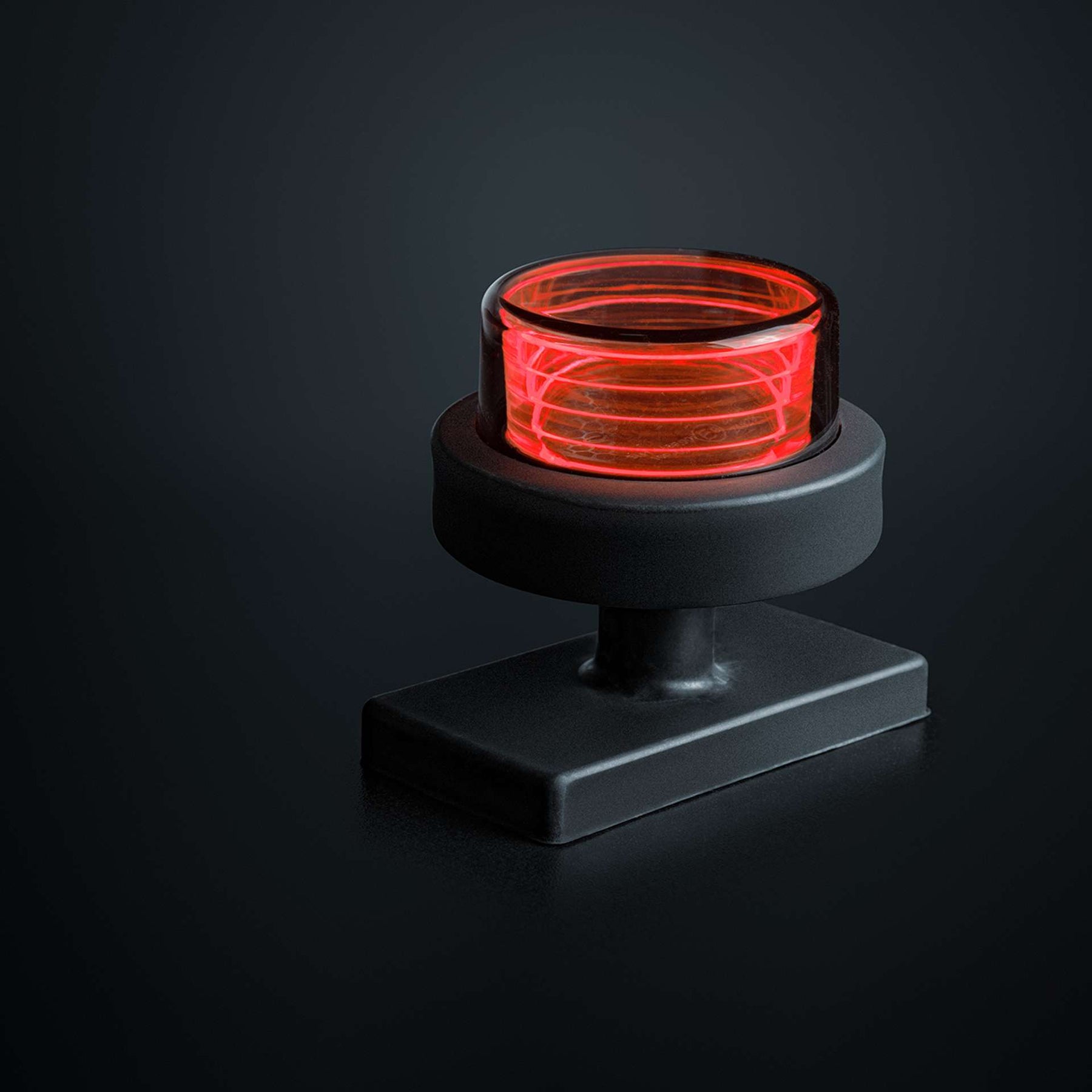

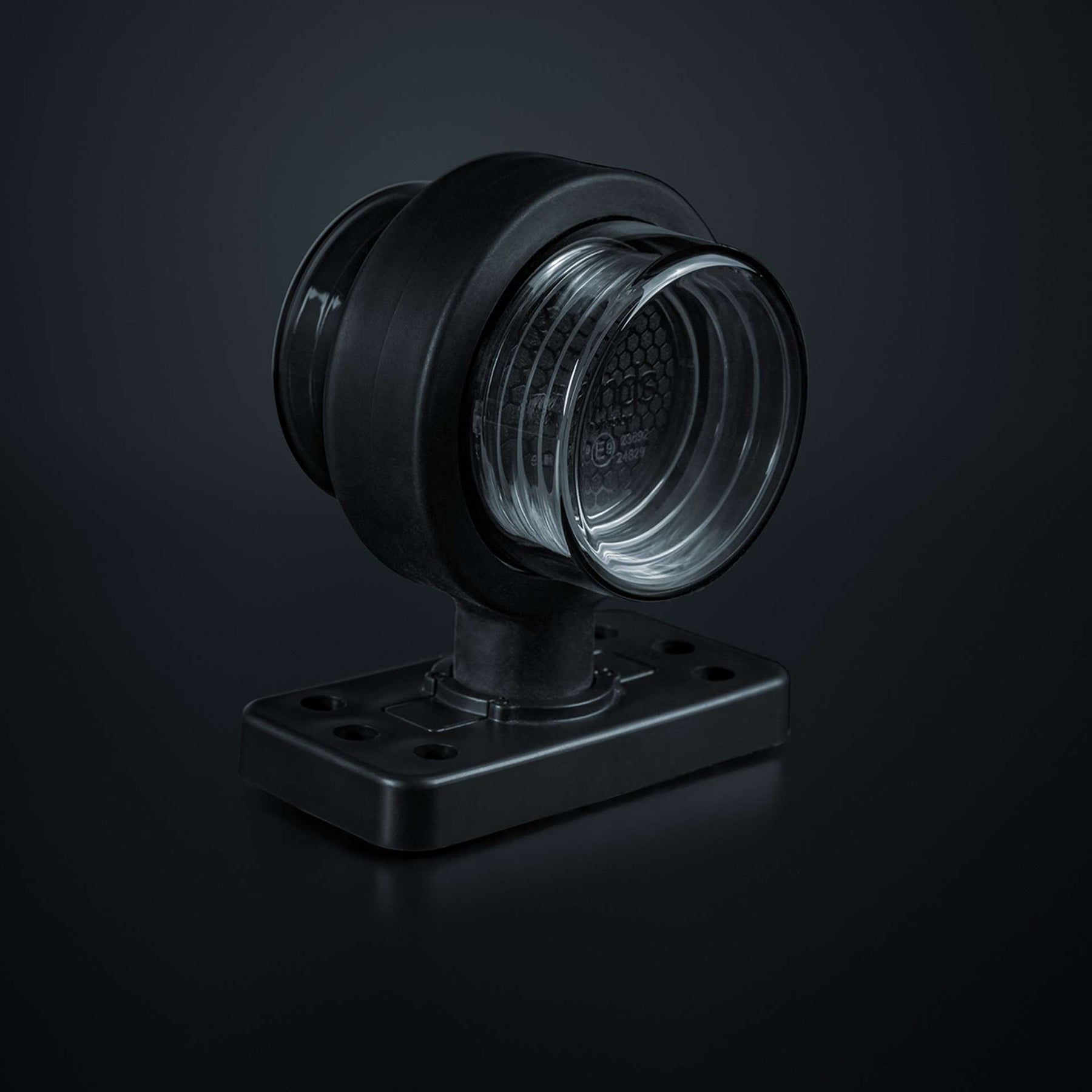

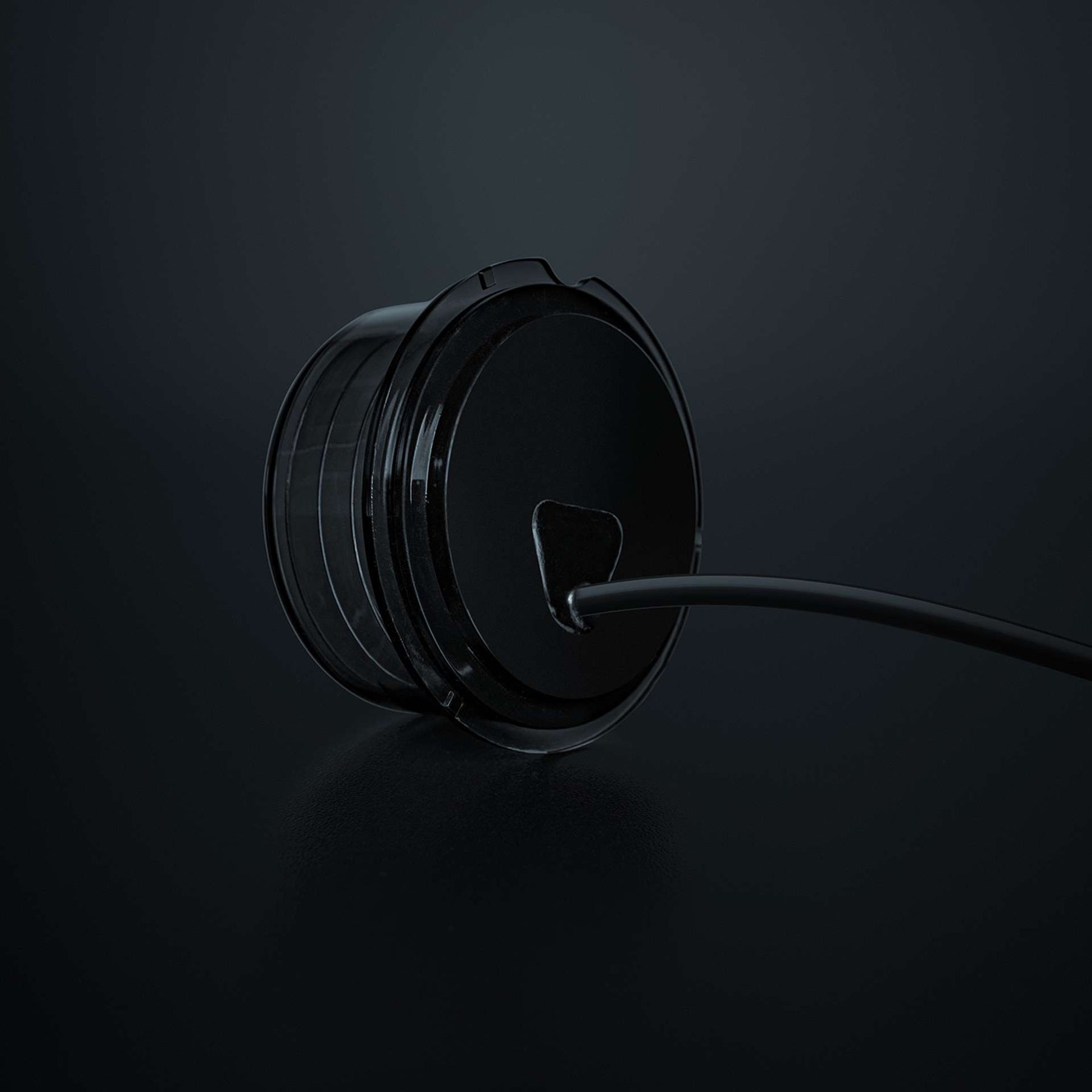

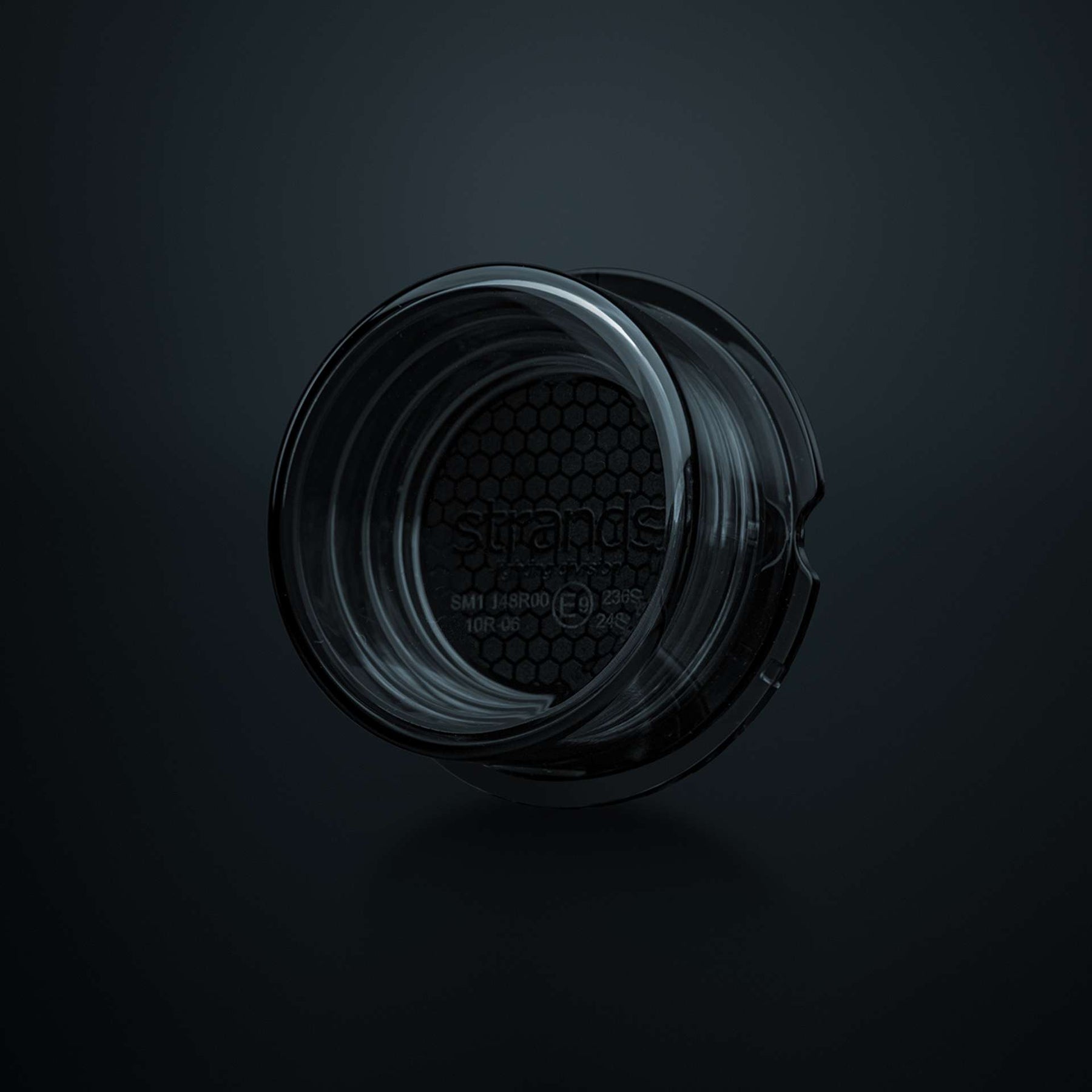

The FOR9T Geo (Part No. 850466) is a striking Viking-style side marker with the FOR9T look. It will fit most rubber arms, like the Strands Viking rubber arms (Part No. 800412-14/19). It has a diameter of 70.2 mm. It’s made of high-quality, corrosion-free polycarbonate and is IP-rated IP67, as a guarantee for a long-lasting product. Like all FOR9T products, it is covered by Strands’ 3-year function warranty. It’s E-approved according to R148. The Geo is used with 10-40 V DC, and uses only 4.5W. Thanks to the 2500mm cable, you’ll have plenty of reach for installation. The Geo is a perfect match with all lights in the FOR9T range. The FOR9T hexagon pattern in the lens gives an extra boost to the visual expression, and the Geo is available in white, red, and amber.
| VOLTAGE | 10-40V DC |
| CONSUMPTION | 4.5W |
| FUNCTION | SIDE MARKER |
| IP CLASS | IP67 |
| COLOUR HOUSING | BLACK |
| COLOUR LENS | DARK |
| COLOUR LEDs | RED |
| MATERIAL LENS | POLYCARBONATE |
| MATERIAL HOUSING | POLYCARBONATE |
| CONNECTION | CABLE |

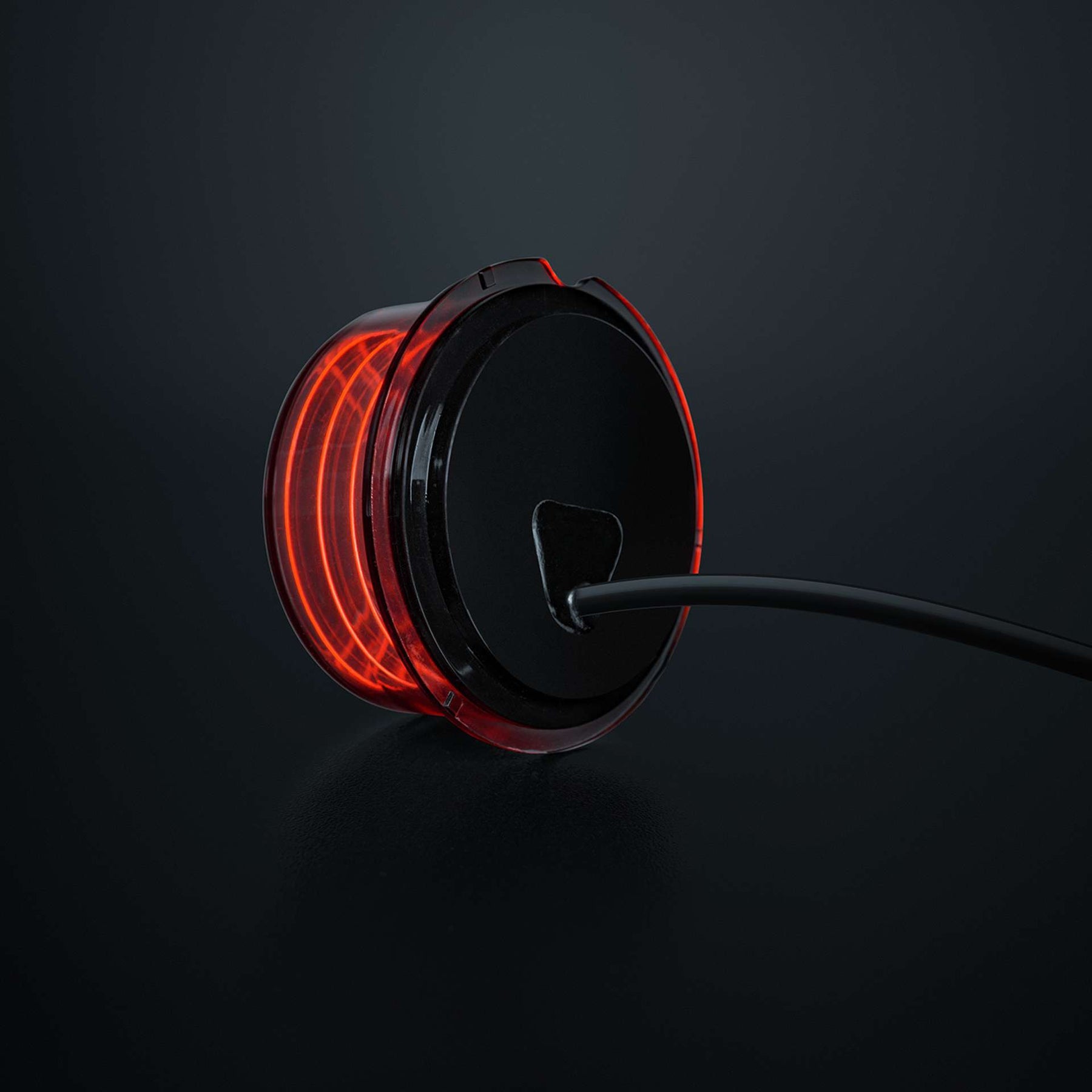

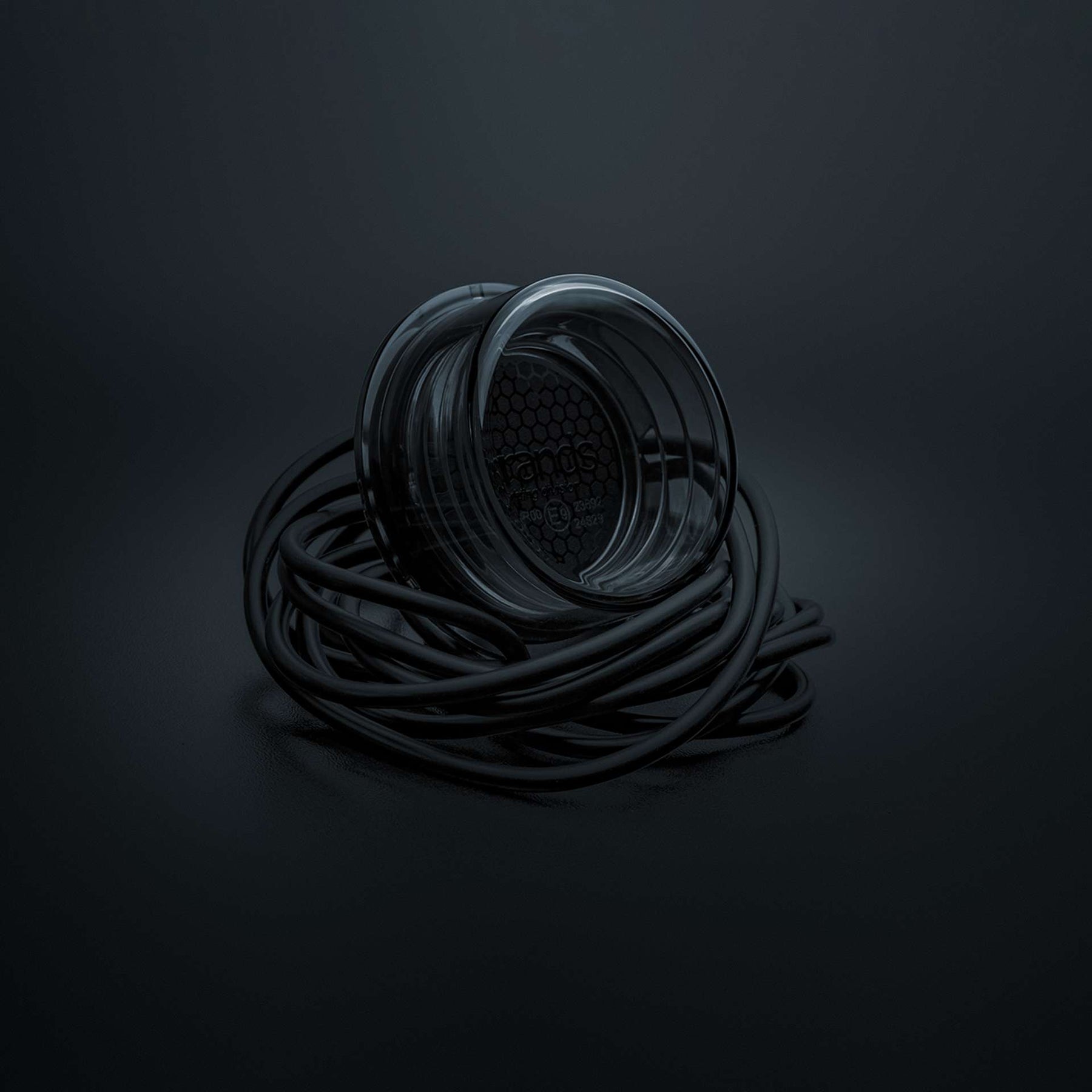

| CABLE LENGTH | 2500mm |
| DIAMETER (mm) | 70.2 |
| DEPTH (mm) | 35.2 |
| WEIGHT (mm) | .127kg |
| OPERATING TEMPERATURE | -30°C - +65°C |
| E-APPROVED | ECE R148 |
| EMC-CERTIFICATE | ECE R10 |
