Name: Diamond Series Mid Size Light Bar, SAE Class 1, Amber Flash (Clear or Amber Lens)
Brand: BrightSource
SKU: S104B60AA
Price: 370.0 CAD
Availability: InStock

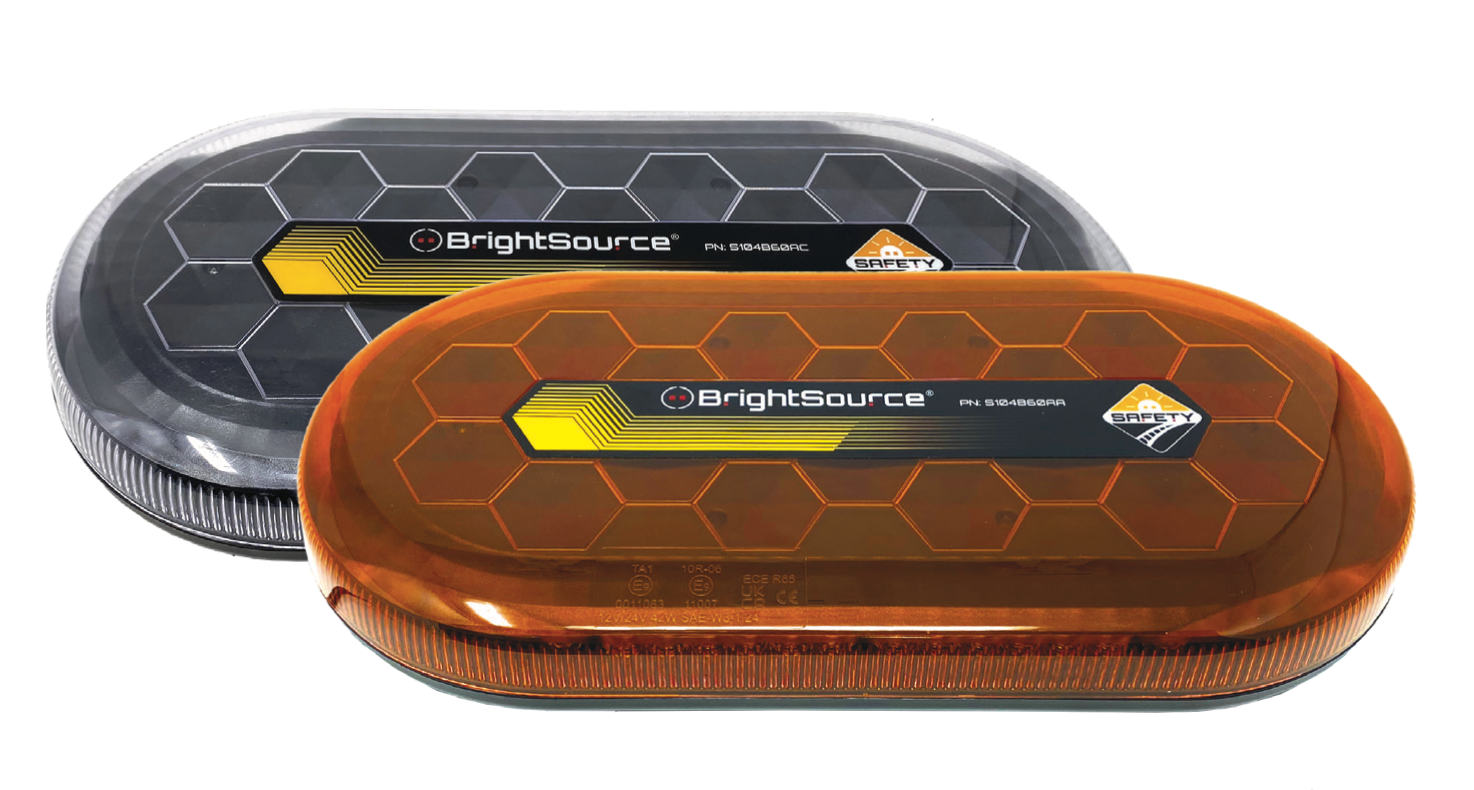

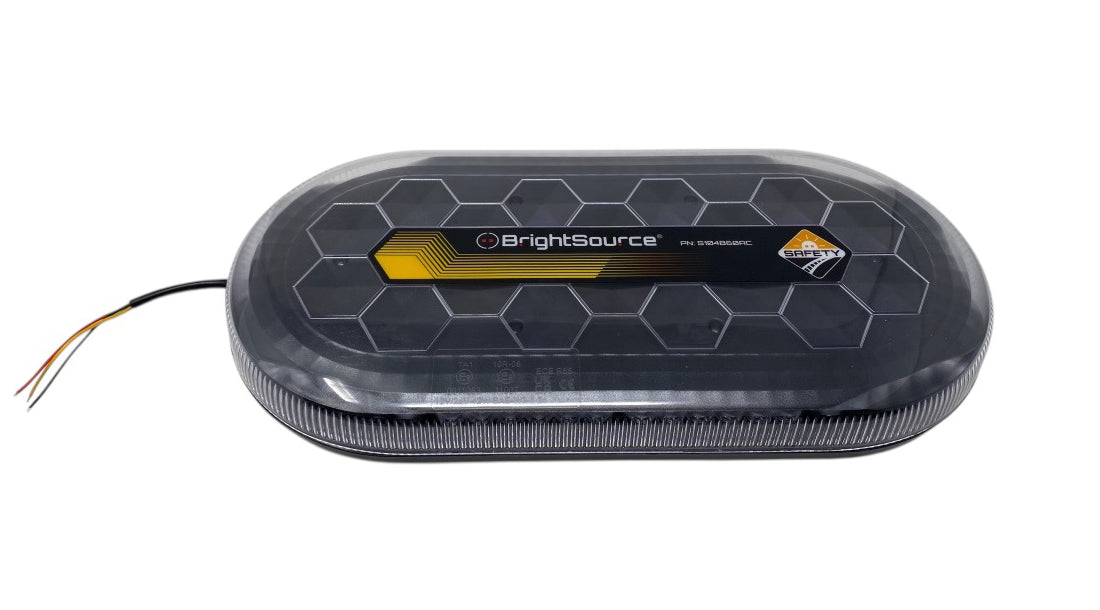

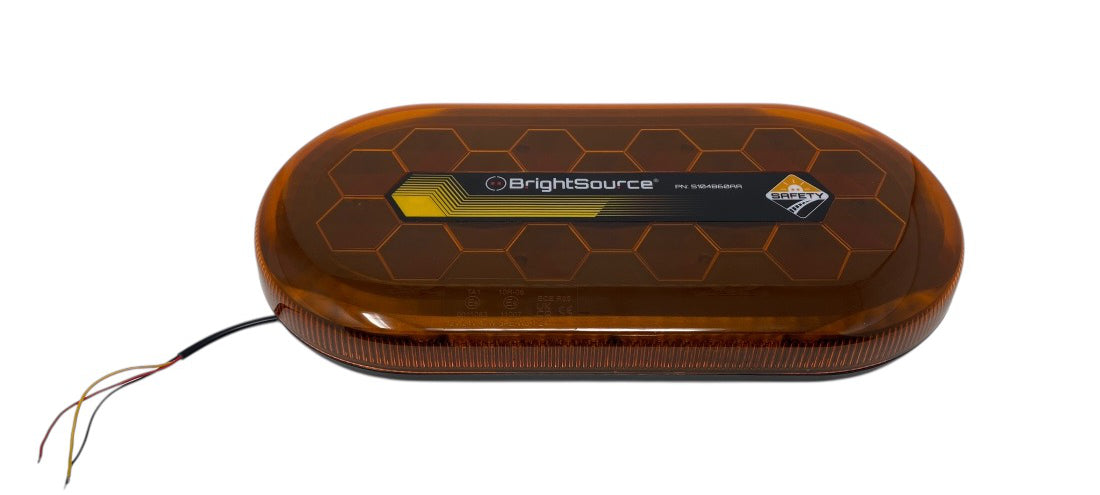

Diamond Series Mid Size Light Bar, SAE Class 1, Amber Flash (Clear or Amber Lens)

SKU: S104B60AA

Lens Colour

Amber

Clear

$370.00

Shipping calculated at checkout.

Description
Specifications
Manual

Description

These new 16" BrightSource Mid Size Light Bars are designed to fit seamlessly into the industry-standard mounting footprint used by many leading builders. There is a magnetic mount option as well. We've built in major upgrades across every performance category-delivering more durability, more visibility, and unbeatable value.

Engineered with modern high-performance LEDs, enhanced water and dust protection, and durable copper mounting points, these light bars are built to perform in tough environments. Available with clear or amber lens options, they offer a versatile solution for a wide range of applications—all at a price point that beats the competition.

Features:

Homologation ECE R65, ECE R10, SAE
60 pcs high power LED
ECE R65 Double flash
SAE J845 CLASS 1 Double Flash
DC 12-24V
10 flash patterns & Sync Function
Meets IP66 protection standards
-30°C to + 50°C temperature range
With memory function
40 cm cable
4 bolt mount with foam gasket

Specifications

Voltage: 12-14V
LEDs: 60 High Power
Colour: Amber
Flash Patterns: 10 selectable patterns with memory and sync functions
IP Rating: IP66
Mounting: 4 point copper inserts and stainless bolts, plus magnetic mount option
Temperature Range: -30 - +50°C

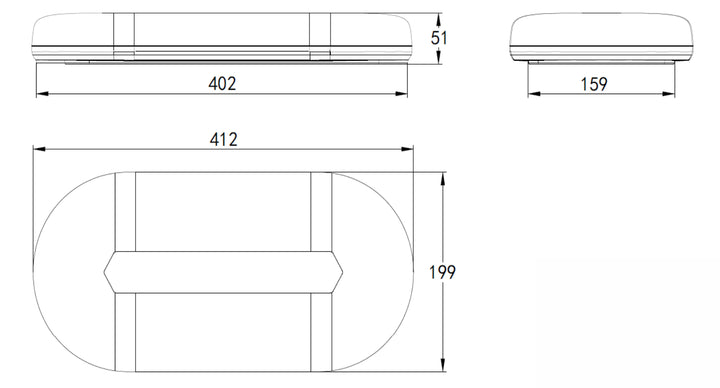

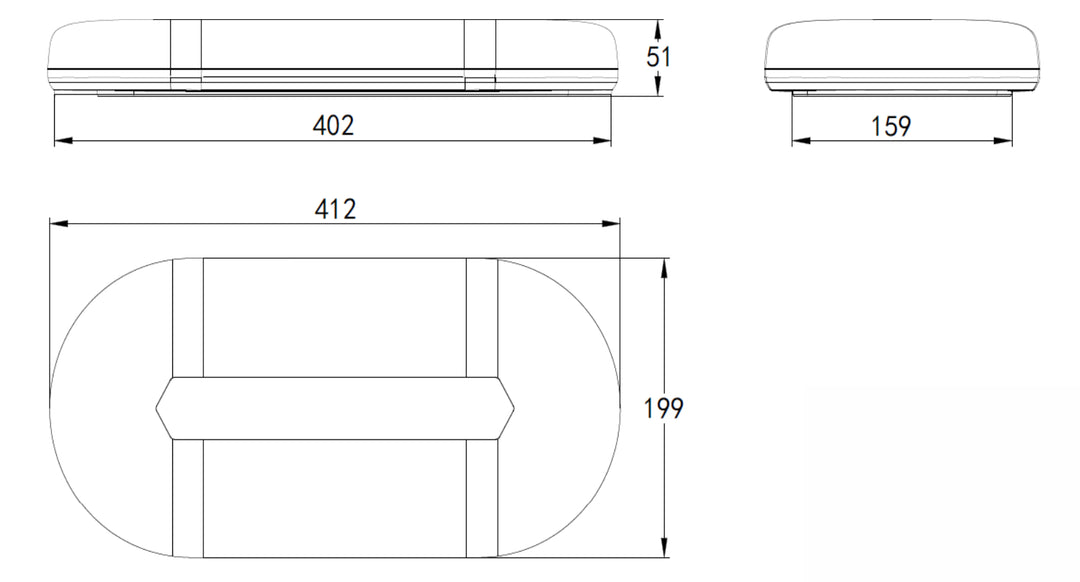

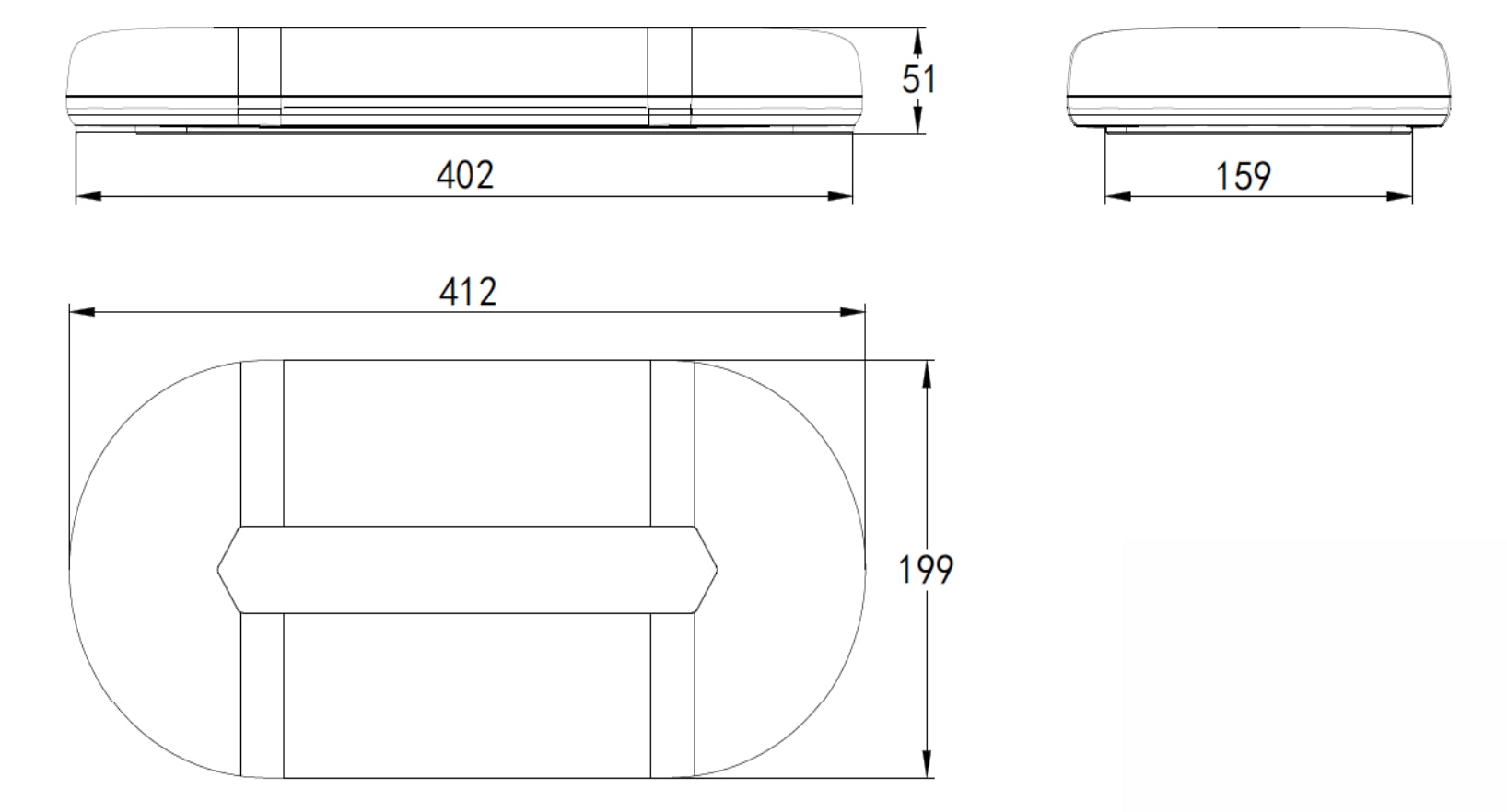

Dimensions: 16.23” (L) x 7.8” (W) x 2” (D) / 412 x 199 x 51mm
Certification: SAE J845 Class 1 Double Flash, ECE R65 Single Flash,
Warranty: 3 Year Limited

Manual

Download Manual
