40" ECO2 Double Row Light Bar

The ECO2 Series was designed to meet the needs of the value oriented off-road  enthusiast. “State of the Art” Osram High Efficiency LED Chips draw less power and produce less heat, allowing us to reduce material and packaging mass, resulting in dramatically lower pricing without sacrificing performance.

The ECO2 40” Double Row LED Light Bar is a compact light bar with big output.  The Combo Pattern features an outstanding light output (7880 lm). The double row Flood/Spot Pattern improves range of vision beside the vehicle, while extending long range visibility beyond your high beam headlights.  Side or Bottom Mount Brackets give you a broad range of excellent installation options for vehicles from compact cars to full size pick-up trucks.

This light is sold individually and does not include a harness

Harness for 1 light - 72999

LED:                                         80 x 1.5W Osram

Beam Pattern:                         Combination

Colour Temperature:              6000K

Luminous Flux:                       7880 lm (Raw) / 5,200 lm (Effective)

Lux:                                         1 lux @ 433m

IP Rating:                                 IP68

Voltage:                                   DC9-36V

Wattage:                                 120W

Amperage 12V:                        10A

Temperature Range:                -40 - +45°C

Housing Material:                    Aluminum with DuPont Powdercoat

Lens Material:                          Lexan Polycarbonate

Mounting Bracket:                   Stainless Steel Side & Alloy Bottom

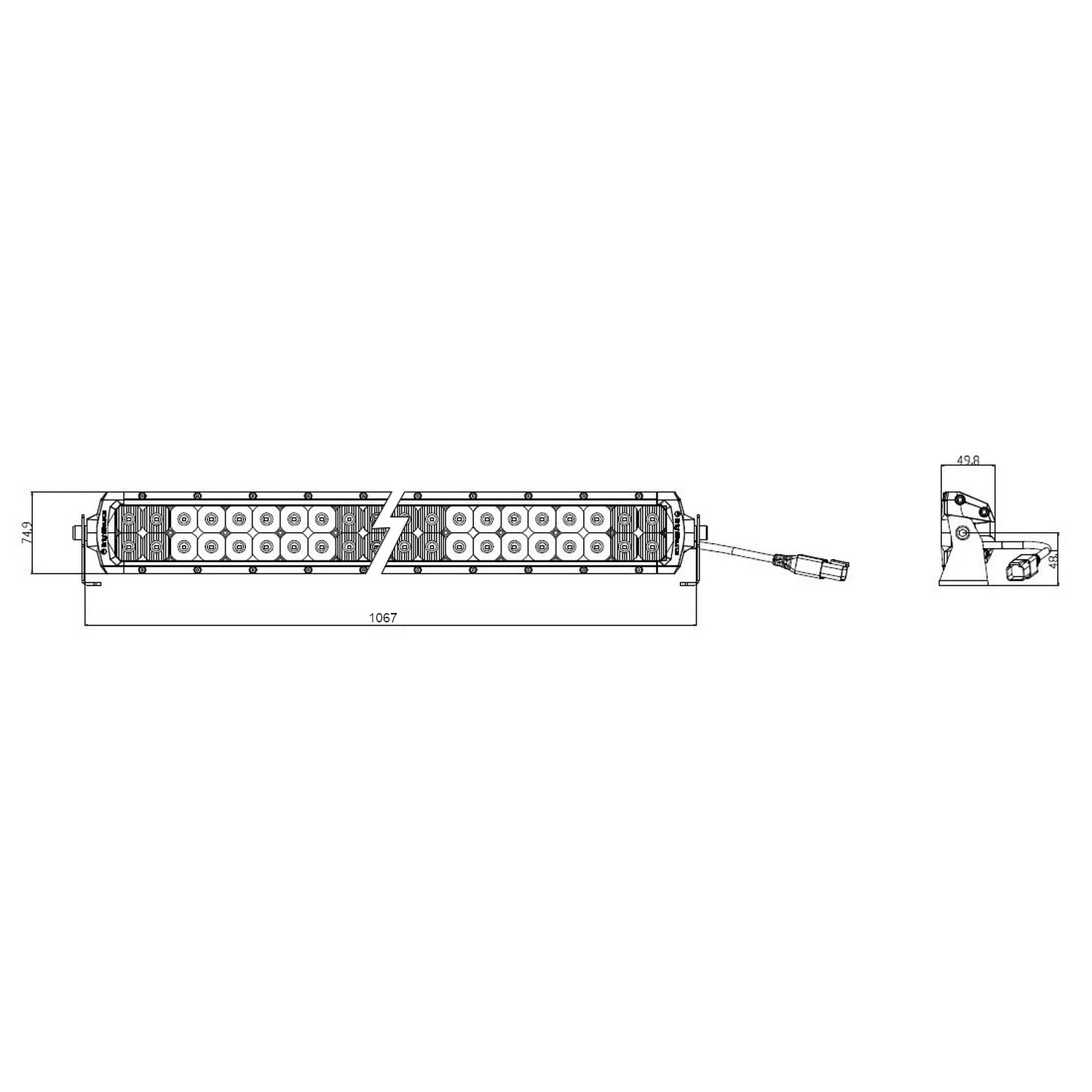

Size:                                        1067 x 74.9 x 49.8mm (42 x 2.9 x 2″)

Harness:                                  Sold Separately (PN 72999)

Warranty:                                3 Year Limited Warranty
