SKU: 809454

Regular price$699.00
/
Shipping calculated at checkout.
Description

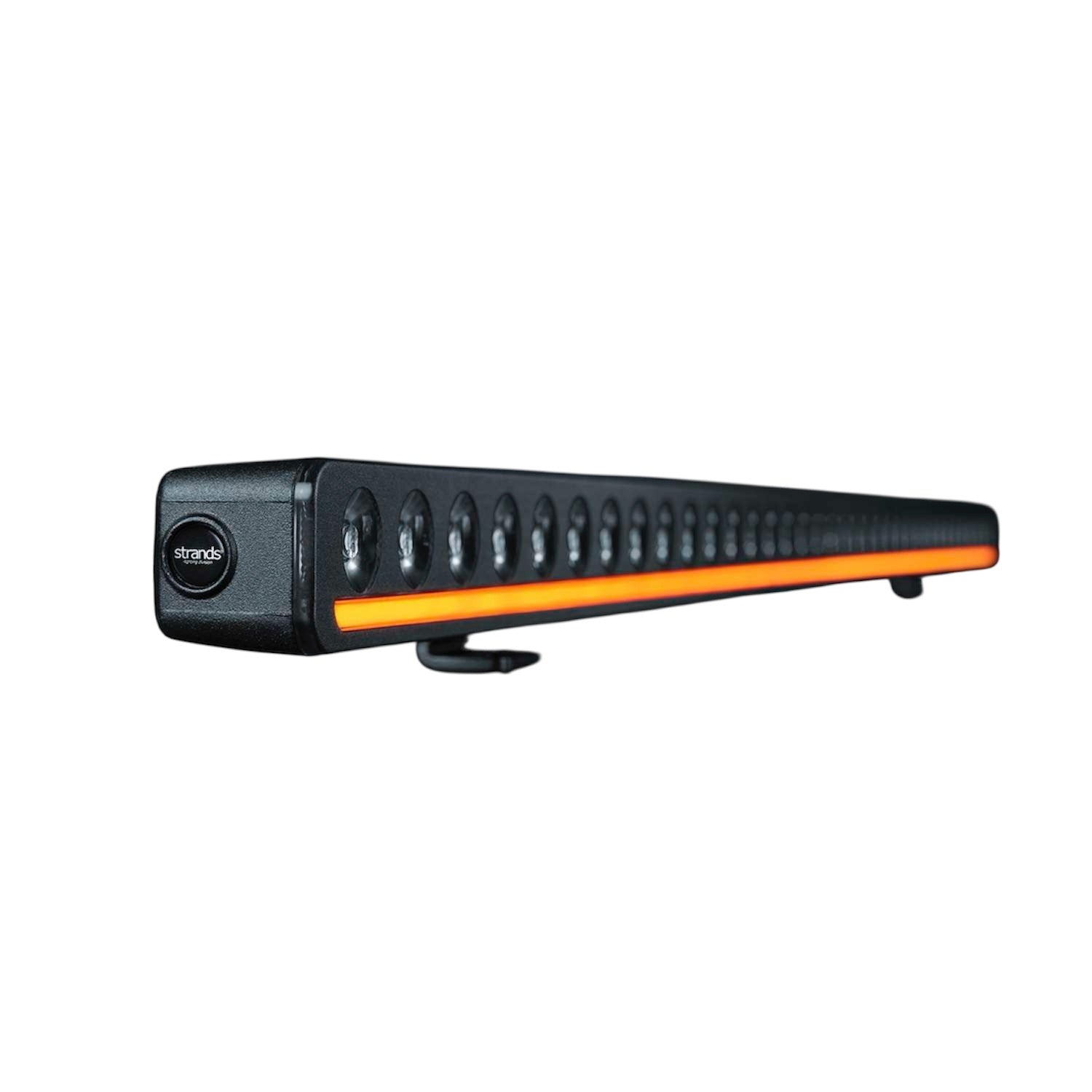

The Nuuk D-Line 40” LED bar has an extended beam pattern with a range of more than 580 meters and 19600 actual lumens in Xperience mode. It’s lightweight and slim, only 3.3 cm deep and 4.5 cm high, including the bracket. Nuuk D-Line is an ideal addition to your built-in high beam. The standard high beam is usually quite wide. With the D-Line, you’ll get more output in front for more range and better visibility. The result is a more comfortable, safer, and enjoyable driving experience. The E-mode is E-approved R148/149 with reference number 20, which is required on many European roads. Many drivers prefer this mode when driving in rainy or snowy weather, as it lessens the glare from water particles. With Xperience mode, you’ll discover a powerful output with maximum range and brightness. This LED bar has a slim black housing and lens, underlined by the glow of the white and amber position light. Nuuk D-Line is easy to use, lightweight, has a built-in relay, and the package includes everything you need for installation.

This light is sold individually and has a built-in relay, please check the manual for wiring instruction.

Specifications
VOLTAGE 9-36V DC
THEORECTICAL EFFECT 216W
CONSUMPTION 200W
FUNCTIONS Highbeam, white & amber position light
CONSUMPTION, SPECIFIC FUNCTION Xperience mode: 1200W / E-mode: 38W / White Pos: 16.5W / Amber Pos: 17W
THEORECTICAL LUMEN 19600 lm
ACTUAL LUMEN E-mode: 3800 lm / Xperience mode: 19600 lm

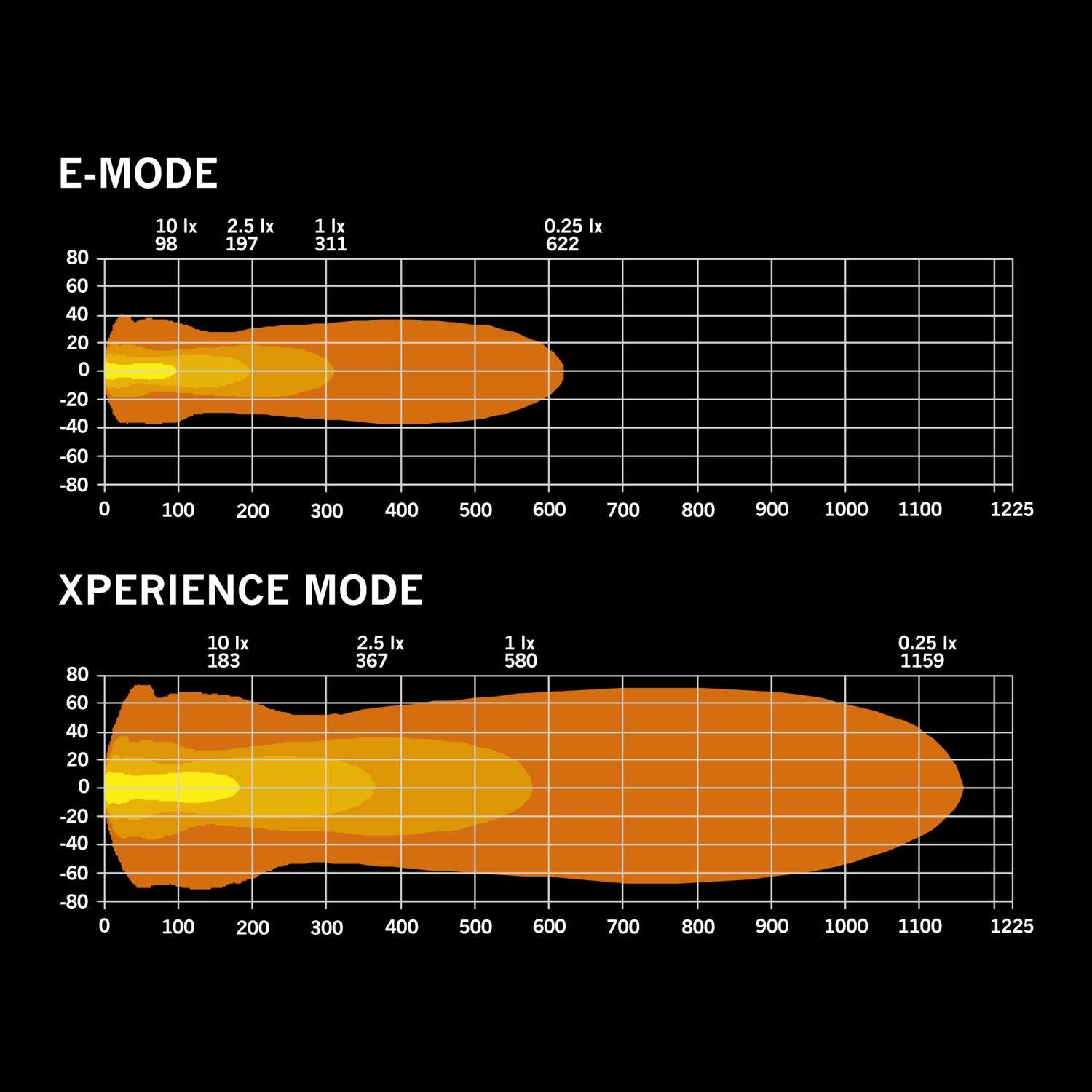

1 LUX @ E-mode: 311m / Xperience mode: 580mm
COLOR TEMPERATURE 5000K
BEAM PATTERN Optimized beam
BEAM ANGLE 30.8°
CONNECTION Cable
CABLE LENGTH 2500mm
COLOR HOUSING Black
COLOR LENS Black
MATERIAL BRACKET Stainless Steel
MATERIAL HOUSING Aluminium
MATERIAL LENS Polycarbonate

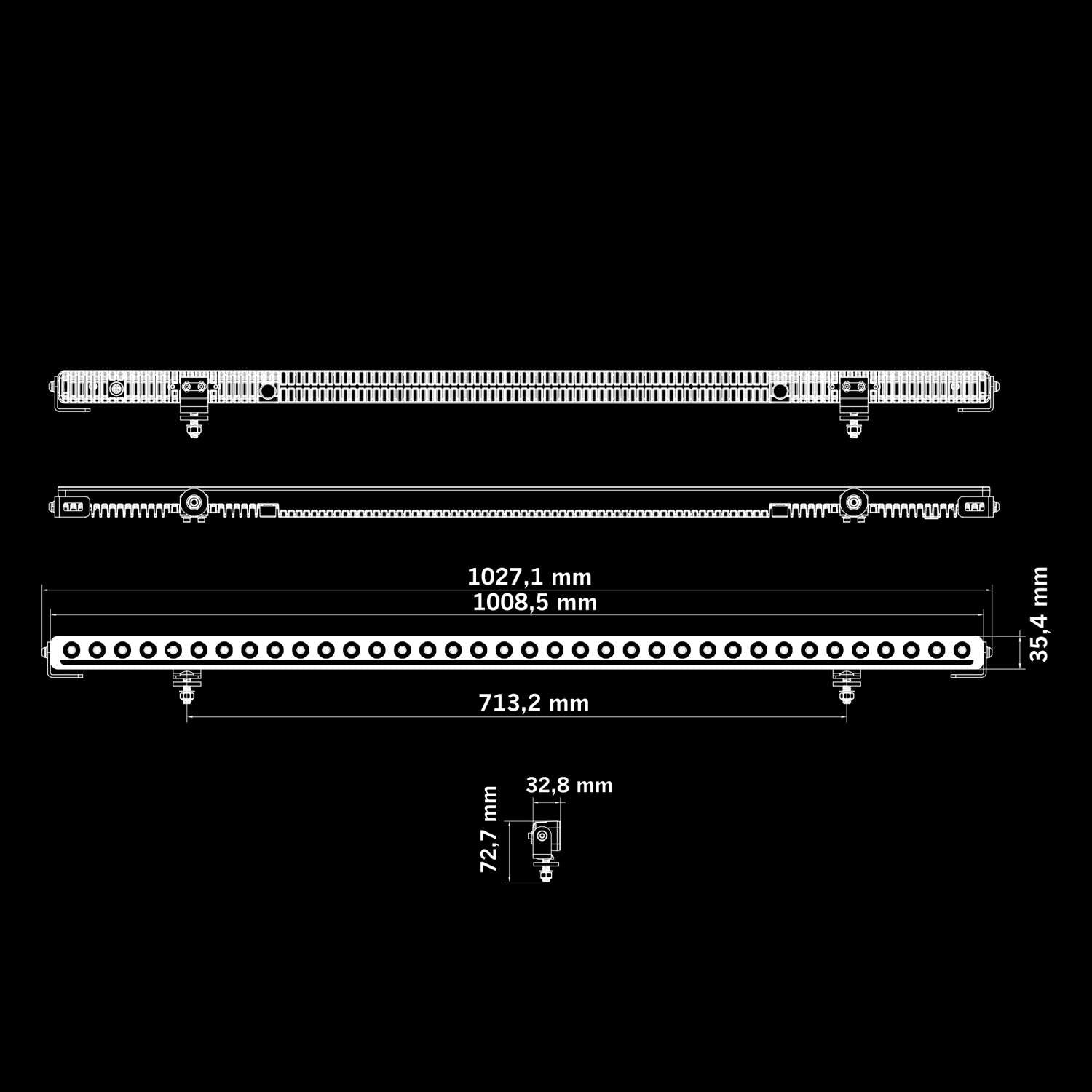

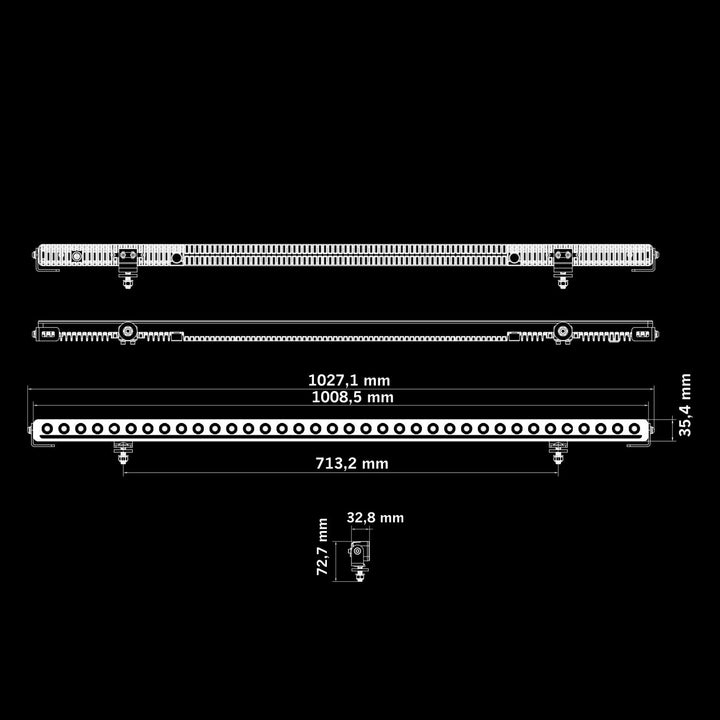

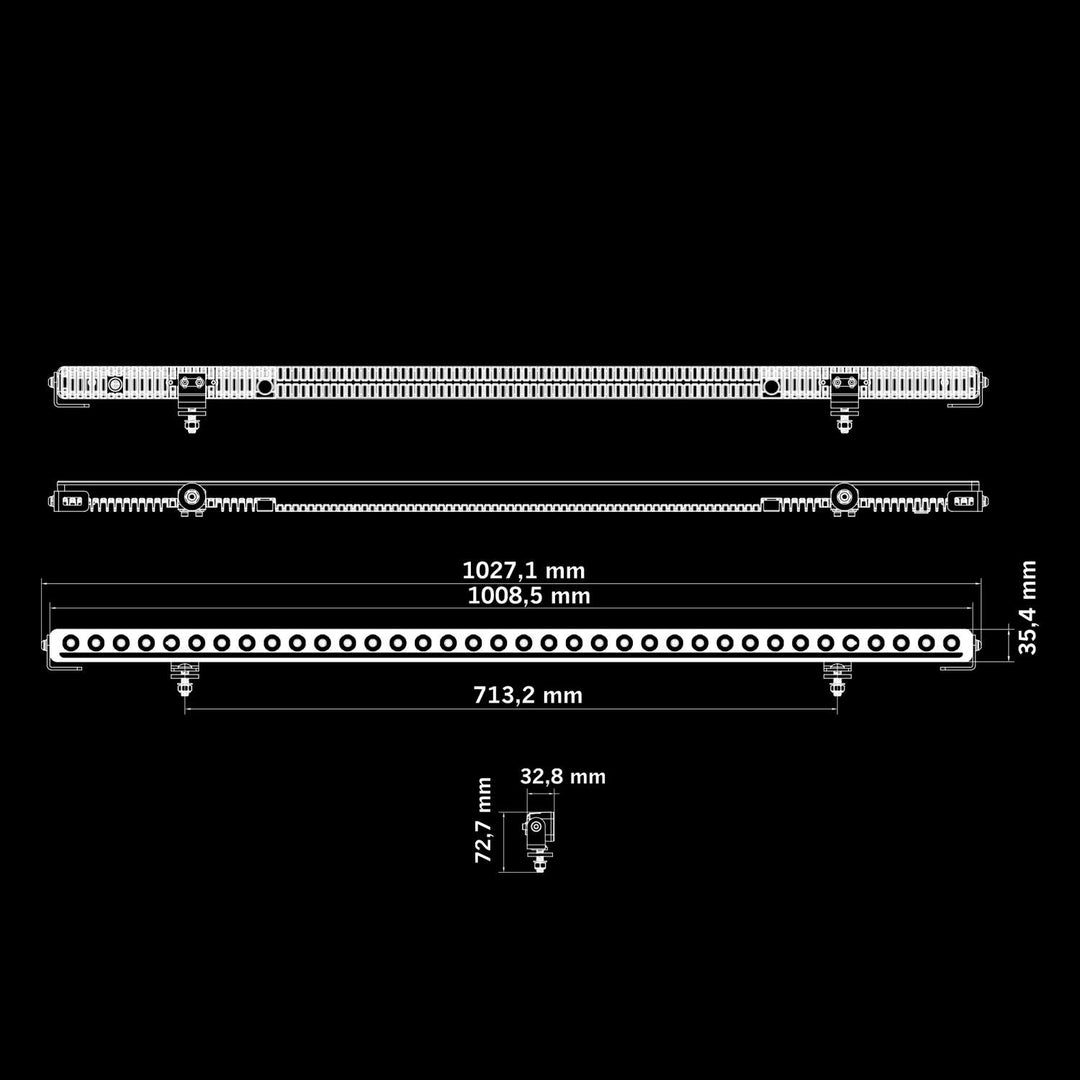

LENGTH 1008.5mm
DEPTH 32.8mm
HEIGHT 35.4mm
HEIGHT INCLUDING BRACKET 44.5mm
WEIGHT 1.2kg
IP-CLASS IP68/IP69K
OPERATING TEMPERATURE -40°C - +65°C
E-APPROVED Yes
ACCORDING TO ECE REGULATION R148, R149
REFFERANCE NUMBER 20
EMC-CERTIFICATE ECE R10
