SKU: 809403

Regular price$599.00
/
Shipping calculated at checkout.
Description

Allow us to introduce the Firefly LED bar 20”, seamlessly integrating with your vehicle while delivering exceptional performance. The result of cutting-edge engineering and our attention to detail.

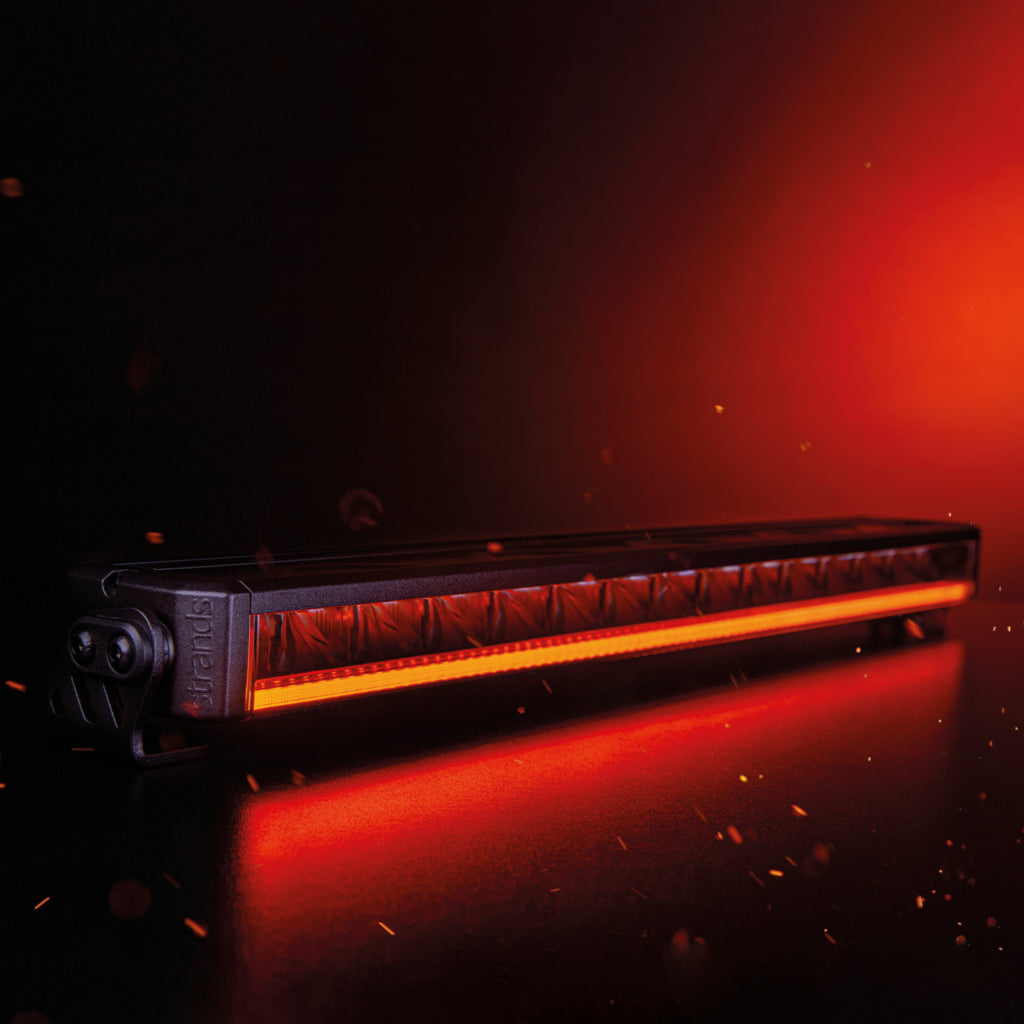

The Firefly LED bar 20” is an absolute game-changer in LED innovation and design. With only 70 mm in depth and a height of 38.5 mm, this LED bar is remarkably slim, setting new standards with a unique design.

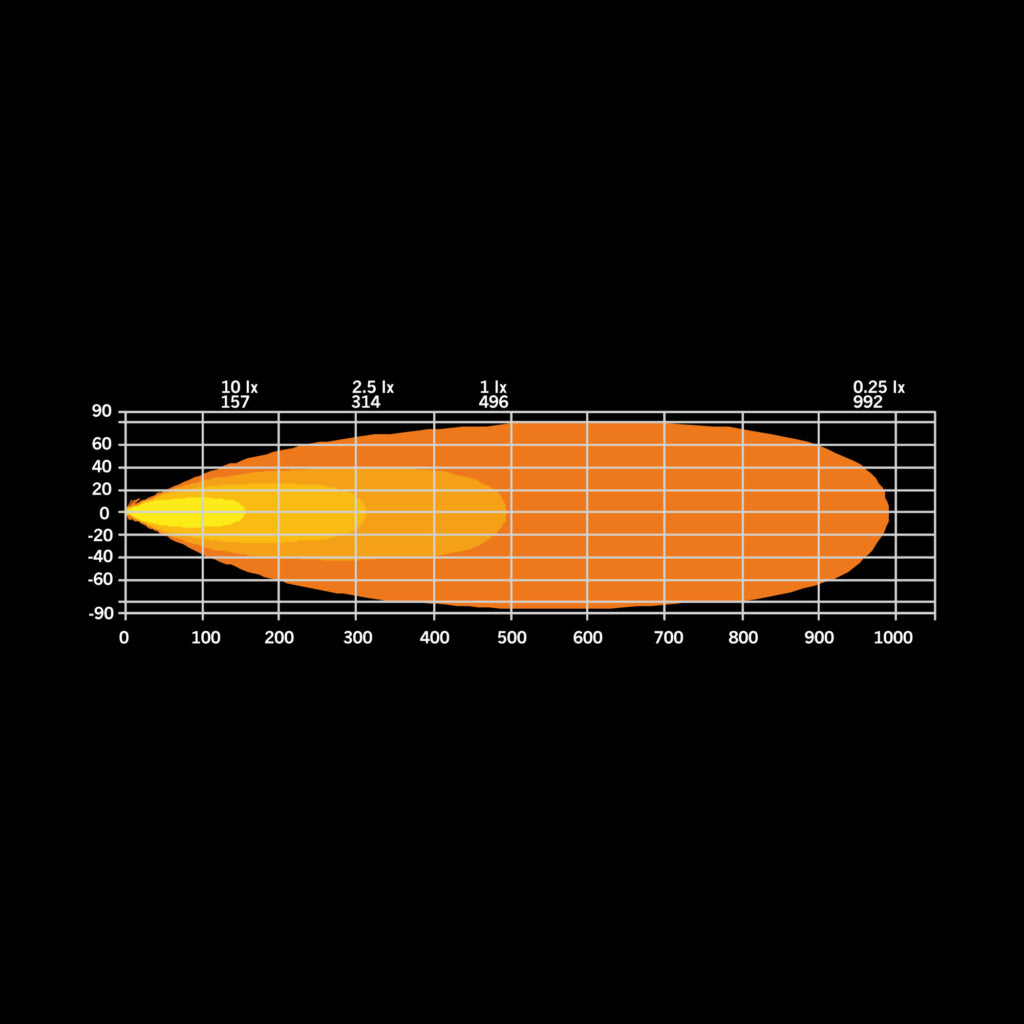

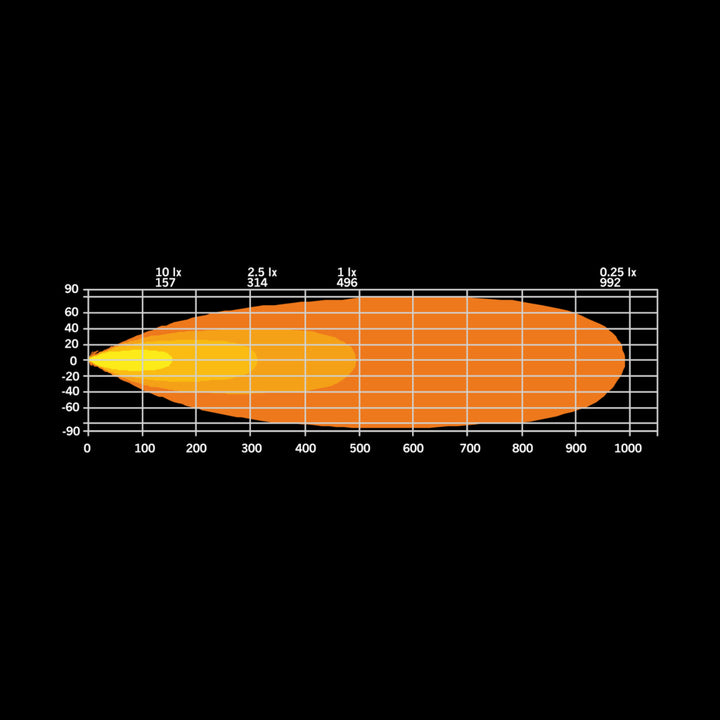

Despite its size, it’s a single-row masterpiece. It delivers maximum performance like no other, providing a sharp and wide beam pattern of 10 670 actual lumens and 1 lux at 496 meters. Ready to guide you forward with clarity and precision.

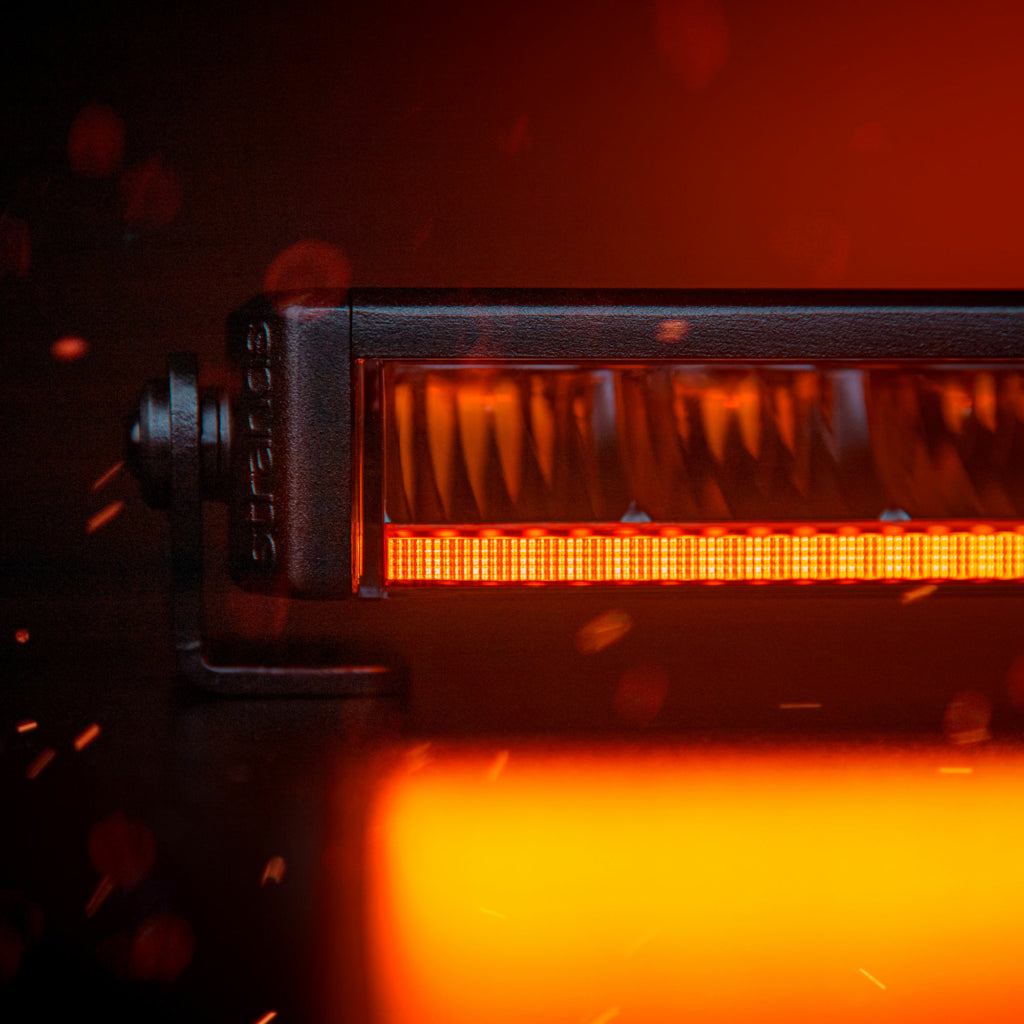

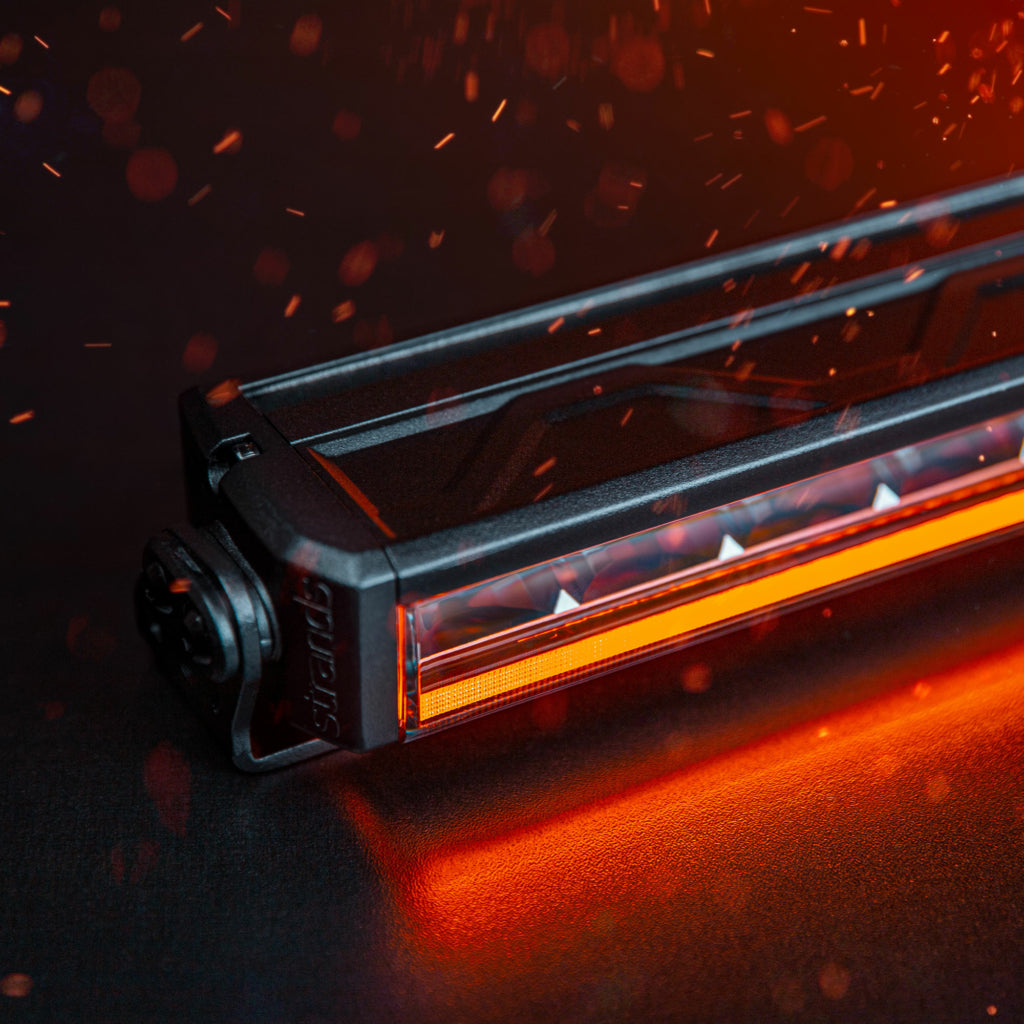

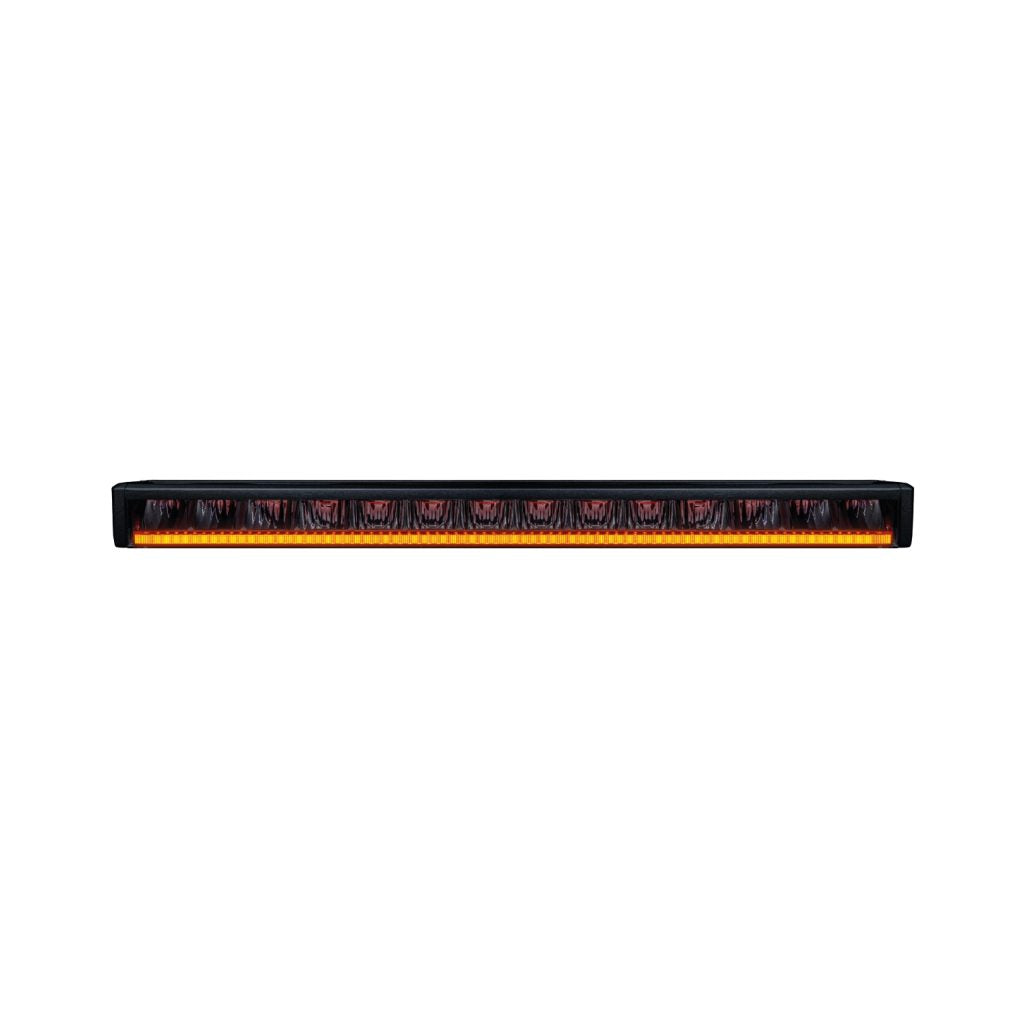

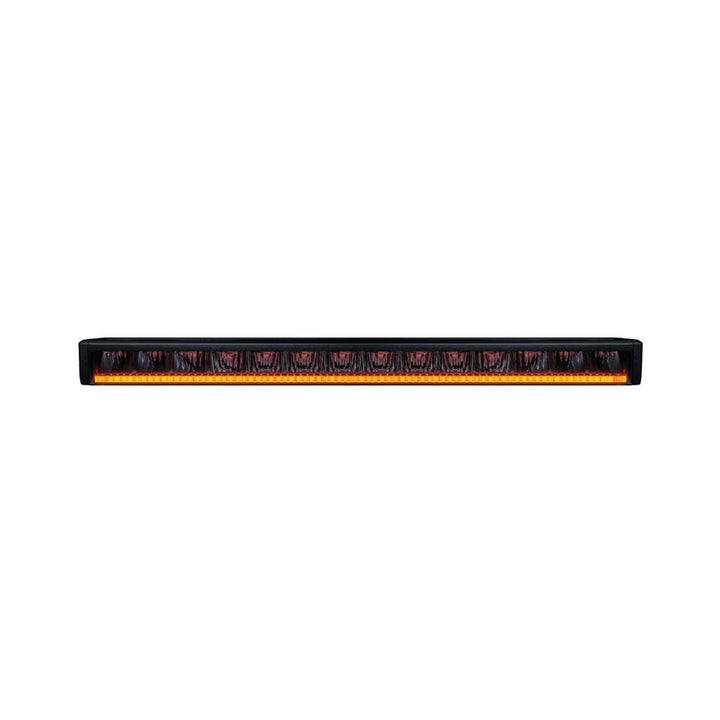

Prepare to leave a lasting impression as you navigate the night with the Firefly LED bar. Its unique dual-position light creates a captivating amber glow beneath the LEDs, guiding your way like a Firefly.

The Firefly LED bar doesn’t just illuminate the road; it becomes an integral part of your vehicle´s DNA. The invisible design makes your vehicle´s exterior uncompromised while enhancing functionality and style.

Each component is important for the result, and we have developed the perfect LED bar based on our experience to protect you from the challenging environment. The lens is made of unbreakable polycarbonate, and the light is E-approved and waterproof, meeting the highest IP standards for ultimate protection.

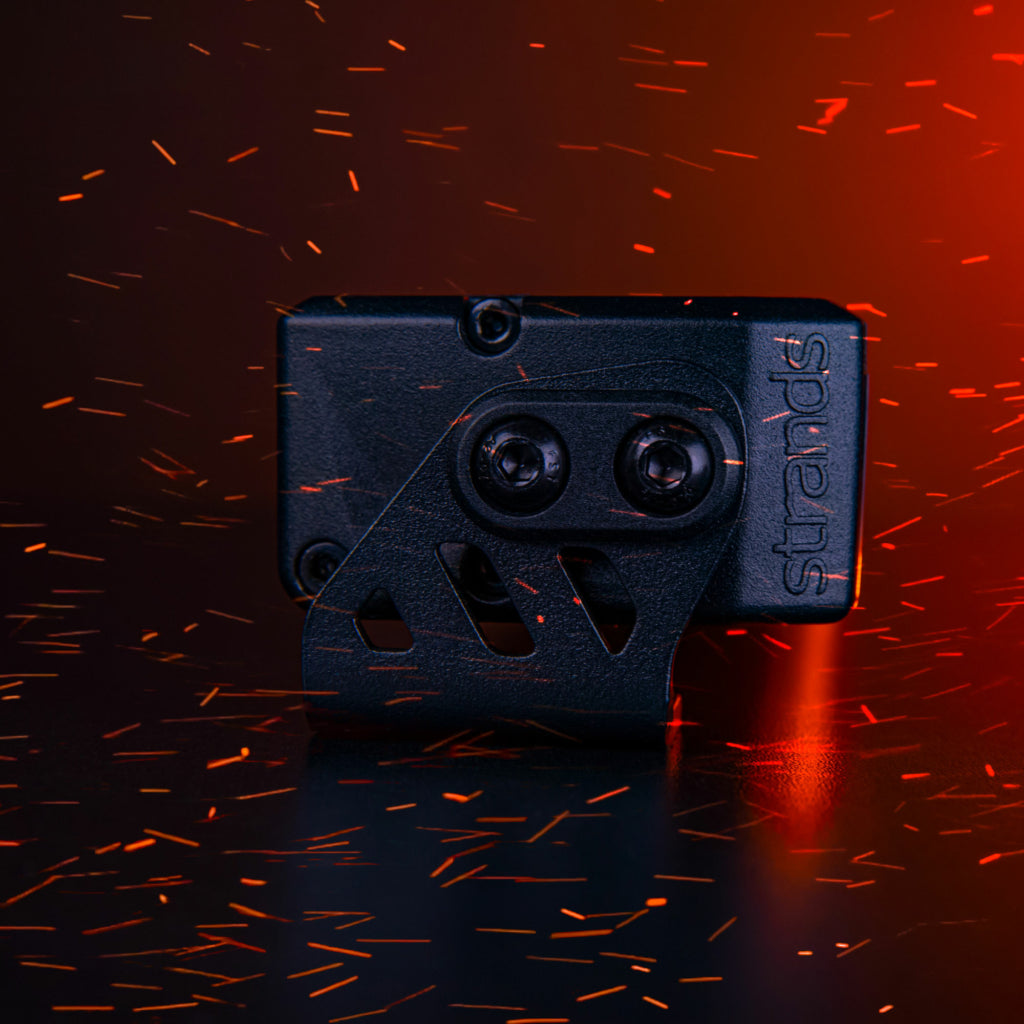

Installation is a breeze with two mounting options. Choose side brackets for a stable, traditional setup, or use adjustable brackets on the side, top, or below the LED bar to tailor the installation to your specific preferences. With included brackets, screws, and a 50 cm cable, securing it is a quick task. The package also included a DT-4 contact for easy connections. Its compact size is ideal for pickups and light commercial vehicles – a must-have guide for your next mission.

This light is sold individually and does not include a harness.

Wiring Harness Options:

Harness for one light – 72999-1
Harness for two lights – 73240-2

Specifications
VOLTAGE 10-48V DC
CONSUMPTION (W) 12V Main Beam 159
Position Light 2
CONSUMPTION (W) 24V Main Beam 157.8
Position Light 2
ACTUAL LUMEN 10670
1 LUX @ 496 m
IP CLASS IP68
BEAM PATTERN Combo
BEAM COLOUR 6000K
POSITION LIGHT Yes, (white & amber)
CONNECTION DT4
CABLE LENGTH (mm) 500
MATERIAL HOUSING Aluminium
MATERIAL LENS Polycarbonate
MATERIAL SIDE BRACKET 304 Stainless Steel



MATERIAL SLIDING BRACKET Aluminium

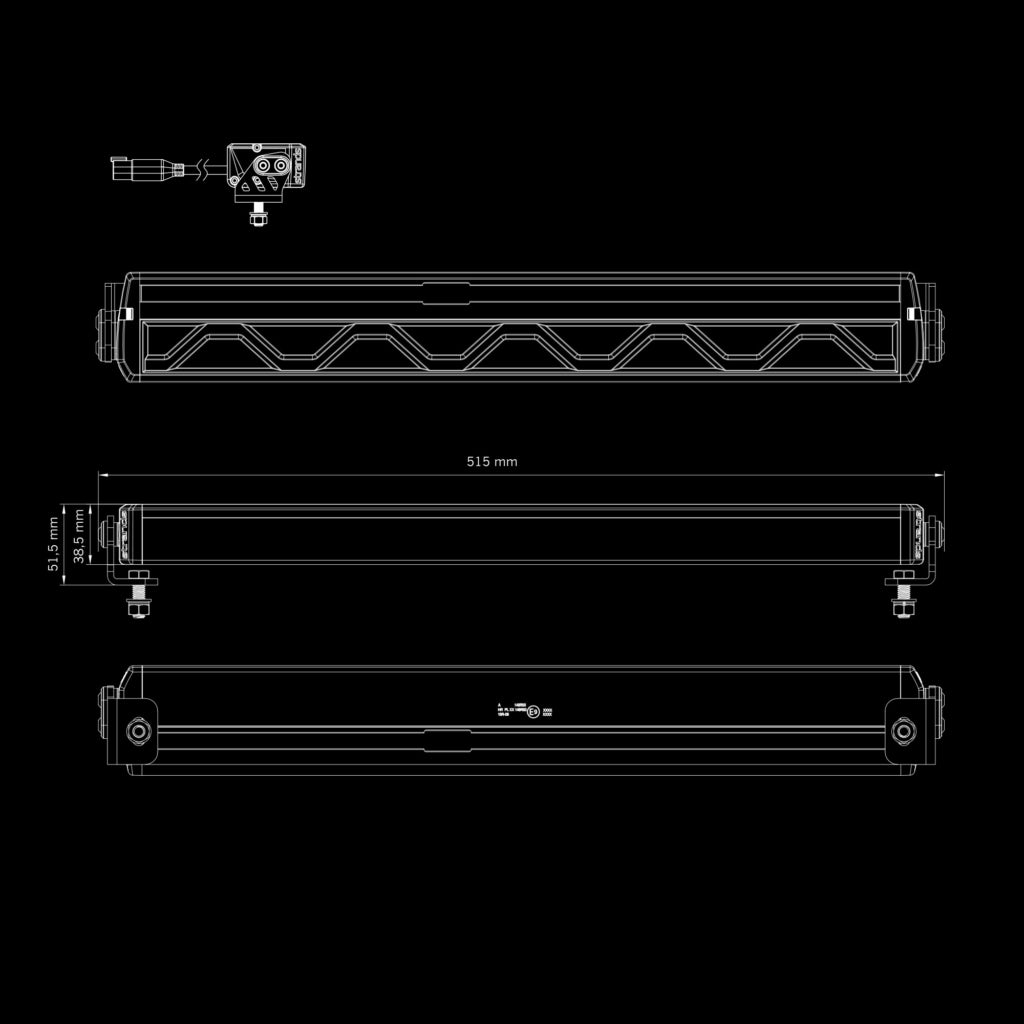

LENGTH (mm) 515
DEPTH (mm) 70
HEIGHT (mm) 38.5
HEIGHT INCLUDING BRACKET (mm) 56
OPERATING TEMPERATURE -40°C - +65°C
E-APPROVED ECE R148, R149
EMC-CERTIFICATE ECE R10
