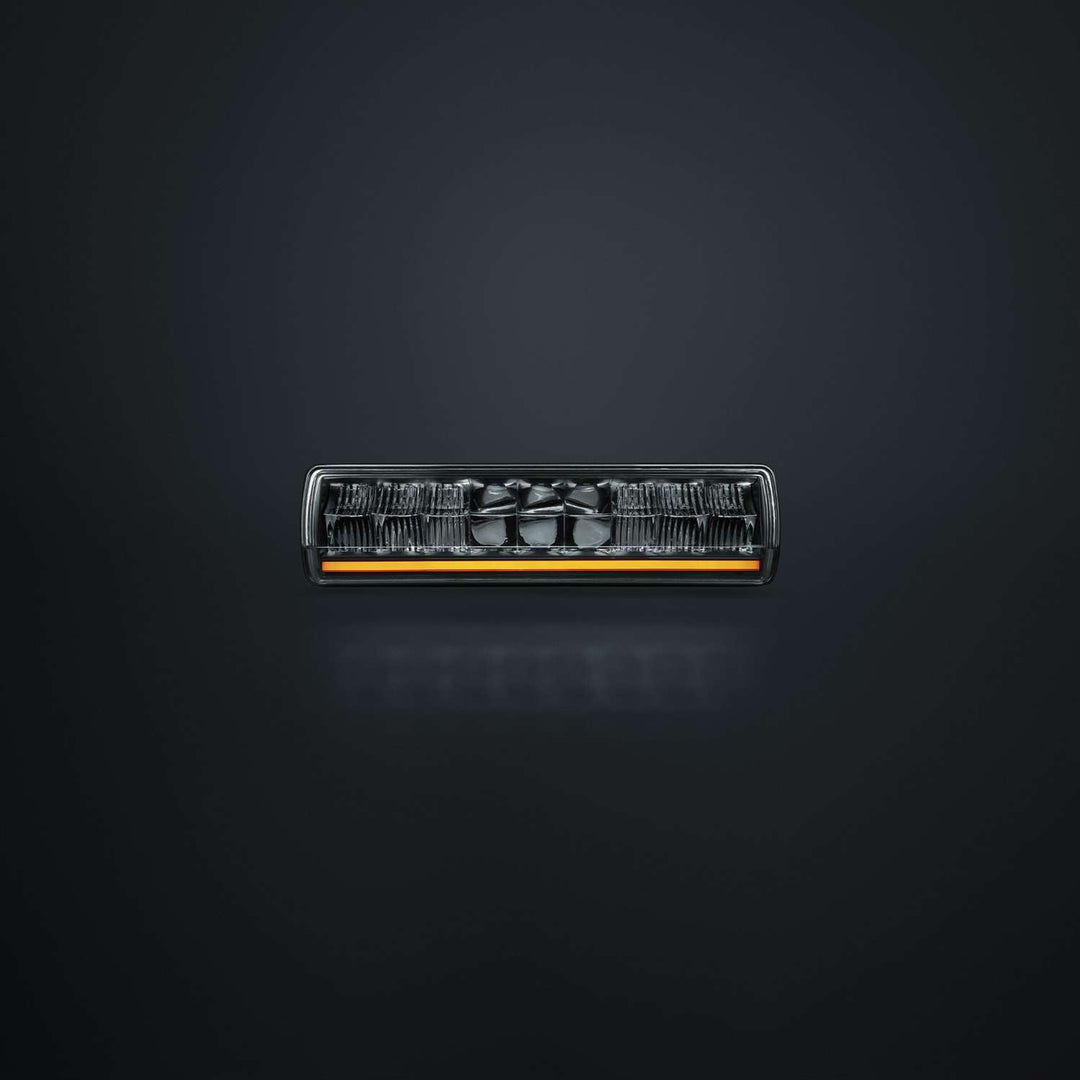

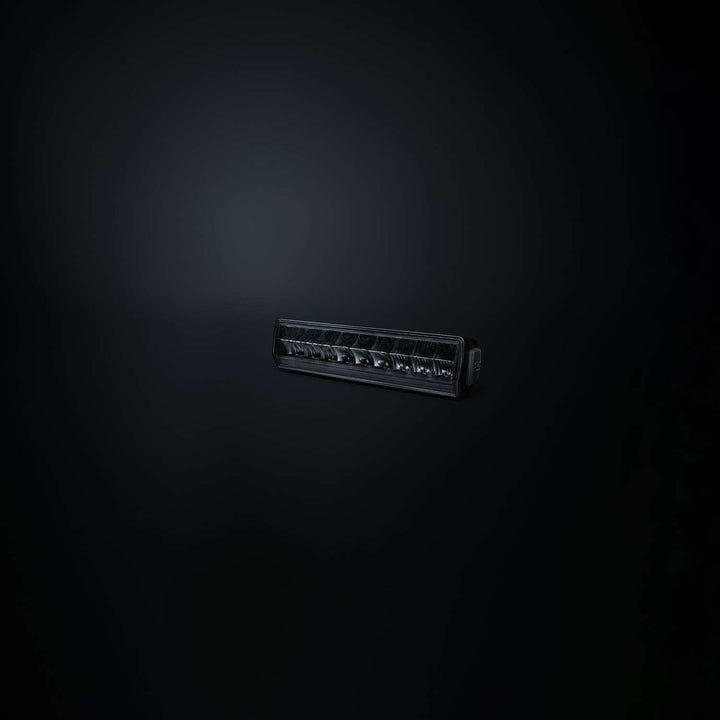

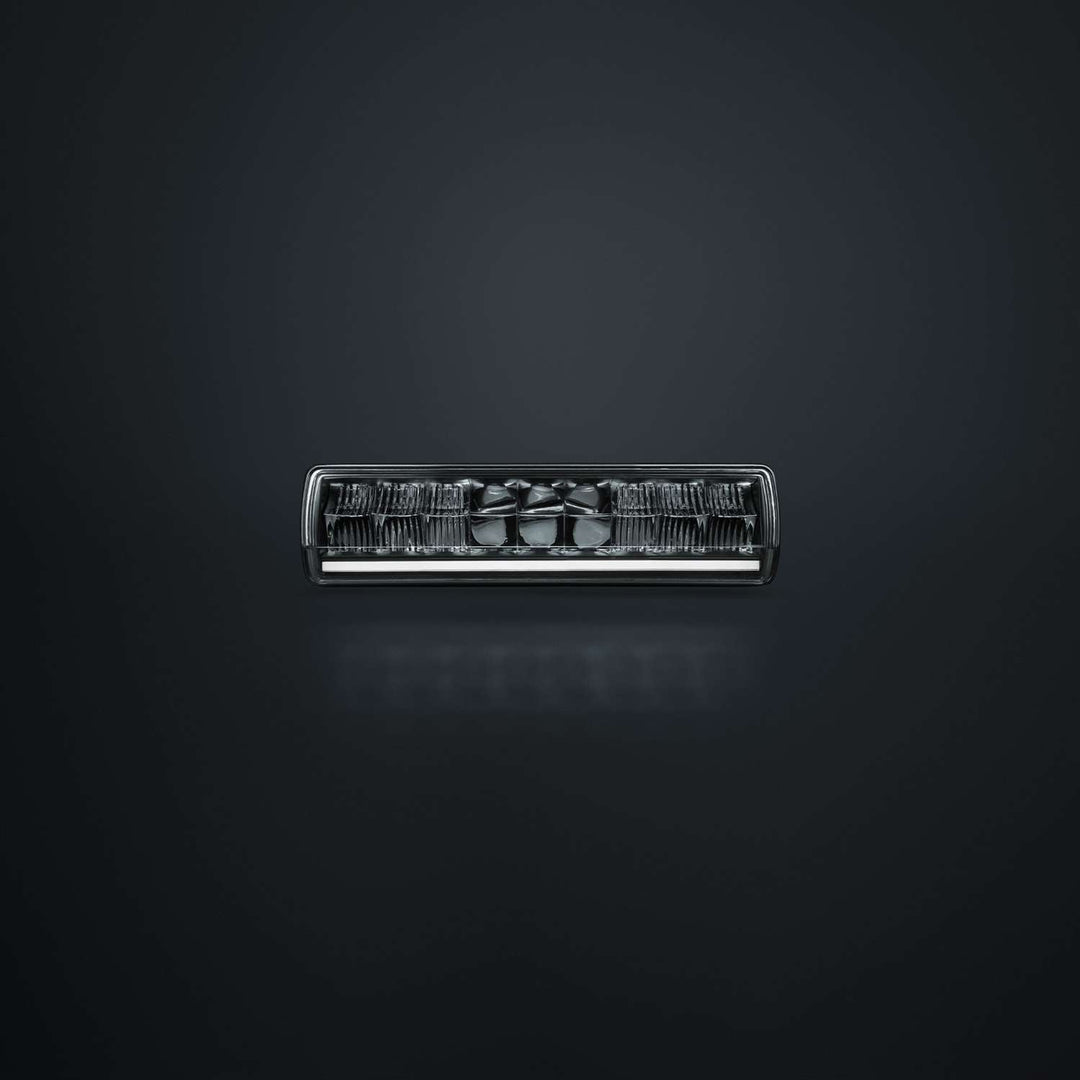

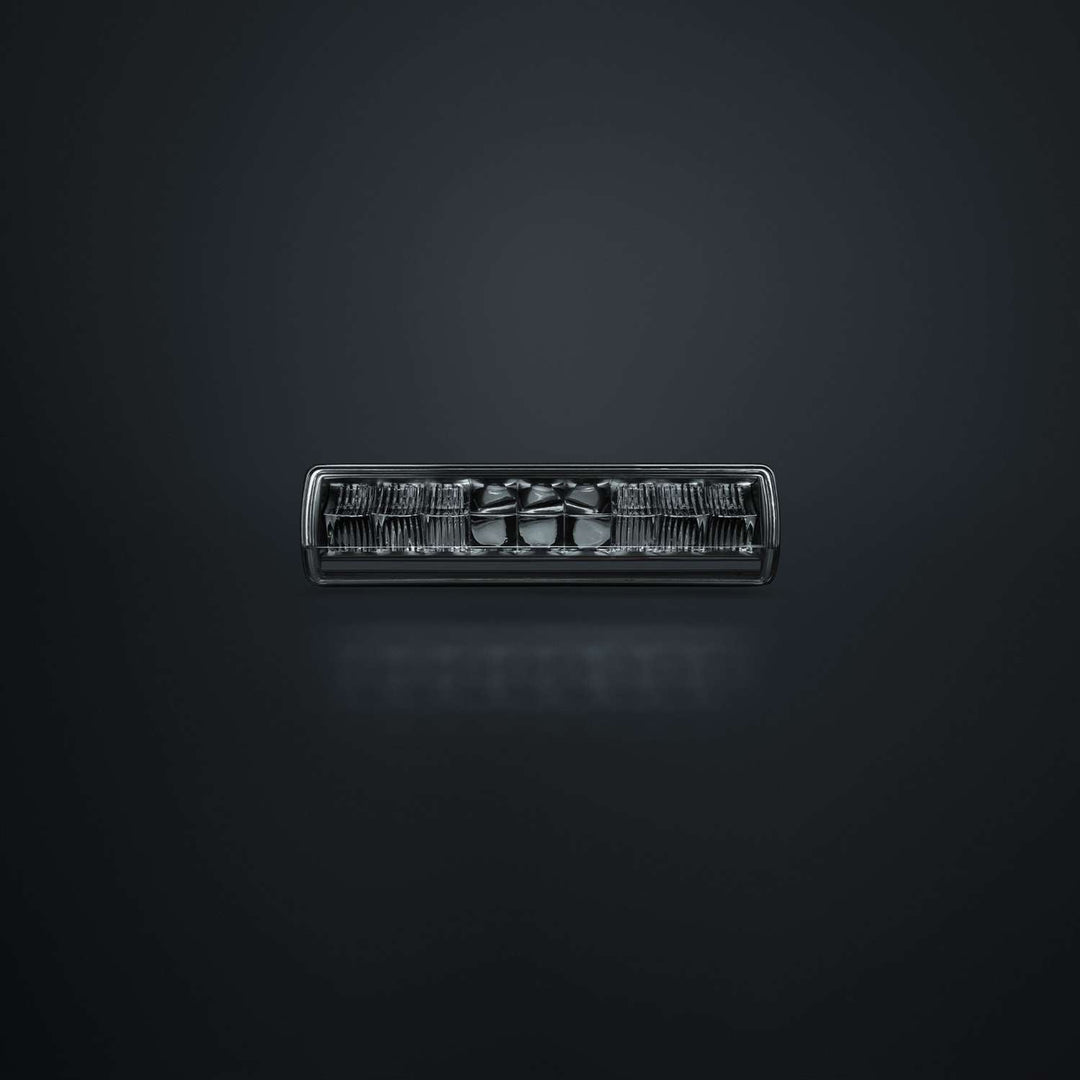

10" Skylord LED BAR

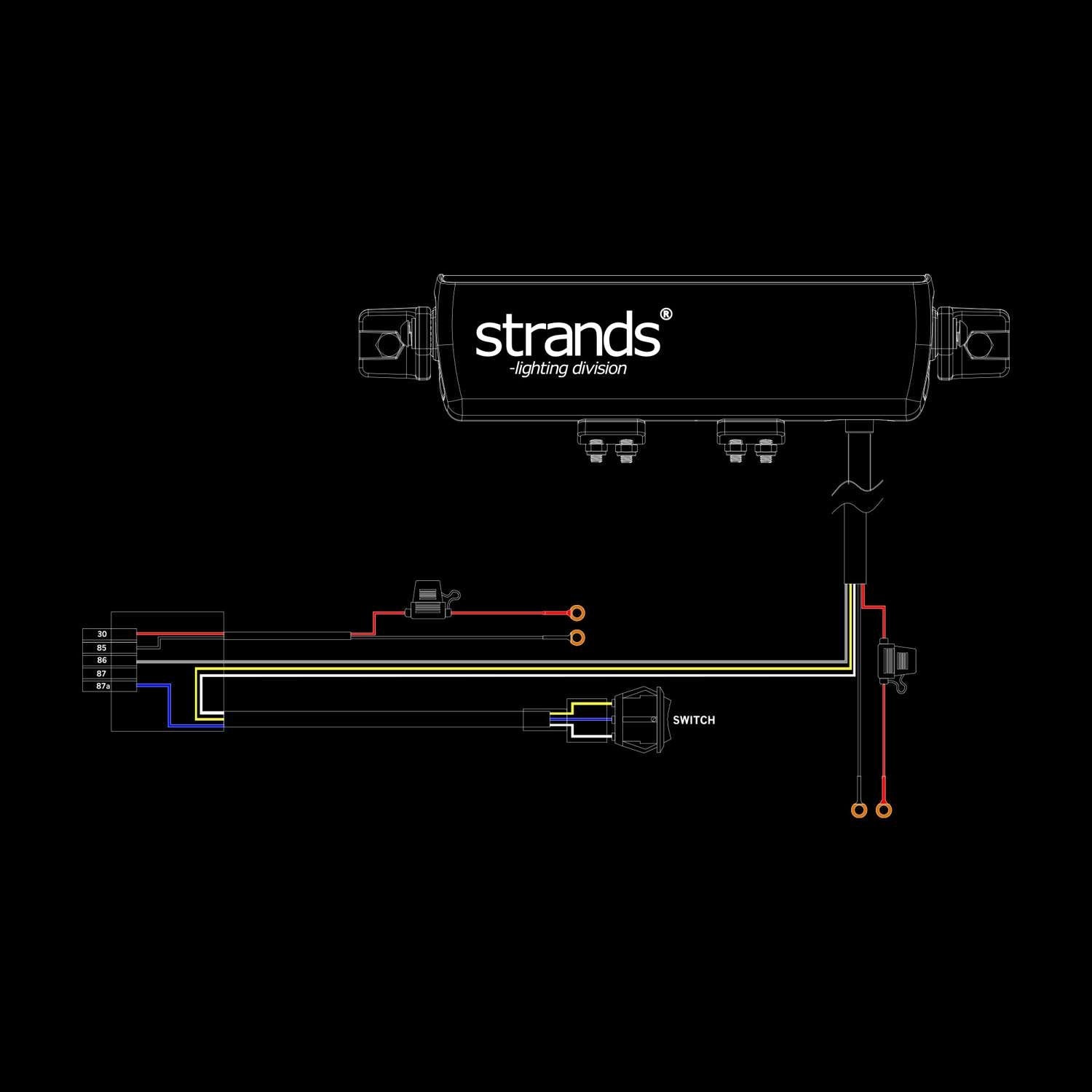

Delivering over 7700 actual lumens and a 500-meter reach in Xperience mode, the 10” Skylord sets a new standard for 10" LED bars. The E-mode is E-approved R148/R149, with reference number 20. It features both white and amber position lights and introduces a newly developed beam pattern. The beam pattern is designed for maximum visibility far ahead, close to the car, and to the sides. The housing is cast in one piece, and the LED bar is IP-rated IP69K. It is also covered by Strands’ new 5-year warranty. The Skylord features a built-in relay and a 2.5-meter cable. All necessary installation accessories are included: side and hanging brackets, washers, bolts, rubber pads, Strands logo–branded rubber covers, and an XBB cable harness with Dura Seals for the cables and a position light switch. A CAN bus interface, such as XBB, may be needed to complete the installation.

Unit: PCS
Voltage (DC): 10–32V DC
Theoretical effect: 90W
Consumption: 76W
Functions: Amber Pos. / White Pos. / Xperience mode / E-approved mode / Hello function
Consumption specific function: White Pos. 6W / Amber Pos. 6W / X-mode 76W / E-mode 37W
Theoretical lumen: 10800lm
Actual lumen: 7700lm
1 lux @: 517m
Color temperature: 5700K

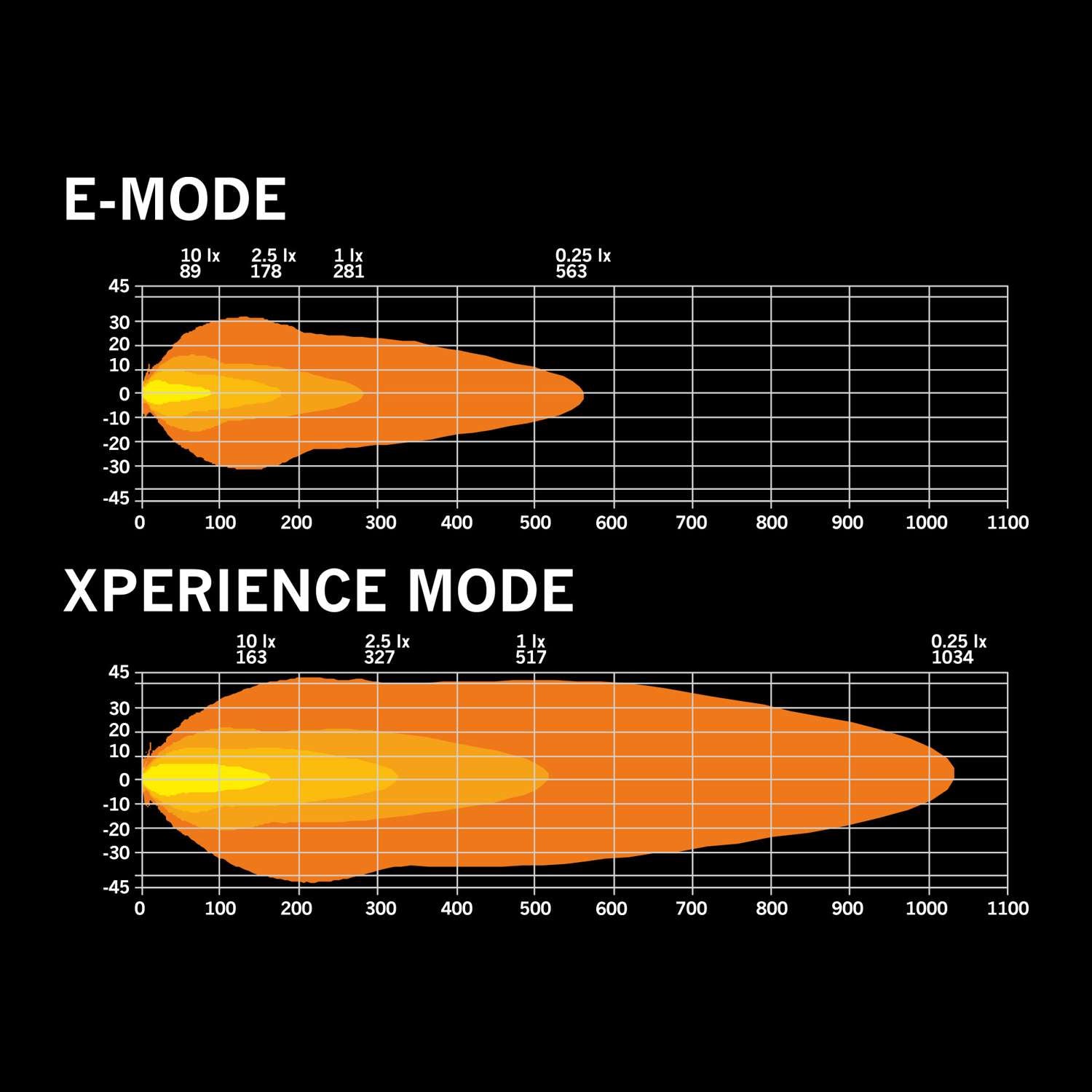

Beam pattern: Extended Beam
Beam angle: 13.6°
Connection: Cable
Cable length: 2500mm
Color housing: Black
Color lens: Clear
Color LED's: White / Amber
Material bracket: Aluminium alloy
Material housing/chassi: Aluminium
Material lens: Polycarbonate

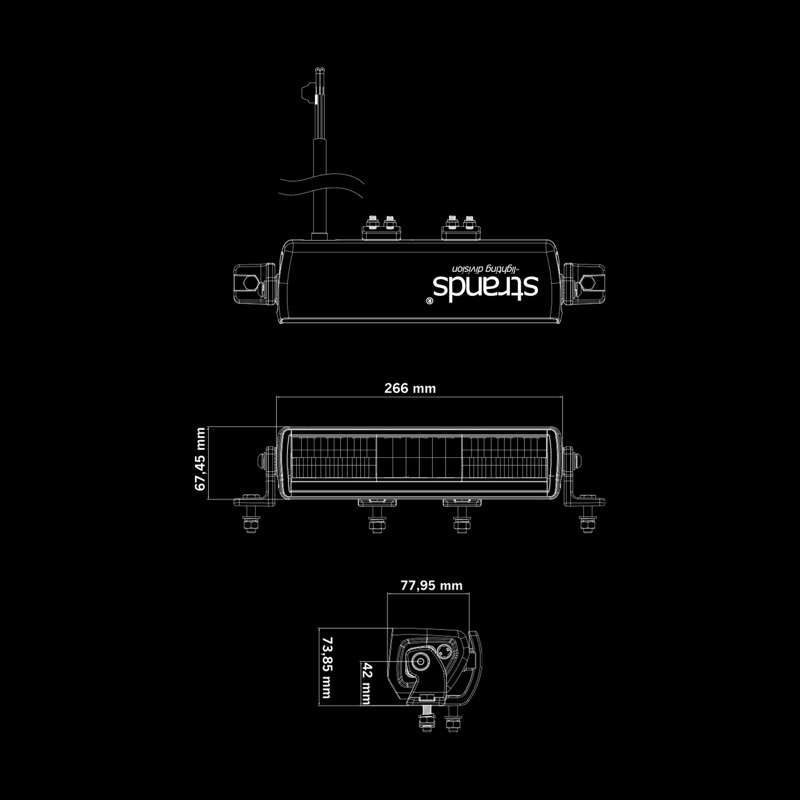

Length: 266mm
Depth: 78mm
Height: 67.5mm
Height including bracket: 73.9mm
Weight: 1.9kg
IP-class: IP68/69K
Operating temperature: -35° – +60°C
E-approved: Yes
ECE approval: R10.06 / R148 / R149
Reference number: 20
