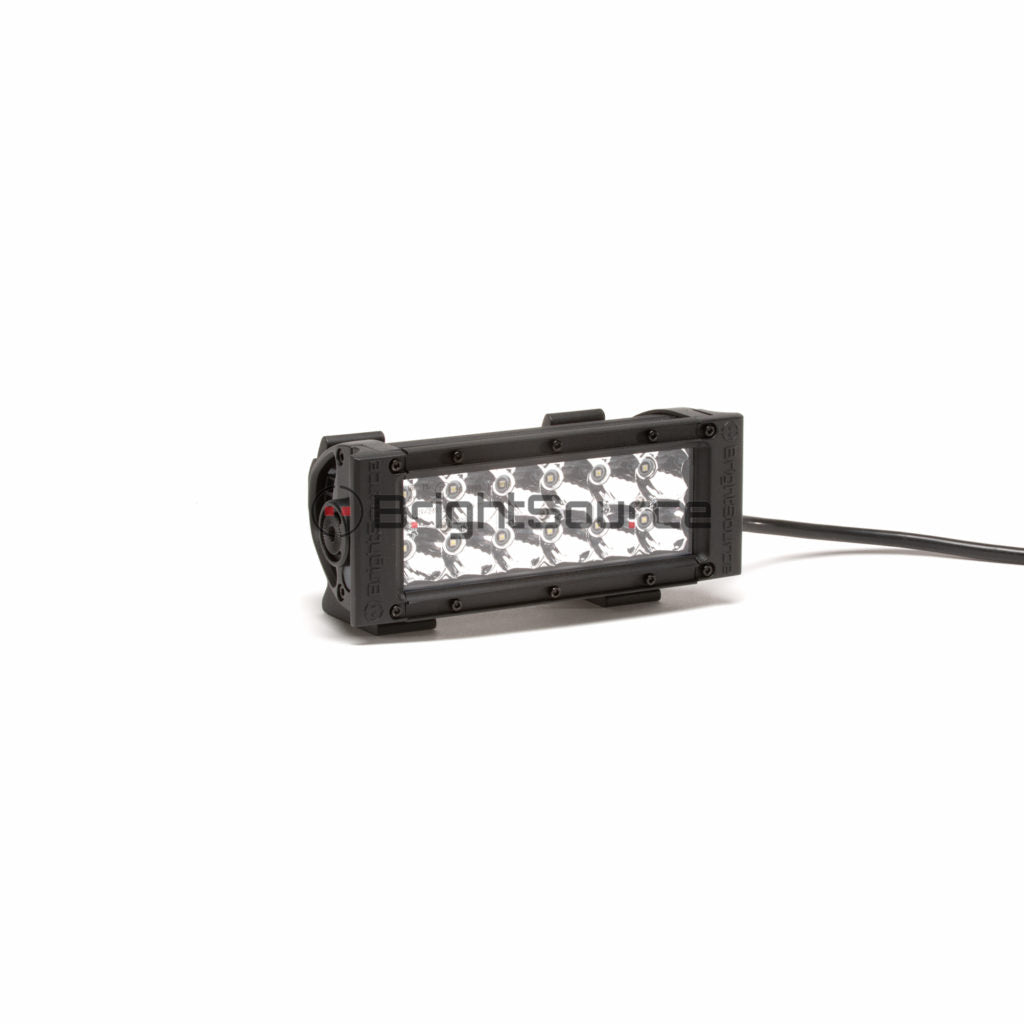

6" E-Marked Double Row

Features

Street Legal* Long Range Driving Light Pattern

Side Mount and Back Mount Bracket Options

Plug and Play Harness Included

5 Year Limited Warranty

Our 6” E-Marked, Double Row Light Bar is used in many applications, particularly when compliancy is required. Doubled up on a bumper for driving light use, or as a work light positioned on the side or rear of a vehicle for amazing light output for trailer haulers. An exceptional lamp for use in all types of work trucks, municipal or commercial fleets, road work/service vehicles, agriculture, forestry, mining, construction…virtually any vehicle application. Super easy to install with included harness and switch plus side mount or back mount bracket options.

This light is sold individually, plug and play harness included

• LED: 12 x 3W Osram LEDs
• Beam Pattern: E-Marked Street Legal Driving Pattern
• Colour Temperature: 5000K
• Luminous Flux: 3240 lm (Raw) 1403 lm (Effective)
• Lux: 1 Lux @ 312m
• IP Rating: IP 67
• Voltage: DC10-30V
• Wattage: 36W
• Amperage 12V/24V: 1.9A @12V /0.9A @24V
• Reverse Polarity Protection: Yes
• Over/Under Volt. Protection: Yes
• Relay Harness/Switch: Plug and Play - Included
• Temperature Range: -40 - +60°C
• Housing Material: Powdercoated Aluminum
• Lens Material: Epoxy Encapsulated Polycarbonate

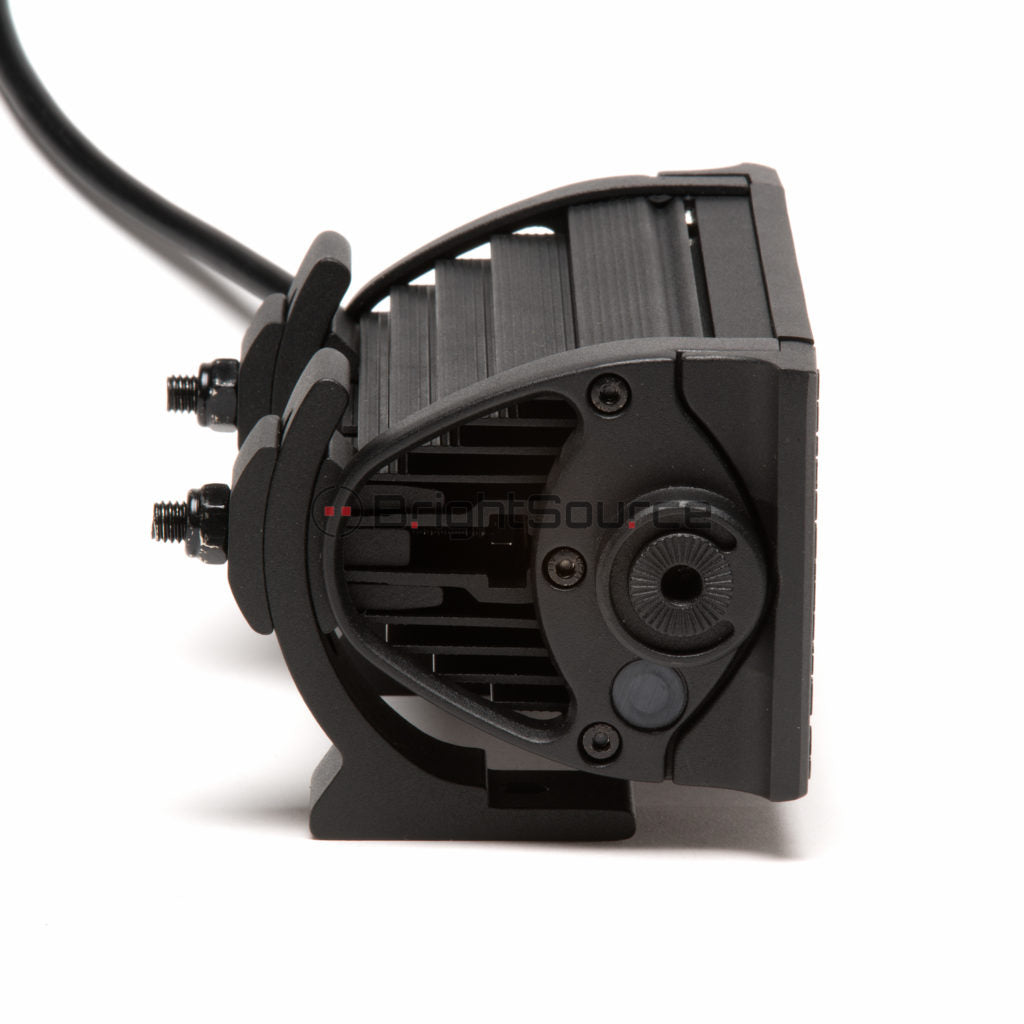

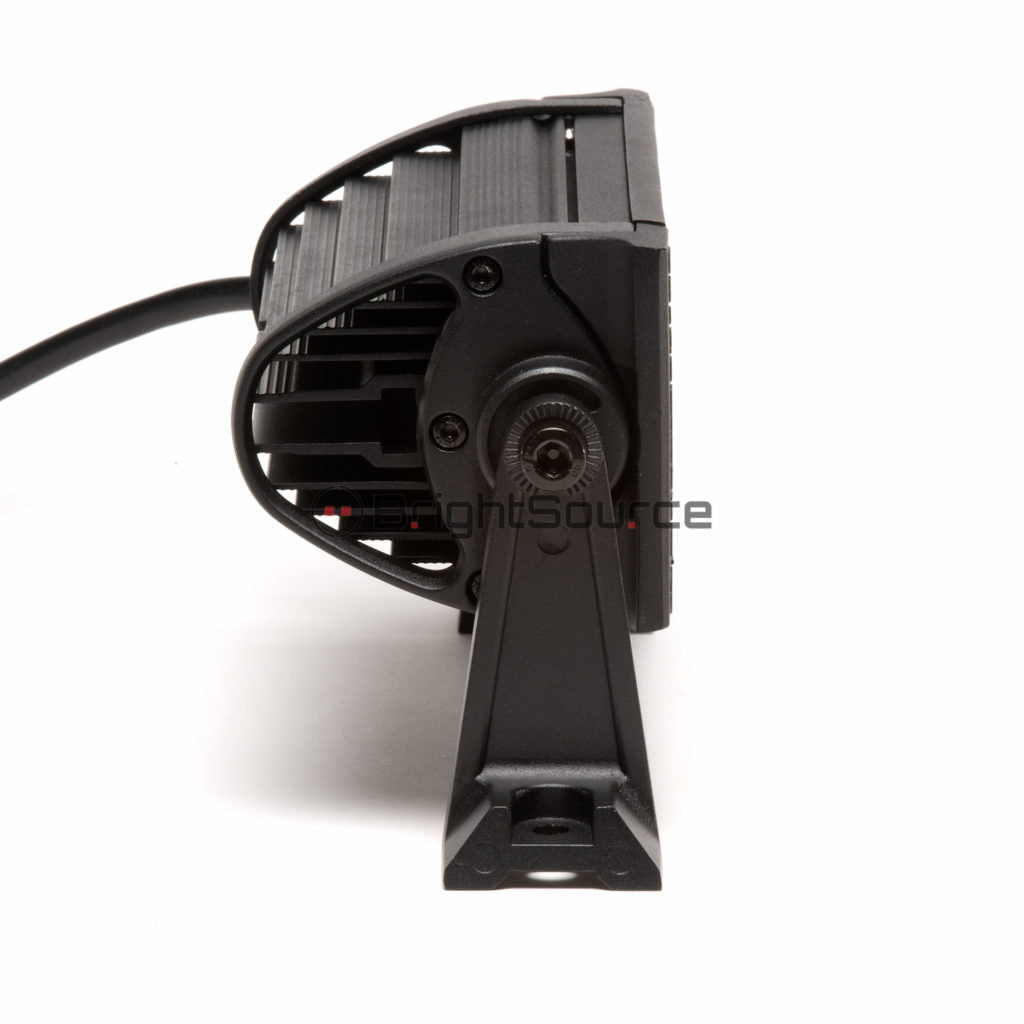

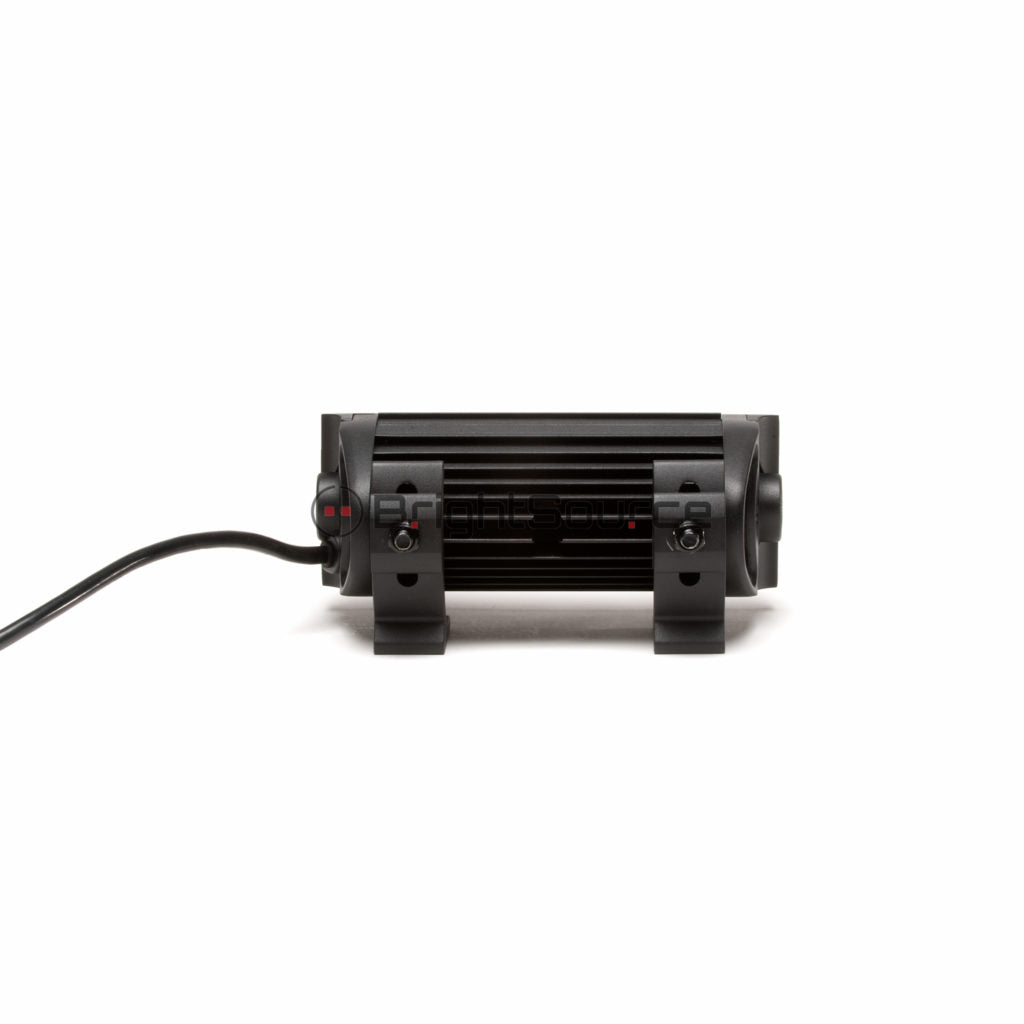

• Mounting Bracket: Side and Bottom Options with 304 Stainless Hardware

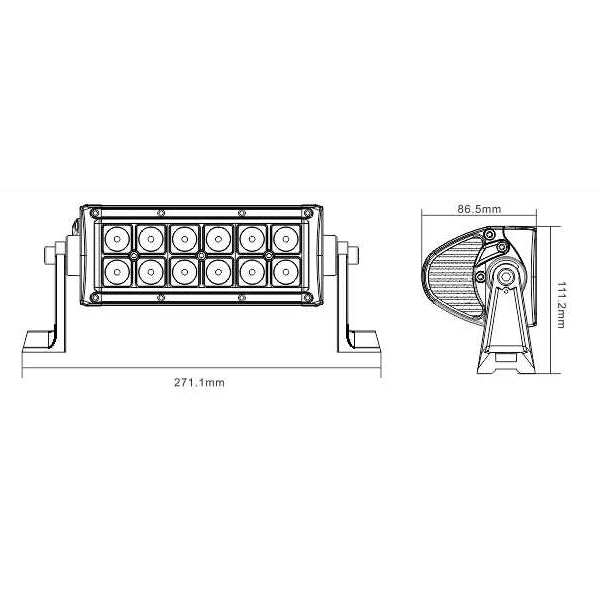

• Size: 206 x 79 x 87mm (8.1 x 3.1 x 3.4”)
• LED Lifespan: 50,000+ hrs
• Certification: E-Mark/CE ECE R10 RoHS
• Warranty: 5 Year Limited

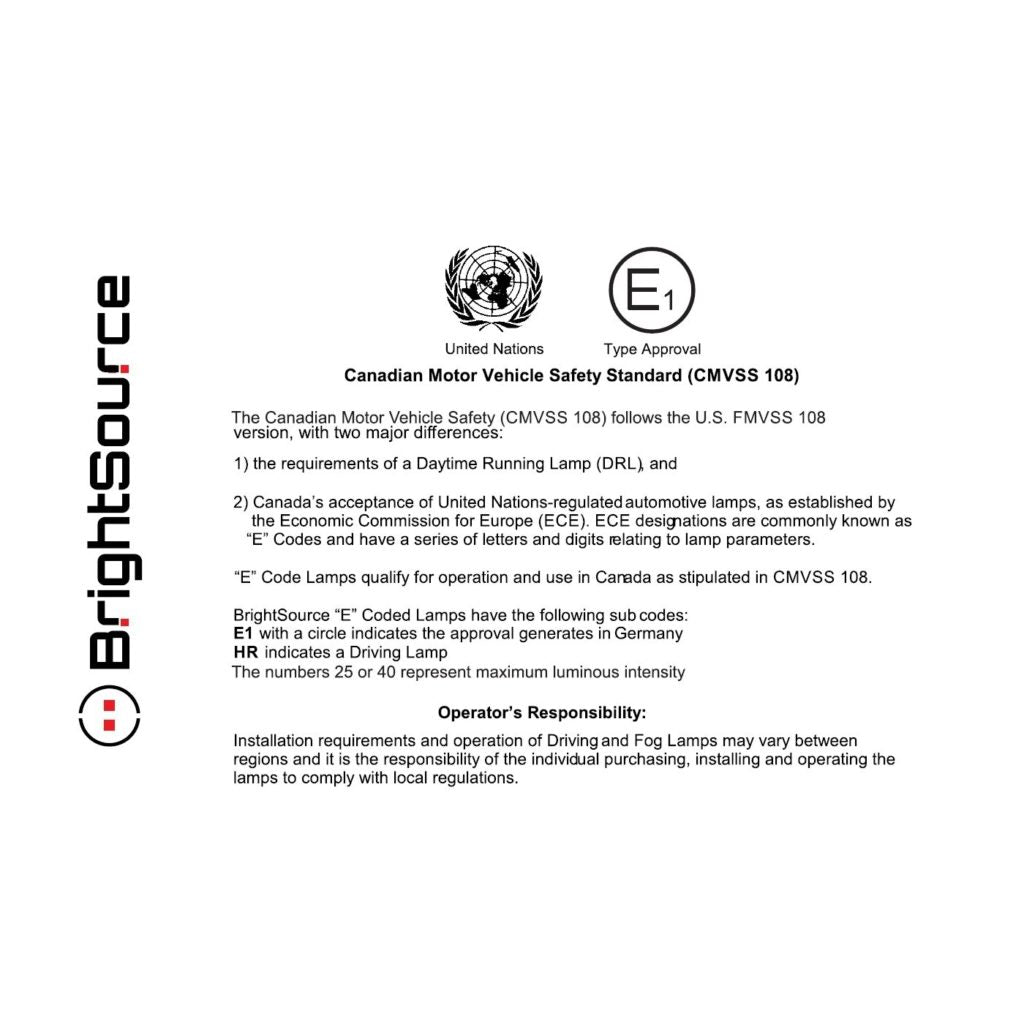

*Except AB, SK, MB and the U.S.. *Always check local laws for product use and installation requirements
