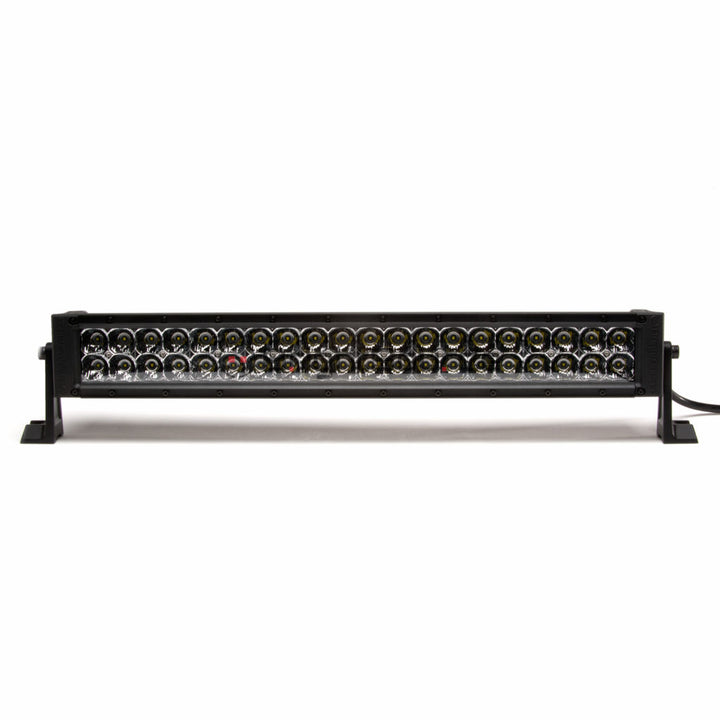

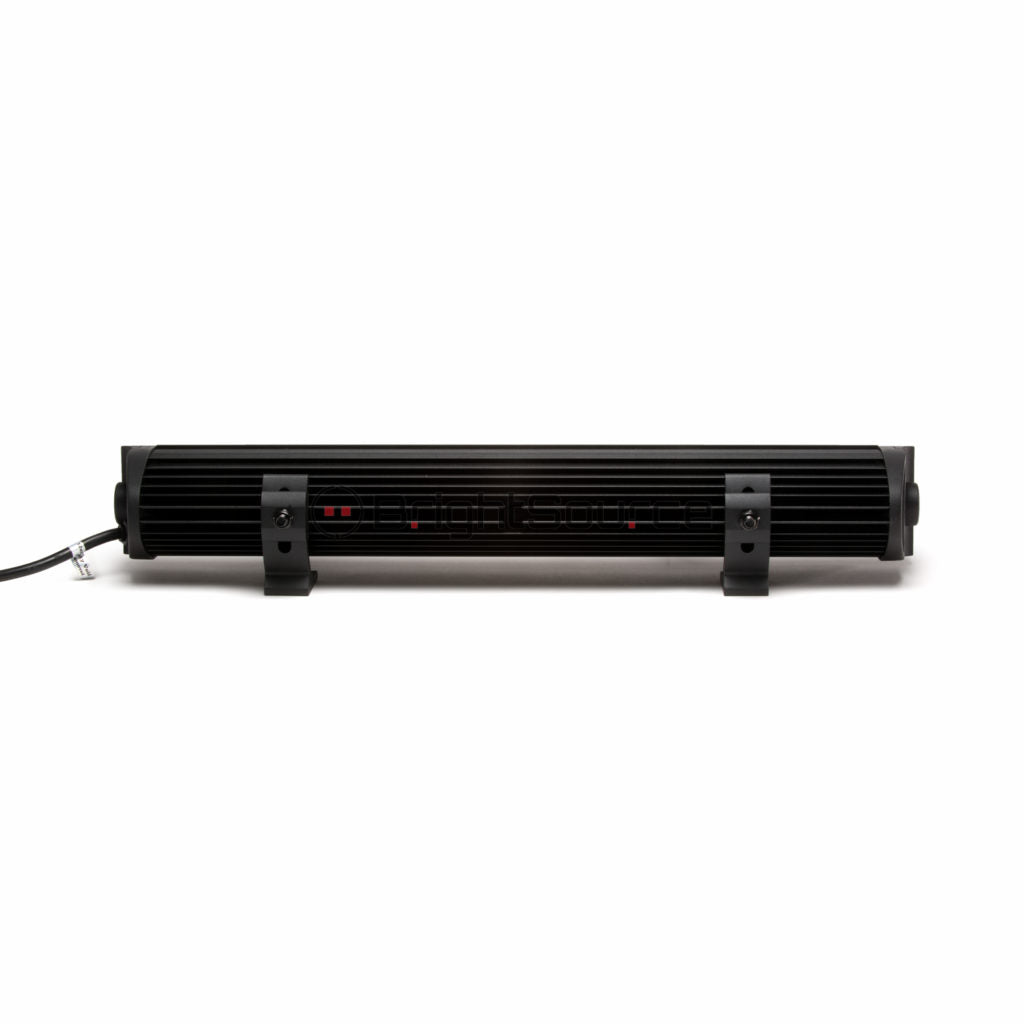

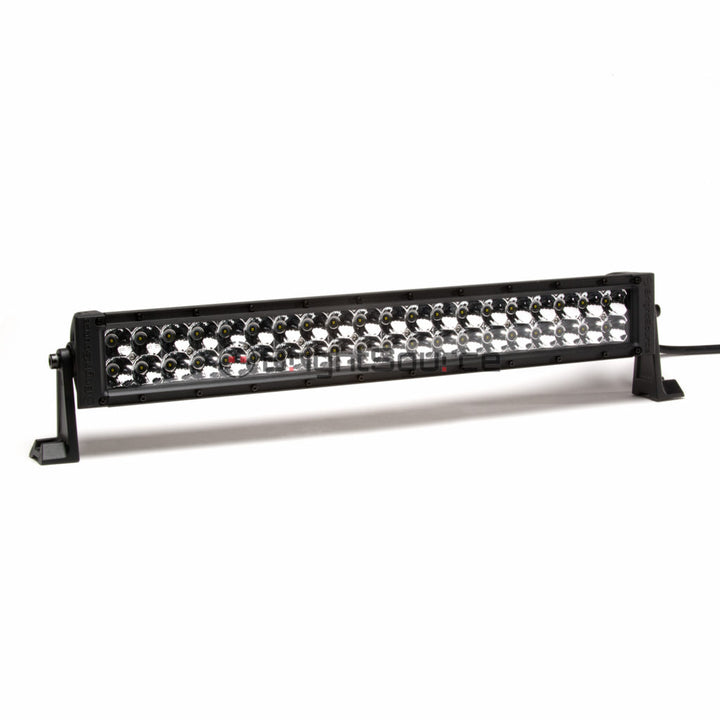

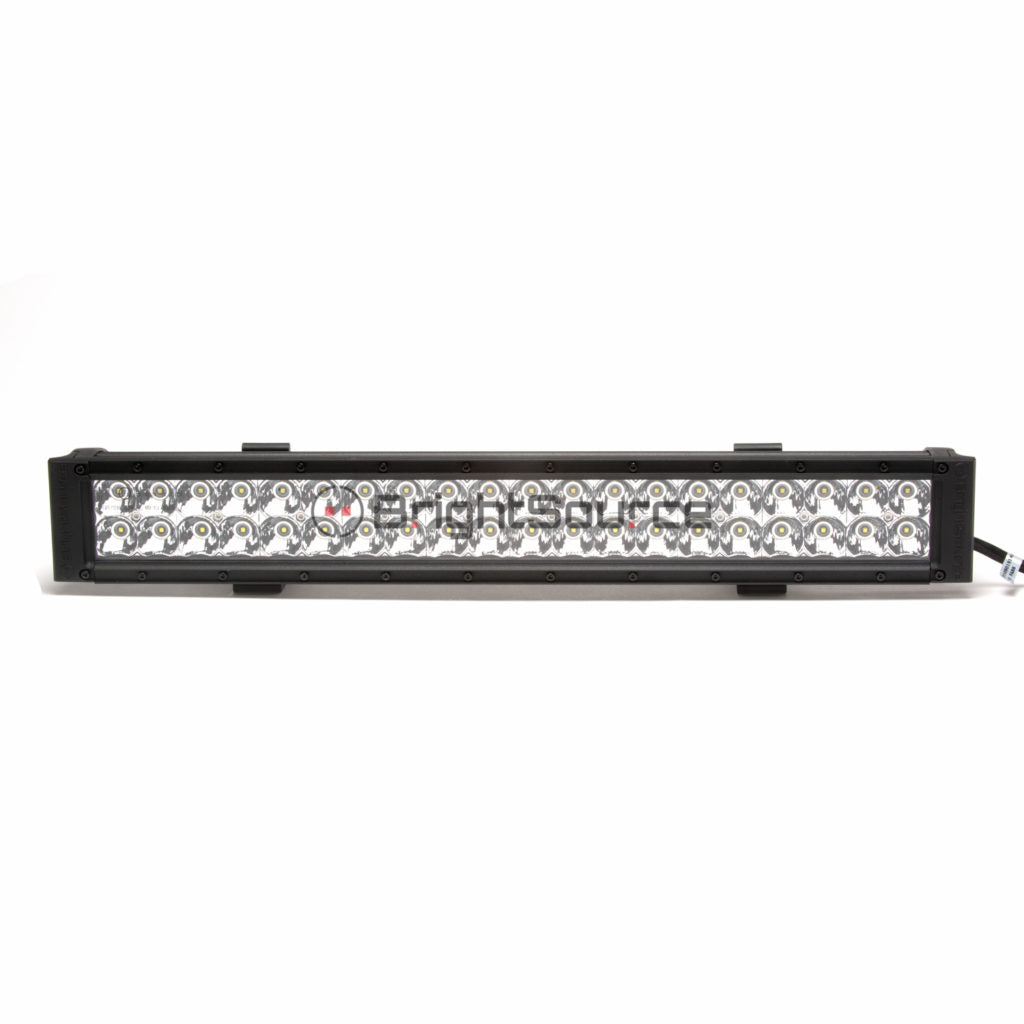

20" E-Marked Double Row

Features

Street Legal* Long Range Driving Light Pattern

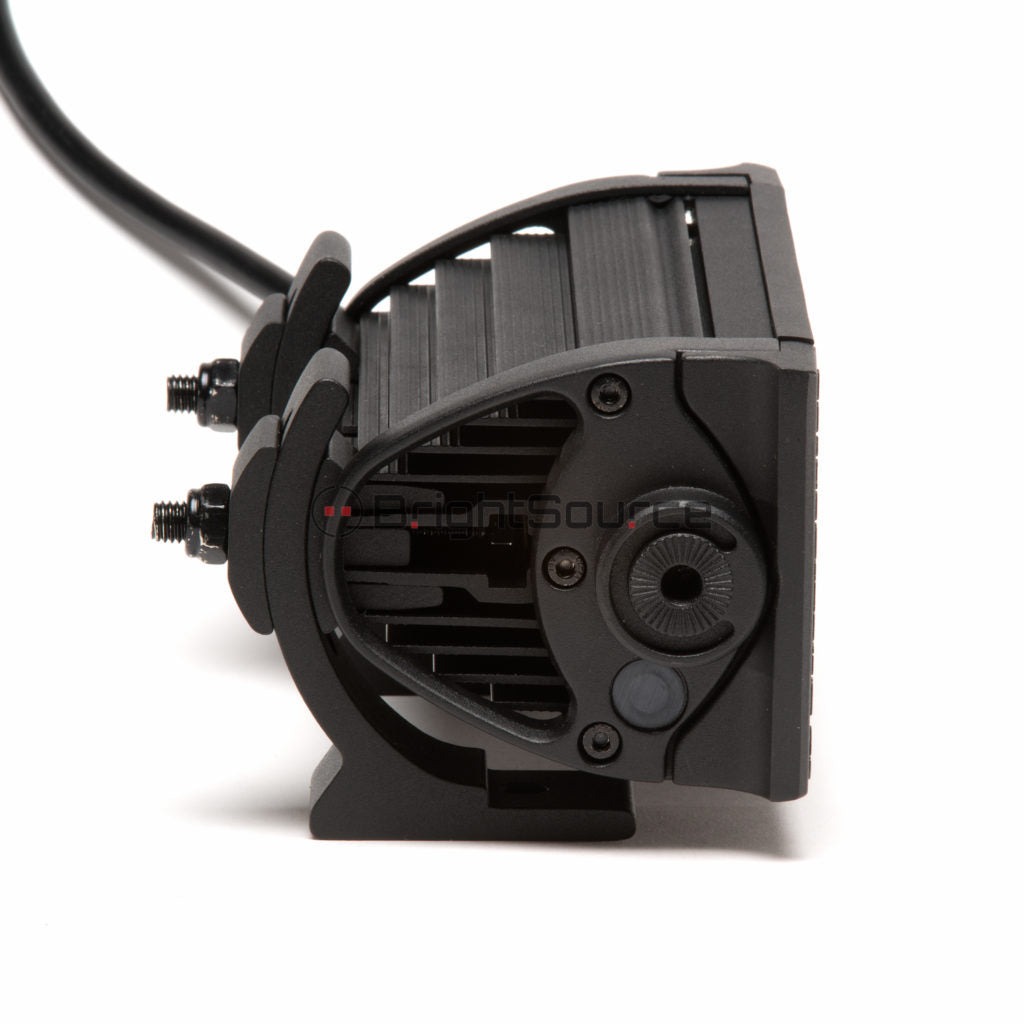

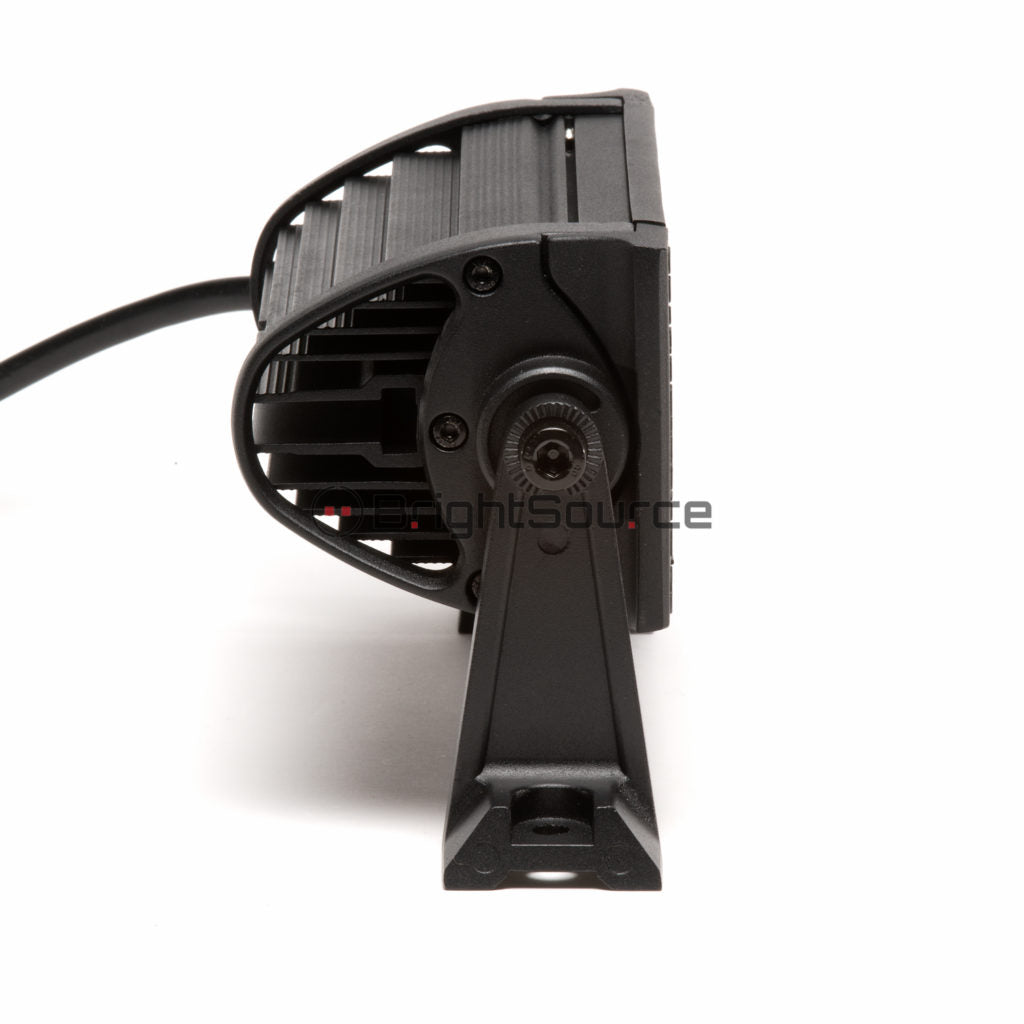

Side Mount and Back Mount Bracket Options

Plug and Play Harness Included

5 Year Limited Warranty

Our 20” E-Marked Street Legal* Double Row Light Bar is the most popular model in our Double Row Light Bar category. Generally installed on front bumpers for trucks and SUVs, this high performance light bar is also seen mounted on speedy Side X Side vehicles and rally vehicles. An exceptional lamp for use in all types of work trucks, municipal or commercial fleets, road work/service vehicles, agriculture, forestry, mining, construction…virtually any vehicle application. Super easy, plug and play installation with included harness and switch plus side mount or back mount bracket options.

This light is sold individually, plug and play harness included

Available Wind Noise Eliminator - 74500

• LED: 40 x 3W Osram LEDs
• Beam Pattern: E-Mark Street Legal Driving Pattern
• Colour Temperature: 5000K
• Luminous Flux: 10,800 lm (Raw) 3935 lm (Effective)
• Lux: 1 Lux @ 406 m
• IP Rating: IP 67
• Voltage: DC10-30V
• Wattage: 120W
• Amperage 12V/24V: 6.9A @12V /3.5A @24V
• Reverse Polarity Protection: Yes
• Over/Under Volt. Protection: Yes
• Harness: Plug and Play - Included
• Temperature Range: -40 - +60°C
• Housing Material: Aluminum with Powdercoat
• Lens Material: Epoxy Encapsulated Polycarbonate
• Mounting Bracket: Side and Bottom Mount Options with 304 Stainless Hardware

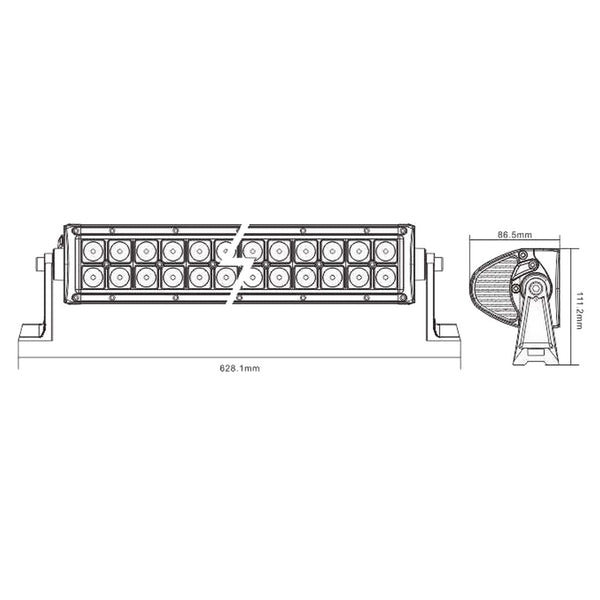

• Size: 563 x 79 x 87mm (22.2 x 3.1 x 3.4”)
• LED Lifespan: 50,000+ hrs

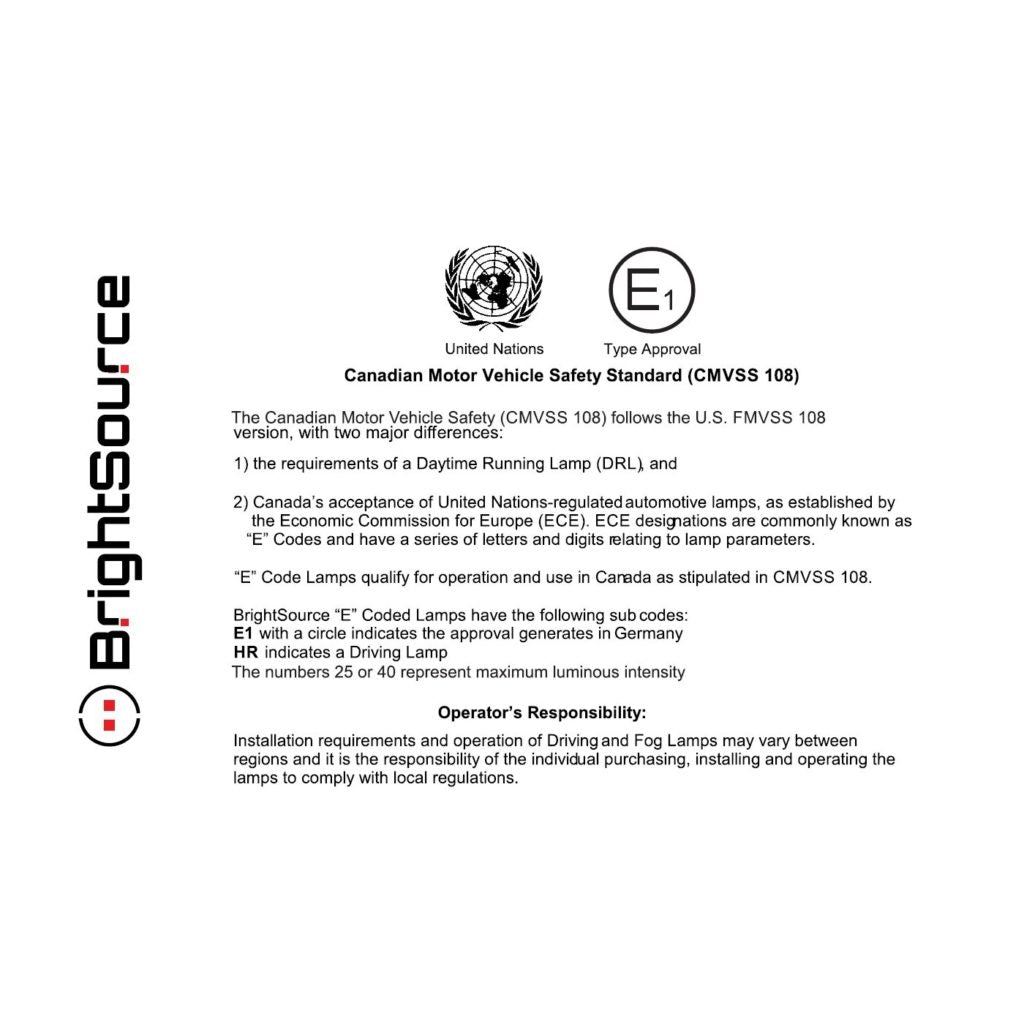

• Certification: E-Mark/CE ECE R10 RoHS
• Warranty: 5 Year Limited

*Except AB, SK, MB and the U.S.. *Always check local laws for product use and installation requirements
