Name: 12" Siberia XP Single Row
Brand: Strands
SKU: 809411
Price: 329.0 CAD
Availability: InStock

SKU: 809411

$329.00

Shipping calculated at checkout.

Description
Specifications
Manual

Description

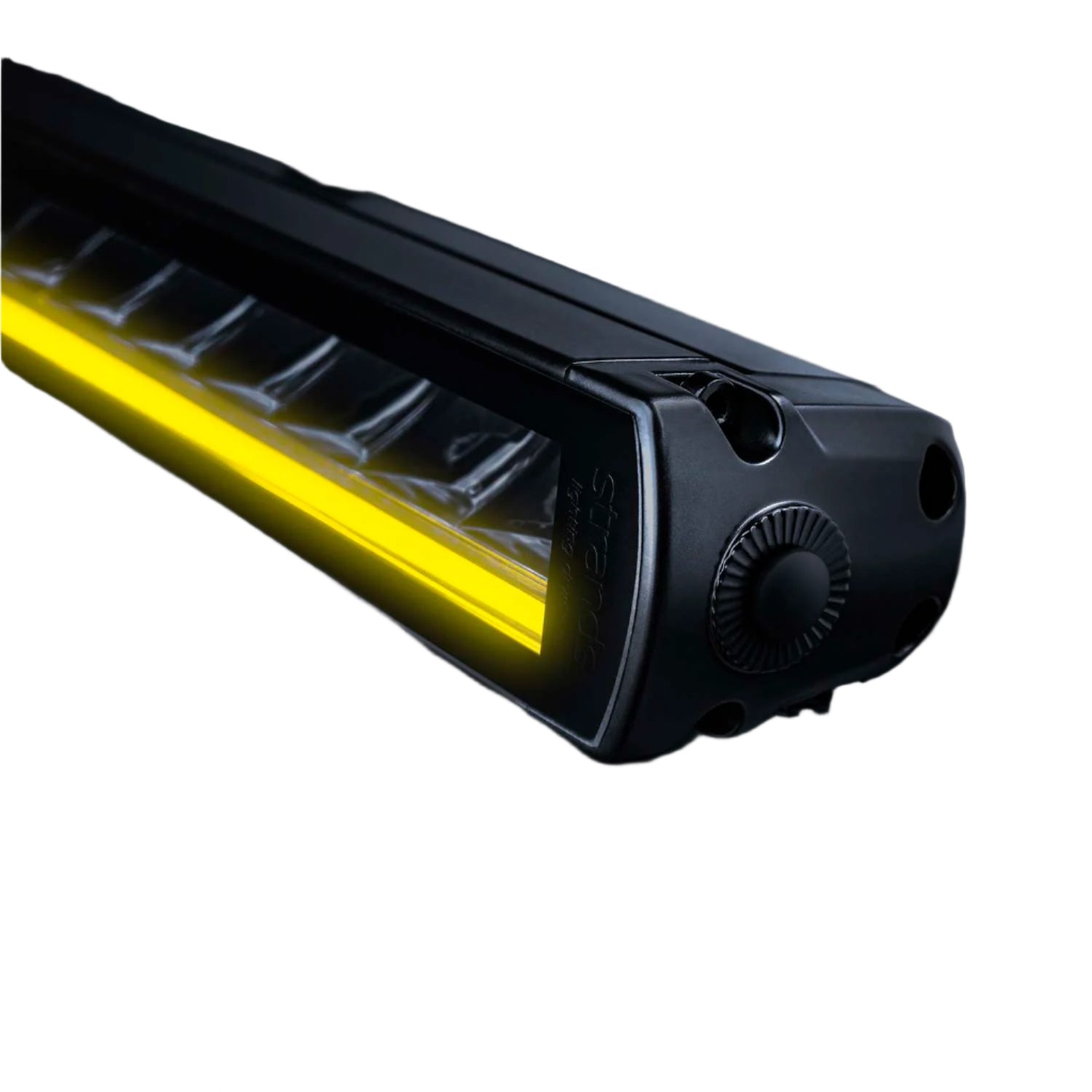

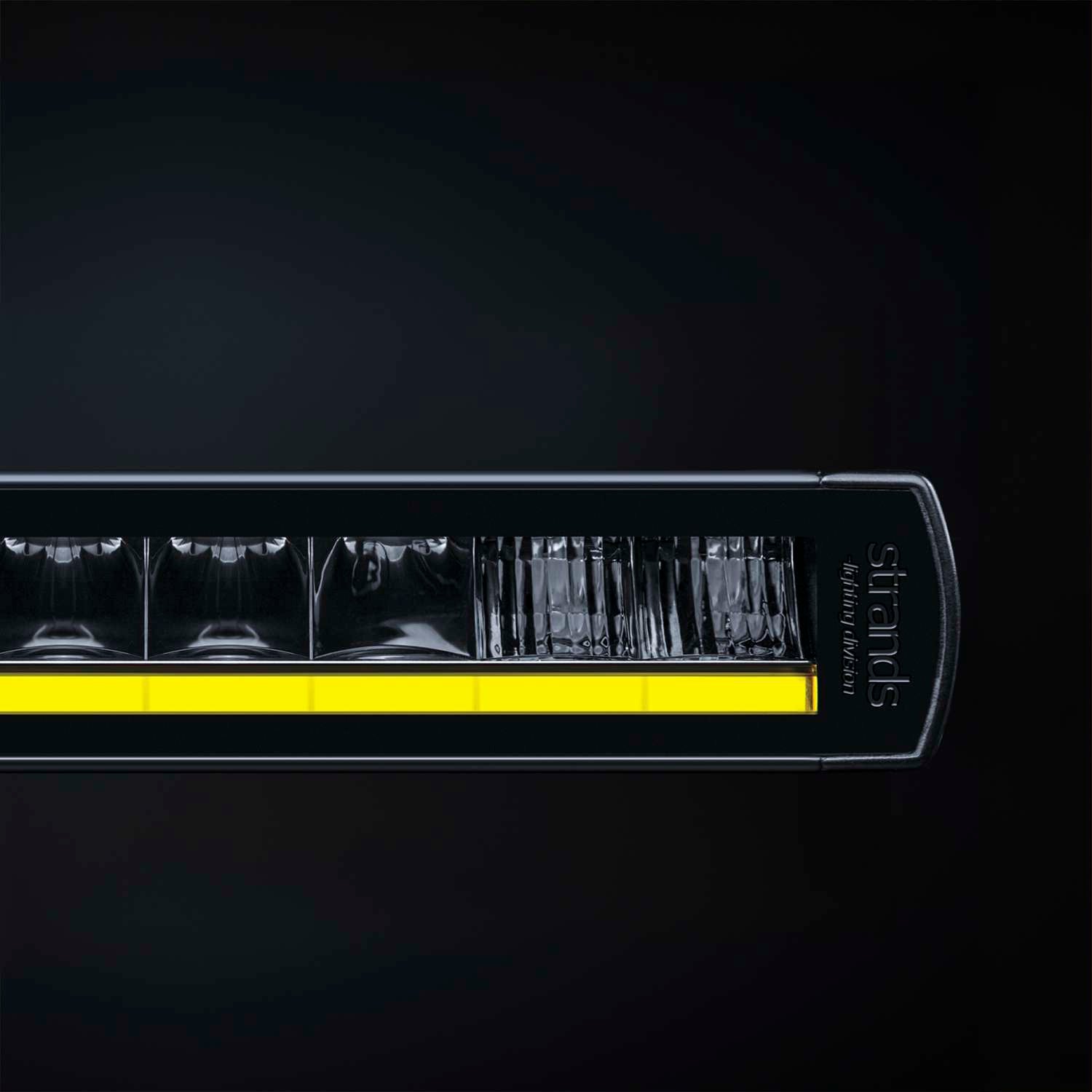

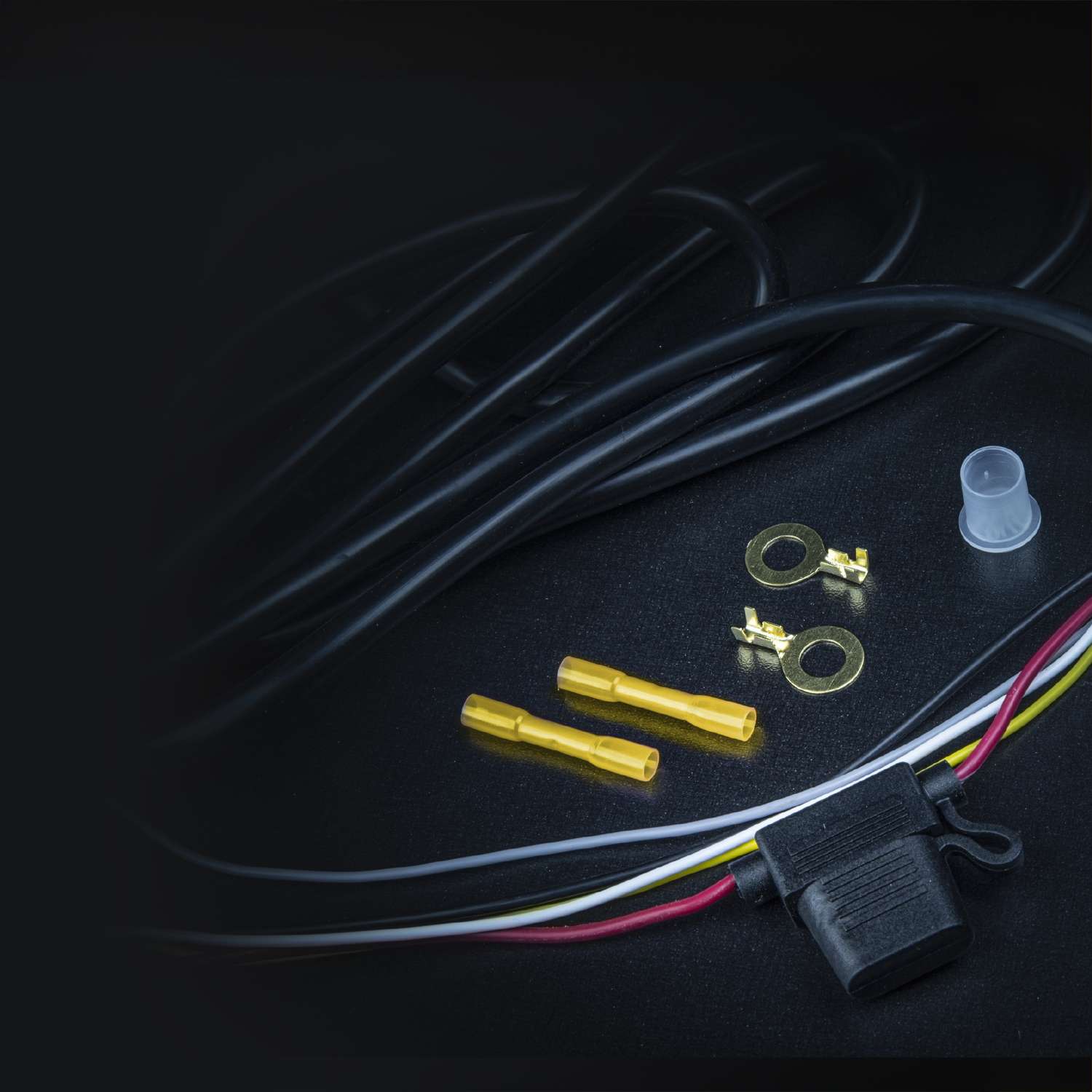

Welcome the new Siberia XP Single Row LED bar. These models have an extended beam pattern with an E-mode and high powered Xperience mode. This means a much higher output than previous LED bars. The greater visual range creates high forward visibility, and the 5700-kelvin color temperature ensures impeccable illumination. It is incredibly sturdy and long-lived and can withstand vibrations, rough roads, and hard use. It has an IP rating of IP68/IP69K, which ensures high protection against dirt and water. Siberia XP SR is covered by Strands Lighting Divisions’ 3-year function warranty and is EMC-approved according to ECE R10. The Siberia XP is easy to install thanks to the 2500 mm cable and integrated relay.

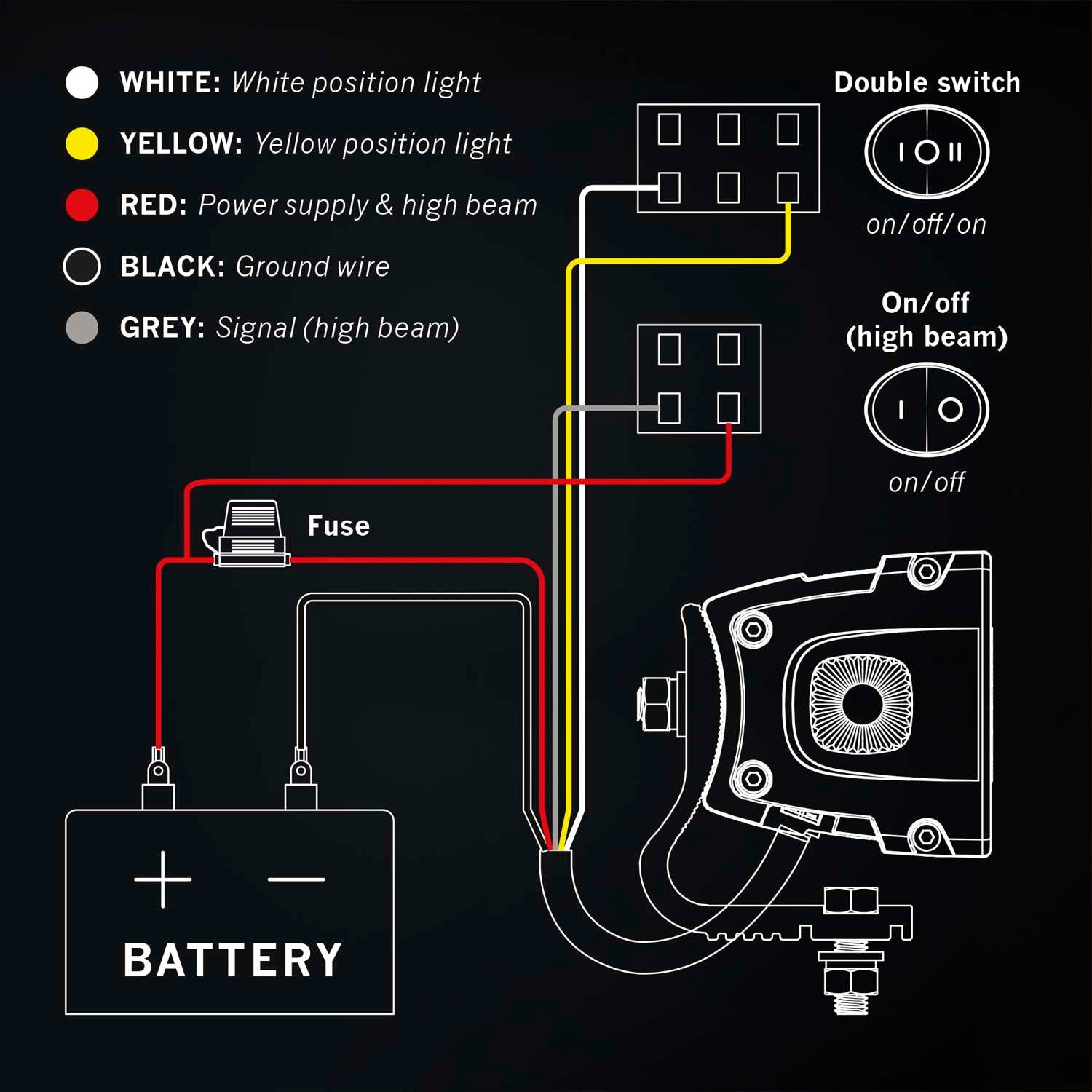

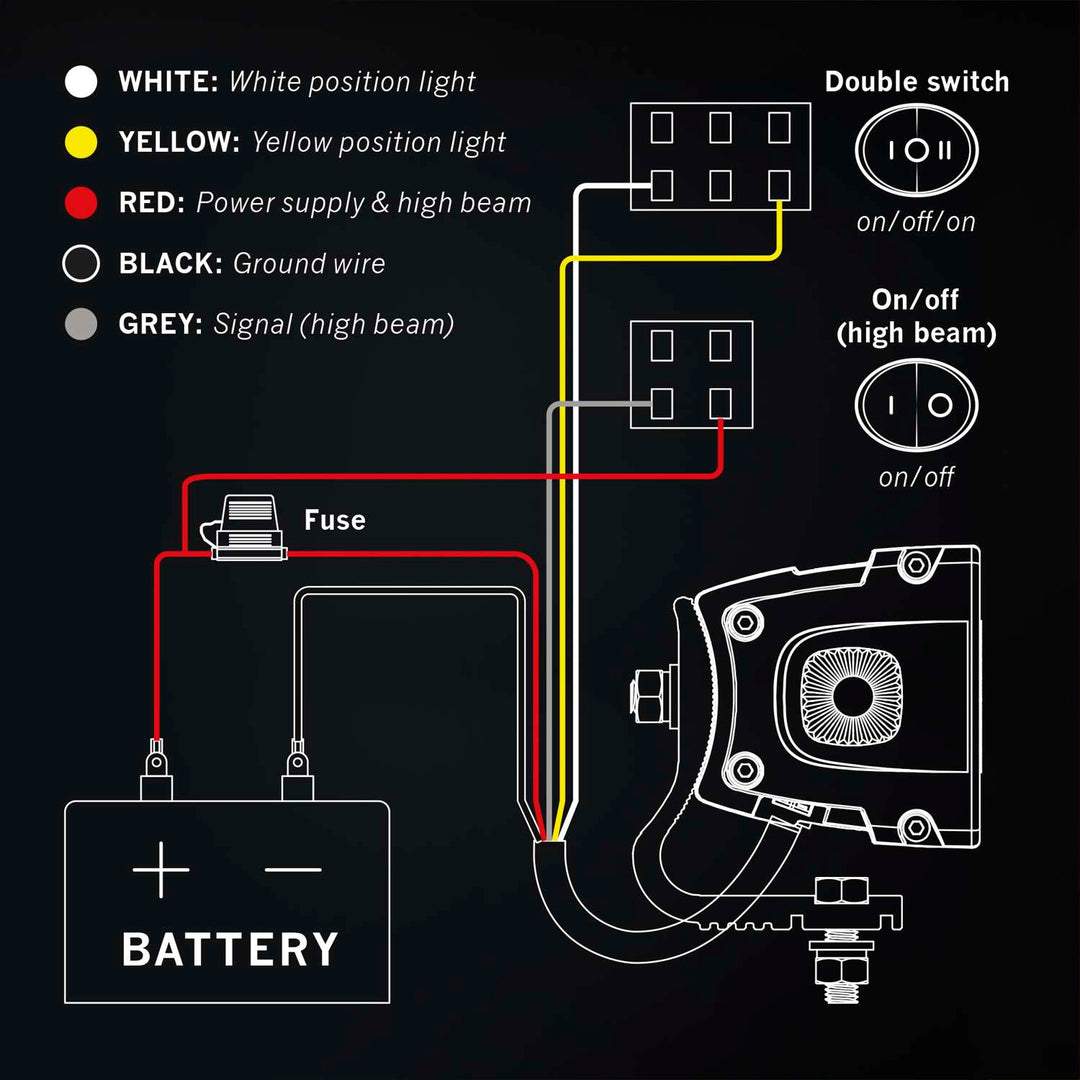

These lights are sold individually and do not require a relay harness due to the integral relay in the lamp itself. Please check the manual for wiring instruction.

Specifications

VOLTAGE	10-32V DC
CONSUMPTION, XPERIENCE-MODE	50W
CONSUMPTION, E-MODE	25W
CONSUMPTION, POSITION LIGHTS	Wht:5.1W, Yell:5.1W
ACTUAL LUMEN, XPERIENCE-MODE	3620 lm
ACTUAL LUMEN, E-MODE	1725 lm
1 LUX @, XPERIENCE-MODE	454 m
1 LUX @, E-MODE	300 m
COLOR TEMPERATURE	5700K
BEAM PATTERN	Optimized beam
IP-CLASS	IP68/IP69K
COLOR LENS	Clear
HELLO FUNCTION	Yes
POSITION LIGHT	White & Yellow
CONNECTION	DT-4 Pin
CABLE LENGTH	200mm
MATERIAL HOUSING	Aluminium
MATERIAL LENS	Polycarbonate

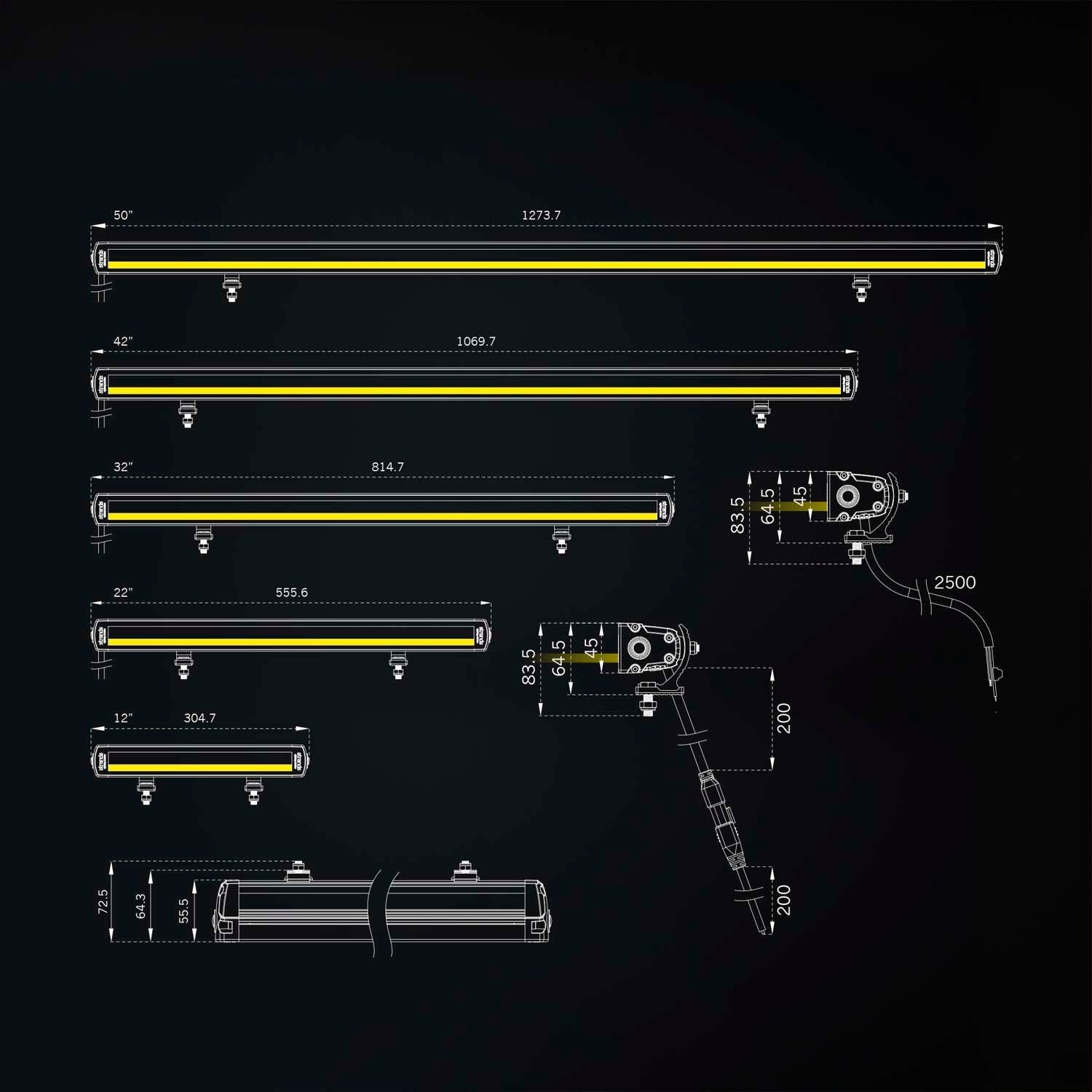

LENGTH	304.7 mm
DEPTH	55.5 mm
HEIGHT	45 mm
HEIGHT INCLUDING BRACKET	64.5 mm
OPERATING TEMPERATURE	-30°C - +65°C
E-APPROVED	Yes
ACCORDING TO ECE REGULATION	R148(R7),R149(R112)
EMC-CERTIFICATE	ECE R10

Manual

Download Manual
