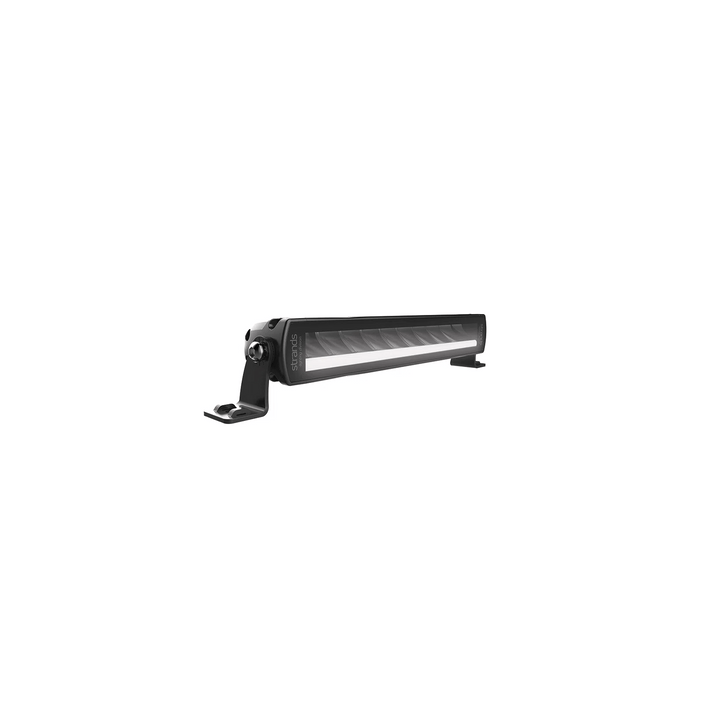

12" Siberia E-Marked Single Row

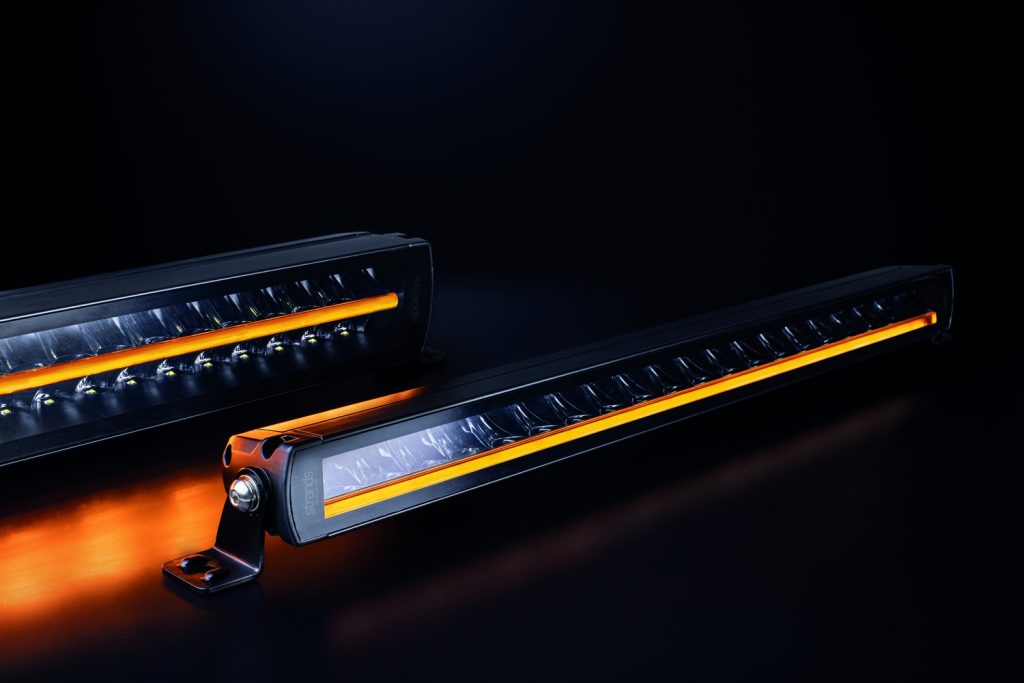

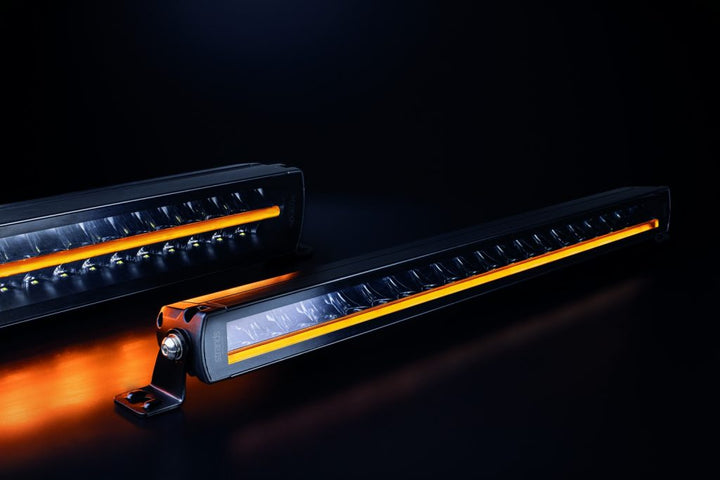

Welcome to the Siberia Series single row LED light bars. These LED bars are truly innovative, combining 2 separate lighting functions with cutting edge design.

The power of the spot beam on the 12" bar gives you an extremely long and concentrated light forward where you need it. The power of the combo beam on the longer bars gives you a perfect balance between length and width. All are E-approved, providing exceptional range, regardless of bar length. The second feature is a dual colour position light, which illuminates with your choice of output – a cool white or rich amber colour. This feature gives you the option of linking to daytime running lights, flashers or other functions and customizes the appearance of your vehicle.

This light is sold individually and does not include a harness (whip included on models with DT connector)

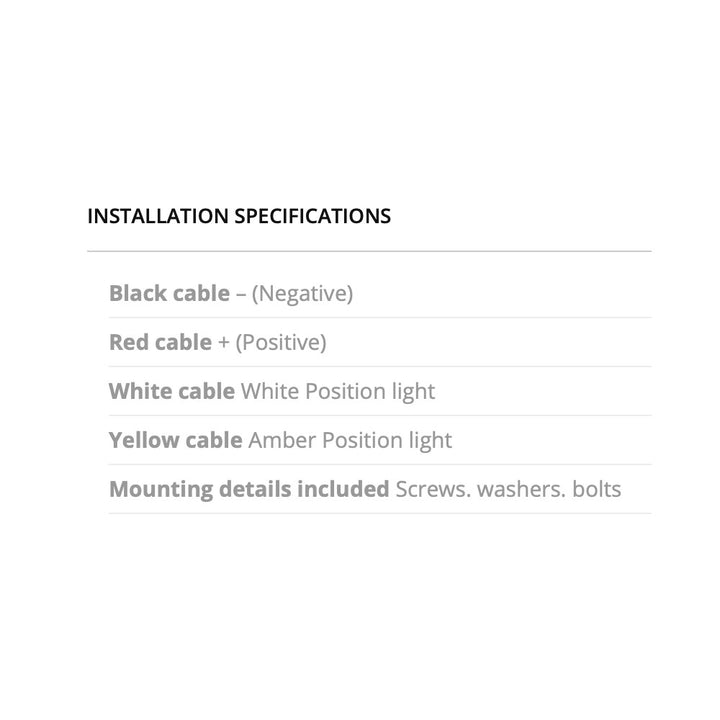

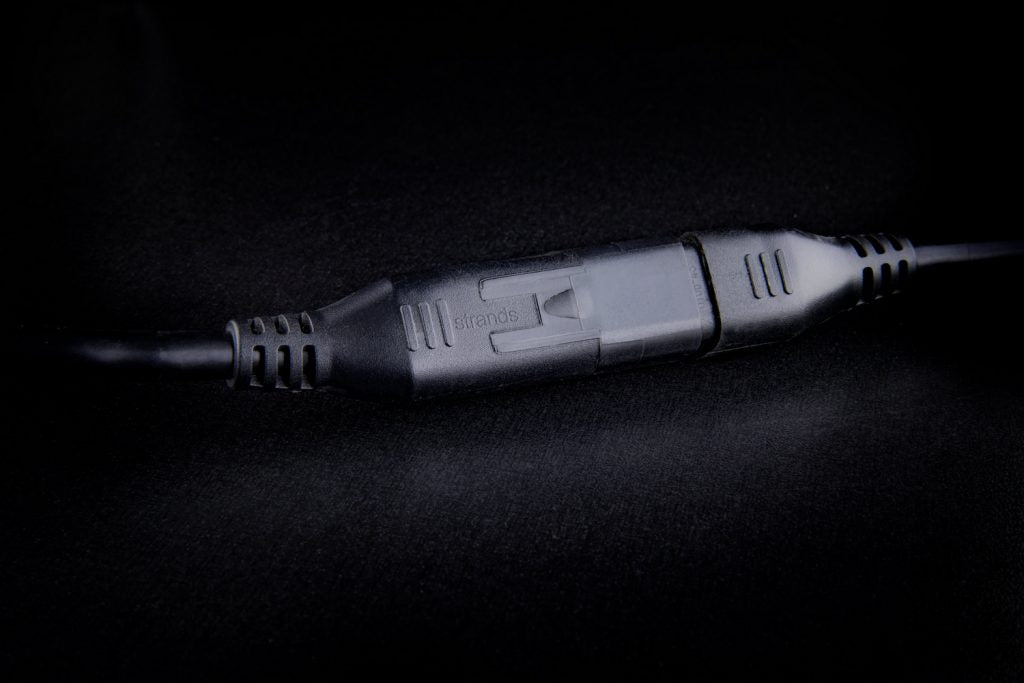

Included in the package are side mount and base mount brackets for ease of installation. This LED light bar has a DT 4 connector. Consider adding a harness adapter (PN 270438) to connect with a BrightSource wiring harness (PN 72999) – both sold separately. The BrightSource harness is a plug and play solution with a 15A relay and switch to light up a single light through a 2 pin DT connector, which plugs into the female end of the harness adapter. The harness adapter has a white and yellow wire to power the white and amber position function, wherever you choose to source that power.

Siberia is also available in a double-row model – perfect for trucks and other larger vehicles.

This light is sold individually and does not include a harness.

Wiring Harness Options:

Harness for one light – 72999-1
Harness for two lights – 73240-2

• Type of lamp LED
• Type of LED Osram
• PCS LED´s 10
• Voltage (V DC) 10-40V DC
• Consumption (w) 12V 32
• Consumption (w) 24V 32
• Consumption specific function (w) 12V White position light: 3, Amber position light: 7
• Consumption specific function (w) 24V White position light: 3, Amber position light: 7
• Theoretical lumen 4000
• Actual lumen 2200
• 1 LUX @ m 368
• Kelvin 6000
• IP-class 67/69K
• Colour housing Black
• Colour lens Clear
• Colour LED´s White
• Beam pattern Spot
• Position light Yes. white and amber
• Connection DT-4
• Cable length (mm) 500
• Material bracket Stainless steel
• Material housing/chassi Aluminium
• Material lens Polycarbonate
• Length (mm) 300.6
• Depth (mm) 55.5
• Height (mm) 45
• Height including bracket (mm) 65
• Operating temperature -20°C – +45°C
• ADR-approved No
• E-approved  Yes
• According to regulation ECE R112
• Reference number 30
• EMC ECE R10
• 3 Year Function Warranty
