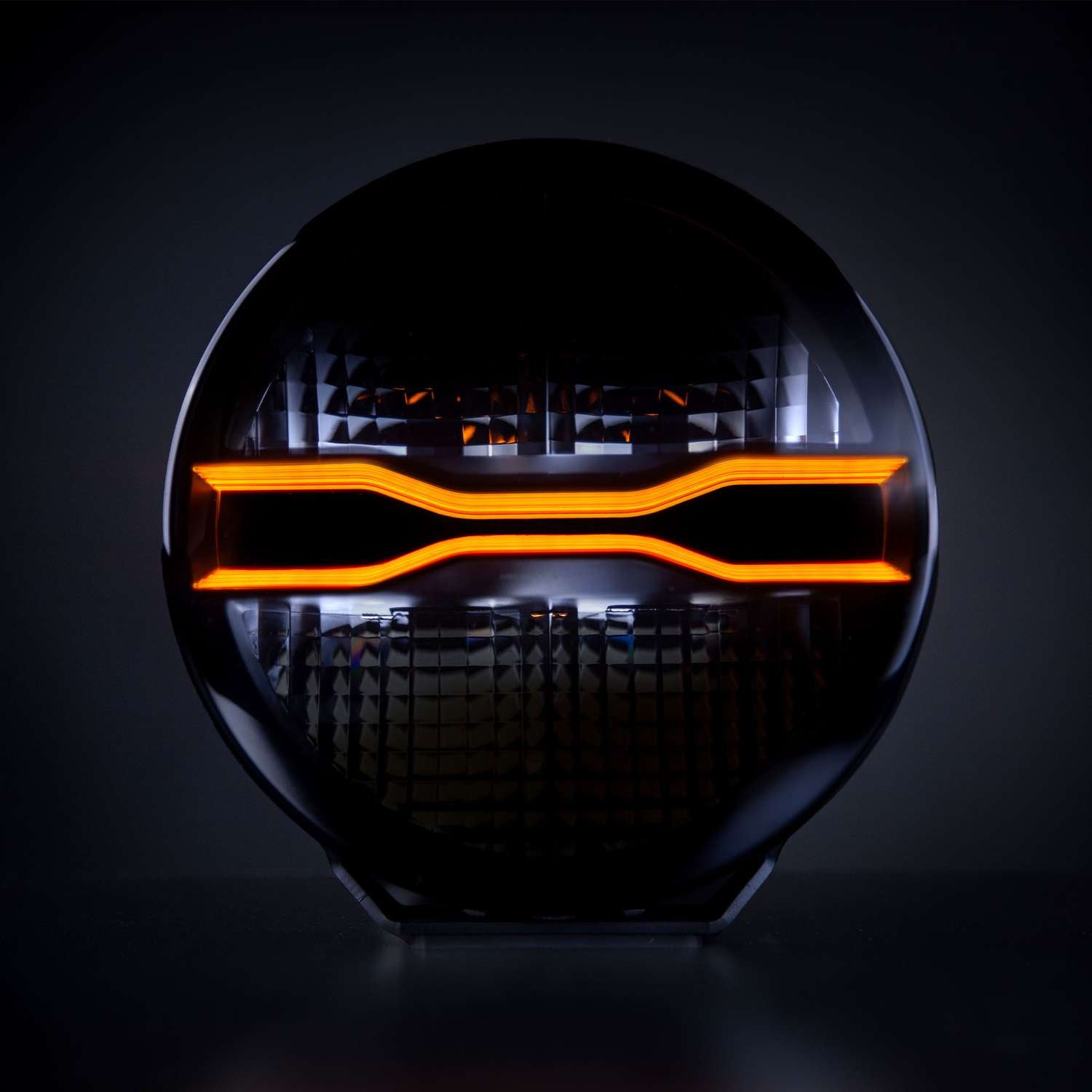

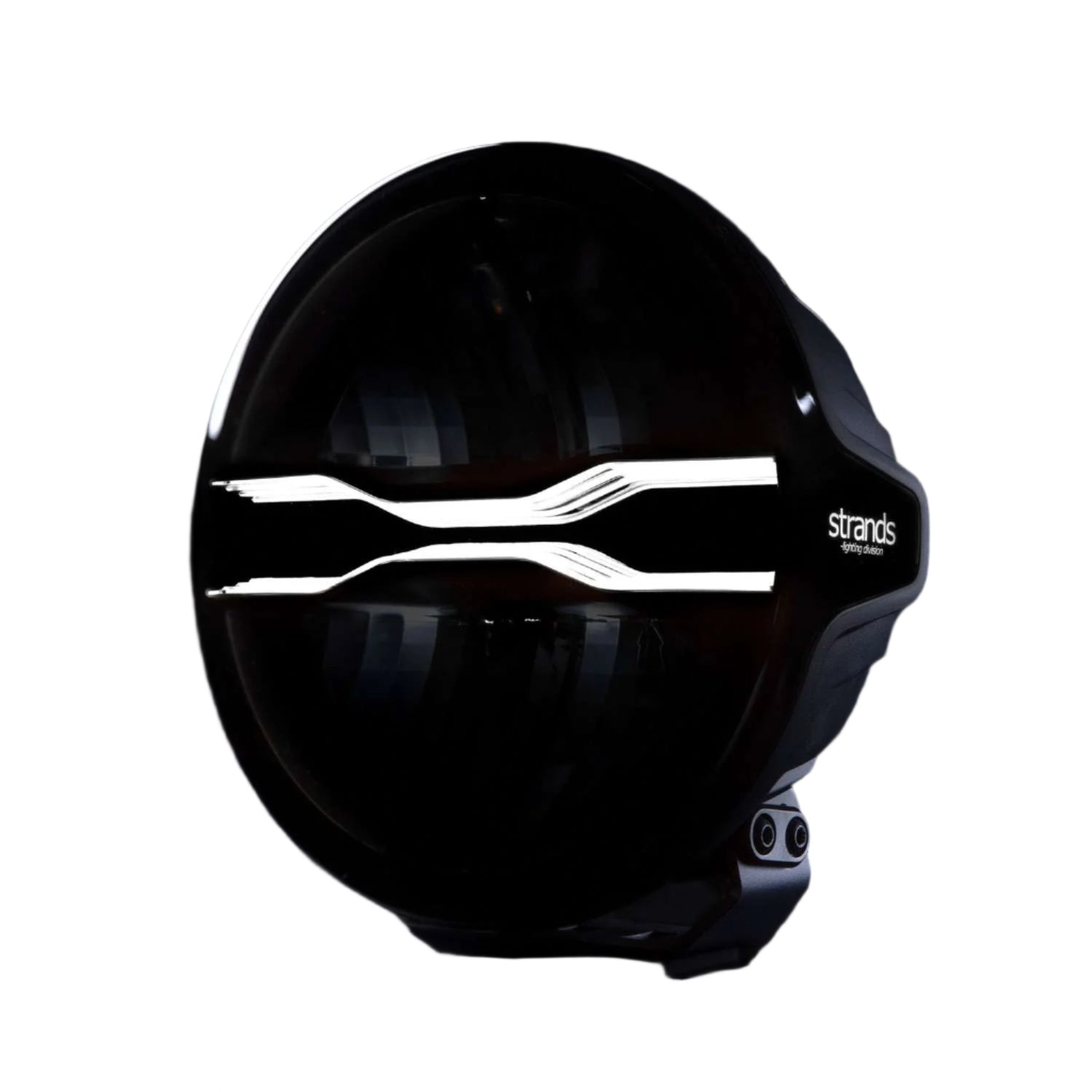

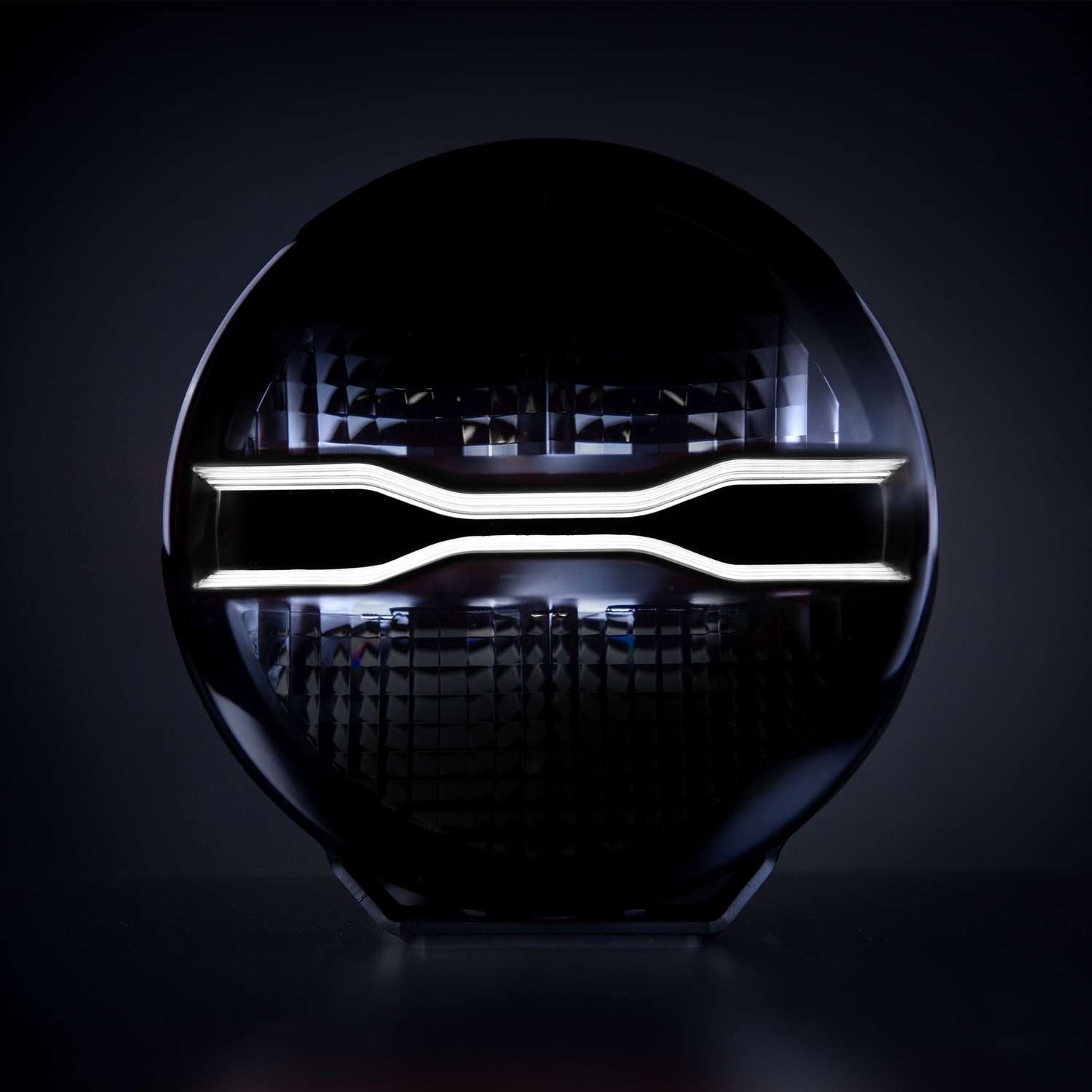

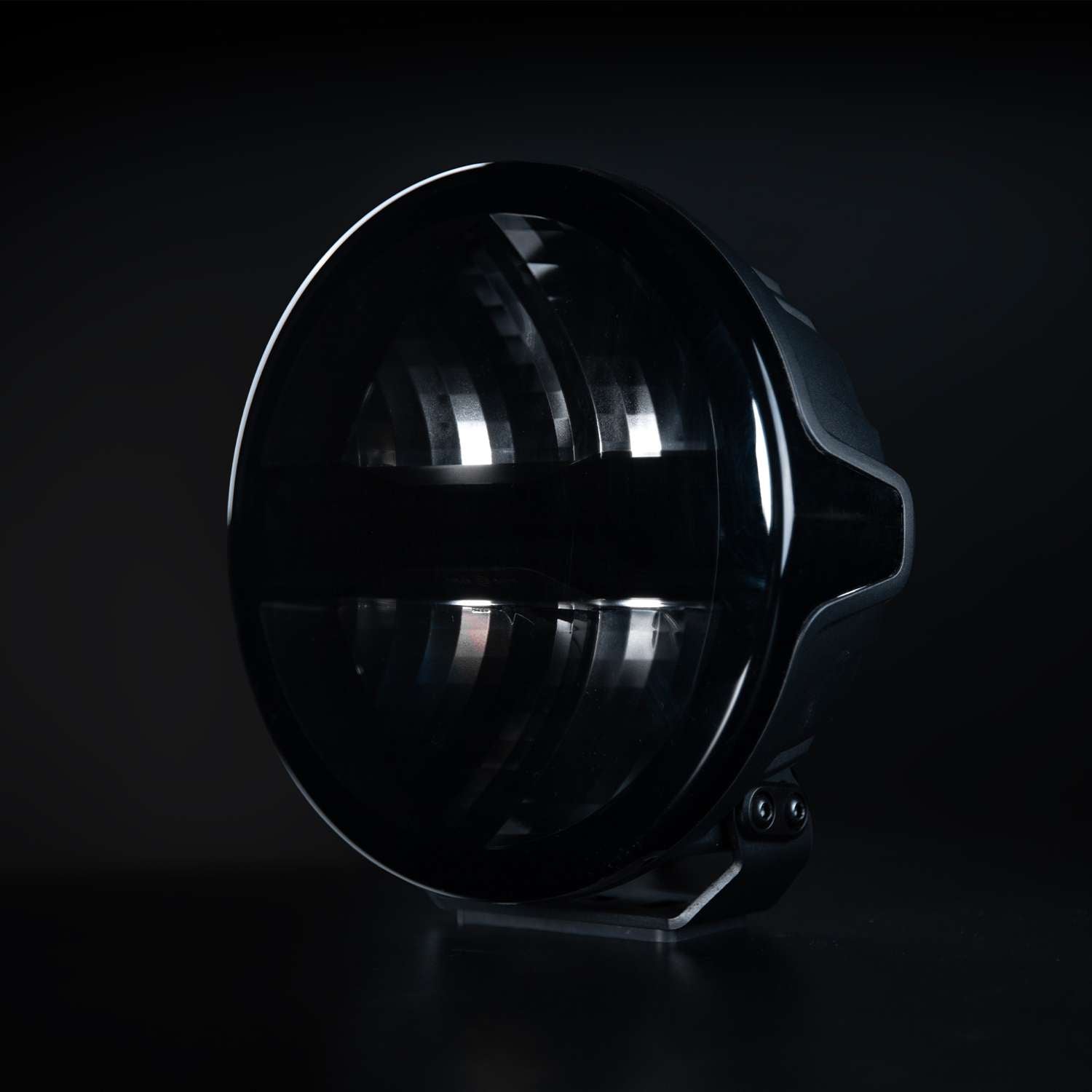

The new E-approved Dragon Drive has been updated with E-mode and Xperience mode, so you can get a perfectly adapted illumination. With Xperience mode, you’ll get an output of 9300 actual lumens and a range of 600 meters. The E-mode is E-approved R148/149 with reference number 20. This is required in many European countries, but also perfect when driving in poor weather conditions. The adapted output lessens glare from rain, snow, or fog. Changing modes ensures optimal illumination anywhere. The FOR9T dual-color position lights in white and amber offer a fresh look and superior performance, with flowing lines making you the center of attention. When not in use, the position lights are dark and invisible against the lens. With high-quality aluminum, polycarbonate, and IP-rating IP67, you can be sure it will be a lasting addition to your vehicle. It’s easy to install with a DT-4 connector and is covered by Strands Lighting Divisions’ market-leading 3-year function warranty.
Bold design

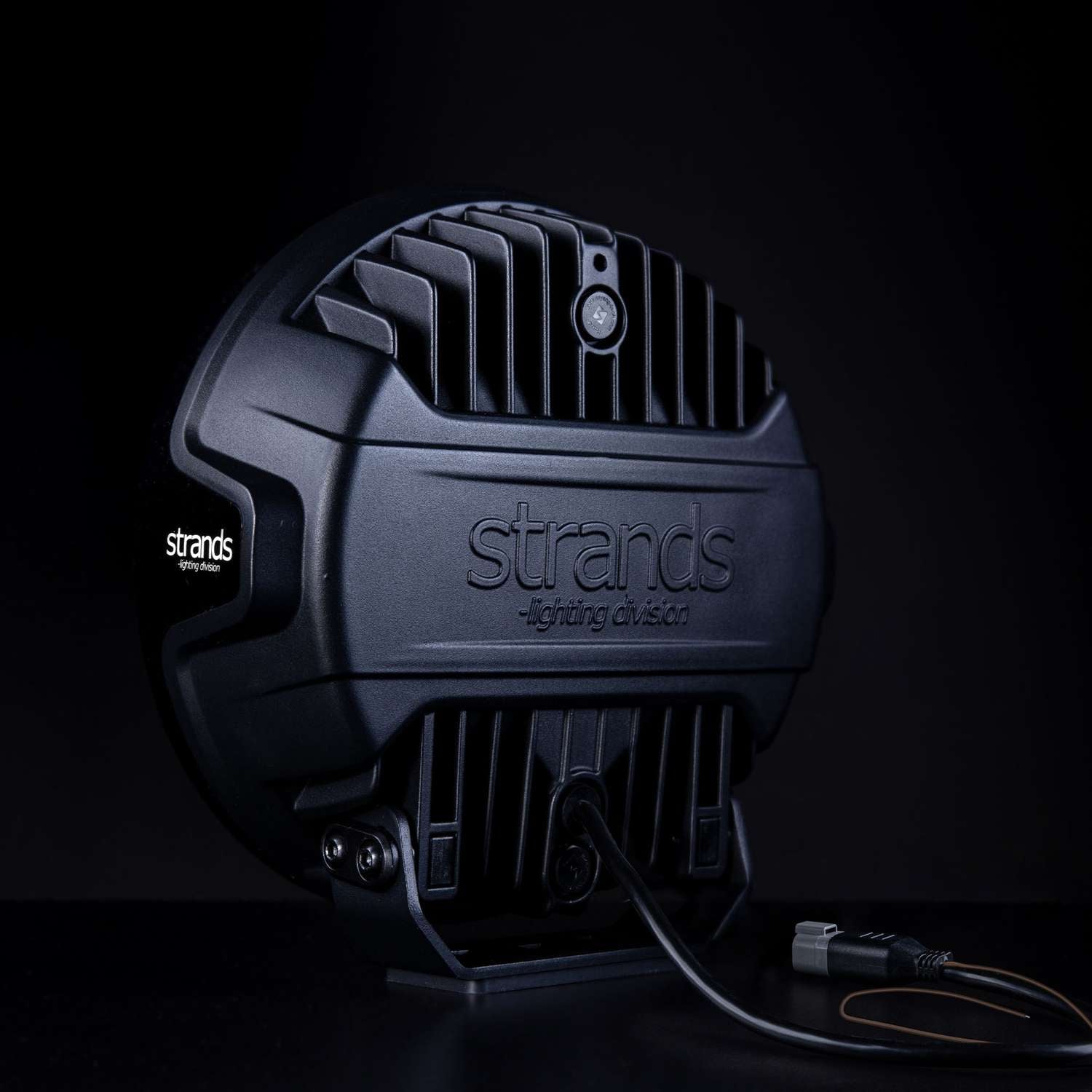

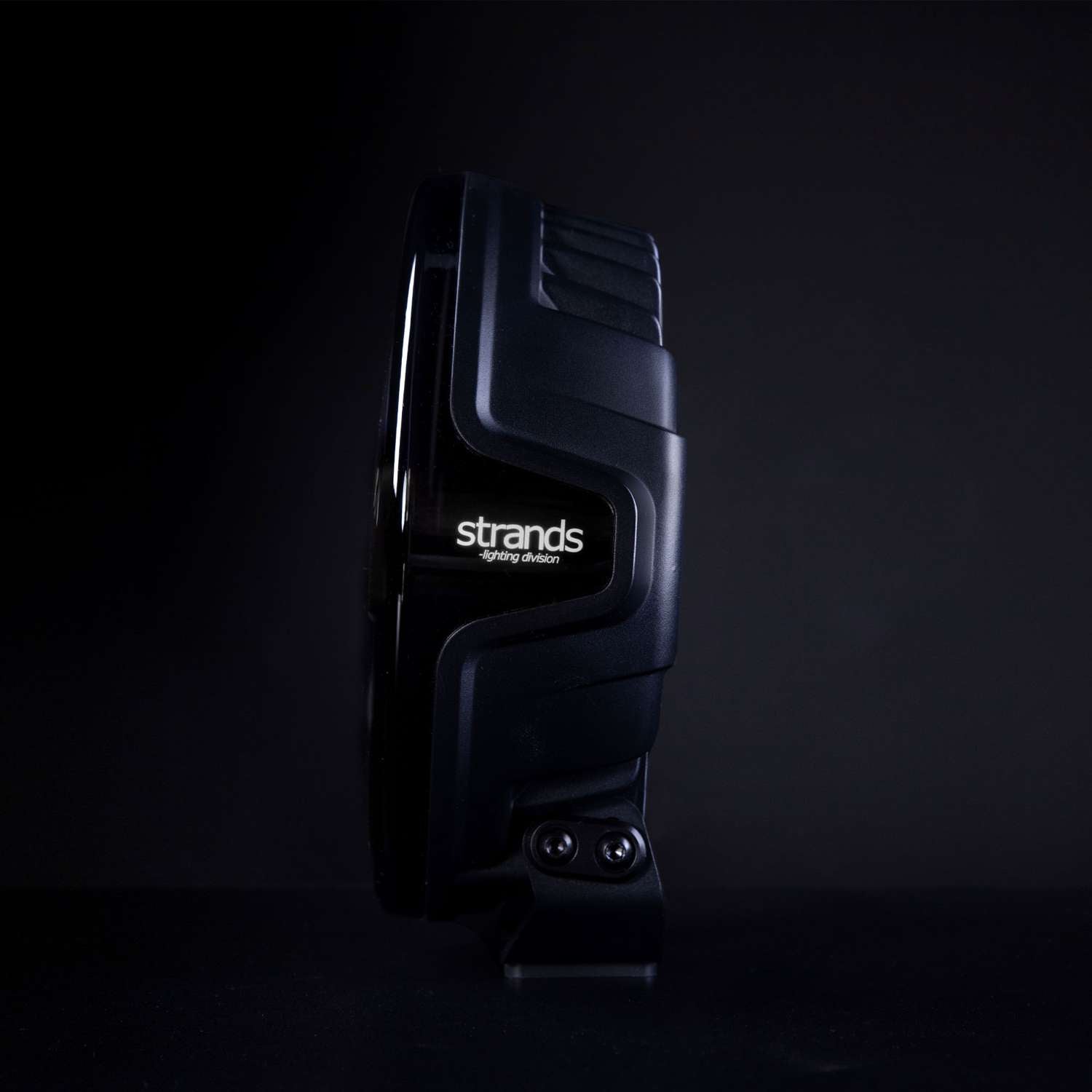

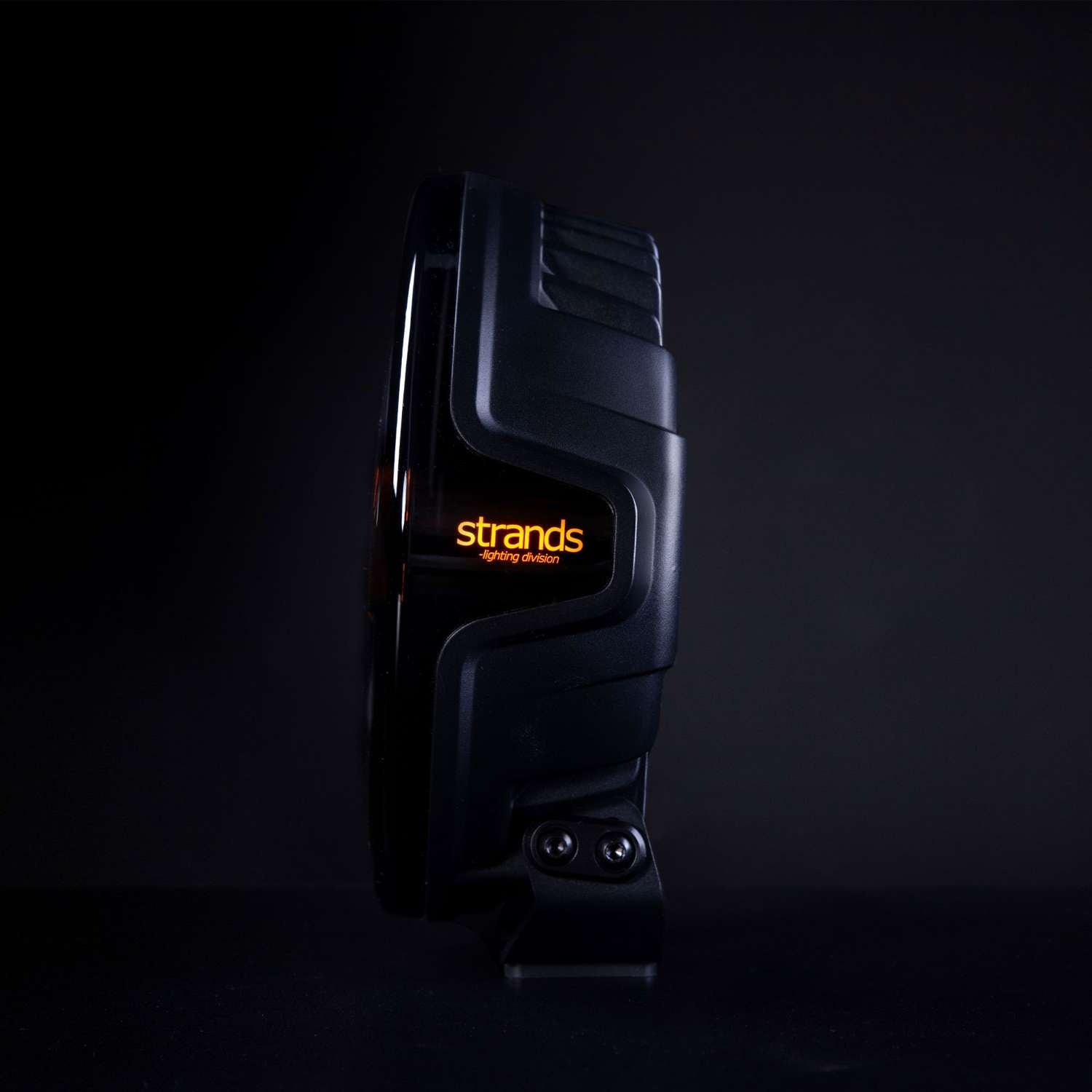

In the new E-approved Dragon Drive, high-end functionality meets bold design. The sleek design of the no-edge lens enhances its unique shape, extending over the side to showcase the glowing Strands logo. Dragon Drive has a design where all details matter: its lightweight aluminum housing, high-quality materials, and compact size make it a powerful addition to any vehicle. Thanks to its 9300 actual lumens, the extended beam reaches 600 meters in Xperience mode, an impressive boost to your high beam. The unique design of the FOR9T position lights is a true attention-grabber, with hypnotic lines drawing the attention of everyone around you.
Effortless installation

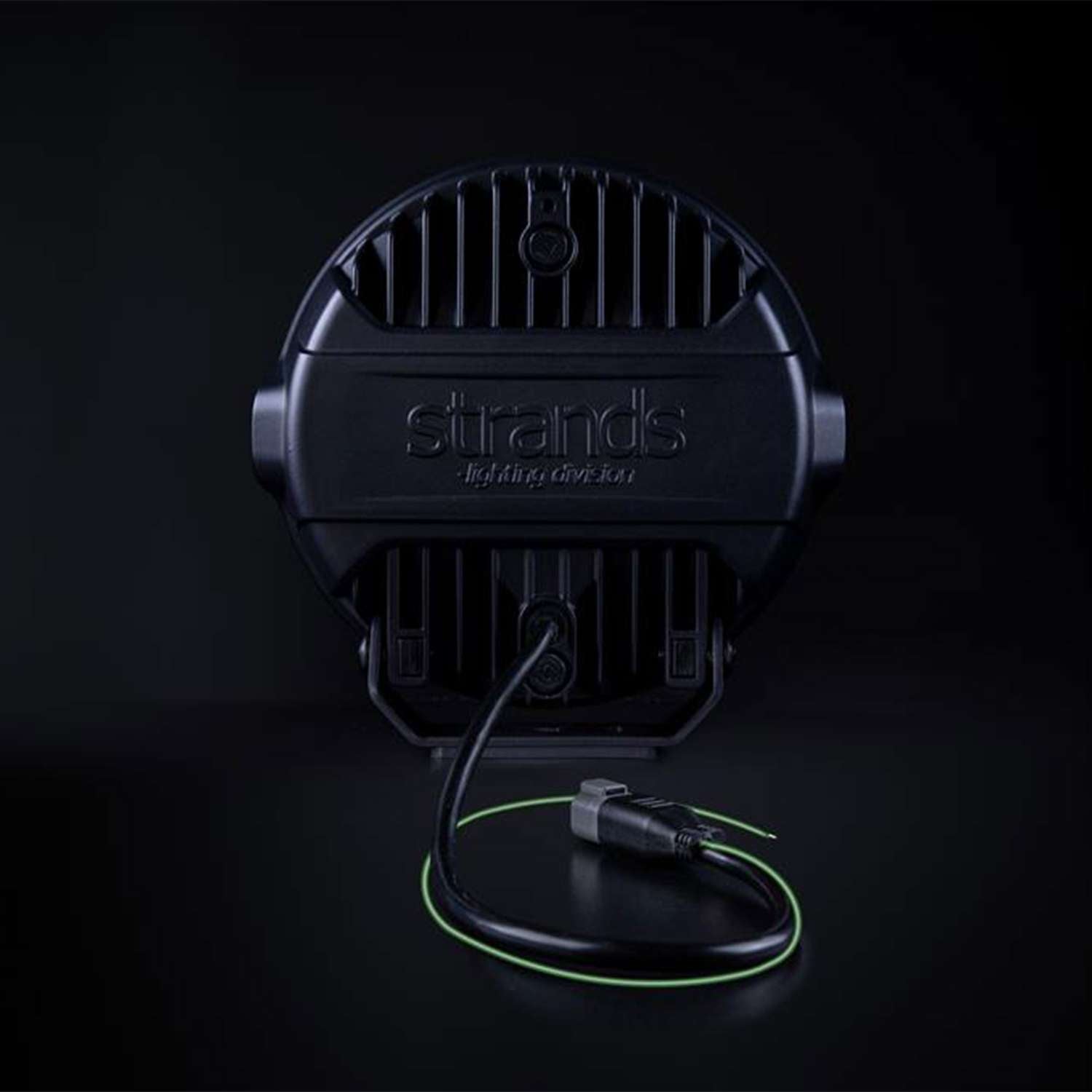

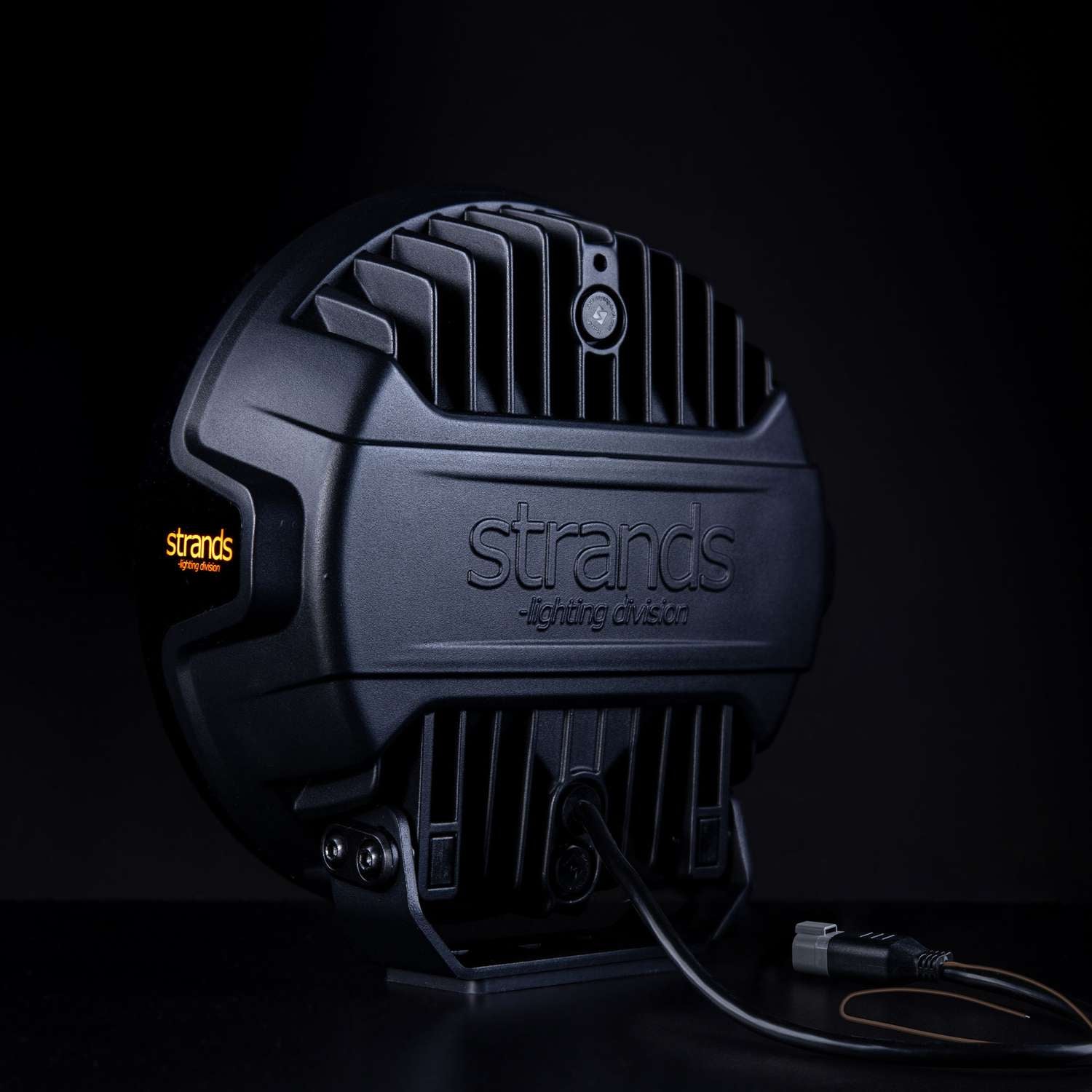

The lasting materials and IP67 IP rating ensure a long-lived and corrosion-free product. They also reduce weight and, combined with the DT-4 connector and compact bracket, make the FOR9T Dragon Drive easy to install on any vehicle. It uses 10-48 V DC. Everything you need for installation is included in the package: bracket, washers, bolts, rubber pad, and DT-pigtail. The fifth cable (green) is connected for E-mode. Dragon Drive is installed with a 550 mm cable.
For any driver
The new Dragon Drive driving light is guaranteed to be a customer favorite. It’s a powerful all-round driving light with an extended beam, suitable for many drivers. It can be used with E-approved mode and Xperience mode. The E-approved mode suits European drivers or is used during poor weather conditions, and the Xperience mode is a powerful lighting experience. The eye-catching position light, unique to the FOR9T series, adds a stylish look. The wide range of the FOR9T series provides numerous opportunities for anyone to get a complete look with matching driving, position, and work lights. Thanks to Strands’ unique 3-year warranty and expert support team, you can count on lasting customer satisfaction.
This light is sold individually and does not include a harness.
Wiring Harness Options:
Harness for one light – 72999-1
Harness for two lights – 73240-2
For three lights – 270479 Siberia Pro High Power Harness Kit
Specifications
-
Unit pcs
-
Voltage 10-48V DC
-
Theoretical effect 145W
-
Consumption E-mode: 30W / Xperience mode: 135W
-
Functions High-beam, white position light , amber position light, logo light
-
Consumption specific function White pos: 4,9W, Amber pos: 5W
-
Theoretical lumen 14000lm
-
Actual lumen E-mode: 3000lm / Xperience mode: 9300lm
-

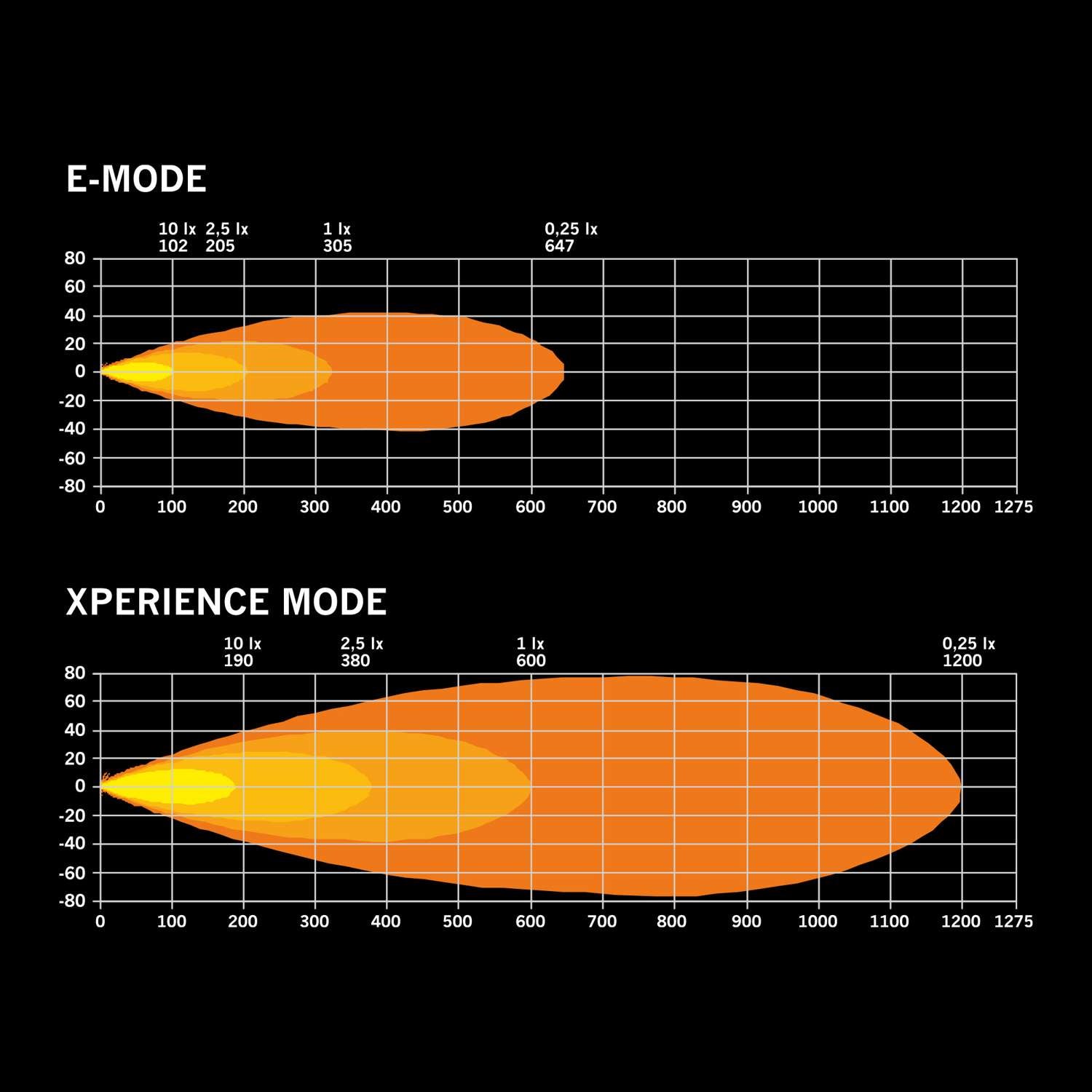

1 lux @ E-mode: 305m / Xperience mode: 600m
-
Color temperature 6500K
-
Beam pattern Extended beam
-
Beam angle 17,4
-
Connection DT-4PIN
-
Cable length 550mm
-
Color housing Black
-
Color lens Clear/Dark
-
Color LED´s White and amber
-
Material bracket Stainless steel
-
Material housing/chassi Aluminium
-
Material lens Polycarbonate
-

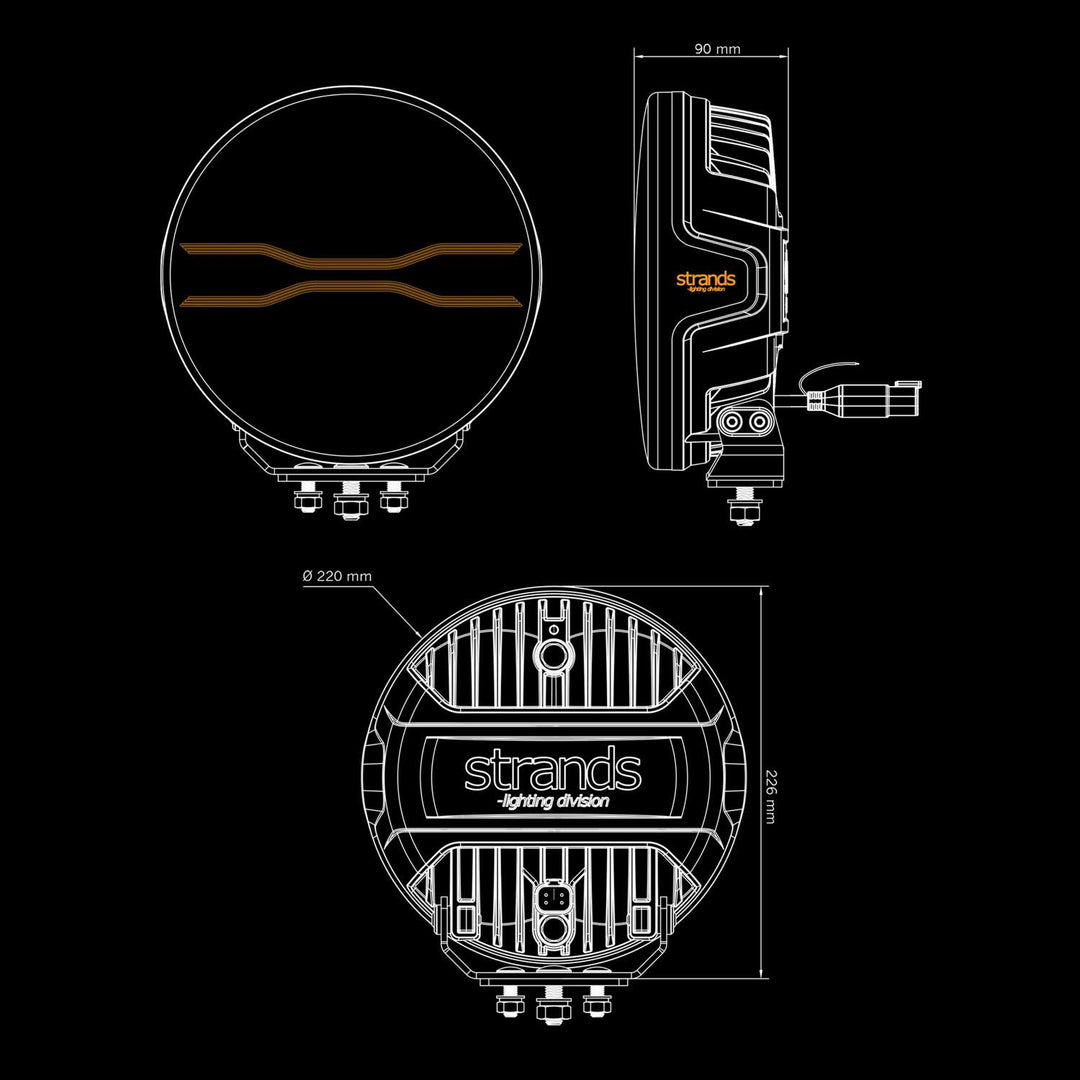

Length 220mm
-
Depth 90mm
-
Height 220mm
-
Height including bracket 226mm
-
Diameter 220mm
-
Weight 2,3kg
-
IP-class IP67
-
Operating temperature -40 - +65°C
-
E-approved Yes
-
According to regulation ECE R148, R149
-
Reference number 20
-
EMC ECE R10
