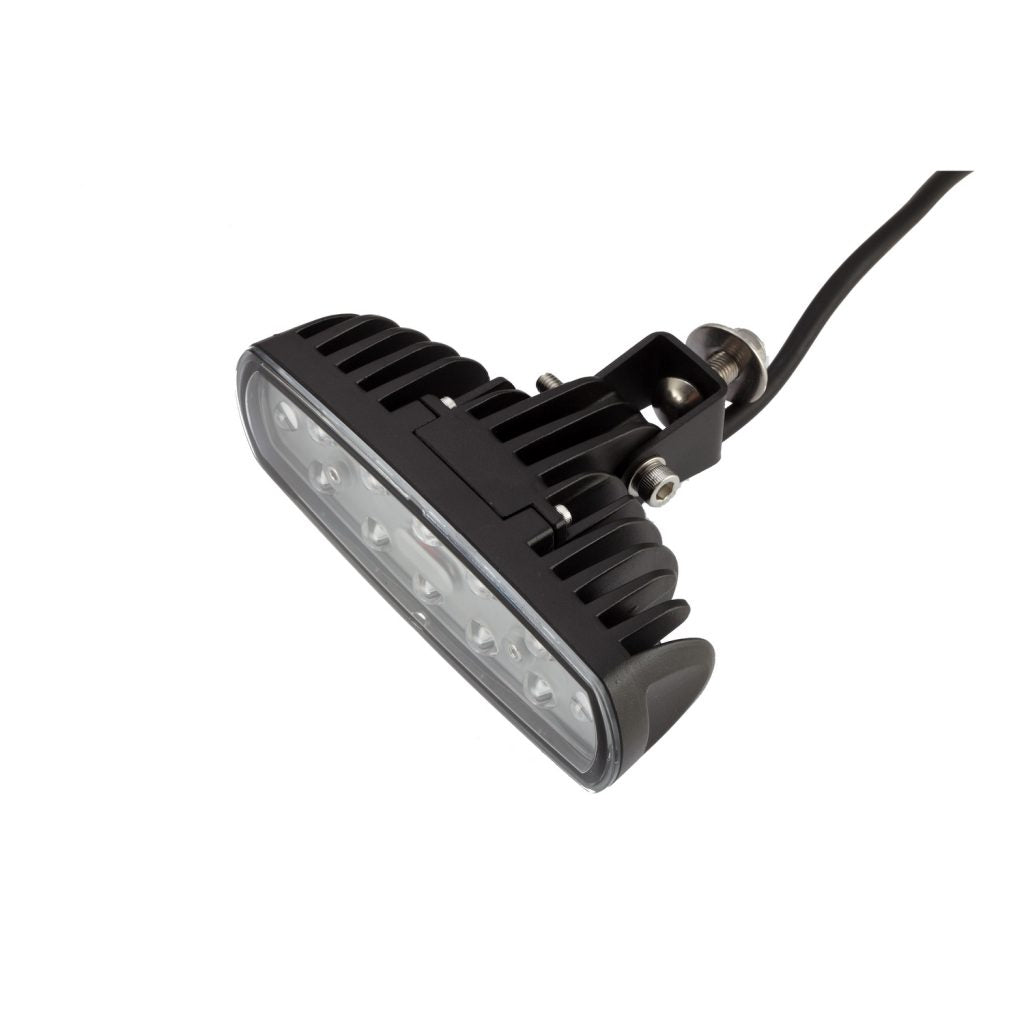

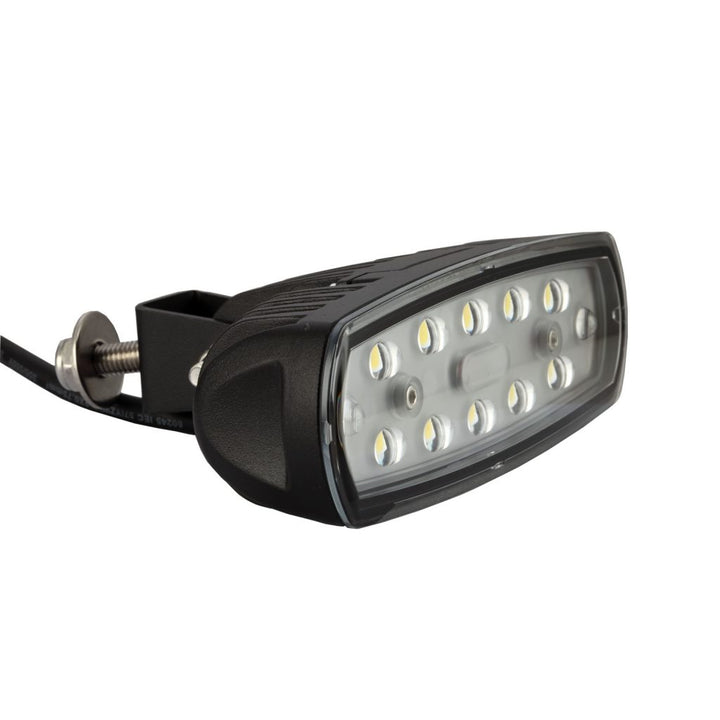

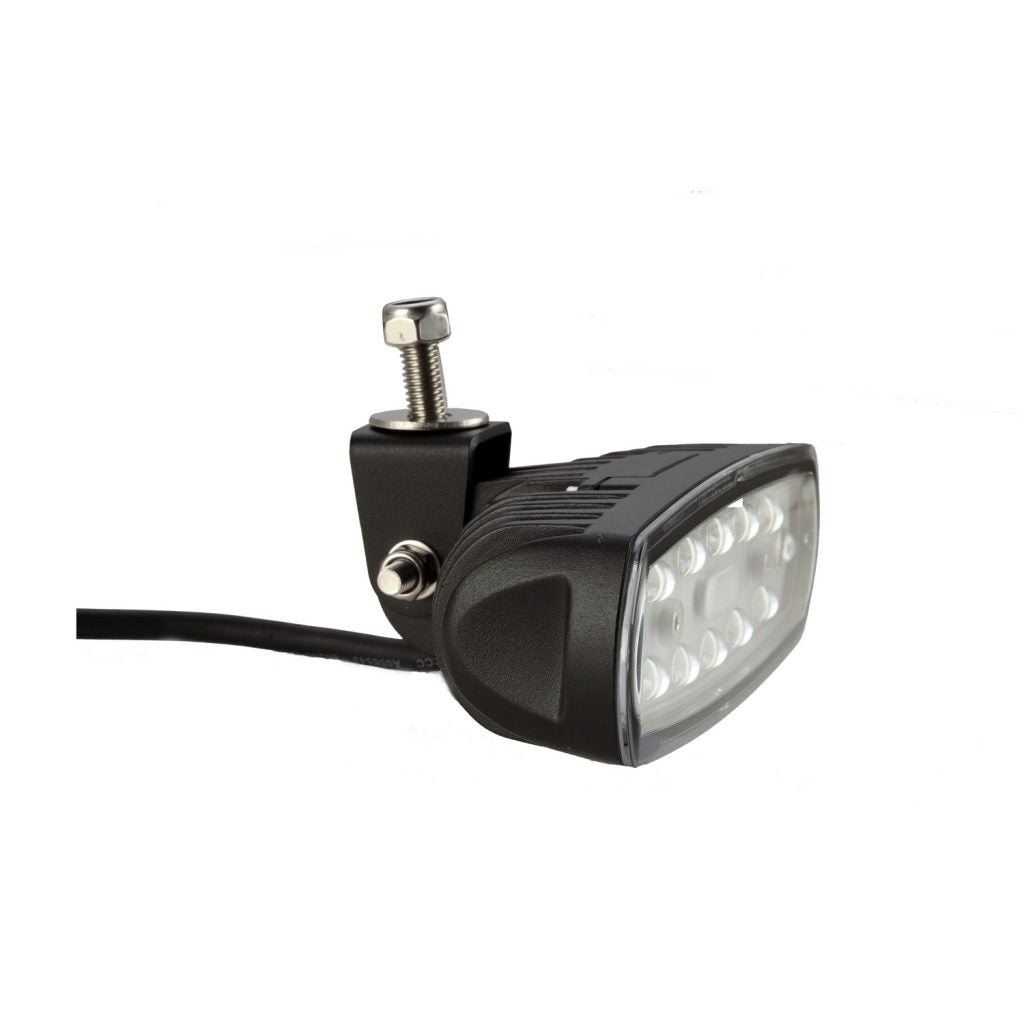

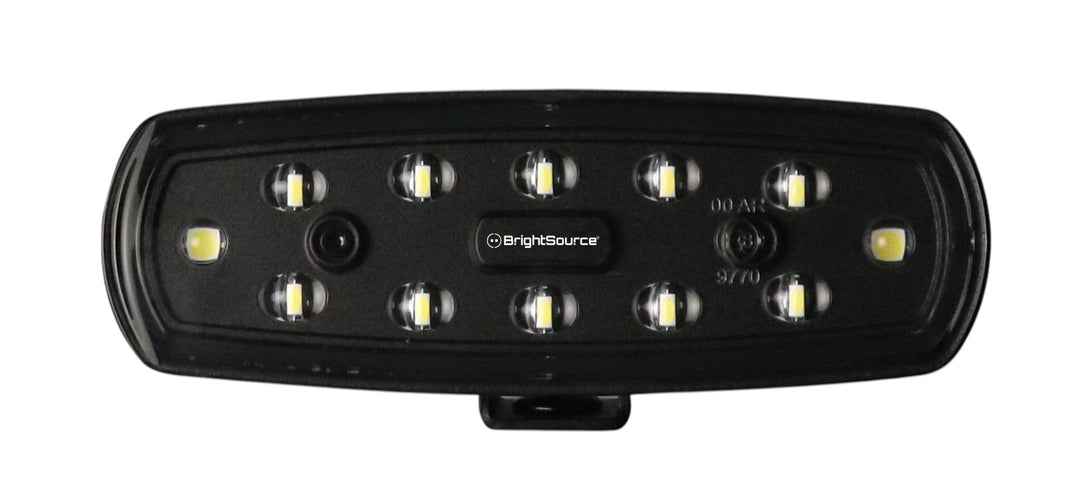

6″ Reverse/Work Light Kit (includes 2 Lights) #776152



E-Mark Street Legal* Reverse or Work Light
Dark lens cosmetic with stunning bright white output
Rectangular housing is ideal for bumper or headache rack installation
Radio Frequency protected (CISPR 25 class 4)
UV and Shock Resistant for outstanding reliability
5 Year Limited Warranty


LED: 12 LumiLEDs

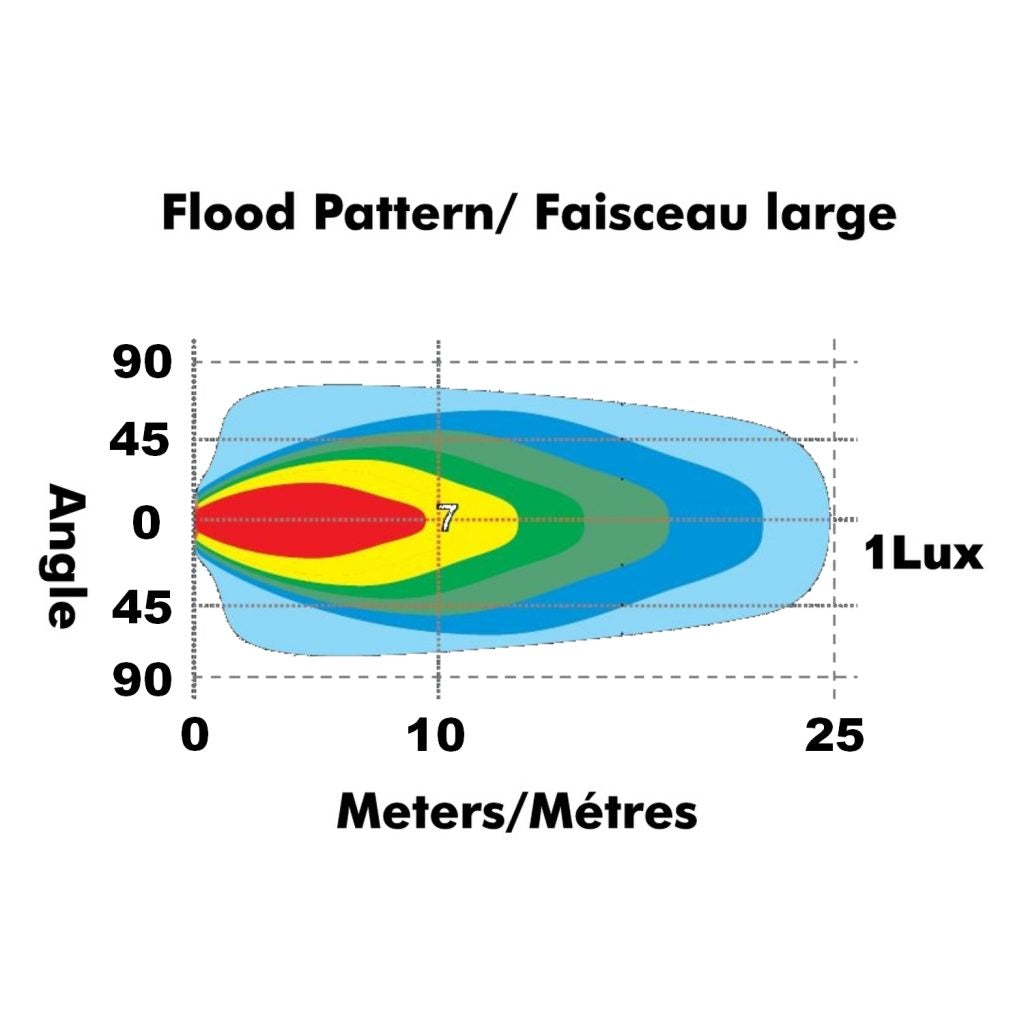

Beam Pattern: E-Mark Street Legal* 140° Flood Pattern
Colour Temperature: 6500K
Luminous Flux: 1960 lm (Raw) 1862 lm (Effective)
Lux: 1 Lux @ 25 m
IP Rating: IP68 with Waterproof Breather
Voltage: DC9-30V
Wattage: 14W
Amperage 12V/24V: 1.1A/ 0.56A
EMC: CISPR 25 class 4
Temperature Range: -40 – +60°C
Reverse Polarity Protection: Yes
Over/Under Volt. Protection: Yes
Electronic Heat Management: Yes
Vibration Protection: Yes
Side Reflecting Optic System: Yes
Housing Material: Die-cast Aluminum with Polyester Powdercoat
UV Resistant: Yes
Lens Material: Lexan Polycarbonate
Mounting Bracket: Bottom bracket

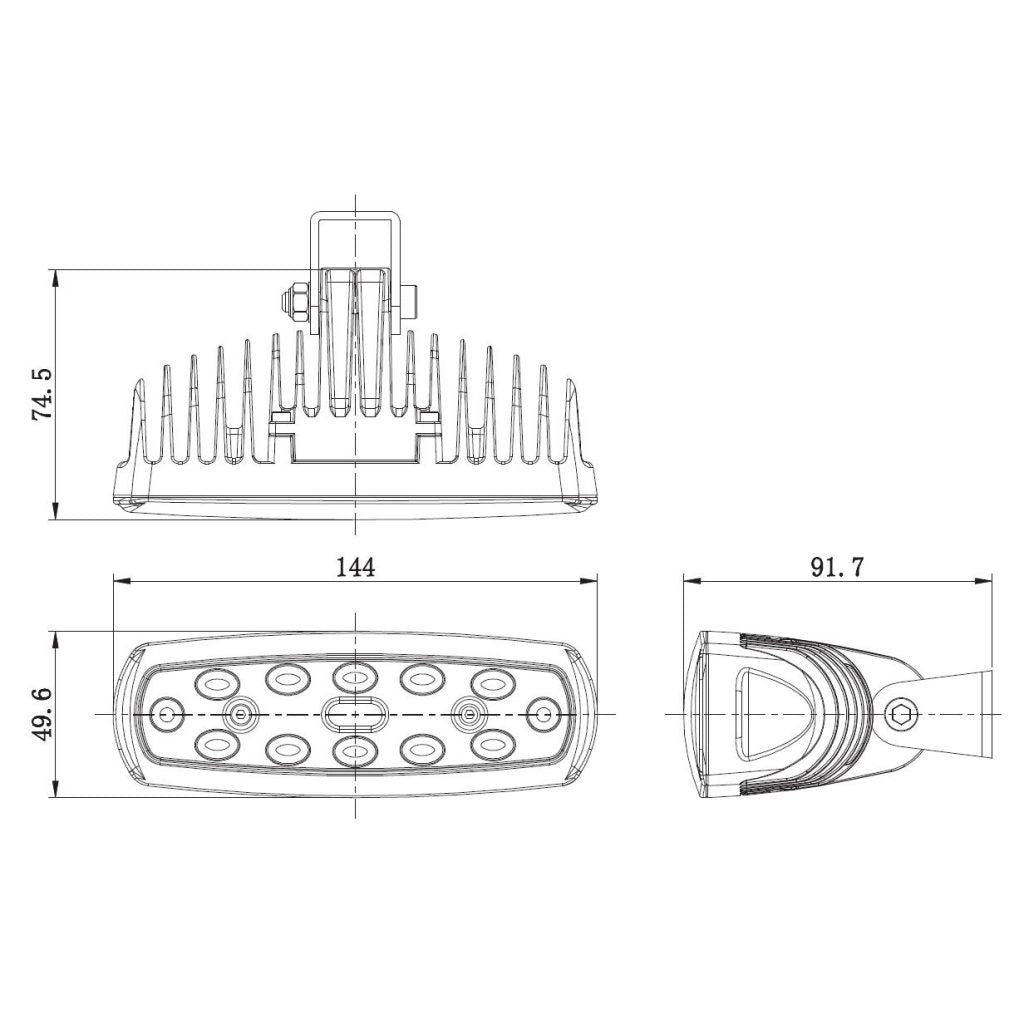

Dimensions: 144 x 50 x 75mm (6 x 2 x 3″)
Harness: Whips with Deutsch connector included (Harness sold separately – for 1 Light, PN 72999; for 2 Lights PN 73240)
LED Lifespan: 50,000+ hrs
Certification: E-Mark ECE R23/R10, CE, RoHS
Warranty: 5 Year Limited

*Except AB, SK, MB and the U.S. *Always check local laws for product use and installation requirements
